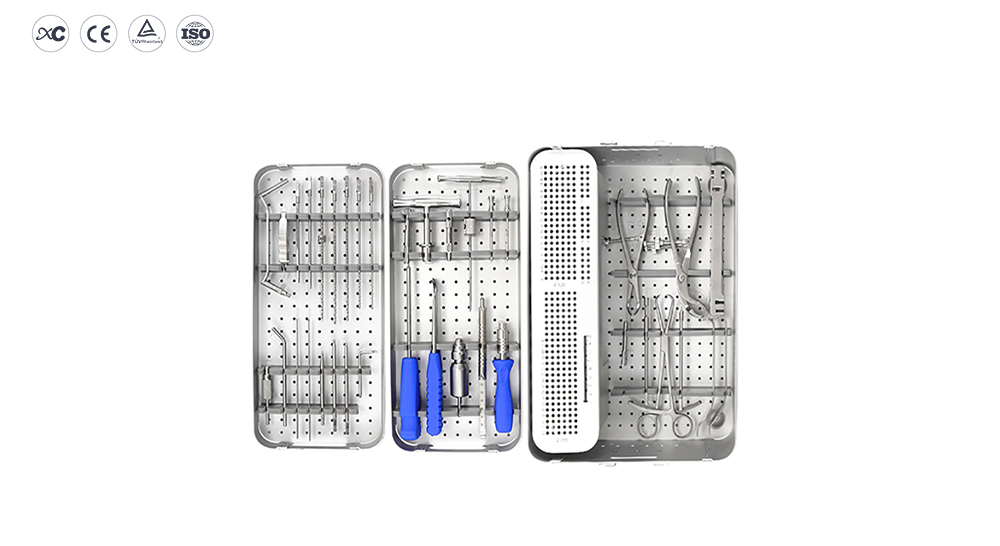

Small Fragment Locking Instrument Set
A highly specialized, fully sterilized orthopedic toolkit designed specifically for upper extremity and small fragment fracture fixation. Featuring premium sandblasted instruments and a durable aluminum sterilization case.
Ethylene Oxide Sterilized CE & ISO 13485 Certified TÜV Rheinland Audited
Surgical Instrument Set Demonstration
Three Core Advantages for Trauma Surgery
Material & Craft Highlights
All instruments are made of premium medical stainless steel, ensuring they will not oxidize even after repeated high-temperature sterilizations.
Durable Product Material
️
The instrument box is crafted from high-quality aluminum material, making it exceptionally strong, lightweight, and highly durable for OR transport.
The surface of the surgical forceps is sandblasted. This advanced finish effectively reduces fingerprints and eliminates blinding reflections under surgical lights.

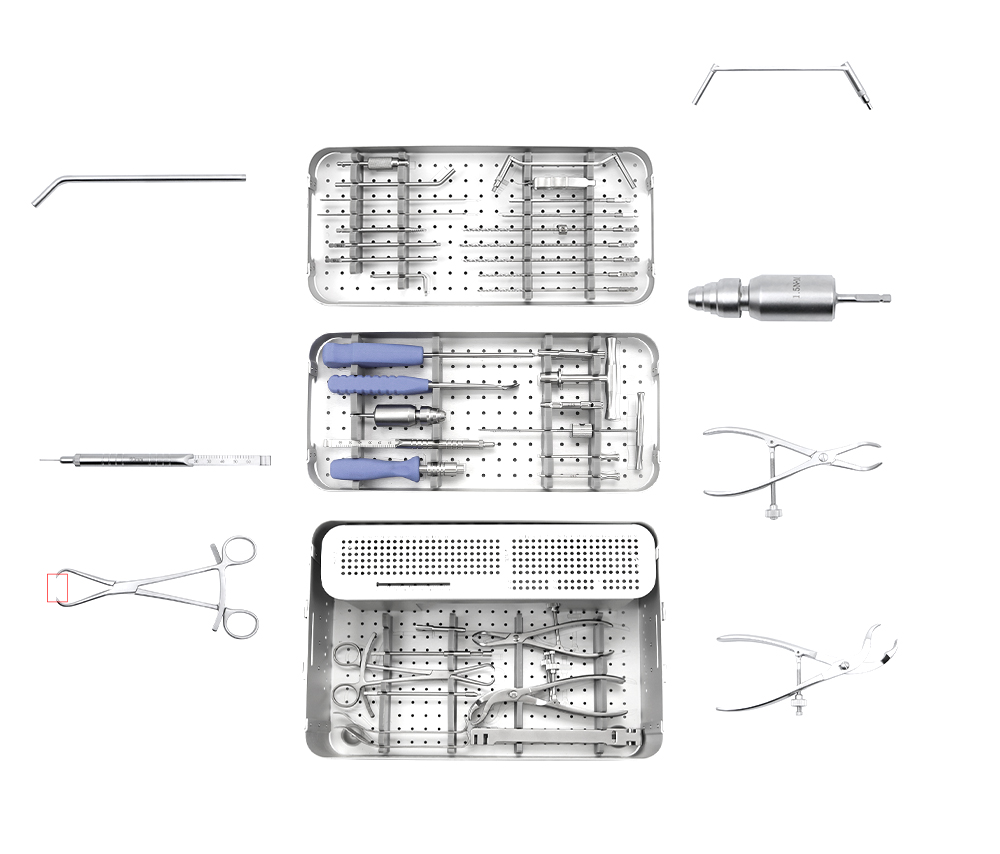

Precision Tools for Small Bone Fracture Fixation

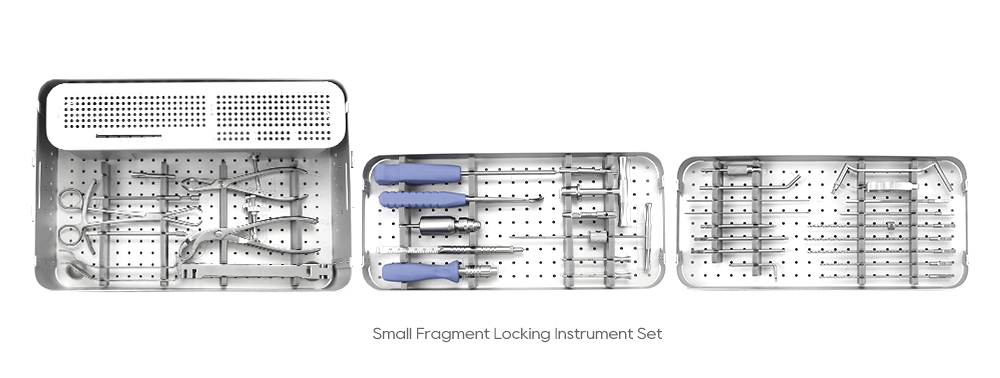

The multi-layer tray is logically organized to support the entire surgical workflow, from drilling to bone reduction and screw insertion.
▶ Torque Handle 1.5N.m
Ensures accurate 1.5N.m torque, preventing over-tightening of small screws to provide reliable and safe fixation.
▶ Double-end Guide Φ2.5 / Φ3.5
Supports precise drilling for Φ2.5mm and Φ3.5mm screws in small fragment fracture fixation.
▶ Drill Guide Wrench
Secures and tightens threaded drill sleeves to ensure precise drilling positioning without wobble.
▶ Sharp End Reduction Forcep
Grips and reduces small bone fragments with sharp tips for precise anatomical alignment during surgery.
▶ Self-centering Bone Hold Forcep
Securely holds and automatically aligns bone fragments for stable fixation while applying plates.
▶ Depth Gauge
Measures screw length accurately to ensure proper bicortical fixation and prevent soft tissue penetration.
Clinical Indications: Upper Extremity Fractures
This instrument set is specifically indicated for upper extremity small fragment fracture fixation.
Non-Traumatic & Reconstructive
-
+ Osteotomy & deformity correction
-
+ Revision & reconstructive surgery
-
+ Osteoporotic fracture fixation
OEM Box Design & Implant Materials

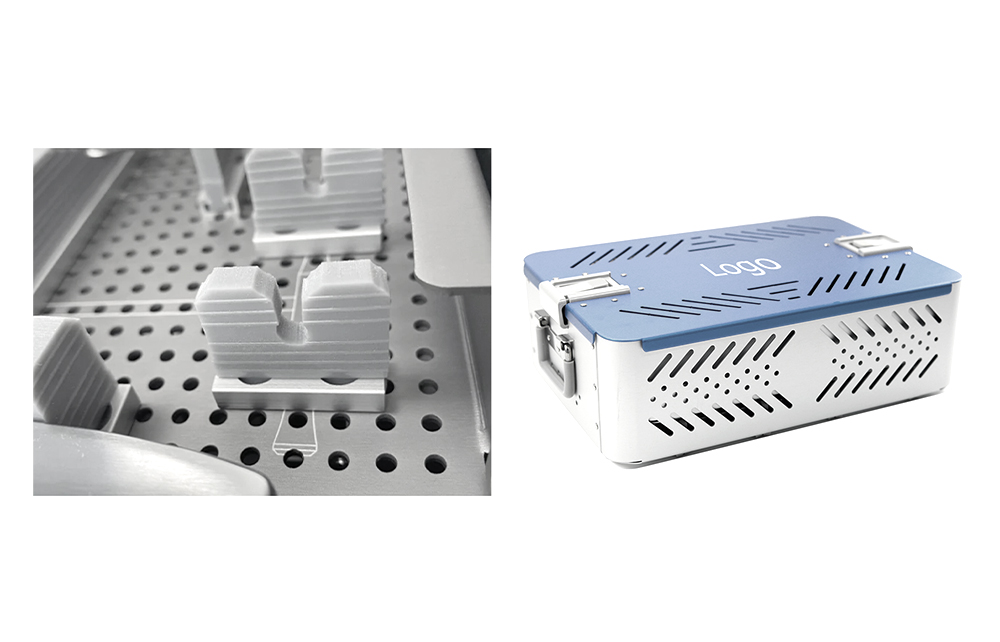

Silicone Anti-Collision Protection
The instrument box is internally equipped with custom silicone anti-collision strips. This innovative layout safely cradles each instrument, better protecting the tools from damage during transportation and high-temperature sterilization.
* We support full OEM/ODM logo customization on the aluminum box cover.
Matched Titanium Alloy Implants
-
• Compatible with locking plates made of titanium alloy conforming to GB/T 13810-2017 (TC20 production).
-
• Implants undergo CNC Turning, Milling, and Wire EDM for sub-micron accuracy.
-
• Anodizing, Electropolishing, and Matte Finishing applied to implants for consistent roughness.
Explore Related Orthopedic Implants
This instrument set perfectly complements our range of upper and lower extremity locking plates:
Metacarpal Bone Plates Radius & Ulna Plates Humerus Plates Foot & Ankle Implants
