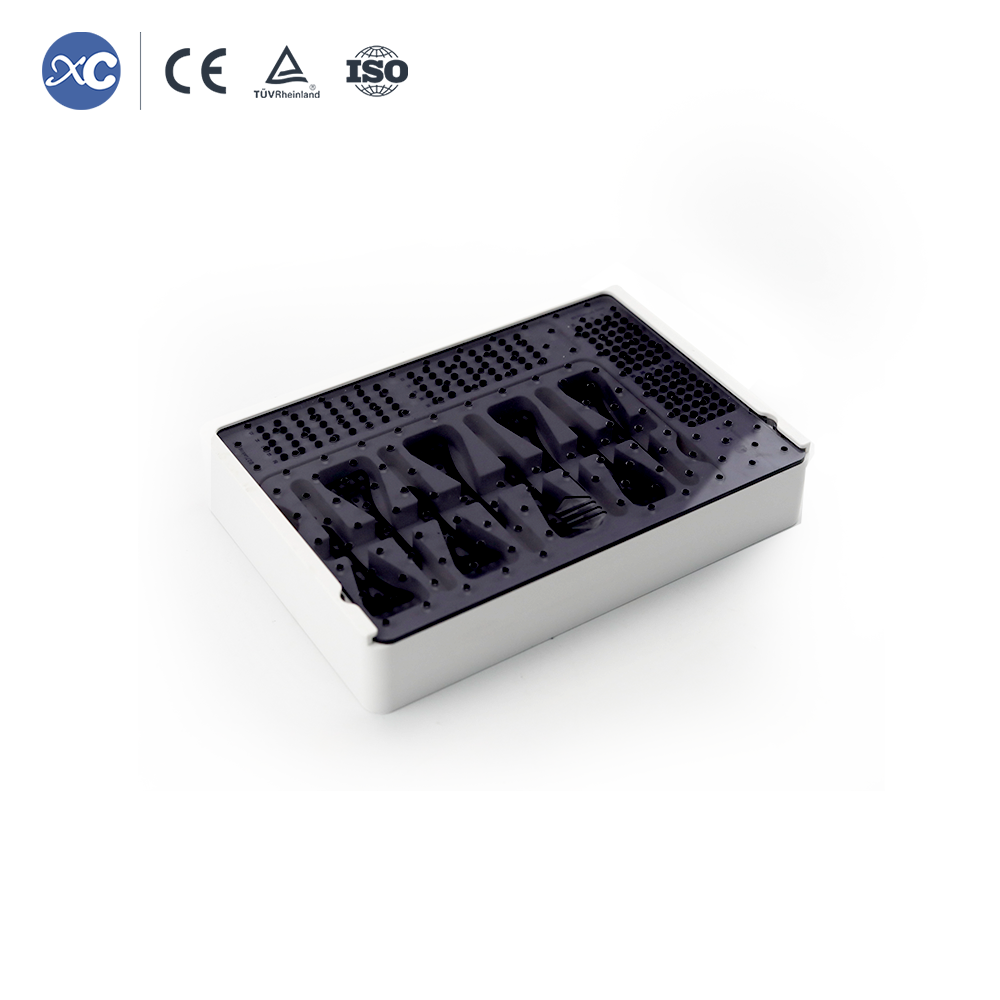

Distal Radius Instrument Set

  • RQRG01

  • XC Medico

  • Radius & Ulna

  • 1 Pcs（72 Hours Delivery）

  • Radius

  • Medical Stainless Steel

  • CE/ISO:9001/ISO13485.Etc

  • Custom-Made 15 Days Delivery（Excluding Shipping Time）

  • FedEx. DHL.TNT.EMS.Etc

Availability:
Quantity:
Inquire

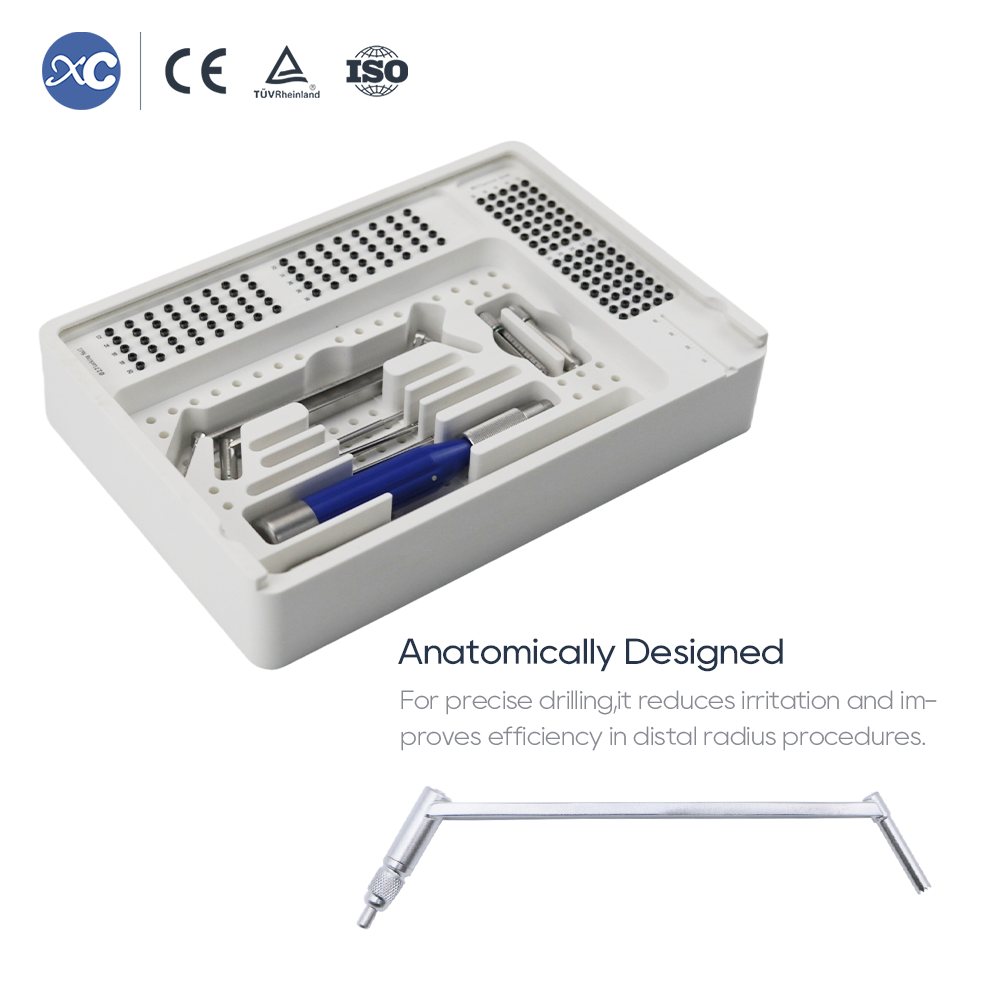

Distal Radius Instrument Set

The ultimate orthopedic toolkit designed for precise volar wrist fracture fixation. Equipped with an advanced HPP+PPSU sterilization tray and ergonomically optimized surgical instruments to streamline the operative workflow.

Ethylene Oxide Sterilized             ISO 13485 Certified             CNAS Lab Accreditation

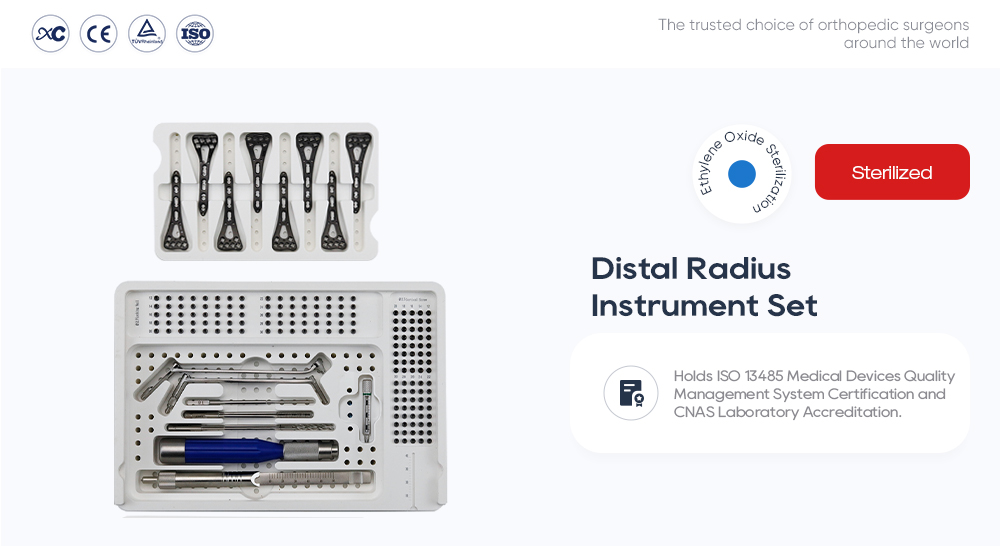

Sterilized Distal Radius Instrument Set for Orthopedic Surgery

New Surgical Technique Demonstration Video

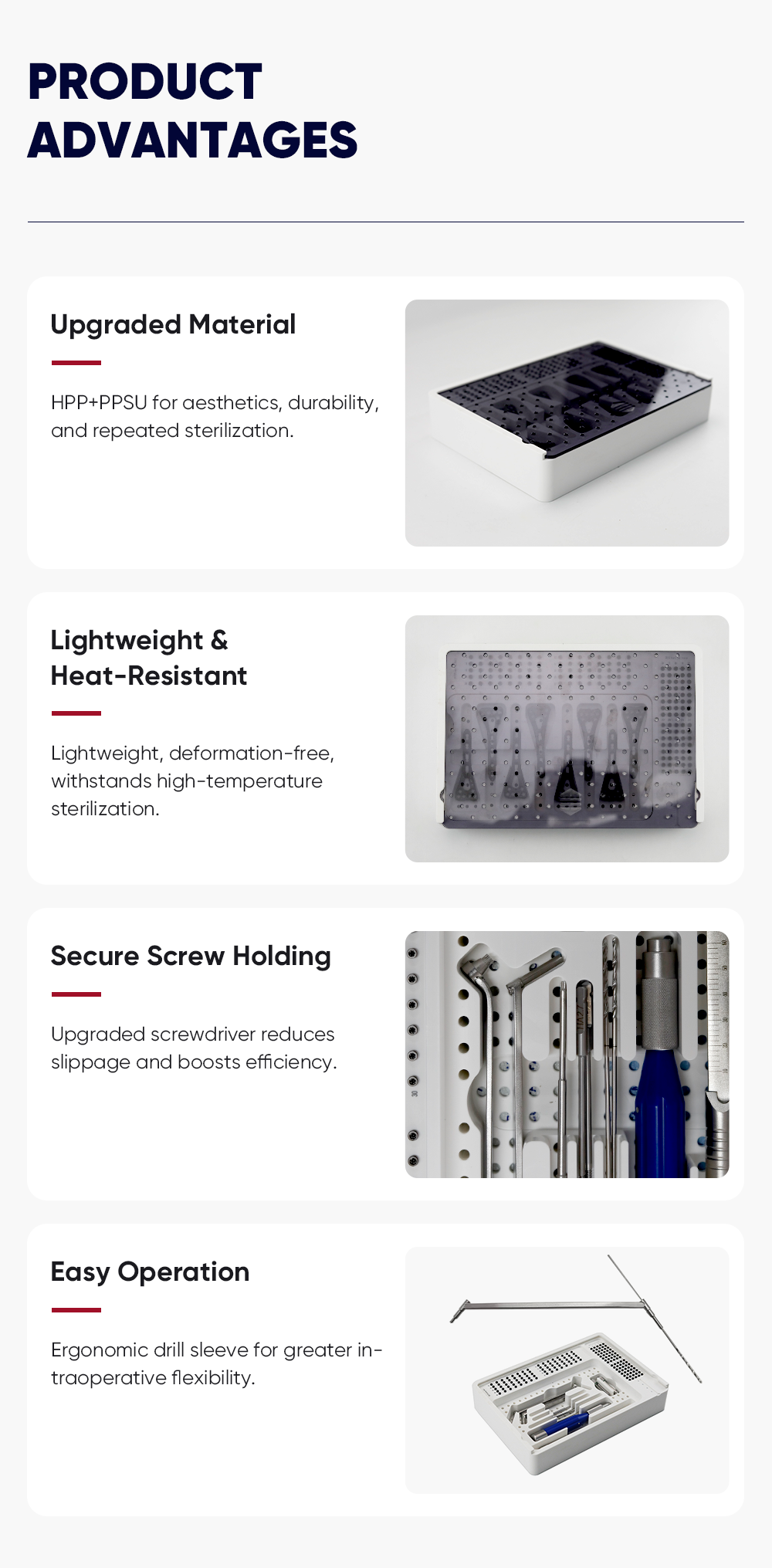

Three Core Advantages in Orthopedic Trauma Fixation

Upgraded Material

The sterilization case utilizes HPP+PPSU material, providing exceptional aesthetics, unparalleled durability, and safe repeated high-temperature sterilization.

Secure Screw Holding

Features an upgraded screwdriver tip design that dramatically reduces screw slippage, maximizing operative confidence and boosting overall efficiency.

Easy Operation

⚙️

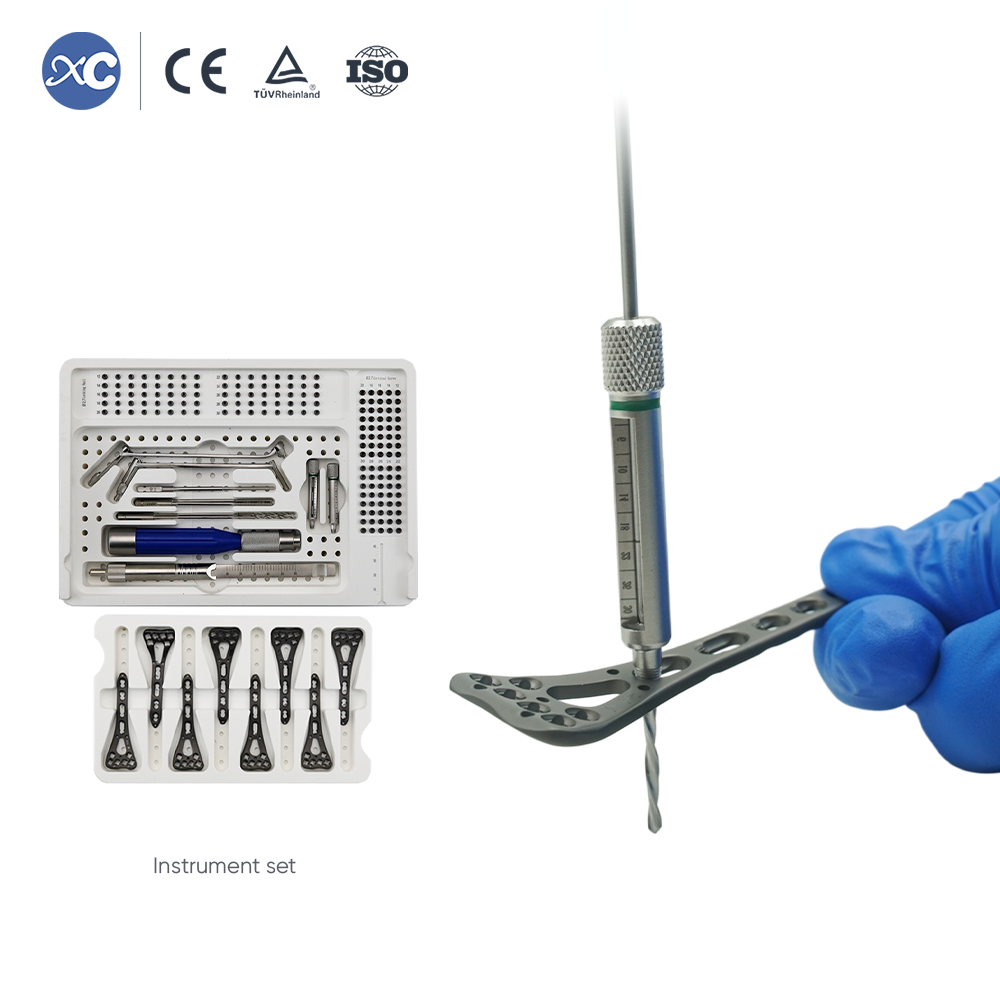

The ergonomic drill sleeve design allows for greater intraoperative flexibility, simplifying the process of guiding drills into complex fracture sites.

Engineered Details for Wrist Fracture Surgery

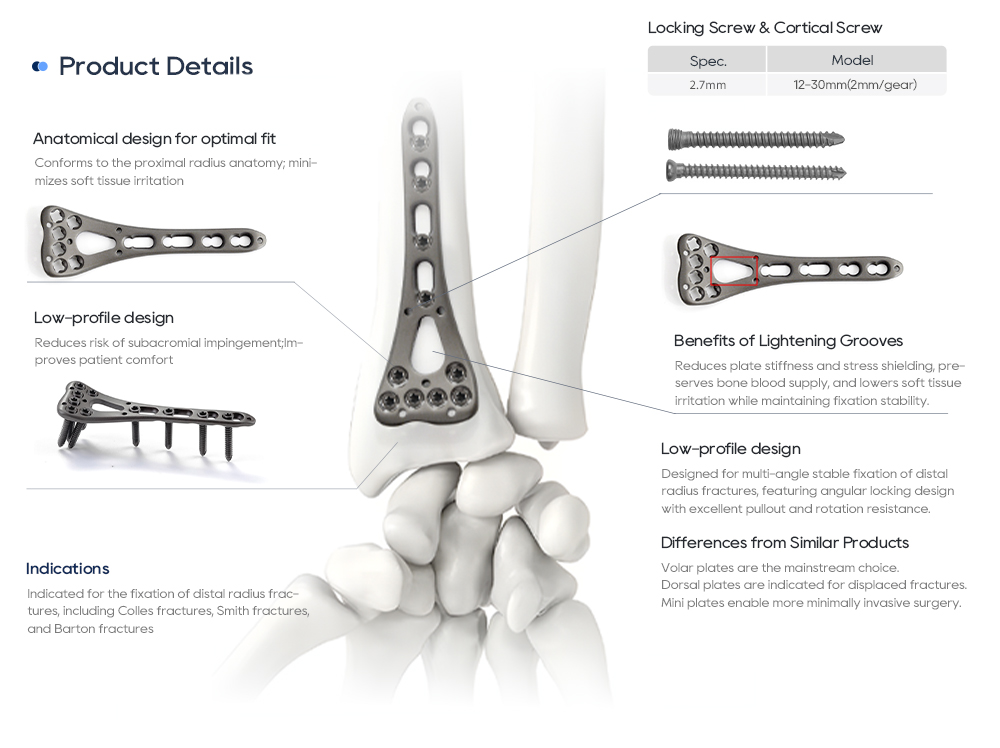

Anatomical Design Details of Distal Radius Plate System

▶ Anatomical Design for Optimal Fit

Pre-contoured to match the proximal radius anatomy perfectly, which drastically minimizes soft tissue irritation.

▶ Low-Profile Mechanism

The sleek low-profile design reduces the risk of subacromial impingement and improves overall postoperative patient comfort. Multi-angle stable fixation ensures excellent pullout and rotation resistance.

▶ Benefits of Lightening Grooves

Strategic grooves reduce plate stiffness and stress shielding, helping to preserve essential bone blood supply.

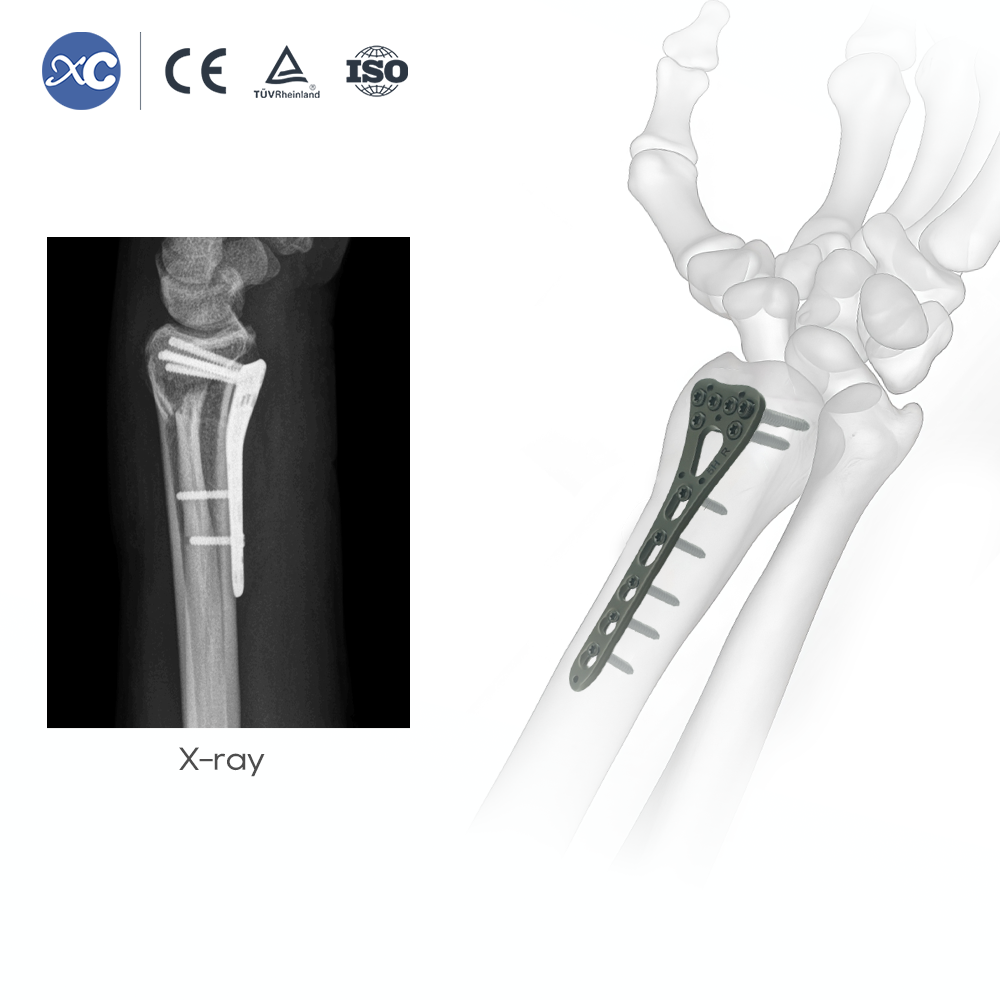

▶ Volar Plates as Mainstream Choice

Volar plates remain the mainstream choice for distal radius fractures. Dorsal plates are indicated for specific displaced fractures, and mini plates enable more minimally invasive surgery.

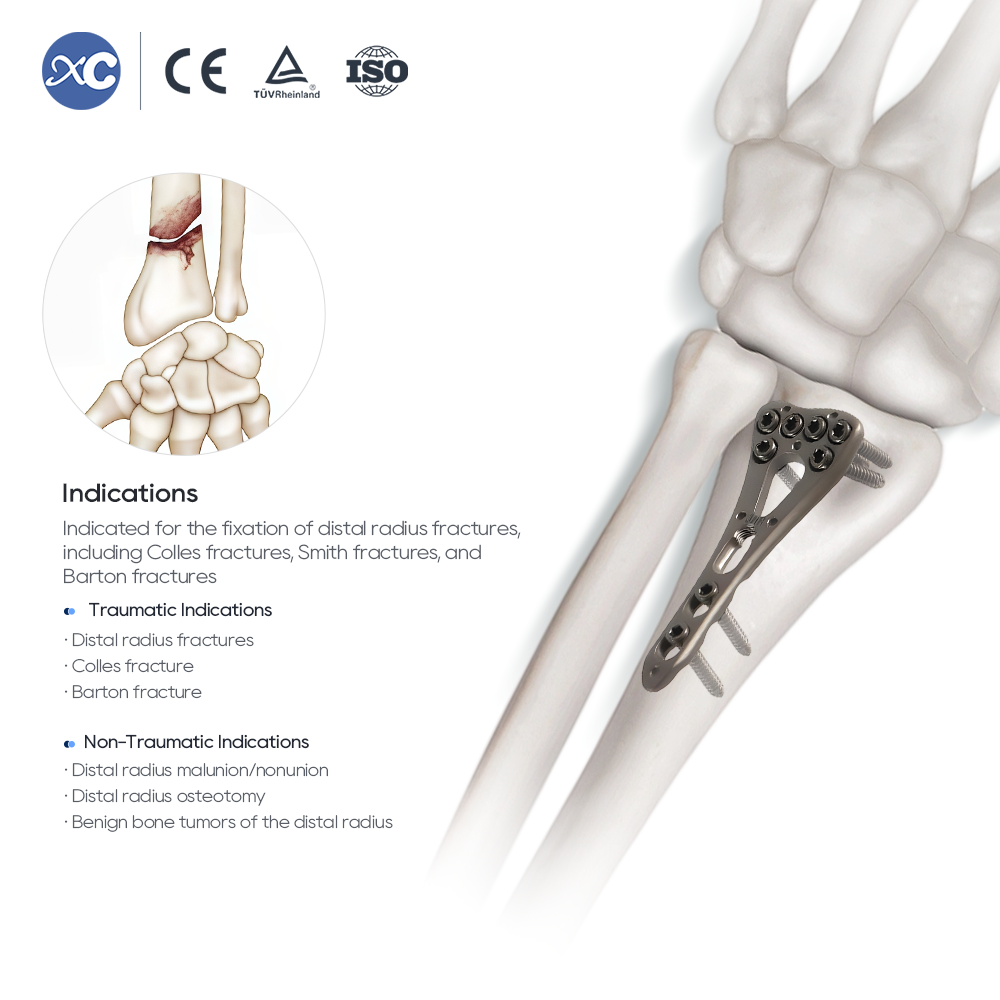

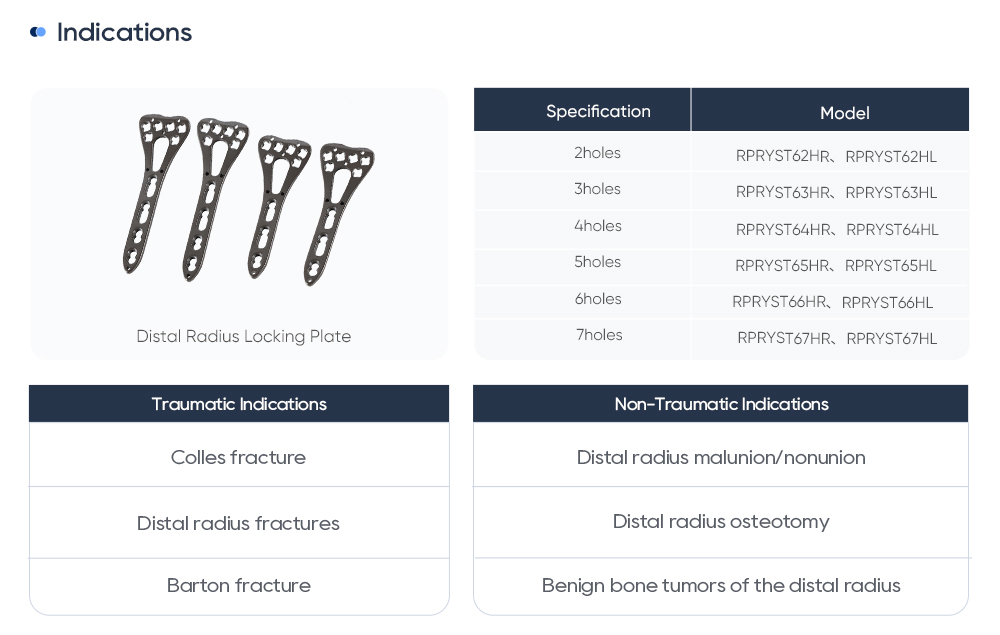

Clinical Indications & Radius Plate Specifications

Indicated for the secure fixation of distal radius fractures, addressing both acute trauma and reconstructive needs.

Traumatic Indications

  • Colles fracture

  • Distal radius fractures

  • Barton fracture / Radial neck and head fracture

Non-Traumatic Indications

  • Giant cell tumor of bone

  • Distal radius malunion/nonunion

  • Distal radius osteotomy / Radial dysplasia

Component Specification Model Options
Distal Radius Locking Plate 2 Holes RPRYST62HR, RPRYST62HL
3 Holes RPRYST63HR, RPRYST63HL
4 Holes RPRYST64HR, RPRYST64HL
5 Holes RPRYST65HR, RPRYST65HL
6 Holes RPRYST66HR, RPRYST66HL
7 Holes RPRYST67HR, RPRYST67HL
2.7mm Screws (Stardrive) Locking Screw Length: 8 - 44mm (2mm/gear)
Cortical Screw

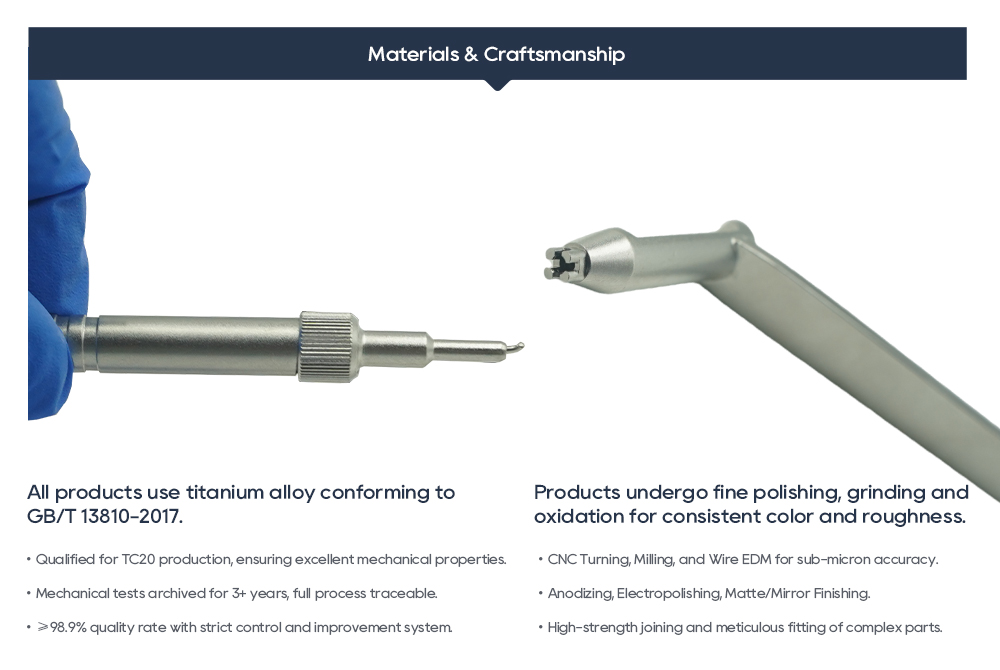

Premium Titanium Alloy & Surgical Implants Craftsmanship

High-Precision CNC Machined Titanium Alloy Distal Radius Plates

Titanium Alloy (GB/T 13810-2017)

  • • All products use titanium alloy conforming to high medical standards.

  • • Qualified for TC20 production, ensuring excellent mechanical properties.

  • • Mechanical tests archived for 3+ years, making the full process traceable.

  • • Maintained at a ≥98.9% quality rate with strict quality control.

High-Precision Machining

  • • Products undergo CNC Turning, Milling, and Wire EDM for sub-micron accuracy.

  • • Fine polishing, grinding, and oxidation for consistent color and roughness.

  • • Anodizing, Electropolishing, and Matte/Mirror Finishing applied for optimal durability in the OR.

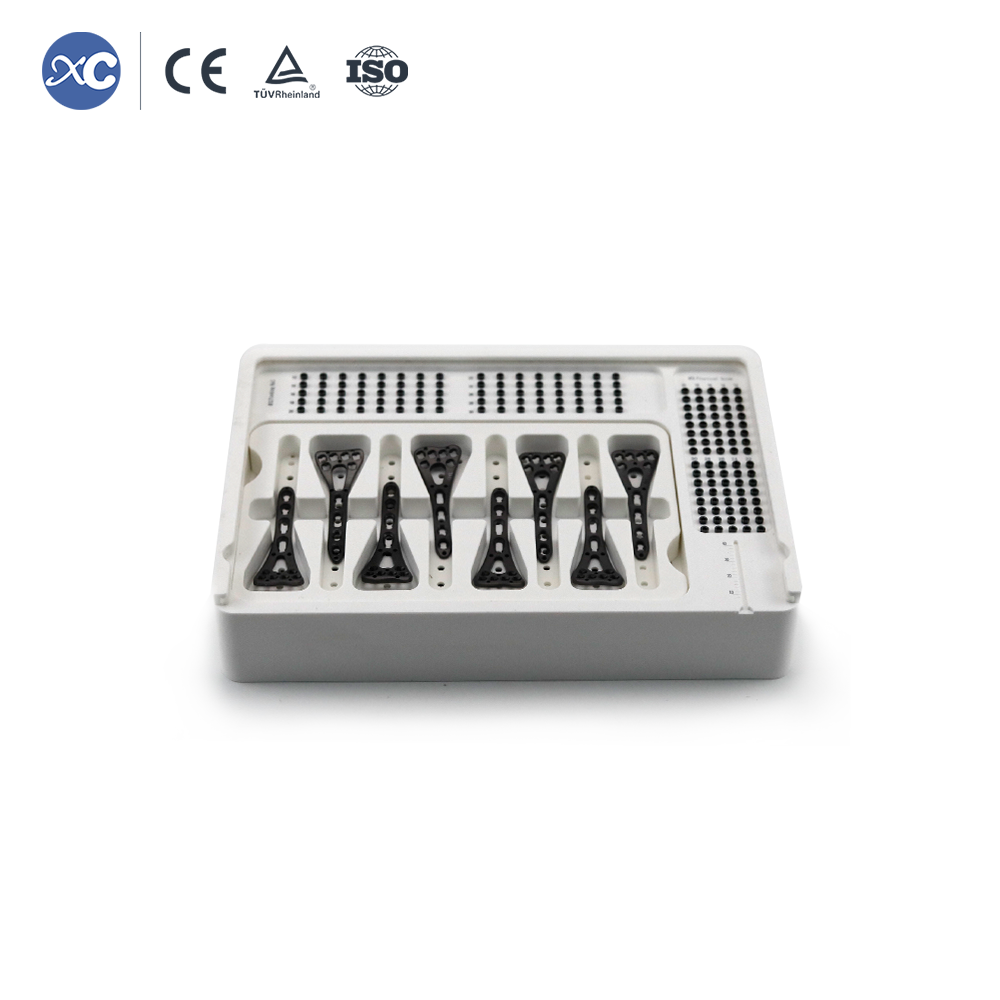

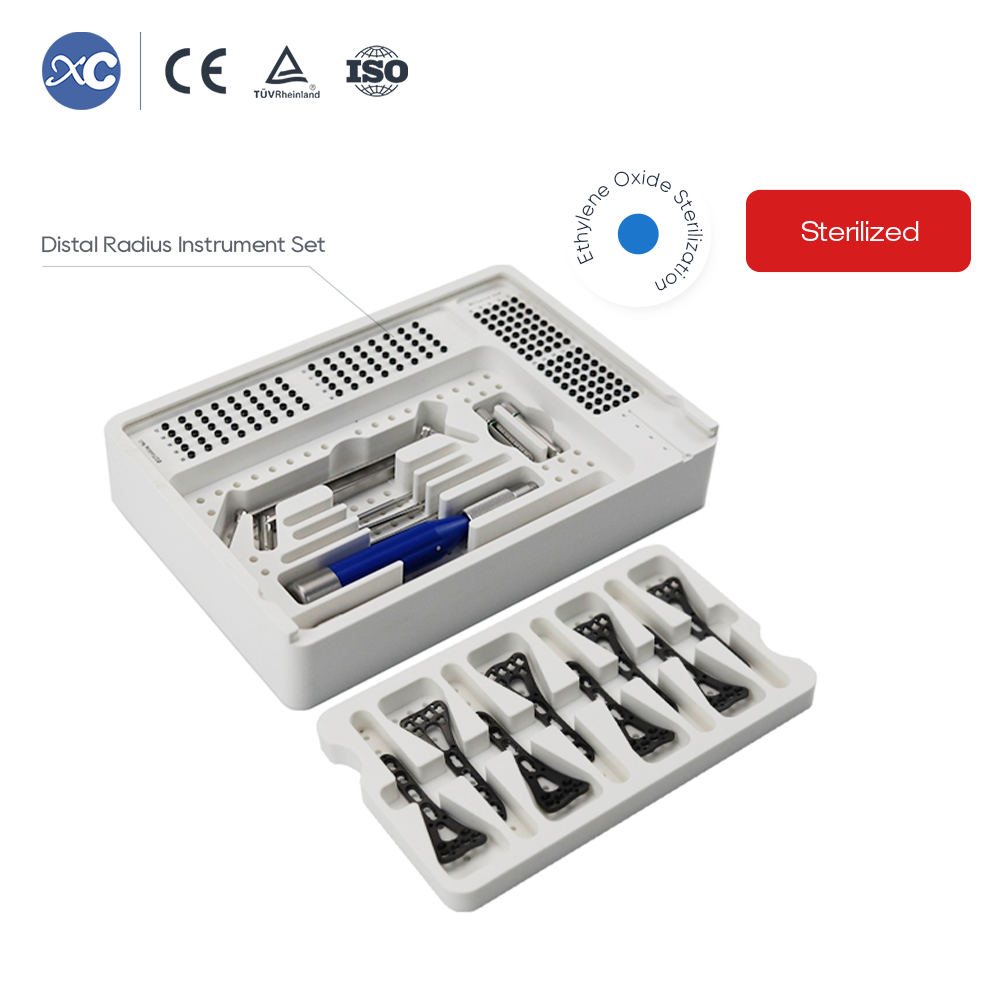

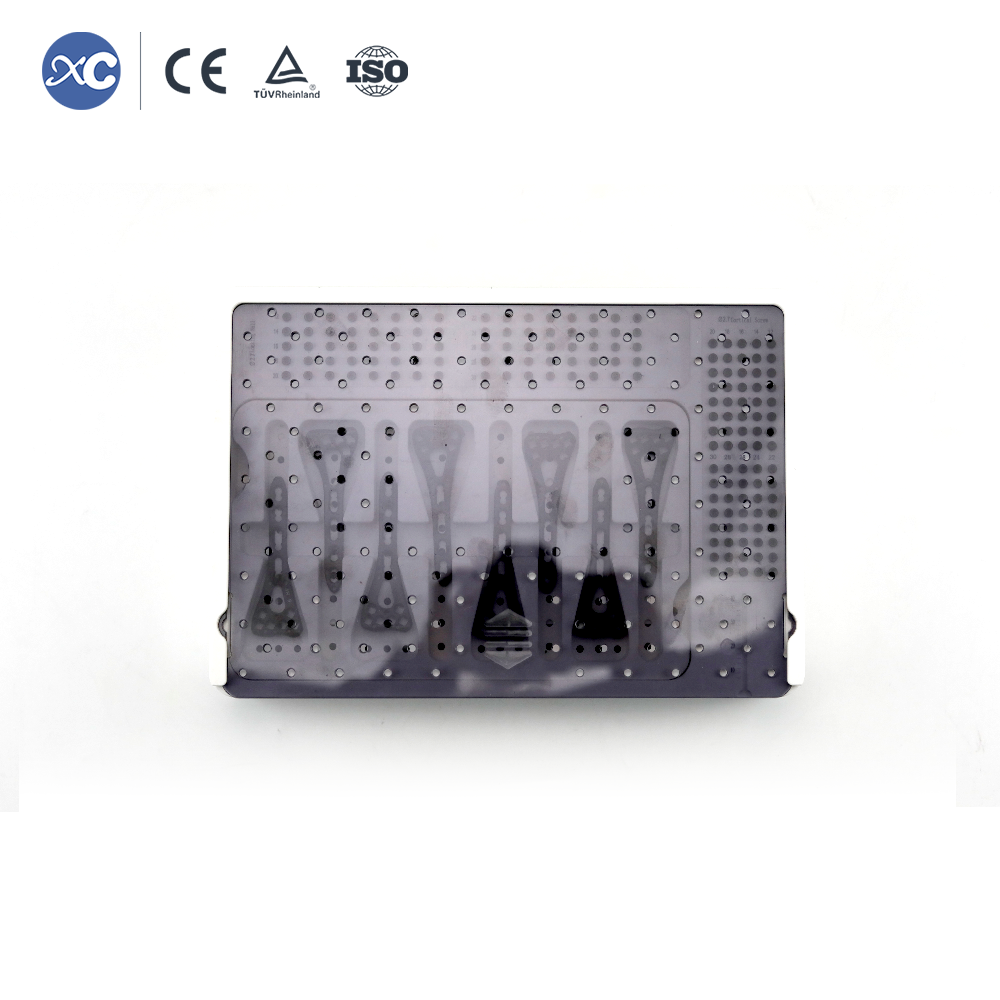

Comprehensive Distal Radius Sterilization Trays

The instrument set is logically organized in advanced HPP+PPSU sterilization trays, integrating plates, screws, and tools to streamline the surgical workflow and simplify inventory management.

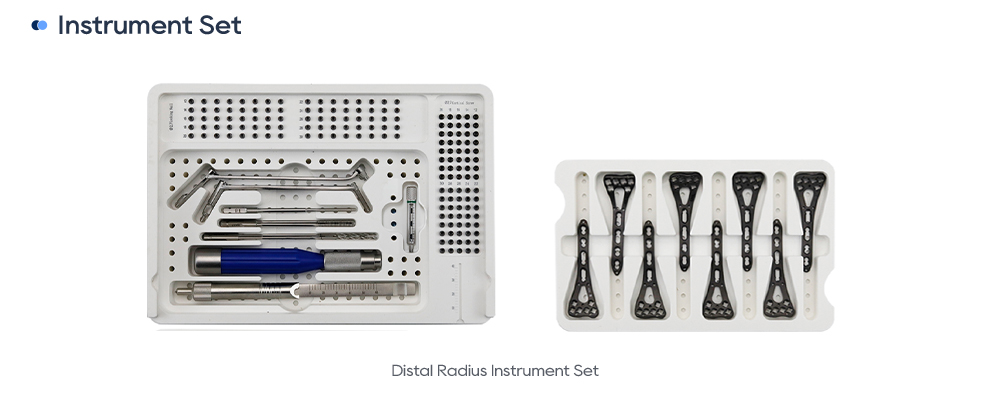

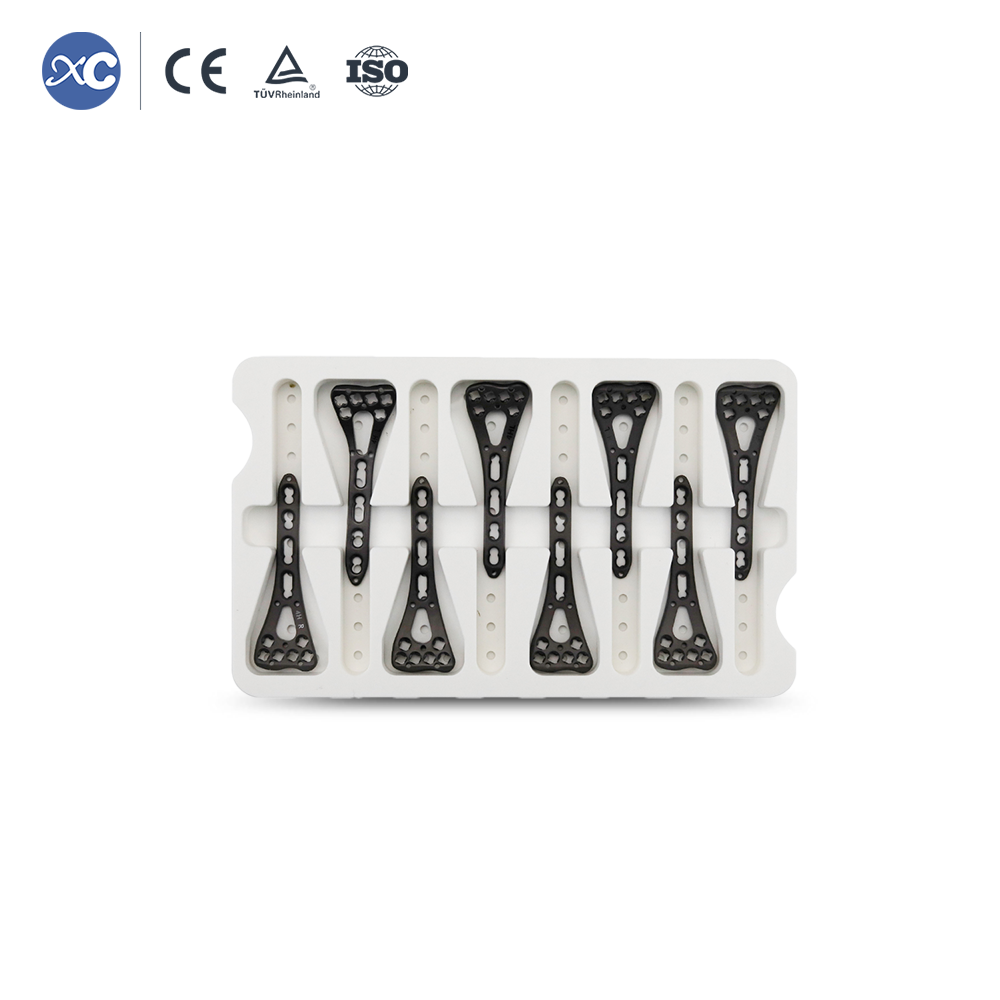

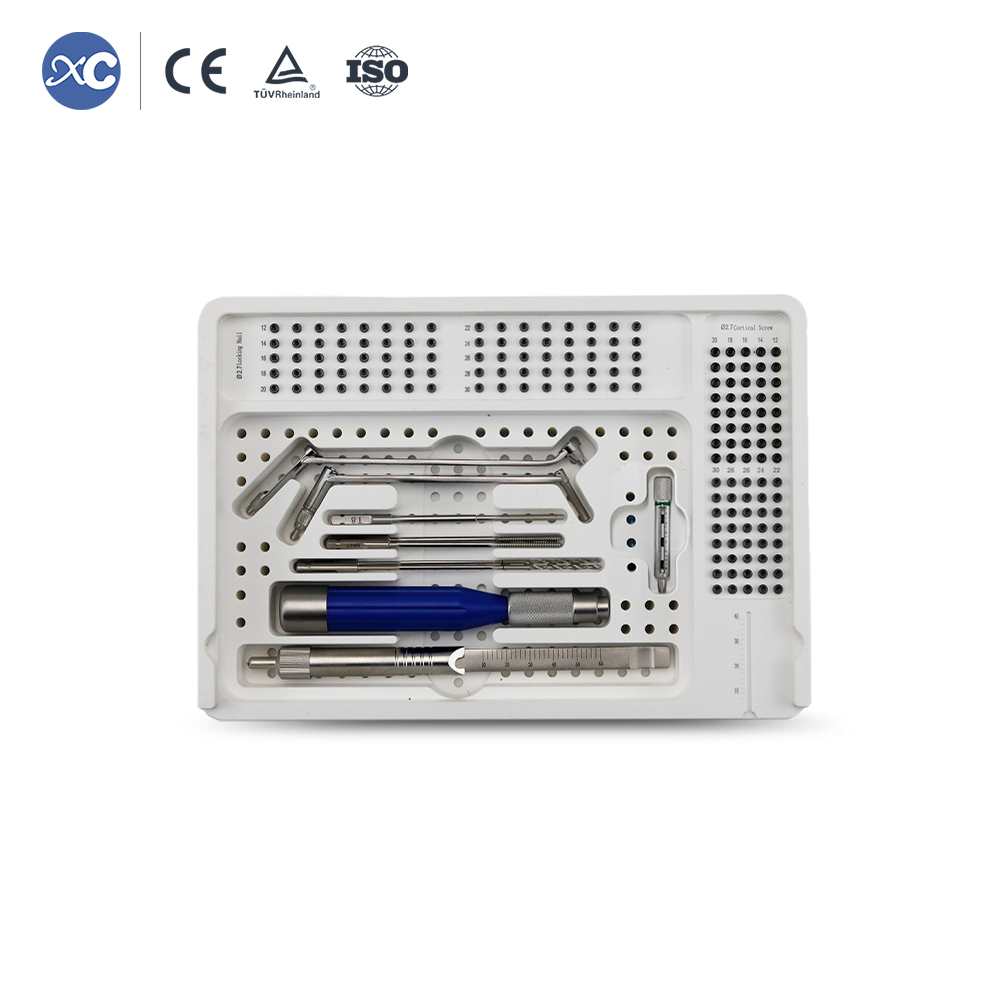

Distal Radius Instrument Set Trays with Screws and Plates

Explore our complete range of trauma solutions, including Standard Plates, External Fixators, and Kirschner wires, designed to complement our locking plate systems.

Products Pictures No. Details QTY

Distal Radius Instrument Set
（PN：RQRG01） 		Distal Radius Instrument Set-2 1 Multiaxial Drill Guide 1
2 Double Drill Guide φ2.1/φ2.8 1
3 Depth Guage 0-60mm 1
4 QC Torx  Screw Driver T8 1
5 Locking Drill sleeve φ2.0 1
6 Quick Coupling Drill Bit  φ2.0 2
7 QC Self-tapping Tap HA2.7 2
8 QC Handle 1
9 HPP Box 1
10 2.7mm locking screw HC*12mm 8
11 2.7mm locking screw HC*14mm 8
12 2.7mm locking screw HC*16mm 8
13 2.7mm locking screw HC*18mm 8
14 2.7mm locking screw HC*20mm 8
15 2.7mm locking screw HC*22mm 8
16 2.7mm locking screw HC*24mm 8
17 2.7mm locking screw HC*26mm 8
18 2.7mm locking screw HC*28mm 8
19 2.7mm locking screw HC*30mm 8
20 2.7mm cortical screw HA*12mm 8
21 2.7mm cortical screw HA*14mm 8
22 2.7mm cortical screw HA*16mm 8
23 2.7mm cortical screw HA*18mm 8
24 2.7mm cortical screw HA*20mm 8
25 2.7mm cortical screw HA*22mm 8
26 2.7mm cortical screw HA*24mm 8
27 2.7mm cortical screw HA*26mm 8
28 2.7mm cortical screw HA*28mm 8
29 2.7mm cortical screw HA*30mm 8
30 Distal Radius Locking Plate(can choose specification) 8
