Fracture Healing Assessment in Orthopedic Fixation Cases

Fracture Healing: The Three Biological Stages

Fracture healing is a biological process that develops over time. Clinical decisions should be made by qualified surgeons using a combination of symptoms, serial imaging, fixation stability, patient factors, and local treatment protocols.

Phase 1: Inflammatory Phase – Hematoma Organization

After a fracture, a hematoma forms around the injured area. Inflammatory cells, growth factors, and mesenchymal stem cells participate in the early repair environment. At this stage, biological activity may be high even though standard radiographs show limited visible change.

Phase 2: Callus Formation – Soft Callus to Hard Callus

Osteoblasts and other repair cells contribute to osteoid formation and early callus development. As callus mineralizes, it becomes more visible on X-ray and CT. The exact timeline depends on fracture location, fixation stability, patient age, blood supply, smoking status, infection risk, nutrition, and comorbidities.

Phase 3: Remodeling – Woven Bone to Lamellar Bone

Woven bone is gradually replaced by more mature lamellar bone. The fracture line may become less visible as bridging callus and trabecular continuity improve. However, radiographic union criteria vary across clinical practice, and healing should not be judged from a single image alone.

In practice, the key question is not simply whether callus is visible today. The more useful question is whether clinical symptoms, serial imaging, and biological signs suggest that the fracture is progressing in the right direction.

Imaging Modality Comparison: Limitations and Advantages

Digital Radiography: X-ray / DR

Advantages: X-ray is fast, widely available, cost-effective, and useful for initial fracture diagnosis, hardware position review, and serial follow-up.

Limitations to consider:

• Delayed visibility: Radiographic signs can lag behind biological healing, especially in the early stages.
• Metal overlap: Plates, screws, or nails can obscure fracture margins and callus formation.
• 2D representation: Complex three-dimensional fracture geometry is compressed into two-dimensional images.
• Limited functional information: X-ray shows structure, but not osteoblastic metabolic activity.

Clinical reality: When a surgeon sees limited callus on X-ray, this does not automatically prove nonunion. Serial imaging and clinical correlation remain essential.

Computed Tomography: CT

Advantages: CT provides better detail for complex anatomy, comminution, fracture gaps, and bridging bone assessment.

Limitations to consider:

• Metallic implants can still create artifacts that interfere with interpretation.
• CT primarily shows structural mineralization rather than direct biological activity.
• Radiation exposure is higher than standard radiography and should be justified clinically.

SPECT/CT Hybrid Imaging

SPECT/CT combines functional and anatomical information.

SPECT imaging uses a radiotracer to show areas of increased bone metabolism, while CT provides anatomical localization. In selected delayed healing or suspected nonunion cases, this combination may help clinicians understand whether biological activity is present around the fracture site or around implant-related stress areas.

Potential advantages in selected cases:

✓ Shows metabolic activity rather than only mineralized callus.
✓ Helps localize activity around fracture gaps, bone ends, or implant interfaces.
✓ May support differentiation between delayed union and nonunion when X-ray or CT findings are unclear.
✓ Can be useful when metallic hardware makes structural imaging difficult to interpret.

Imaging Method	What It Mainly Shows	Strengths	Limitations	Best Use Case
X-ray / DR	Alignment, hardware position, visible callus	Fast, low cost, widely available	Limited early biological information; metal overlap may obscure details	Routine follow-up and first-line assessment
CT	Detailed bone structure and bridging assessment	Better spatial detail than X-ray	Metal artifacts and higher radiation dose	Complex fracture anatomy and structural union assessment
SPECT/CT	Bone metabolic activity plus anatomical localization	May clarify delayed union, nonunion, or implant-interface stress	Availability, cost, radiation, and local nuclear medicine protocols	Unclear delayed healing, suspected nonunion, or complex post-fixation pain

Clinical Definitions: Delayed Union vs Nonunion

Practical interpretation framework:

```

Delayed Union:
Healing is slower than expected, but clinical and/or imaging evidence suggests that biological repair is still progressing. Treatment may include continued protected weight-bearing, fixation review, optimization of patient risk factors, biological support, or revision planning depending on the case.

Nonunion:
A fracture has failed to heal within the expected clinical timeframe and shows insufficient biological or mechanical progression. Management may require further investigation and, in many cases, surgical intervention such as re-fixation, bone grafting, or biological enhancement.

SPECT/CT role:
Tracer activity across or around the fracture site may suggest ongoing biological activity. Lack of meaningful activity at the fracture interface may raise concern for nonunion. Final diagnosis should be made by the treating clinical team, not by one imaging finding alone.

```

Four Representative Imaging Cases: Diagnosis & Management Thinking

Case 1: Femoral Fracture – Suspected Delayed Union with Progressive Callus Formation

Representative Patient Summary: Adult patient with femoral shaft fracture treated with plate fixation months earlier. X-ray suggests partial callus formation, but complete bridging is unclear.
Diagnostic Challenge: Determine whether the fracture is biologically active and likely to continue healing, or whether revision surgery should be considered.
Clinical Question: Is this delayed union with ongoing repair, or established nonunion?

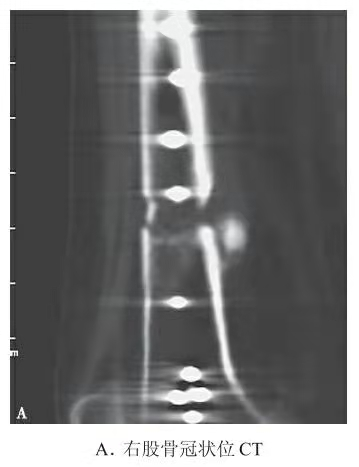

$Representative X-ray of femoral fracture with plate fixation and partial callus formation$

Figure 1A: Representative X-ray showing femoral fracture fixation with visible but incomplete callus formation. The fracture status remains difficult to judge from X-ray alone.

SPECT/CT Interpretation: In this representative case, tracer uptake is seen around the fracture zone and appears to extend across parts of the fracture interface. This pattern may support the interpretation that biological activity is still present.

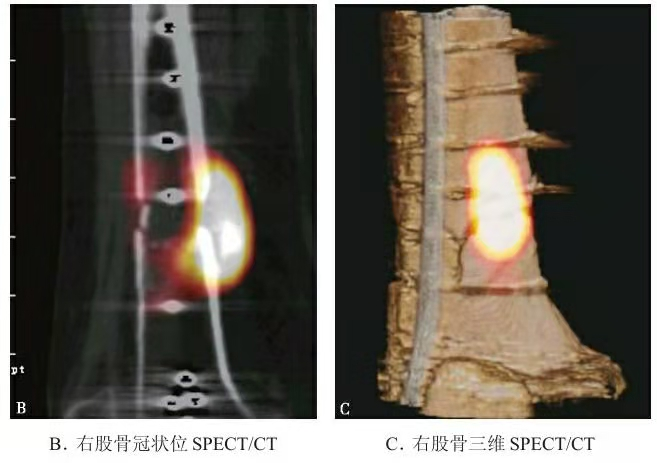

$Representative SPECT/CT showing metabolic activity near femoral fracture site$

Figure 1B: Representative SPECT/CT fusion image showing metabolic activity near the fracture site. This type of finding may help distinguish delayed healing from inactive nonunion.

Follow-Up Logic: If symptoms are improving and serial imaging shows progressive callus, continued observation or protected rehabilitation may be reasonable under surgeon supervision.

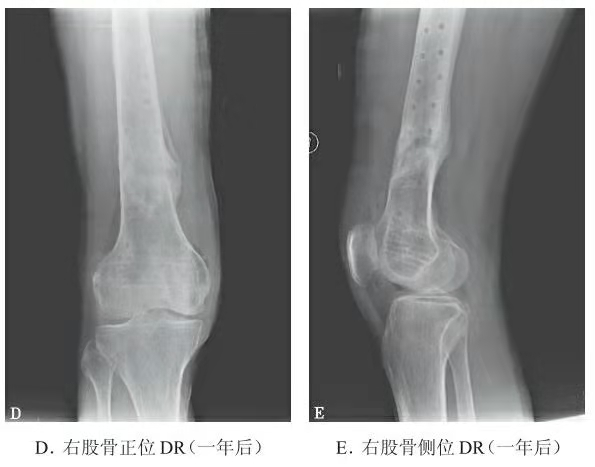

Representative follow-up X-ray showing bridging callus progression

Figure 1C: Representative follow-up image demonstrating improved bridging callus. The key teaching point is that biological activity can precede clearly visible structural union.

Case Takeaway: SPECT/CT may help avoid premature revision surgery when biological healing is still active. However, treatment decisions should also consider pain, function, fixation stability, alignment, and patient risk factors.

Case 2: Distal Radial Fracture – Metal Artifact and Healing Assessment

Representative Patient Summary: Adult patient with distal radius fracture treated with plate fixation. Months after surgery, the fracture line remains partially visible and metal artifacts limit CT interpretation.
Diagnostic Challenge: Decide whether healing is progressing despite persistent fracture-line visibility.
Clinical Question: Is the apparent delayed healing real, or is the assessment limited by imaging artifact?

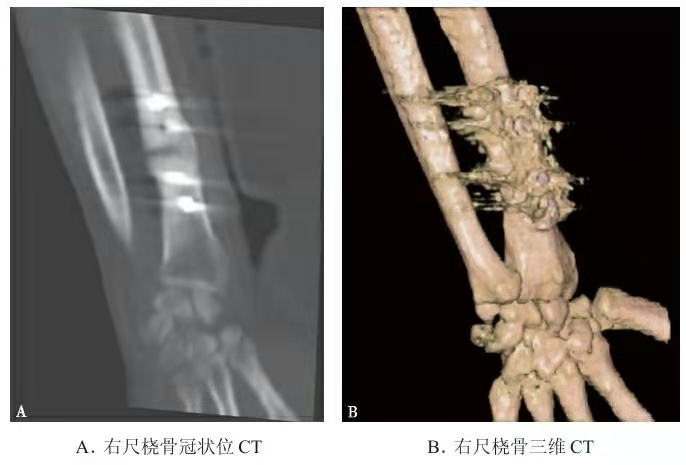

$Representative CT image of distal radius fracture with plate fixation artifact$

Figure 2A: Representative CT image showing distal radius fixation. Metal artifact can make fracture-line evaluation difficult.

SPECT/CT Interpretation: Clustered tracer uptake around and across the fracture region may suggest ongoing osteoblastic activity. In this type of scenario, SPECT/CT can complement structural imaging when plate artifact makes CT or X-ray less conclusive.

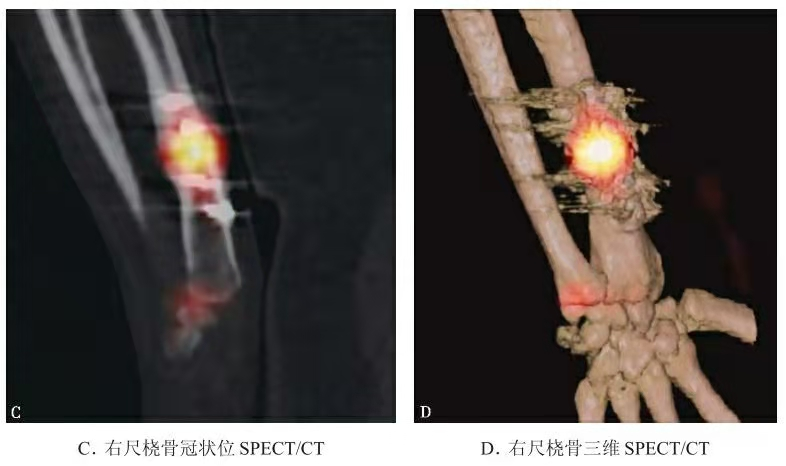

$Representative SPECT/CT showing tracer activity near distal radius fracture$

Figure 2B: Representative SPECT/CT image showing metabolic activity around the fracture zone. Such findings should be correlated with symptoms and serial imaging.

Follow-Up Logic: If clinical symptoms are improving and follow-up images later show bridging, the earlier SPECT/CT activity may be consistent with delayed but active healing.

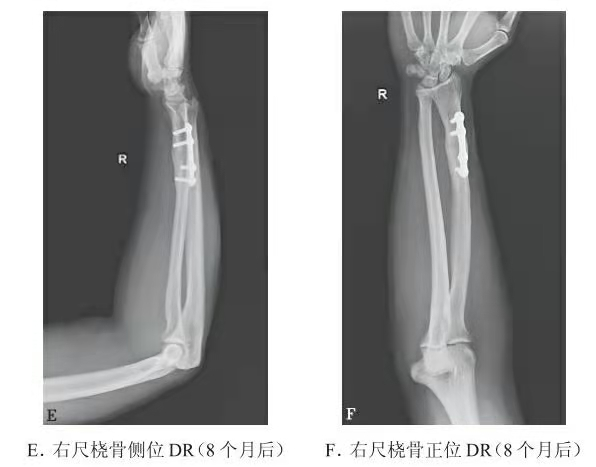

Representative follow-up X-ray showing distal radius union progression

Figure 2C: Representative follow-up X-ray showing improved structural healing. This supports the value of combining functional and anatomical imaging in complex post-fixation assessment.

Case Takeaway: When hardware obscures fracture healing on X-ray or CT, SPECT/CT may provide additional functional information. It should support, not replace, expert clinical judgment.

Case 3: Tibia/Fibula Fracture – Differentiating Nonunion from Delayed Healing

Representative Patient Summary: Adult patient with tibia and fibula fracture treated with intramedullary fixation. Persistent pain and swelling remain months after surgery, and fracture lines are still visible on radiographs.
Diagnostic Challenge: Determine whether the tibia and fibula are following the same healing pattern, and whether implant-interface stress may be contributing to symptoms.
Clinical Question: Which bone is limiting recovery, and what findings should guide the next treatment step?

Brand safety note: This representative case is included to explain post-fixation imaging assessment. It should not be presented as an XC Medico implant case unless the implant source and permission are fully verified.

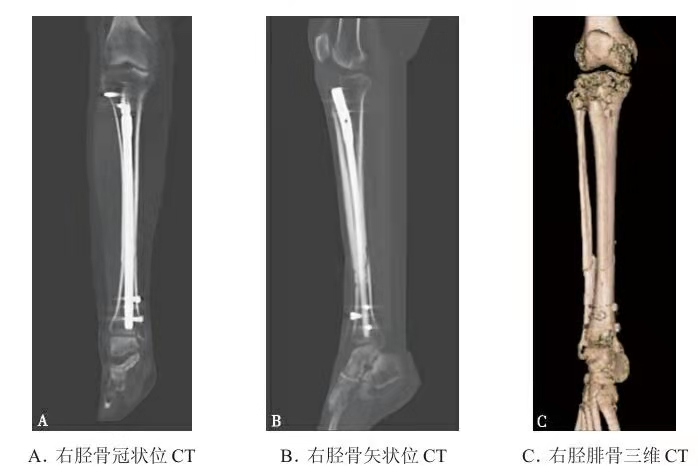

$Representative X-ray of tibia and fibula fracture with intramedullary nail fixation$

Figure 3A: Representative X-ray showing tibia/fibula fixation. Fracture lines remain visible, and X-ray alone may not fully explain persistent symptoms.

SPECT/CT Findings to Review:

Tibia: Limited tracer activity across the tibial fracture zone may raise concern for insufficient biological progression.
Distal locking area: Focal uptake near screw sites can suggest implant-interface stress, micromotion, or local remodeling response. It should be interpreted with clinical findings and radiographs.
Fibula: Tracer activity crossing the fibular fracture site may suggest delayed but active healing.

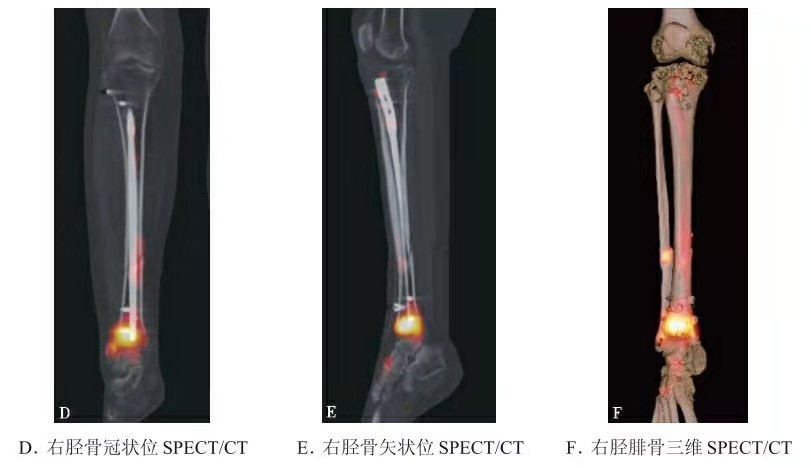

$Representative SPECT/CT showing tibia/fibula fracture activity and implant-interface findings$

Figure 3B: Representative SPECT/CT image showing different activity patterns around the tibia, fibula, and implant-interface areas. The teaching point is differential assessment, not product performance comparison.

Diagnosis & Management Logic: When one fracture segment shows limited biological activity and another shows ongoing activity, management may need to be individualized. Options can include closer observation, protected weight-bearing adjustment, hardware review, infection workup, re-fixation, or bone grafting depending on the full clinical picture.

Case Takeaway: In a multi-bone injury, SPECT/CT may reveal that different fracture sites are not healing at the same biological pace. This can help the treatment team avoid treating all visible fracture lines as the same problem.

Case 4: Femoral Fracture – Suspected True Nonunion Requiring Surgical Planning

Representative Patient Summary: Adult patient with femoral fracture treated with intramedullary fixation. Persistent pain with loading and limited functional improvement remain months after surgery.
Diagnostic Challenge: Differentiate delayed union from biologically inactive nonunion.
Clinical Question: Is there enough biological activity to justify continued conservative management, or should revision planning begin?

$Representative X-ray of femoral fracture with intramedullary nail and limited callus$

Figure 4A: Representative X-ray showing femoral fracture fixation with limited visible callus. Persistent fracture-line visibility requires correlation with symptoms and time from surgery.

SPECT/CT Interpretation: If there is minimal tracer activity across the fracture interface, the treating team may become more concerned about nonunion. This does not automatically dictate one procedure, but it can support revision planning when symptoms and structural imaging align.

$Representative SPECT/CT showing limited tracer activity across femoral fracture line$

Figure 4B: Representative SPECT/CT image showing limited activity across the fracture zone. Such a pattern may support concern for inactive nonunion when consistent with the clinical presentation.

Clinical Decision Logic: When symptoms persist, alignment or fixation is questionable, and biological activity appears limited, surgeons may consider revision fixation, bone grafting, biological stimulation, infection evaluation, or other interventions according to patient-specific needs.

Case Takeaway: SPECT/CT may help identify cases where continued waiting is less likely to succeed. The goal is to support earlier, better-informed decision-making rather than to create a one-size-fits-all rule.

Implant-Related Findings: What Surgeons and Procurement Teams Should Monitor

Post-fixation symptoms may come from several sources: fracture biology, fixation stability, screw-bone interface stress, infection, patient risk factors, rehabilitation load, or implant positioning. A responsible case article should discuss these factors without implying that all complications are caused by implant quality.

Common review points include:

Fracture line progression: Is the fracture gap narrowing or remaining unchanged over serial follow-up?
Callus pattern: Is callus developing symmetrically, asymmetrically, or not at all?
Implant position: Has alignment changed? Are screws, plates, or nails maintaining position?
Interface reaction: Is there focal imaging activity around screw or nail interfaces that may indicate local stress?
Patient factors: Smoking, diabetes, osteoporosis, infection risk, nutrition, and load compliance can all affect healing.

Marketing caution: Avoid using words such as “prevents complications,” “guarantees union,” or “dramatically improves outcomes” unless backed by product-specific clinical evidence. A safer and more credible message is that high-quality fixation systems, correct technique, and structured follow-up can support fracture care programs.

XC Medico Orthopedic Hardware: Supporting Fracture Care Programs

Fracture healing depends on biology, mechanics, surgical technique, patient factors, and postoperative management. XC Medico's role as an orthopedic implant manufacturer is to provide reliable product options, complete instrument support, documentation, and distributor service that help hospitals build consistent fracture care workflows.

Locking Compression Plate Systems

✓ Locking screw-plate interface: Designed to support angular stability in selected fracture patterns.
✓ Anatomic plate options: Product ranges are designed for different anatomical regions and fracture requirements.
✓ Multiple system sizes: Options such as 3.5 mm and 4.5 mm systems can support different fixation needs.
✓ Distributor support: Product catalogs, specification sheets, and instrument information can support tender and procurement review.

```

XC Medico Locking Compression Plate Systems

```

Intramedullary Nail Systems

✓ Load-sharing concept: IM nails are positioned within the medullary canal and may support central mechanical stability when properly indicated.
✓ Multi-directional locking options: Proximal and distal locking configurations can help address axial and rotational control requirements.
✓ Cannulated instrumentation: Guidewire-based insertion can support controlled placement when used according to the surgical technique.
✓ Trauma line coverage: XC Medico offers nail systems for femur, tibia, humerus, and other trauma applications.

```

XC Medico Intramedullary Nail Product Line

```

Spinal Fixation Systems

✓ Pedicle screw options: Designed for spinal fixation applications where surgeon technique and anatomical planning are critical.
✓ Polyaxial designs: May support rod alignment and intraoperative adjustment depending on the selected system.
✓ System support: Instruments, implants, and documentation can be discussed according to target market requirements.

```

XC Medico Spinal Fixation Systems

```

Recommendations for Surgeons & Hospital Procurement

For Surgeons

Use serial assessment: Evaluate fracture healing through symptoms, physical examination, and serial imaging rather than one time-point image alone.
Consider advanced imaging selectively: When X-ray or CT findings are unclear and symptoms persist, SPECT/CT may provide useful additional information where available.
Review fixation mechanics: Alignment, construct stability, screw position, implant-interface reaction, and patient loading history should be reviewed together.
Follow local protocols: Imaging choice, weight-bearing progression, revision timing, and biological enhancement should follow institutional and surgeon-specific protocols.

For Hospital Procurement Teams

Evaluate system completeness: Implant design matters, but so do instrument trays, targeting guides, screw compatibility, and operation manuals.
Request documentation: Confirm product certificates, material documents, sterilization information, and regulatory support based on the target market.
Support surgeon training: Modern implants perform best when surgeons and operating room teams understand the instrumentation and technique workflow.
Track internal outcomes: Hospitals can monitor union progression, revision reasons, instrument availability, and implant-related feedback by product category.

Build a More Reliable Fracture Fixation Program with XC Medico

XC Medico supports hospitals and distributors with trauma implants, intramedullary nails, locking plates, instruments, product documentation, and international distributor support. Share your target product category and market requirements with our team to request the right product information.

Request Product Specifications Download Catalogs

Available resources may include product catalogs, specifications, instrument information, sample planning, and distributor partnership discussions.

Summary: Practical Imaging Pathway for Fracture Healing Assessment

Suggested review sequence:

```

Early follow-up after fixation:
→ X-ray for alignment, hardware position, and early callus review
→ Clinical assessment of pain, function, wound condition, and load tolerance
→ Continue standard follow-up when symptoms and imaging are progressing appropriately

When healing appears delayed:
→ Repeat X-ray and consider CT if structural bridging is unclear
→ Review mechanical stability, patient risk factors, infection possibility, and rehabilitation load
→ Consider SPECT/CT where available if symptoms persist and standard imaging remains inconclusive

When nonunion is suspected:
→ Combine clinical symptoms, serial radiographs, CT findings, laboratory workup when indicated, and surgeon judgment
→ Use advanced imaging selectively to assess biological activity or implant-interface findings
→ Consider revision fixation, grafting, biological enhancement, or other treatment based on the full clinical picture

```

Conclusion: Better Assessment Supports Better Treatment Planning

The four representative cases show why fracture healing assessment should not rely on a single imaging modality or one follow-up visit. X-ray remains the first-line tool, CT can clarify structural bridging, and SPECT/CT may add useful biological information in selected delayed union or nonunion scenarios.

For XC Medico, the strongest message is not that any implant can guarantee healing. The stronger and more credible message is that reliable implant systems, complete instruments, proper documentation, and structured distributor support can help hospitals and surgeons manage fracture care more consistently.

By removing the fractured-plate case and replacing hard clinical promises with balanced educational language, this article becomes more suitable as an XC Medico case-style post while reducing negative brand association and medical compliance risk.
