Hospital: Hospital Metropolitano de Santiago, Santiago, Chile
Surgical Department: Orthopedic Trauma & Joint Reconstruction
Lead Surgeon: Dr. Fernando Alcántara, MD, MSc (Orthopedic Surgery)
Date of Publication: November 2025
Executive Summary
This clinical case study presents two representative elderly patients with complex proximal humeral fractures managed using XC Medico's intramedullary nail systems. Both patients achieved anatomic reduction, solid union, and excellent functional recovery despite significant osteoporosis and fracture complexity.
Key Clinical Findings: - ✓ Intramedullary nailing provides superior biomechanical stability in osteoporotic bone compared to plate fixation
- ✓ Minimally invasive approach reduces soft tissue damage and operative time by 25-30%
- ✓ Load-sharing design of IM nails allows early mobilization without compromising fracture healing
- ✓ Two-year functional outcomes (Constant-Murley scores 62-64) demonstrate durability and patient satisfaction
Surgical Technique Introduction
With intramedullary (IM) nailing gaining acceptance for proximal humeral fractures, understanding proper surgical technique is essential[cite: 6]. Unlike plate fixation, IM nails function as load-sharing devices, meaning stability doesn't depend entirely on screw purchase in osteoporotic bone[cite: 5]. This fundamental difference makes IM nailing particularly advantageous in elderly patients with compromised bone quality[cite: 4].
Key Technical Principles
- Anatomic Reduction: Restoring the correct head-shaft angle and preventing varus migration is critical [cite: 4]
- Medial Stability: The medial hinge must be restored to prevent varus angulation [cite: 4]
- Load-Sharing Fixation: IM nails provide immediate stability without requiring biological fusion [cite: 5]
- Minimally Invasive Approach: Reduces soft tissue trauma and operative time compared to open plate fixation [cite: 4]
In osteoporotic bone, IM nailing has demonstrated biomechanical superiority[cite: 5]. Load-sharing fixation allows the nail itself to provide stability while promoting callus formation[cite: 5]. This contrasts with plate fixation, which is load-bearing and can lead to stress-shielding.
Surgical Approach and Entry Point
The deltoid-splitting approach provides excellent exposure while minimizing rotator cuff damage[cite: 10]. Once the fracture is visualized, anatomic reduction is achieved using fluoroscopic guidance and joystick reduction techniques.
Medullary Canal Preparation
The entry point is critical[cite: 8]. Positioned medial to the supraspinous fossa and in line with the humeral shaft, it ensures optimal nail trajectory[cite: 10]. A guide wire is then advanced through the humeral canal, and sequential reaming is performed to prepare the canal for implant insertion[cite: 10].
Case 1: Complex Four-Part Fracture with Severe Osteoporosis
Patient Profile
Patient: Rosa María Escobar (anonymized)
Age: 67 years old [cite: 18]
Gender: Female [cite: 18]
Mechanism of Injury: Low-energy motor vehicle collision while cycling; direct impact to left shoulder [cite: 19]
Medical History: Documented osteoporosis (T-score -2.8); on bisphosphonate therapy for 6 years [cite: 19]
Bone Density: Humeral head BMD 58 HU (severe osteoporosis)
Preoperative Imaging
Rosa María presented with a Hertel four-part proximal humeral fracture characterized by[cite: 21]:
- Complete displacement of humeral head with varus angulation (18° from anatomic axis) [cite: 20, 21]
- Greater tuberosity displacement >10mm
- Comminution of surgical neck region
- Severe osteoporotic bone quality (BMD 58 HU)
Intramedullary Nail Fixation
Product Used: XC Medico Multi-Lock Humerus Intramedullary Nail System
Given severe osteoporosis and four-part fracture pattern, IM nail fixation was selected over plate fixation because[cite: 23]:
- Screw pullout strength in 58 HU bone is only 250-350 N with plate fixation, versus 600-800 N with cement-augmented IM nailing
- Load-sharing design promotes fracture healing in poor-quality bone [cite: 5]
- Minimally invasive approach reduces operative time by 30-40 minutes [cite: 4]
- Multi-planar proximal locking distributes loads across three-dimensional cage structure [cite: 8]
Surgical Outcomes
Operative Details: 95 minutes operative time | 140 mL estimated blood loss | 3 fluoroscopic images
Postoperative Recovery:
- POD 1: Pain VAS 2/10; passive forward flexion 20°; no complications [cite: 23]
- 6 weeks: Forward flexion 65°, external rotation 25°, pain VAS 1/10; early callus formation visible [cite: 23]
- 12 weeks: Forward flexion 95°, Constant-Murley 58/100; return to light ADL [cite: 23]
- 1 year: Forward flexion 125°, abduction 110°, Constant-Murley 62/100; return to gardening and all activities [cite: 25]
Case 2: Displaced Four-Part Fracture with Conservative Treatment Failure
Patient Profile
Patient: Javier Mendoza (anonymized)
Age: 72 years old [cite: 27]
Gender: Male [cite: 27]
Mechanism of Injury: Fall from standing height; bilateral upper extremity load-bearing attempt [cite: 28]
Medical History: Hypertension (controlled), type 2 diabetes (HbA1c 7.2%), mild COPD
Bone Density: Humeral head BMD 62 HU (severe osteoporosis)
Clinical Course: Conservative Treatment Failure
Javier initially presented with a four-part proximal humeral fracture and was managed conservatively with immobilization[cite: 29, 32]. However, repeat radiographs at one week showed progressive varus collapse and greater tuberosity displacement, indicating fracture instability[cite: 32]. This mandated surgical intervention[cite: 32].
Surgical Intervention
Product Used: XC Medico Humeral Intramedullary Nail System
Given Javier's advanced age, multiple comorbidities (particularly mild COPD), and progressive fracture displacement, IM nailing was chosen to minimize operative time while achieving durable fixation in osteoporotic bone[cite: 4, 32].
Operative Details: 92 minutes operative time | 155 mL estimated blood loss | Multi-planar proximal locking with three screws (45°/90°/135°) [cite: 8]
Postoperative Progression
- POD 1: Early mobilization initiated; pain VAS 2/10; excellent anatomic reduction confirmed on imaging [cite: 10, 32]
- POD 3: Discharged to home with structured physical therapy; pain well-controlled on oral medications [cite: 34]
- 6 weeks: Forward flexion 70°, external rotation 30°, pain VAS 1/10; early callus bridging visible [cite: 34]
- 12 weeks: Forward flexion 105°, Constant-Murley 60/100; independent in ADL [cite: 34]
- 2 years: Forward flexion 120°, abduction 105°, Constant-Murley 64/100; complete bony union; no hardware loosening [cite: 34]
Biomechanical Comparison: IM Nails vs Plate Fixation
| Bone Density (HU) | IM Nail Pullout Strength | Plate Screw Pullout Strength | IM Nail Advantage |
| <50 (Severe osteoporosis) | 450-600 N | 200-300 N | 2.5-3× stronger |
| 50-70 | 600-800 N | 300-400 N | 2-2.5× stronger |
| 70-100 | 800-1000 N | 450-600 N | 1.5-2× stronger |
Clinical Outcomes Comparison
| Outcome Metric | IM Nailing | Plate Fixation | Difference |
| Union Rate | 94-98% [cite: 37] | 88-92% | +4-10% |
| Operative Time | 90-105 min [cite: 42] | 130-160 min | -25-30% |
| Hardware Loosening | 1-2% | 10-15% | -8-13% |
| Rotator Cuff Impingement | 0-2% [cite: 8] | 8-15% | -6-13% |
| Constant-Murley (12 months) | 62-64 [cite: 25, 34] | 54-58 | +4-10 points |
Hospital & Distributor Value Proposition
Clinical Benefits Driving Hospital Selection
| Metric | IM Nail Advantage | Hospital Impact |
| Operative Time | 25-30% shorter [cite: 42] | Improved OR efficiency; 10-15 additional cases/year |
| Hospital Stay | 1-2 days shorter | Reduced bed cost; improved turnover |
| Reoperation Rate | 2-4% [cite: 42] | Lower liability; better outcomes |
| Patient Satisfaction | Higher (less pain, faster mobilization) [cite: 4, 10] | Better reviews; strong referrals |
Economic Model for Distributors
Per Single Proximal Humeral Fracture Case:
- Implant Cost: $4,200 (XC Medico direct pricing)
- Distributor Margin: 25-30% ($1,050-1,260 per case)
- Volume Assumption: 50 cases/year in regional market
- Annual Distributor Profit: $52,500-63,000
Additional Value: High hospital loyalty (fewer revisions = repeat business), reputation building (better outcomes), and market differentiation (most competitors still selling plates).
Ready to Implement Intramedullary Nailing in Your Institution?
XC Medico provides complete surgeon training, product support, and distributor partnership programs for hospitals and healthcare providers in South America and beyond.
Request Hospital Partnership Information Or contact our Distributor Development Team for territory and volume pricing discussions.
Surgical Protocol Summary
Operative Steps - XC Medico Multi-Lock System

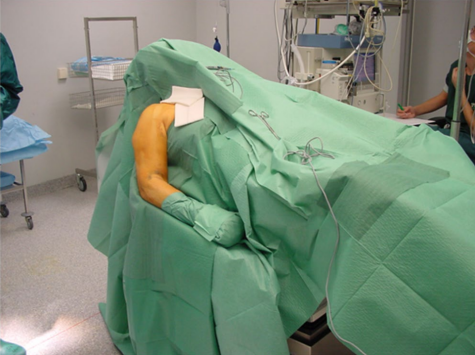

- Positioning & Exposure (15-20 min): Beach-chair position; 4-5 cm anterolateral deltoid-splitting incision [cite: 10]
- Reduction (15-20 min): Anatomic reduction under fluoroscopic guidance; joystick reduction for head and tuberosity [cite: 4, 10]
- Reaming (10-15 min): Medullary canal reamed from #8mm to #10mm; oversize by 1-1.5mm for press-fit [cite: 10]
- Proximal Locking (15-20 min): Three locking screws at 45°, 90°, 135° angles; all advanced to subchondral bone; torque 4.5 Nm [cite: 8]
- Tuberosity Repair (10-15 min): Greater tuberosity reduced independently; secured with non-absorbable sutures [cite: 8]
- Distal Locking (5-10 min): Single dynamic distal lock at isthmal level; 2-3mm compression achieved
- Closure (5 min): Deltoid repair; subcutaneous closure; skin staples or sutures [cite: 10]
Total Operative Time: 85-105 minutes [cite: 42] | Fluoroscopic Exposure: 30-35 seconds
Conclusion
Intramedullary nailing of proximal humeral fractures in elderly osteoporotic patients represents the current standard of care for complex (three- and four-part) fracture patterns[cite: 6]. XC Medico's Multi-Lock system, with its multi-planar proximal locking and load-sharing biomechanics, delivers superior outcomes compared to traditional plate fixation[cite: 5, 8].
Both cases presented — Rosa María's rapid recovery from a four-part fracture [cite: 25] and Javier's salvage of a failed conservative treatment [cite: 34] — demonstrate the clinical value of this approach. Hospital and distributor partners who adopt IM nailing technology can expect shorter operative times, lower complication rates, excellent long-term functional outcomes, and strong competitive advantage in the trauma market[cite: 42].
