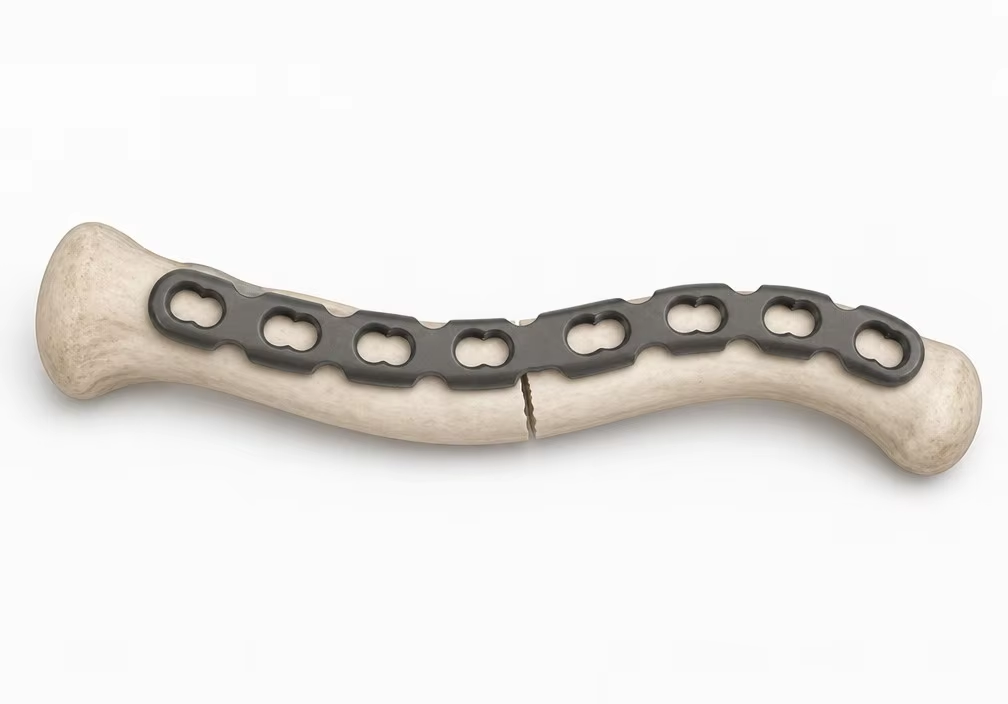

Midshaft Clavicle
Dedicated S-shaped options provide locking and non-locking configurations for clavicle shaft projects.
- S-Clavicle Locking Plate
- S-shaped Clavicle Locking Plate
- Middle S-clavicle Plate

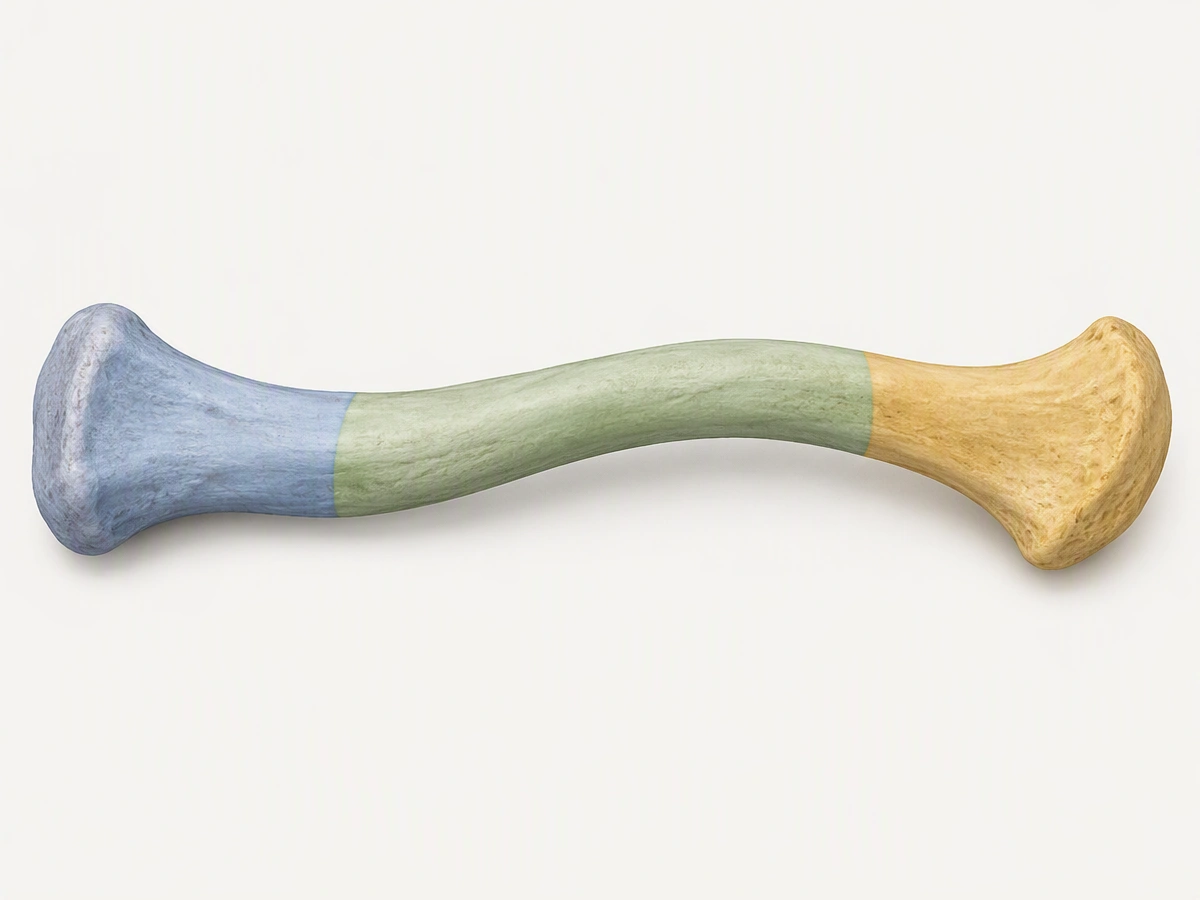

Clavicle Fixation Overview
Clavicle fixation planning begins with fracture location and continues through plate family, side, length, screw configuration and instrument selection.
Midshaft Coverage Dedicated S-shaped locking and conventional plate families.
Distal Coverage Distal and claw style configurations for left and right anatomy.
Titanium Portfolio Titanium plate options support midshaft, distal and reconstruction requirements.
System Matching Plate, screw family and instrument set should be coordinated as one project configuration.
Fixation Options

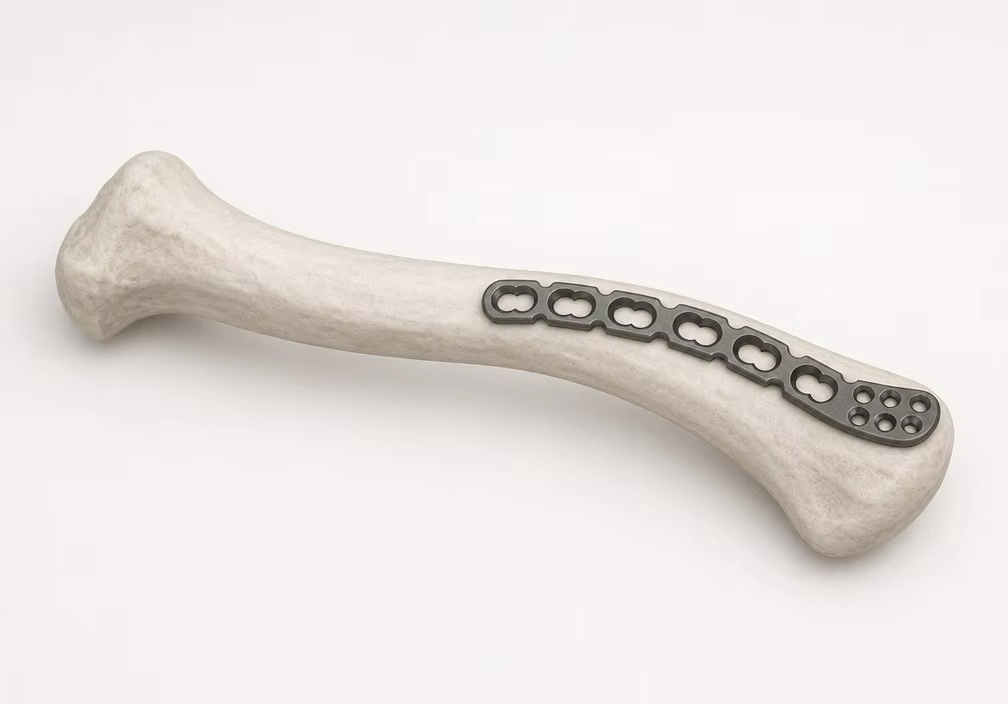

Distal Clavicle
Dedicated distal plate families provide multiple left/right length options and different screw configurations.
- Distal Clavicle Locking Plate
- Distal S-clavicle Plate

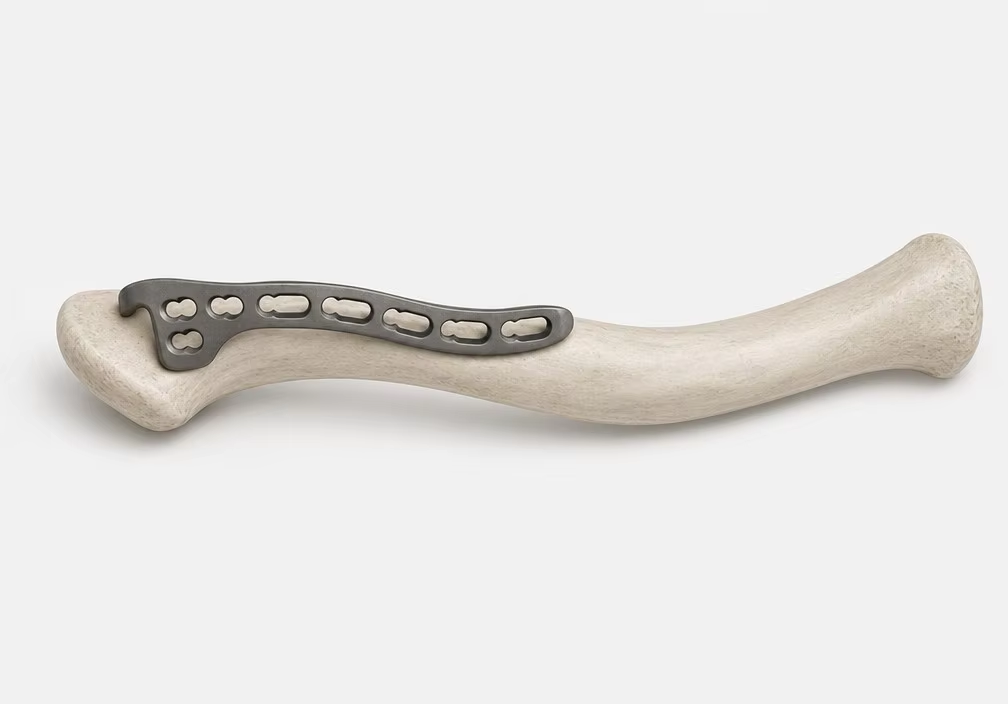

Claw Style Options
Locking and non-locking claw plate options extend the system for distal clavicle fixation requirements.
- Clavicle Claw Locking Plate
- Clavicle Claw Plate

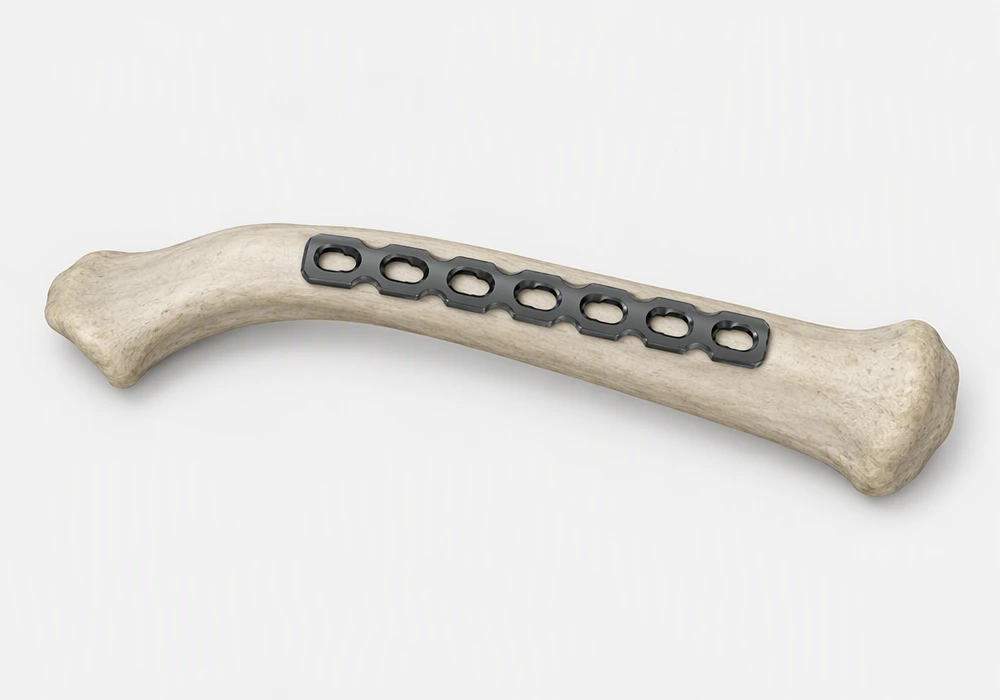

Reconstruction Option
The Reconstruction Locking Plate provides a versatile option for clavicle and other reconstruction applications.
- Reconstruction Locking Plate
- General purpose supplement
Clavicle Plate Portfolio
Locking Plate Options
5 plate families
Locking · Midshaft

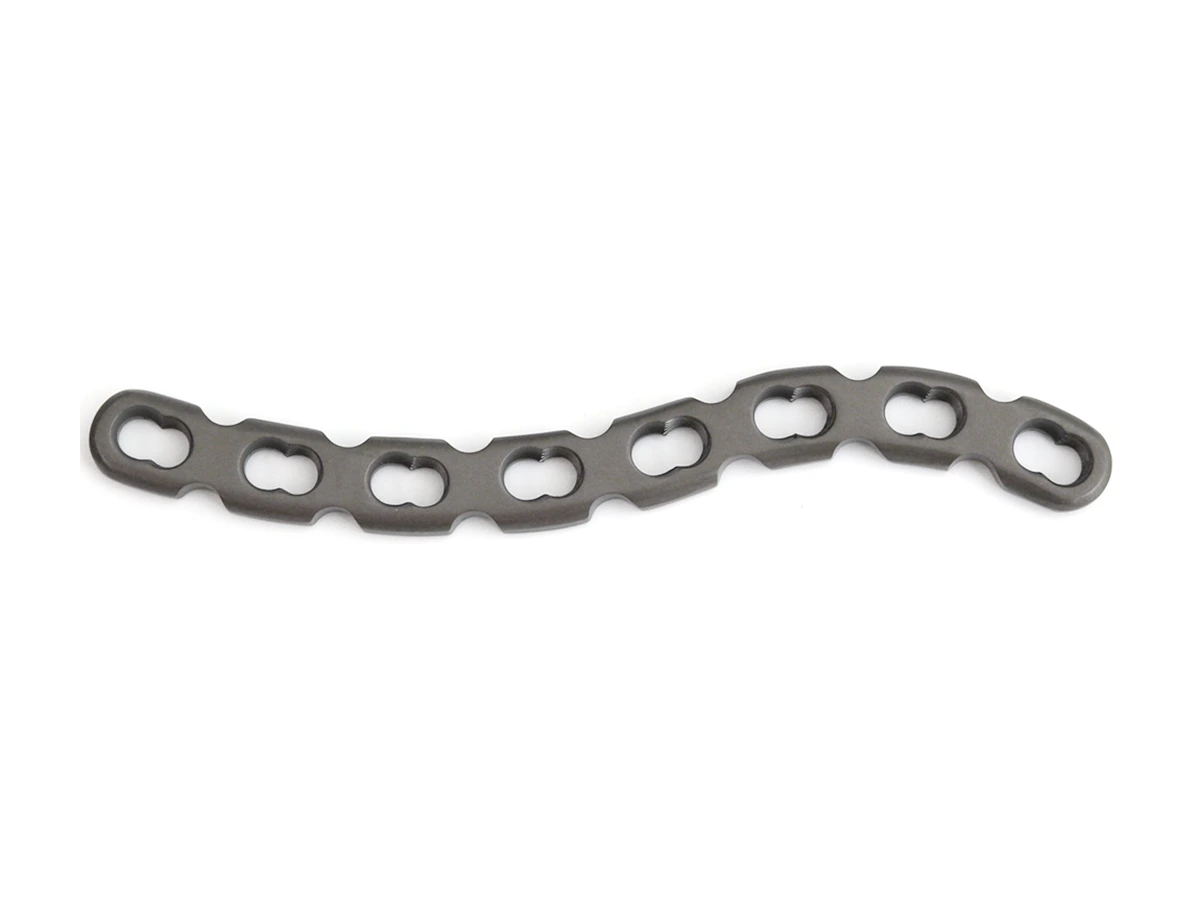

S-Clavicle Locking Plate
Titanium left/right plate options for midshaft clavicle fixation.
- Range5H–10H
- SideLeft / Right
- ScrewsHA 3.5 / HC 3.5
Locking · Midshaft

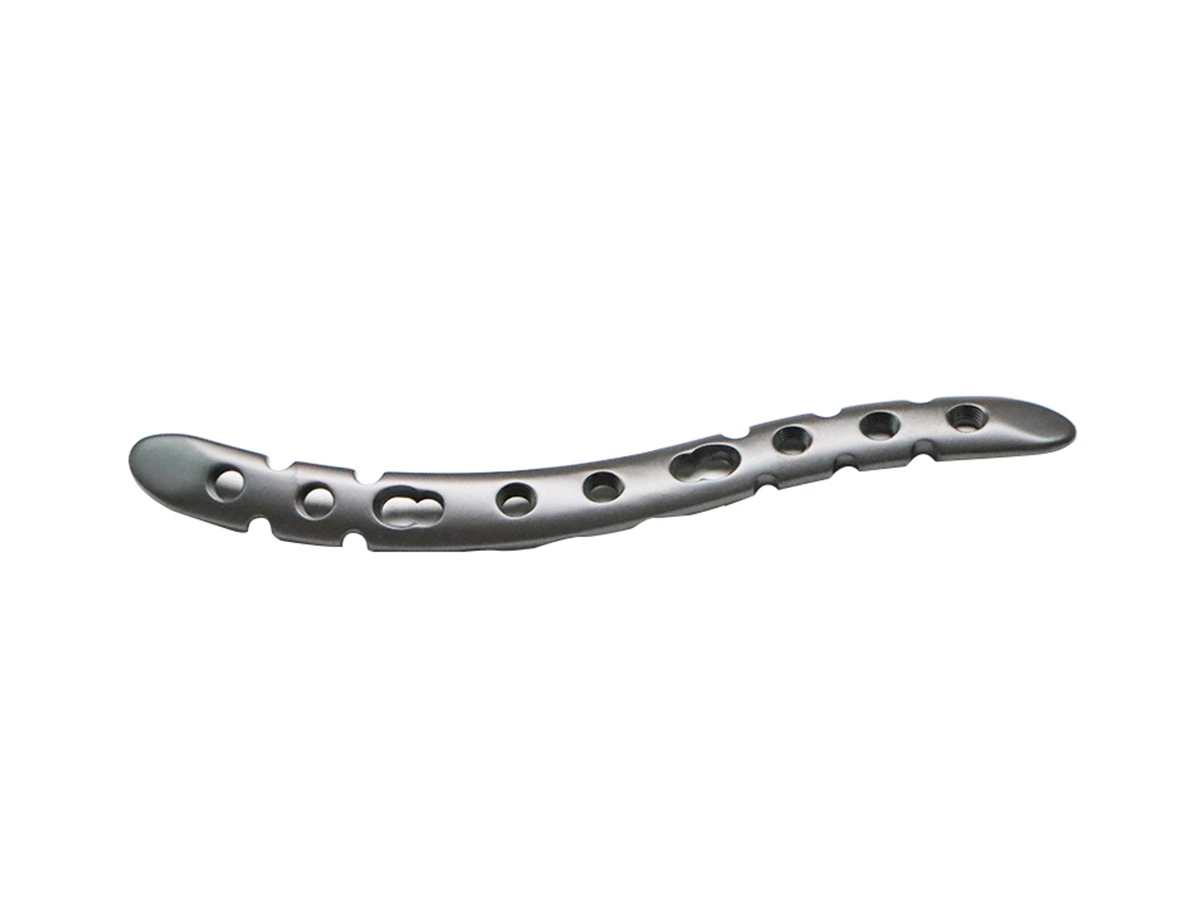

S-shaped Clavicle Locking Plate
Titanium S-shaped left/right options for midshaft clavicle fixation.
- Range5H–10H
- SideLeft / Right
- ScrewsHA 3.5 / HC 3.5
Locking · Distal

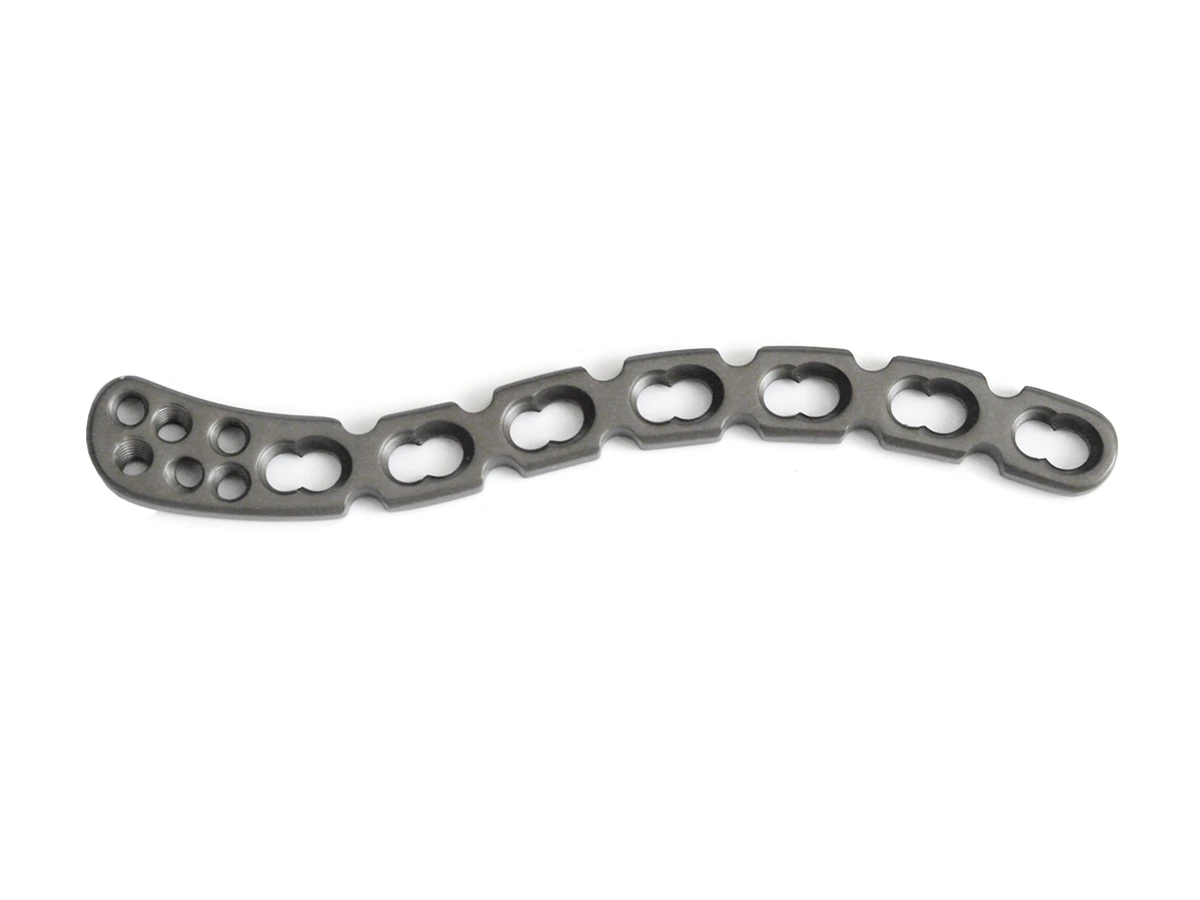

Distal Clavicle Locking Plate
Titanium left/right plate options designed for distal clavicle fixation.
- Range3H–7H
- SideLeft / Right
- ScrewsHA 3.5 / HC 2.7–3.5
Locking · Distal Claw

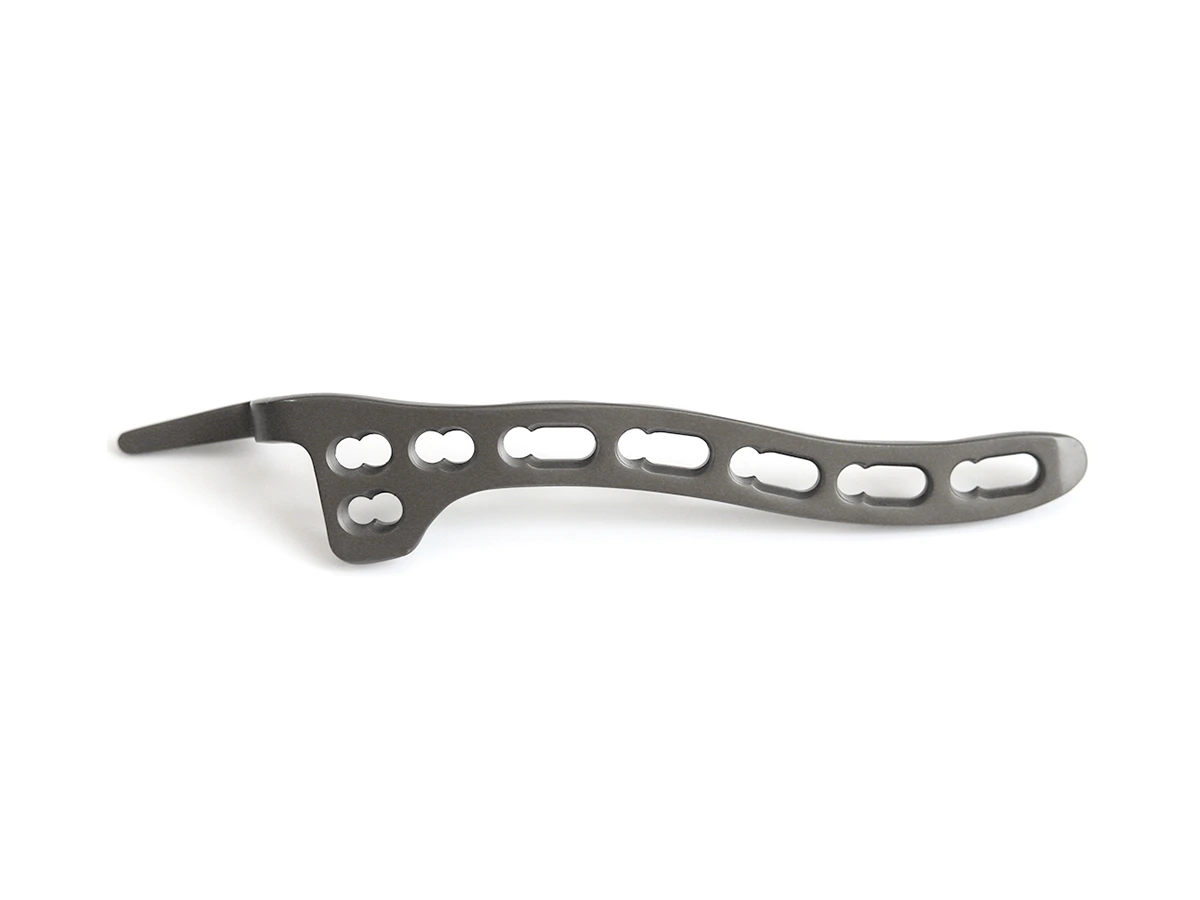

Clavicle Claw Locking Plate
Titanium left/right claw style options for distal clavicle fixation.
- Range2H–6H
- SideLeft / Right
- ScrewsHA 3.5 / HC 3.5
Locking · General Reconstruction

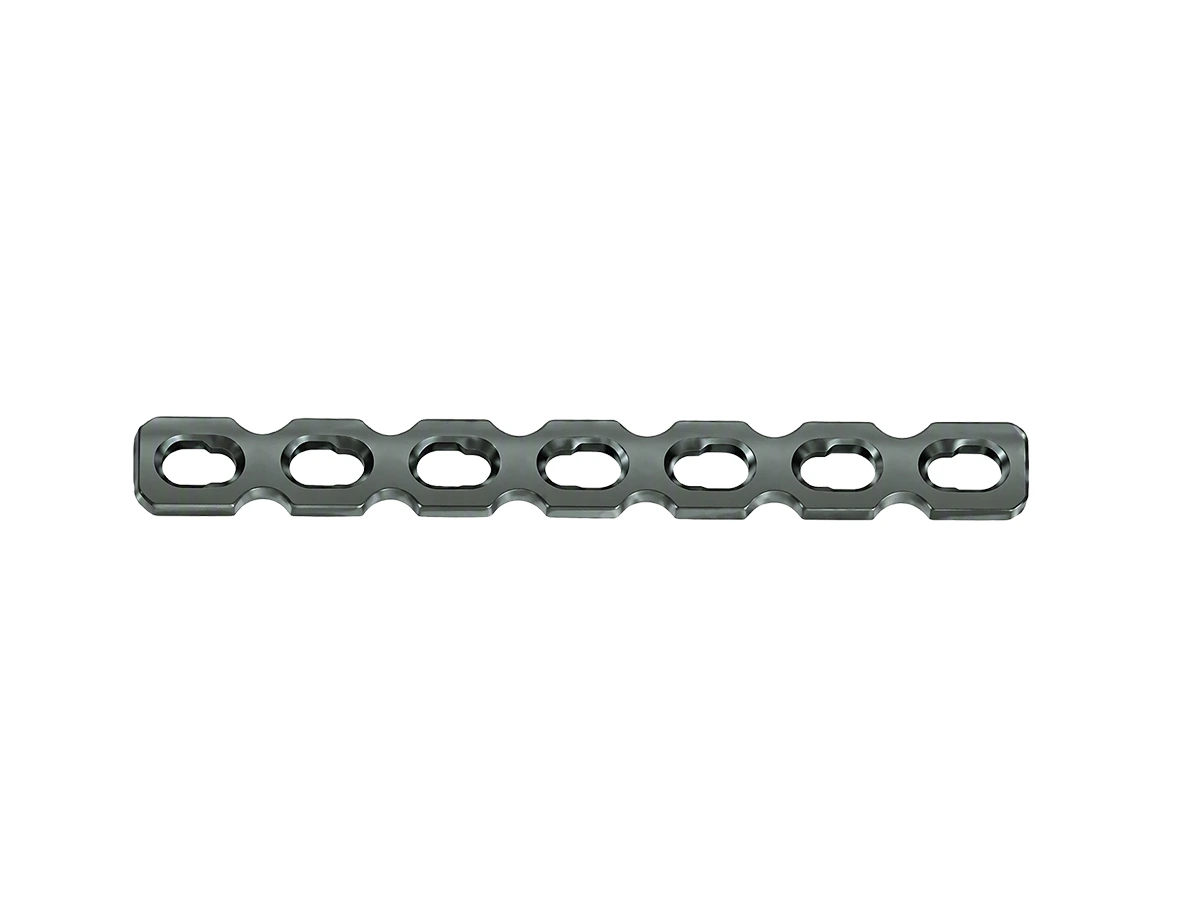

Reconstruction Locking Plate
A versatile titanium option for clavicle, ulna, fibula and pelvis reconstruction.
- Range5H–12H
- SideUniversal
- ScrewsHA 3.5 / HC 3.5
Non-Locking Plate Options
3 plate families
Non-Locking · Midshaft
Middle S-clavicle Plate
A titanium left/right option for midshaft clavicle fixation.
- Range8H
- SideLeft / Right
- ScrewsHA 3.5 / HB 4.0
Non-Locking · Distal
Distal S-clavicle Plate
Titanium left/right distal options available across four plate lengths.
- Range4H / 6H / 8H / 10H
- SideLeft / Right
- ScrewsHA 3.5 / HB 4.0
Non-Locking · Distal Claw
Clavicle Claw Plate
A titanium left/right claw style option for distal clavicle fixation.
- Range4H / 5H / 6H
- SideLeft / Right
- ScrewsHA 3.5 / HB 4.0
System Configuration
| Configuration | Plate Families | Compatible Screw Families |
|---|---|---|
| Midshaft Locking | S-Clavicle; S-shaped Clavicle | HA 3.5 / HC 3.5 |
| Distal Locking | Distal Clavicle Locking Plate | HA 3.5 / HC 2.7–3.5 |
| Claw Locking | Clavicle Claw Locking Plate | HA 3.5 / HC 3.5 |
| General Locking | Reconstruction Locking Plate | HA 3.5 / HC 3.5 |
| Non-Locking | Middle S; Distal S; Clavicle Claw | HA 3.5 / HB 4.0 |

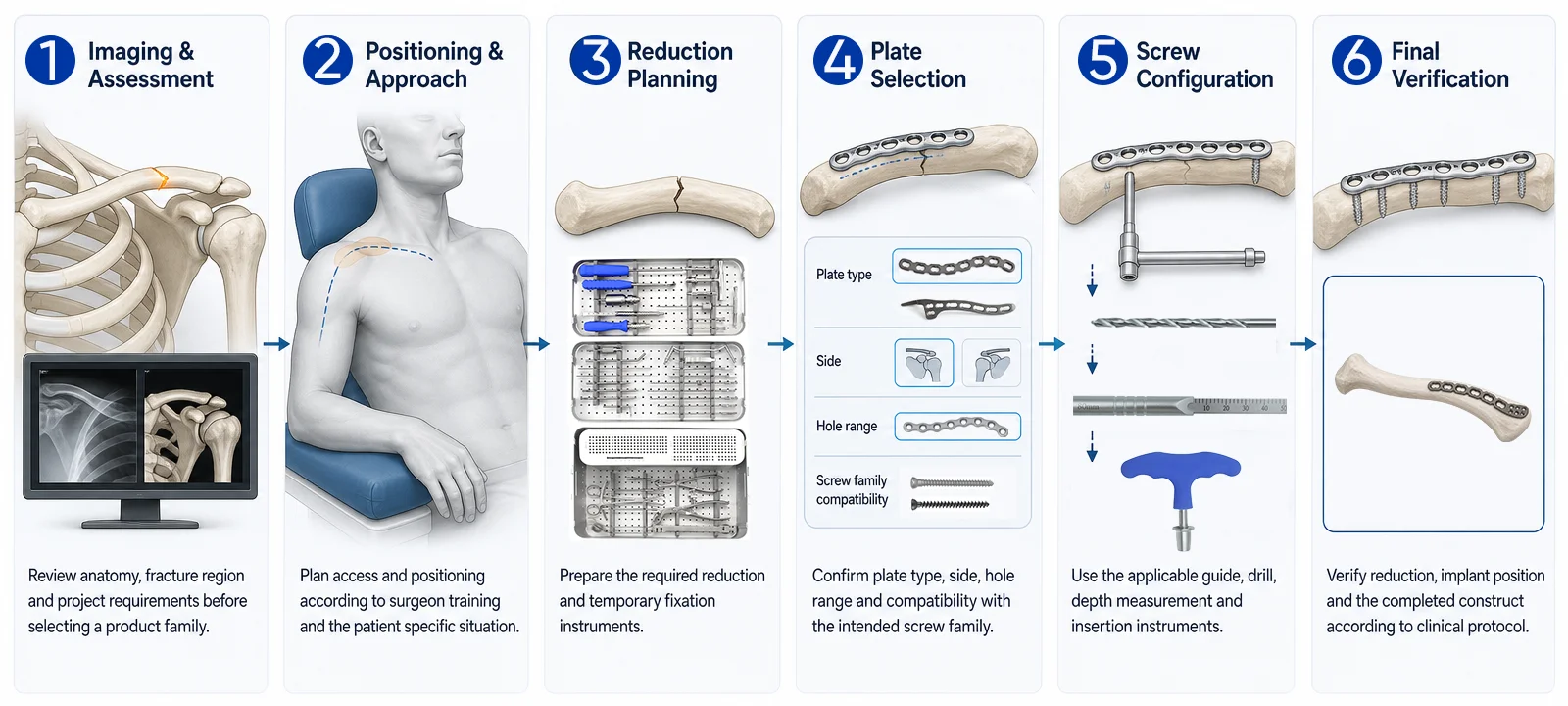

Fixation Workflow
Imaging & Assessment
Review anatomy, fracture region and project requirements before selecting a product family.
Positioning & Approach
Plan access and positioning according to surgeon training and the patient specific situation.
Reduction Planning
Prepare the required reduction and temporary fixation instruments.
Plate Selection
Confirm plate type, side, hole range and compatibility with the intended screw family.
Screw Configuration
Use the applicable guide, drill, depth measurement and insertion instruments.
Final Verification
Verify reduction, implant position and the completed construct according to clinical protocol.

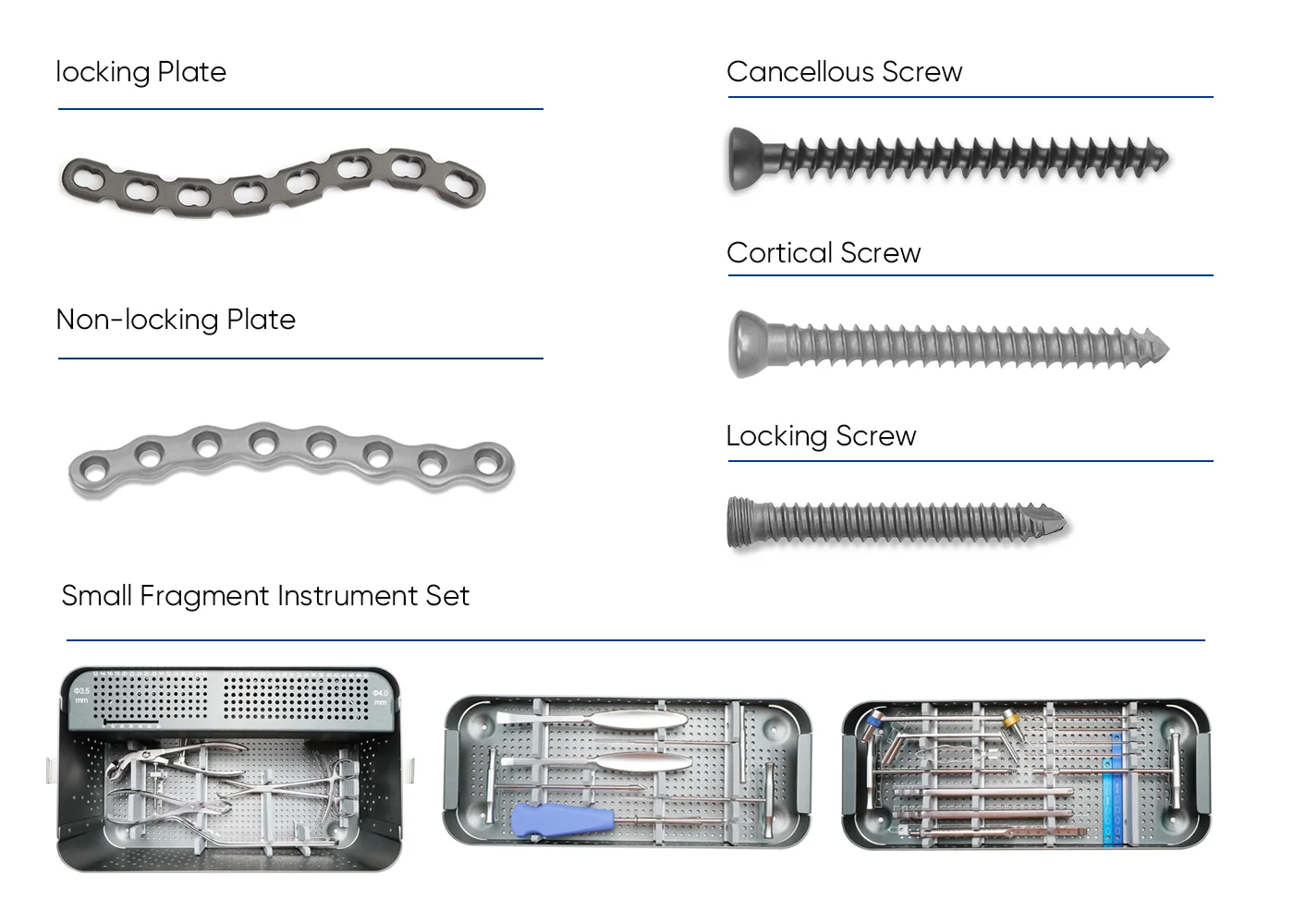

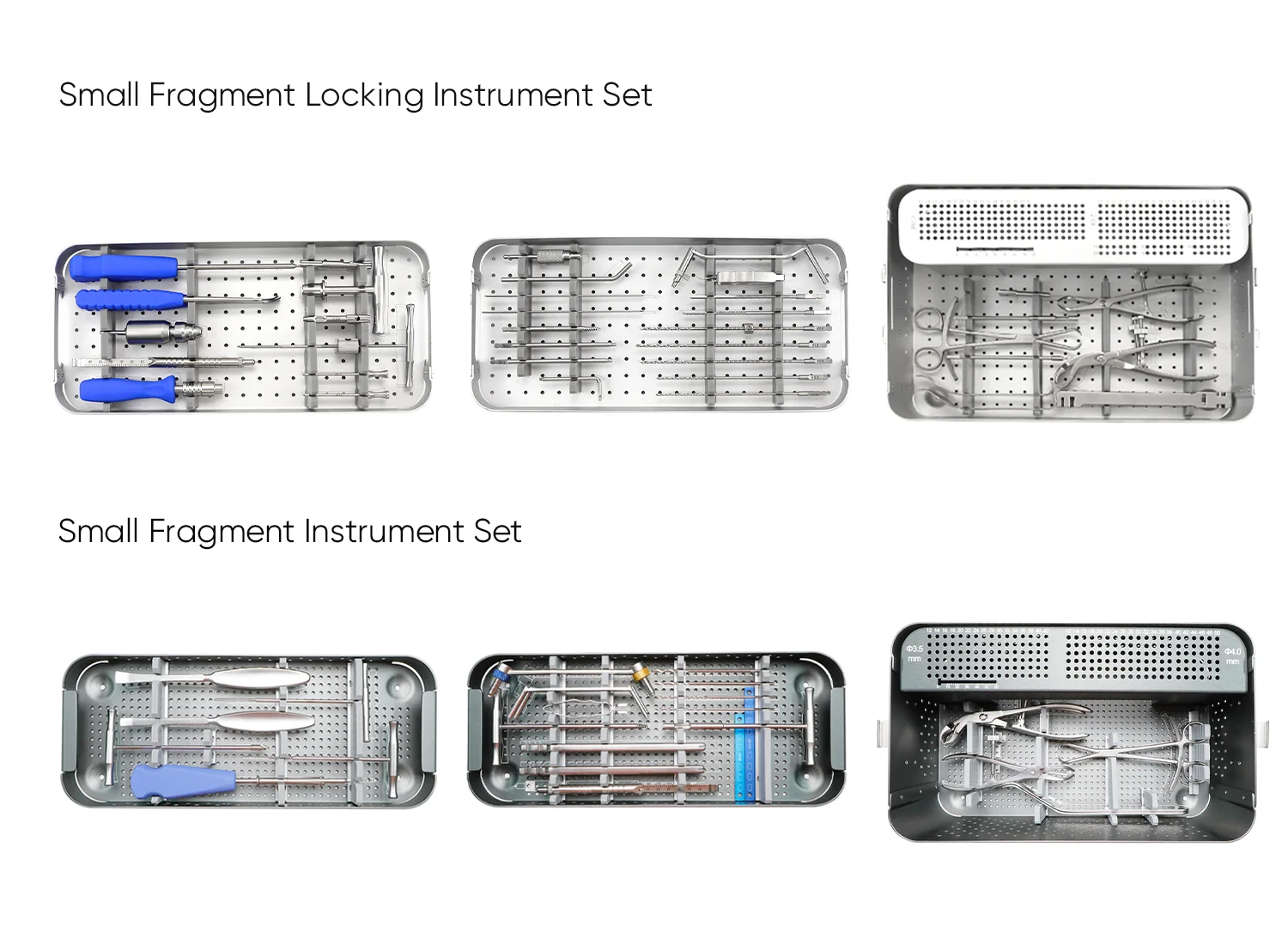

Instrument Systems
Small Fragment Locking Instrument Set
A coordinated set for reduction, drilling, depth measurement, tapping and locking/cortical screw insertion.
Small Surgery Instrument Set (2.7/3.5 mm)
This no-implant configuration includes drill, guide, tap and driver options supporting 2.7 mm and 3.5 mm small fragment projects.
Small Fragment Instrument Set
The non-locking platform covers reduction, neutral/load drilling, depth measurement, tapping and screw insertion.
System Advantages
Anatomical Coverage
Dedicated product families for midshaft, distal and claw style clavicle configurations.
Locking & Non-Locking
Two plate system pathways allow buyers to configure a broader clavicle portfolio.
Left & Right Options
Dedicated left and right configurations support matching across multiple plate lengths.
Instrument Coordination
Small fragment instrument platforms support implant, screw and tray matching in one project.
System Matching Guide
Fracture Location
Confirm whether the project concerns midshaft, distal or claw style fixation before matching the plate family.
Plate Side & Length
Verify left/right orientation and the required hole range against the latest product listing.
Screw Compatibility
Match HA, HB and HC codes and diameters exactly to the selected plate and instrument configuration.
Soft Tissue & Anatomy
Implant selection and positioning require patient specific assessment by the treating surgeon.
Imaging Verification
Clinical teams should follow their established protocol for reduction and implant position verification.
Labeling & IFU
Use the approved labeling, instructions for use and local regulatory requirements for the destination market.
Partnership Solutions
Surgeons & Hospitals
Coordinate plate families, screw options and instrument requirements around the target clavicle procedure.
Orthopedic Distributors
Build a market specific product matrix covering locking, non-locking, sizes, sides and supporting instruments.
OEM / ODM Partners
Discuss project scope, product selection, packaging, documentation and commercial requirements with XC Medico.
Related Trauma Systems
Trauma & Fracture Fixation SolutionsReturn to the complete XC trauma solution directory.Explore trauma solutions → Locking Plate SystemReview the broader XC locking plate and small fragment instrument portfolio.View locking plate system → XC Product CatalogsAccess the current locking plate, non-locking plate and intramedullary nail catalogs.Open catalog center →
Frequently Asked Questions
What clavicle plate options does XC Medico offer?
XC Medico offers five locking and three non-locking plate families covering midshaft, distal, claw style and general reconstruction requirements.
Which XC plates support midshaft clavicle fixation?
Midshaft options include the S-Clavicle Locking Plate, S-shaped Clavicle Locking Plate and Middle S-clavicle Plate, supported by a versatile Reconstruction Locking Plate option.
Which options support distal clavicle fixation?
Distal options include the Distal Clavicle Locking Plate, Distal S-clavicle Plate, Clavicle Claw Locking Plate and non-locking Clavicle Claw Plate.
Are left and right clavicle plates available?
Yes. Dedicated S-shaped, distal and claw style families are available in left and right configurations, with the size range varying by plate family.
Which screw families support the clavicle plate system?
Locking configurations combine HA 3.5 with HC 2.7 or HC 3.5 options, while non-locking configurations combine HA 3.5 with HB 4.0. The exact match depends on the selected plate.
Which instrument sets support these plate systems?
Available platforms include the Small Fragment Locking Instrument Set, Small Surgery Instrument Set (2.7/3.5 mm) and Small Fragment Instrument Set for non-locking plates.
Is the clavicle solution plate based?
Yes. The XC Medico clavicle solution is organized around coordinated locking and non-locking plate fixation.
