Why Radiopacity Matters in TLIF Cages: A Spine Surgeon Feedback Case

In a TLIF or PLIF procedure, the surgeon is working through a corridor a few centimeters wide, with the exiting nerve root sitting right at the edge of the working channel. There's no direct line of sight to confirm cage position — the surgeon is reading the C-arm, over and over, trusting that what shows up on the fluoroscopy monitor accurately reflects where the cage actually sits relative to the disc space and the neural elements around it.

This is the moment where implant quality either disappears into the background or becomes the center of attention for all the wrong reasons. If the tantalum markers are misaligned, poorly seated, or inconsistent from cage to cage, the surgeon has to stop, re-shoot, re-orient, and second-guess a placement that should have taken seconds. Every extra fluoro shot is more radiation exposure for the OR team and more time under anesthesia for the patient. And if a distributor is the one who supplied that cage, the fallout isn't just a returned box of implants — it's a surgeon who won't take the next call.

What Actually Showed Up on the Monitor

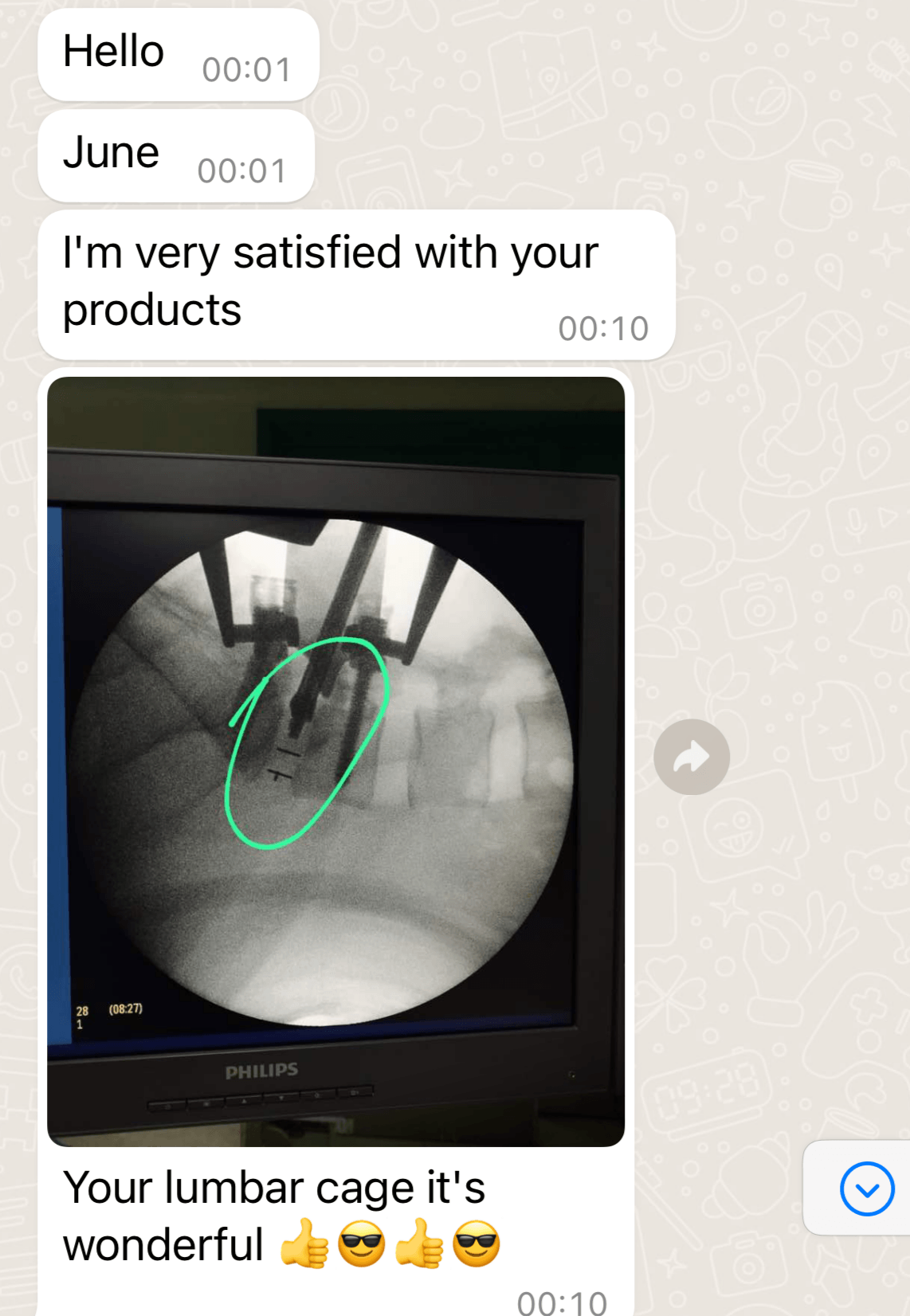

This is a photo one of our distributor's surgeons sent directly from the OR, mid-procedure, without being asked for it.

Intraoperative C-arm image sent by a distributor's surgeon during a TLIF procedure. Identifying details have been redacted for patient and provider privacy.

The green circle in the image isn't ours — the surgeon drew it himself before sending the photo, to point at exactly what he wanted us to see: the tantalum marker wires on the cage, clearly resolved against the vertebral body, with a sharp, unambiguous outline under fluoroscopy.

His message afterward was short: "Your lumbar cage it's wonderful."

That's not a customer being polite. Read against the image he sent, it's a specific clinical observation. A surgeon mid-case doesn't take a photo of a monitor and circle a detail unless that detail mattered to what he was doing at that exact moment. What he's actually saying is: the marker geometry showed up exactly where it should, with no ambiguity about cage orientation, and the insertion went through without the stall-and-recheck cycle that a poorly marked cage forces on him.

That's the entire point of radiopacity done correctly. It doesn't announce itself. It just means the surgeon never has to think about the implant — only about the patient.

Why This Is Harder to Manufacture Than It Looks

Distributors who haven't spent time on a factory floor sometimes assume tantalum markers are a minor detail — a couple of wires pressed into a PEEK cage, done. In practice, this is one of the more failure-prone steps in interbody cage production, for two separate reasons.

The PEEK-to-Marker Interface

Tantalum and PEEK don't bond chemically. The marker has to be mechanically retained — pressed into a precision-machined channel with tolerances tight enough that the wire seats fully flush and doesn't shift under the repeated mechanical loading of insertion, impaction, and years of physiological load-bearing afterward. If the channel is cut even slightly oversized, the marker can migrate or tilt during impaction — which is exactly the failure mode that shows up as a smeared or double-image marker on fluoroscopy, forcing the surgeon to re-shoot and reassess.

This is a five-axis CNC machining problem, not a hand-assembly one. The marker channel geometry has to be cut to match the wire diameter with minimal clearance, on every single cage, at production volume — not just on the samples a factory sends out for evaluation.

The Insertion Interface

The other failure point distributors hear about far more often than marker visibility: the connection between the cage and the inserter instrument coming loose mid-impaction. If that threaded or keyed interface has even minor dimensional drift, the inserter can back out or misalign under the repeated mallet strikes needed to seat the cage — which is a much bigger problem in a TLIF corridor than in open surgery, because the surgeon has far less room to recover the cage by hand if it separates from the inserter unexpectedly.

Holding that interface geometry consistent, cage after cage, batch after batch, is a direct function of CNC tolerance control and in-process dimensional inspection — not something that can be fixed by better packaging or a nicer instruction sheet.

What This Actually Means for a Distributor Evaluating Suppliers

The reason this level of manufacturing detail matters to a distributor — not just to the surgeon — is that these failure modes don't show up in a catalog photo or a spec sheet. A cage with a slightly loose marker or a borderline inserter interface looks identical to a good one until it's actually being impacted into a disc space with a surgeon watching the C-arm. That's the worst possible moment to discover a quality gap, and it's the moment that determines whether a hospital account stays with you or moves to a competitor.

This is also why "meets the drawing" isn't the same as "performs consistently." A supplier can hit dimensional spec on a sample lot sent for evaluation and still have batch-to-batch variation once they're running production volume. The only way to know the difference is to ask what's actually controlling that consistency — in-process CMM inspection, marker-channel tolerance verification, and insertion-interface torque testing on a sampling basis across production, not just at first article inspection.

For distributors comparing TLIF and PLIF cage systems across suppliers, this is worth asking about directly before committing to inventory: what tolerance is held on the marker channel, and what's the QC sampling rate on the cage-to-inserter interface at production volume — not just on the demo units sent for evaluation.

The Commercial Reality Behind the Clinical Reliability

None of this is a special production run done for one distributor's benefit. The tolerance control on marker seating and inserter interface geometry described above is the standard output of the manufacturing line — the same process runs whether the order is for a single evaluation set or a full hospital contract's worth of standard inventory.

That consistency is also what makes low-volume and custom orders viable without a quality trade-off. A distributor testing a new market segment, or working with a surgeon who wants a slightly different footprint or lordotic angle for a regional patient population, doesn't need to commit to a full production run to get the same manufacturing precision. Custom PLIF/TLIF cage configurations and OEM/ODM private-label programs are supported from 1 set MOQ — which matters most in exactly the scenario where a distributor can't yet justify holding standard inventory but still needs implants that perform the way the surgeon in that photo described.

For standard catalog cages, the same production line maintains 90% inventory coverage across the spine system range, with in-stock orders typically shipping within 3 business days. The point isn't that fast delivery and tight tolerances are separate selling points — it's that both come from the same manufacturing discipline. A factory that can't hold consistent tolerance at volume usually can't hold consistent inventory either, and the two problems tend to show up together.

If you're evaluating a spine cage supplier and want to see the actual tolerance documentation and QC sampling data behind claims like this, that's a reasonable thing to ask for before placing a first order — not after a surgeon sends you a photo asking why something didn't seat correctly.
