How to Evaluate a TLIF and PLIF Cage Manufacturer in China

Distributors comparing interbody cage suppliers tend to look at PEEK grade and price per unit, then assume the rest is roughly interchangeable. It isn't. A TLIF or PLIF cage is a small, geometrically complex device that has to get several things right at once — footprint, height, lordotic angle, endplate teeth pattern, graft window volume, the inserter interface, and marker placement — and getting any one of them wrong shows up in the OR, not on a spec sheet.

This is a practical guide to evaluating a China-based TLIF/PLIF cage manufacturer past the material and price comparison most distributors start with.

A Cage Is Not Just a PEEK Block

It's easy to think of an interbody cage as a shaped piece of PEEK or titanium with some holes cut into it. In practice, each dimension is a design decision with a clinical consequence:

• Footprint — too small and the cage risks subsidence into the vertebral endplate; too large and it won't seat properly through a TLIF corridor without excessive retraction

• Height — needs enough range in small increments (often 1mm steps) to restore disc height without over-distracting the segment

• Lordotic angle — flat cages don't restore sagittal alignment; a manufacturer offering only one angle option across their whole size range is not really offering a usable system for varied anatomy

• Endplate teeth — the ridged surface pattern that resists cage migration after placement; tooth height and angle affect both initial fixation and ease of removal in a revision case

• Graft window — the open area for bone graft material; too small and fusion surface area is compromised, too large and structural integrity of the cage itself is reduced

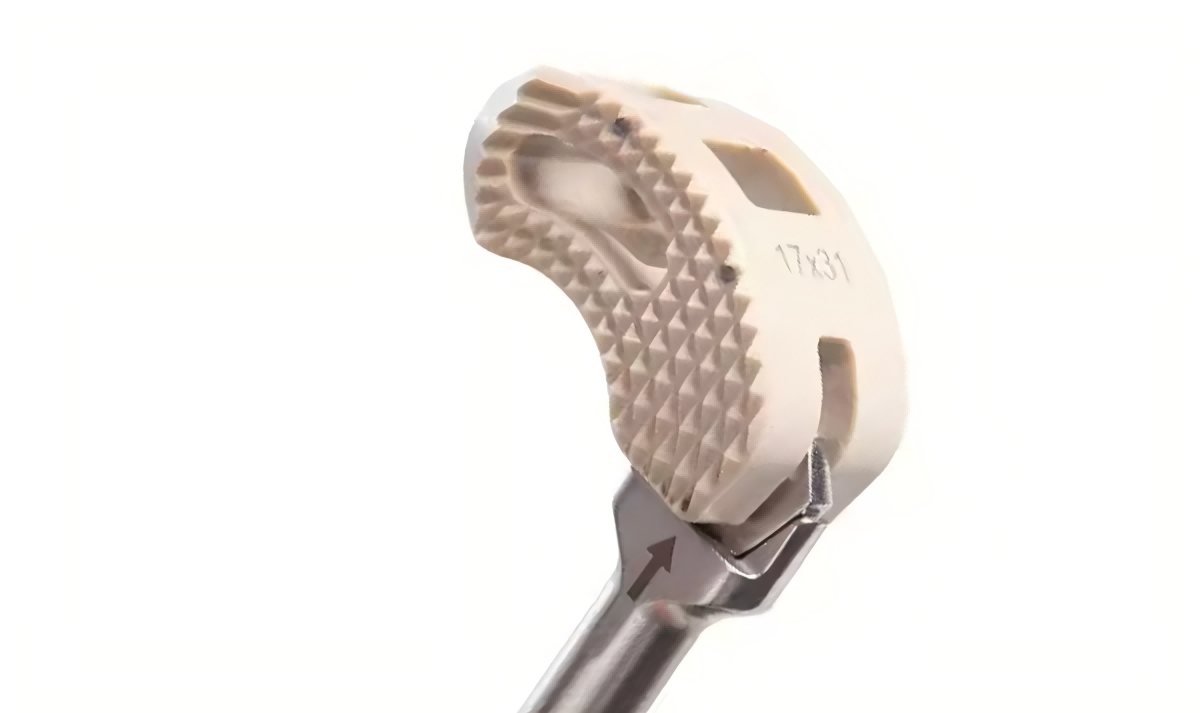

• Inserter interface — how the cage locks onto the insertion instrument during placement

• Radiopaque markers — typically tantalum pins, used to confirm cage position and orientation under fluoroscopy since PEEK itself is radiolucent

A manufacturer who can talk through these dimensions specifically — not just "we offer multiple sizes" — is one who actually understands what they're producing rather than just running a CNC program against a drawing someone else supplied.

PEEK vs. Titanium: What to Actually Compare

Distributors often ask which material is "better." That's not a question with a single answer — it depends on the surgeon's preference, the specific level being fused, and imaging requirements — so the more useful approach is comparing what a manufacturer can document about each material rather than picking a side.

• Material documentation — for PEEK, this means confirming medical-grade PEEK without carbon fiber reinforcement (carbon-fiber PEEK is stronger but obscures imaging, which matters for postoperative fusion assessment); for titanium, this means the specific alloy grade and whether it's solid or 3D-printed porous structure

• Imaging characteristics — PEEK is radiolucent, which lets surgeons assess fusion progress on follow-up imaging without the cage obscuring the view; titanium is radiopaque, which some surgeons prefer for confirming cage position but which can make assessing bone growth through the cage harder

• Surface design — smooth PEEK has a bioinert surface that doesn't actively promote bone-on-growth; textured or porous titanium surfaces (including 3D-printed trabecular structures) are designed to encourage osseointegration directly onto the implant surface

• Mechanical requirements — both materials need to meet static and dynamic compression testing standards for interbody devices, but the acceptable design margins differ by material stiffness

What you want from a manufacturer is documentation on both material lines, not a sales pitch for whichever one they happen to produce more of.

Why Radiopaque Marker Placement Actually Matters

Since PEEK cages don't show up clearly on fluoroscopy, the tantalum markers embedded in the cage are the surgeon's only real-time confirmation of cage position and orientation during a TLIF or PLIF procedure — a corridor with very limited direct visualization. If those markers are inconsistently seated, or migrate during impaction, the surgeon loses confidence in what the C-arm is actually showing.

We covered this in more detail in Why Radiopacity Matters in TLIF Cages, including a real intraoperative image a surgeon sent showing marker visualization during an actual case. It's worth reading alongside this guide, because it shows what "good enough" marker placement actually looks like on a live fluoroscopy monitor — not just in a spec sheet claim.

Cage and Inserter Compatibility

This is the failure point distributors hear about far less often than material quality, but it causes more mid-case problems. The interface between the cage and its inserter has to hold under repeated impaction — mallet strikes seating the cage into the disc space — without loosening or misaligning.

What to check specifically:

• Inserter locking mechanism — threaded, keyed, or friction-fit — and whether it holds securely through the full impaction sequence

• Cage orientation confirmation — can the surgeon tell which way the cage is facing once it's loaded onto the inserter, especially in a corridor where direct visualization is limited

• Impaction tolerance — does the cage-inserter connection hold up under the actual force of impaction, or does it require unusually gentle handling that slows the surgeon down

• Dimensional consistency — is the inserter interface machined to the same tolerance cage after cage, batch after batch, or does fit vary enough that some units feel looser than others

• Instrument matching — does the manufacturer supply the inserter as part of a validated system with the cage, or is it a generic instrument that happens to fit approximately

A cage that meets every dimensional spec on paper but separates from its inserter mid-impaction is not a minor inconvenience — it's a stalled case with the disc space already prepared and the patient under anesthesia.

Product Range for TLIF and PLIF

Once material and mechanical interface are confirmed, the next question is whether the manufacturer's actual size and configuration range covers what your surgeons need:

• Straight vs. curved footprints — curved cages are common for PLIF (bilateral placement) while TLIF often uses a more banana-shaped or kidney-shaped design suited to unilateral insertion

• Height range — typically 8-14mm in 1mm increments for lumbar applications, covering the range of disc heights encountered

• Lordotic angle options — at minimum a standard and a hyperlordotic option (commonly 0°, 6°, and higher for segments requiring more sagittal correction)

• Footprint width and length — enough variation to match different vertebral body sizes without forcing a one-size compromise

• TLIF / PLIF / MIS compatibility — whether the same cage platform works across open and minimally invasive approaches, or whether MIS placement requires an entirely separate cage design and inserter system

A narrow range forces your sales team into compromises with surgeons mid-conversation — telling them the closest available size is "close enough" instead of actually matching what the case calls for.

What Documents and Tests Should Distributors Request?

Before committing inventory, request:

• ISO 13485 scope annex — confirming interbody fusion cages are explicitly within certified scope, not assumed under a general spine category

• Material certificates — PEEK resin lot certification confirming medical grade and absence of carbon fiber reinforcement (unless carbon-fiber PEEK is specifically what's being ordered); titanium mill certs against the relevant ASTM standard

• Dimensional inspection records — CMM verification on footprint, height, and marker channel tolerance, not just first-article inspection but ongoing production sampling

• Mechanical testing reports — static and dynamic compression-shear testing per ASTM F2077 or equivalent for interbody devices

• Traceability and batch records — can a specific cage be traced back to its production lot and raw material batch months after shipment

For distributors reviewing interbody fusion cage options across suppliers, comparing this documentation against actual interbody fusion cage specifications and PEEK cage product lines side by side is a more reliable evaluation method than comparing marketing claims.

Inventory, MOQ, and OEM Support

Interbody cages carry a wide specification matrix — multiple footprints, multiple heights, multiple lordotic angles — which means a distributor's inventory has to cover a lot of ground to avoid a hospital call for a size that isn't on the shelf. Standard catalog cage systems maintained at high inventory coverage, with in-stock shipment typically within 3 business days, reduce the odds of a size gap becoming a scheduling problem.

OEM support for cage systems typically covers packaging and labeling customization, catalog configuration by market, and documentation support for local registration — these are relatively fast to implement. A genuinely new cage geometry or footprint, by contrast, requires design validation and updated mechanical testing before it can ship, and that timeline should be clearly communicated rather than glossed over.

Final Supplier Evaluation Checklist

The certification and manufacturing discipline questions here follow the same logic covered in our broader look at China vs. US spine manufacturers — what separates a reliable cage supplier from a risky one is documented process control, not where the factory happens to sit on a map.
