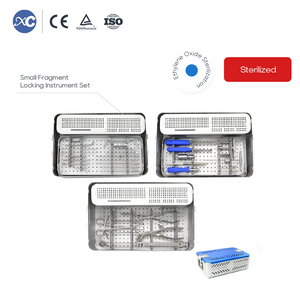

Small Fragment Instrument Set (2.7/3.5mm)

Model:
Small Surgery Kit
Brand:
XC Medico
Upper Limb:
Clavicle, Scapula, Humerus, Radius & Ulna, Shoulder Joint
MOQ:
1 Pcs（72 Hours Delivery）
Usage:
Orthopedic Trauma Implants
Material:
Medical Stainless Steel
Certificate:
CE/ISO:9001/ISO13485.Etc
Transportation:
FedEx. DHL.TNT.EMS.Etc

Availability:

Quantity:



Inquire

Product Description

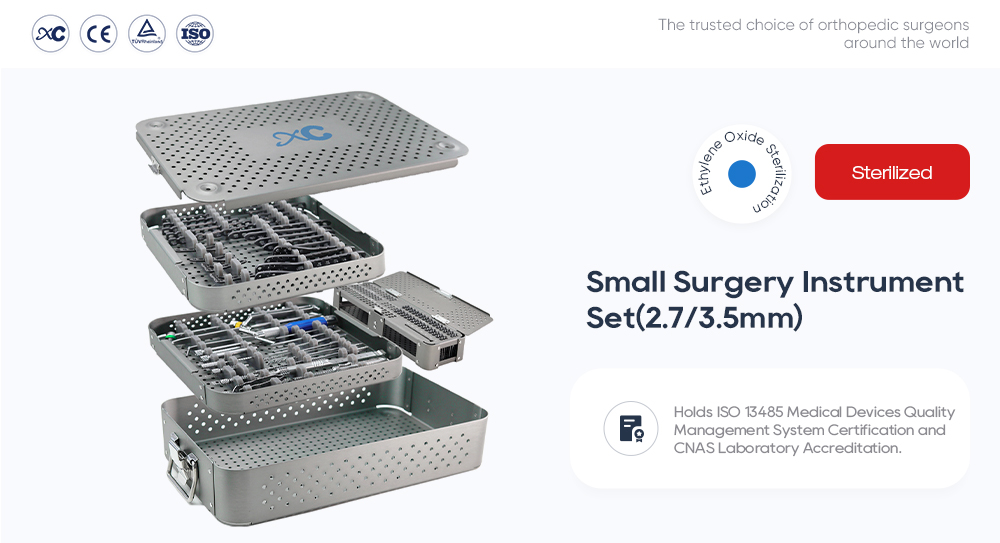

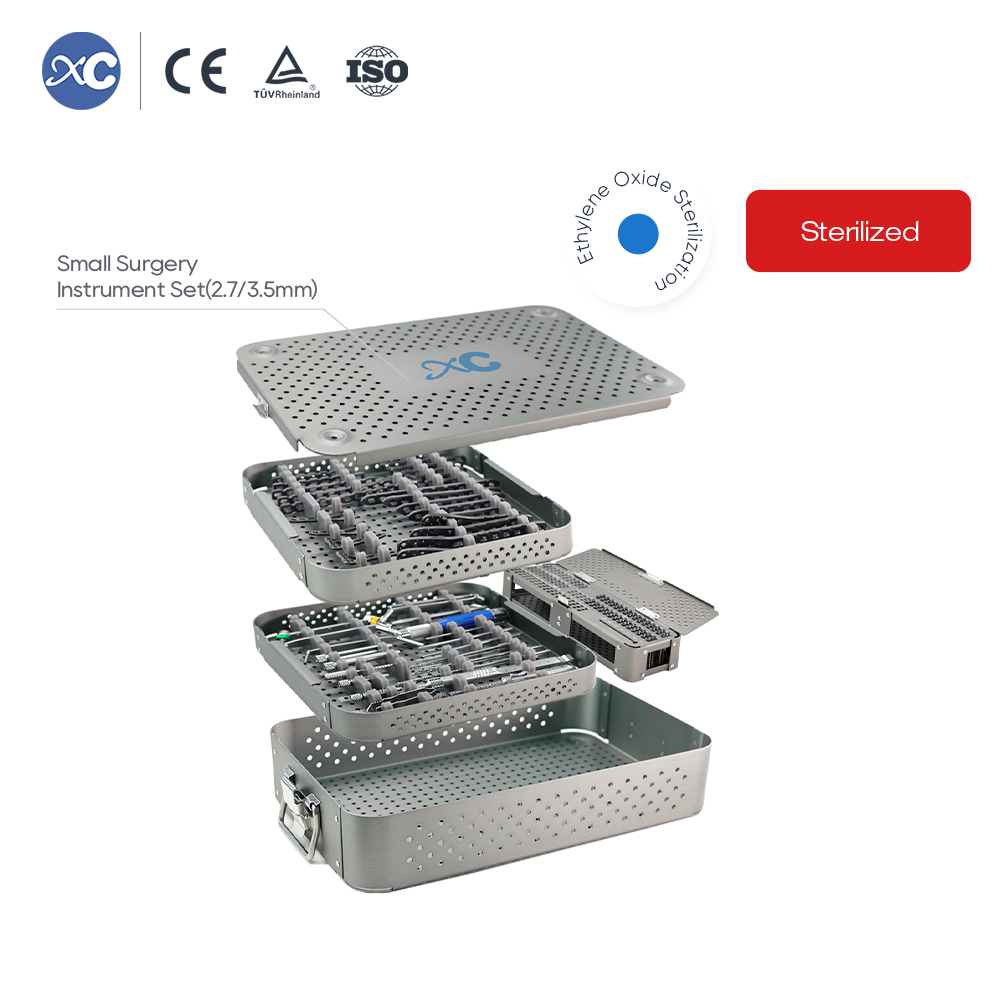

Small Surgery Instrument Set (2.7/3.5mm System)

The trusted choice of orthopedic surgeons around the world. A fully integrated and sterilized solution designed for upper extremity, distal radius, and small bone fracture fixation.

Ethylene Oxide Sterilized ISO 13485 Certified CNAS Lab Accreditation

Product Demonstration Video

Three Core Advantages of the Small Fragment System

Fully Equipped

Fully equipped with a comprehensive range of plates, 2.7/3.5mm screws, and highly precise matching instruments, ready for complex trauma surgeries.

Multi-Purpose

️

One box can be used for multiple purposes. Integrates layers for distal radius, ulna, and humerus, minimizing instrument switching and tray usage.

Customizable

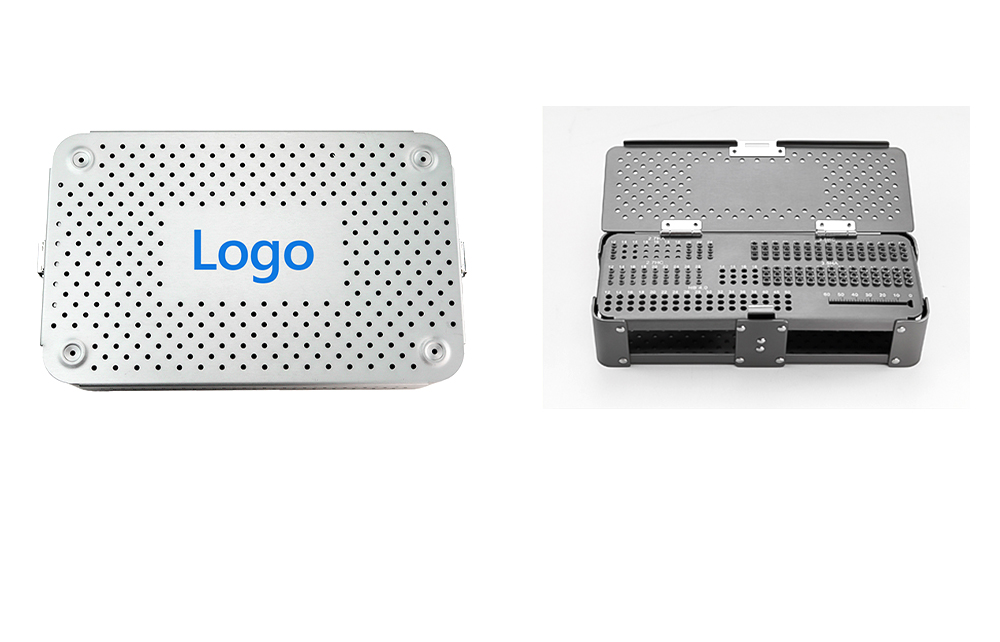

Customized design is available. We warmly welcome OEM & ODM requests, including personal logo laser marking on the sterilization trays.

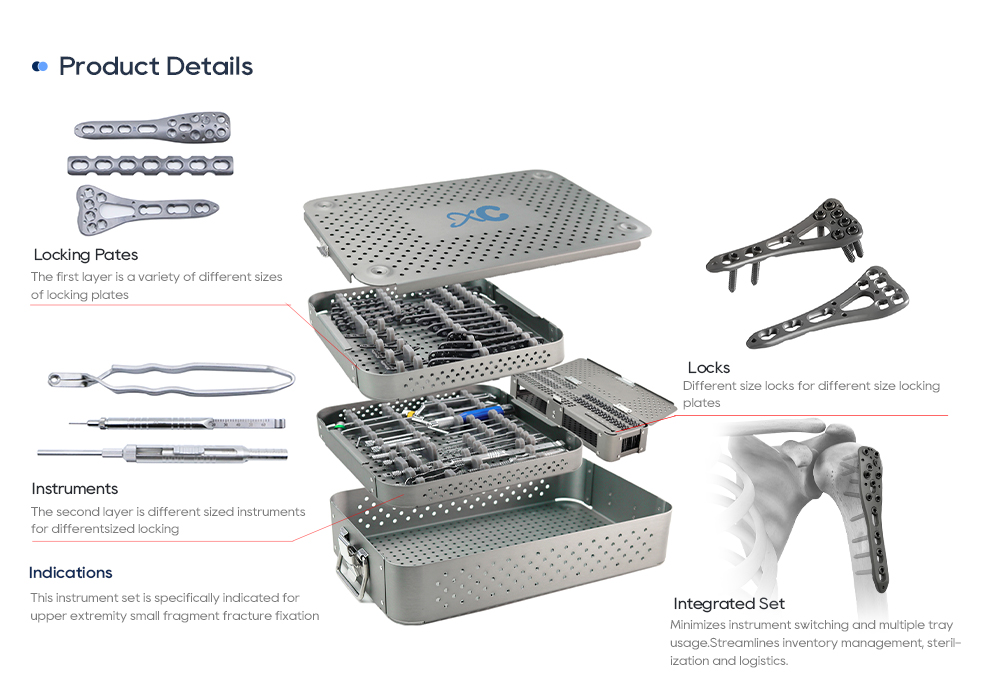

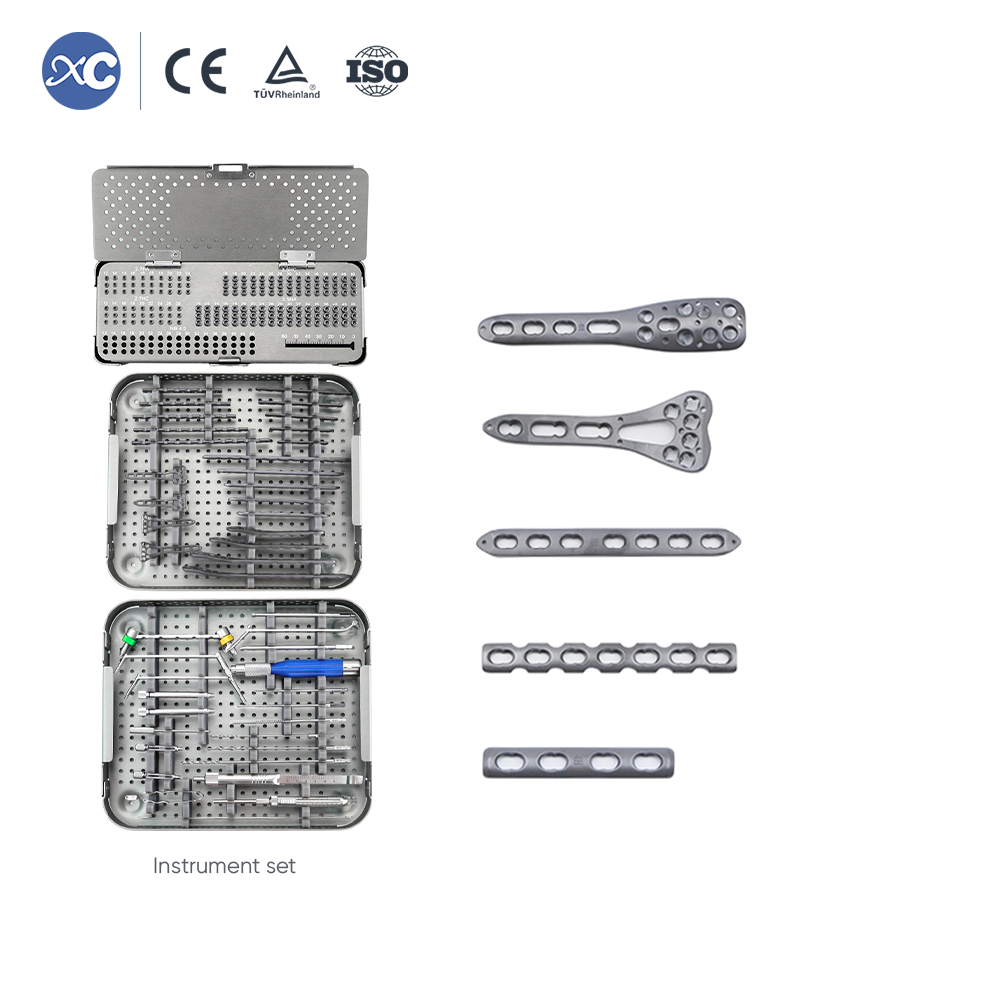

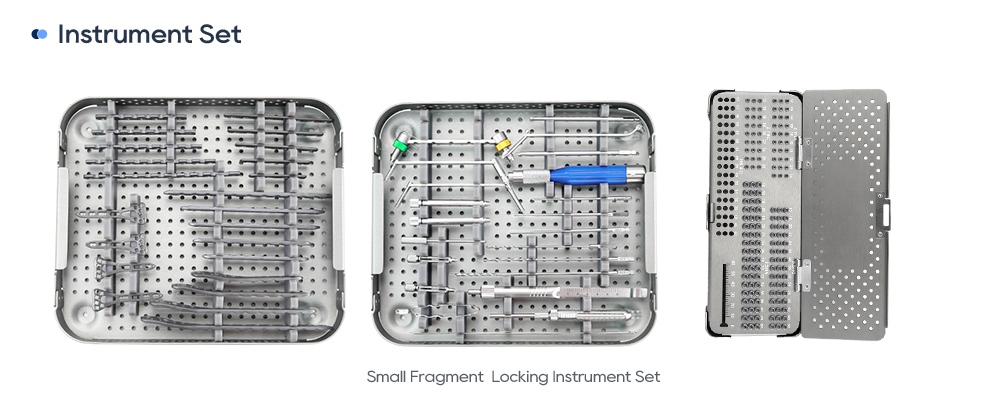

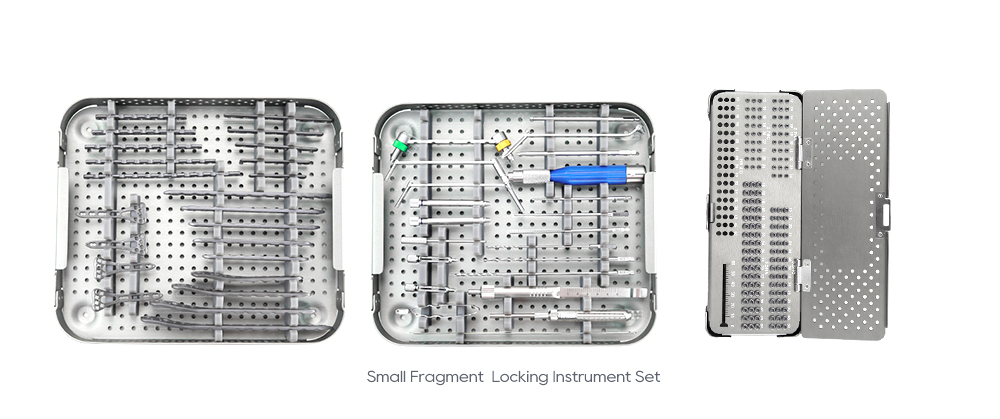

Integrated Set for Bone Fracture Fixation

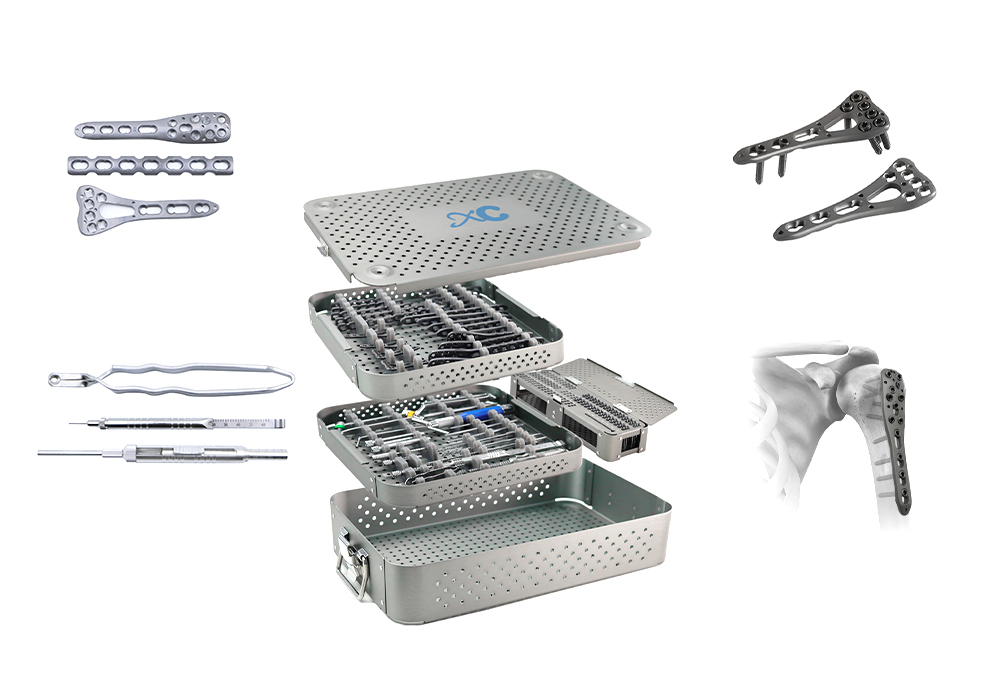

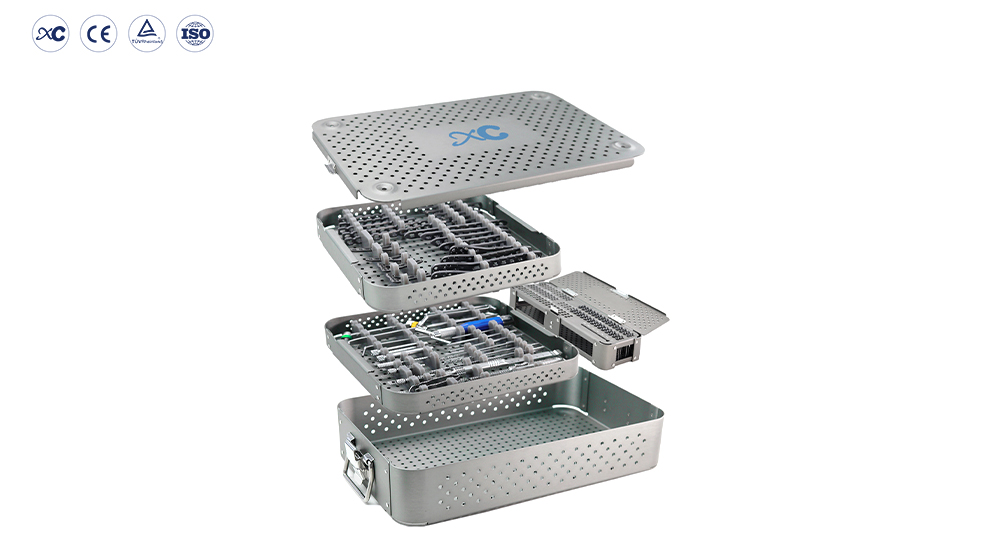

Layered Organization

First Layer (Locking Plates): Contains a variety of different sizes of locking plates (e.g., Distal Radius Plates).

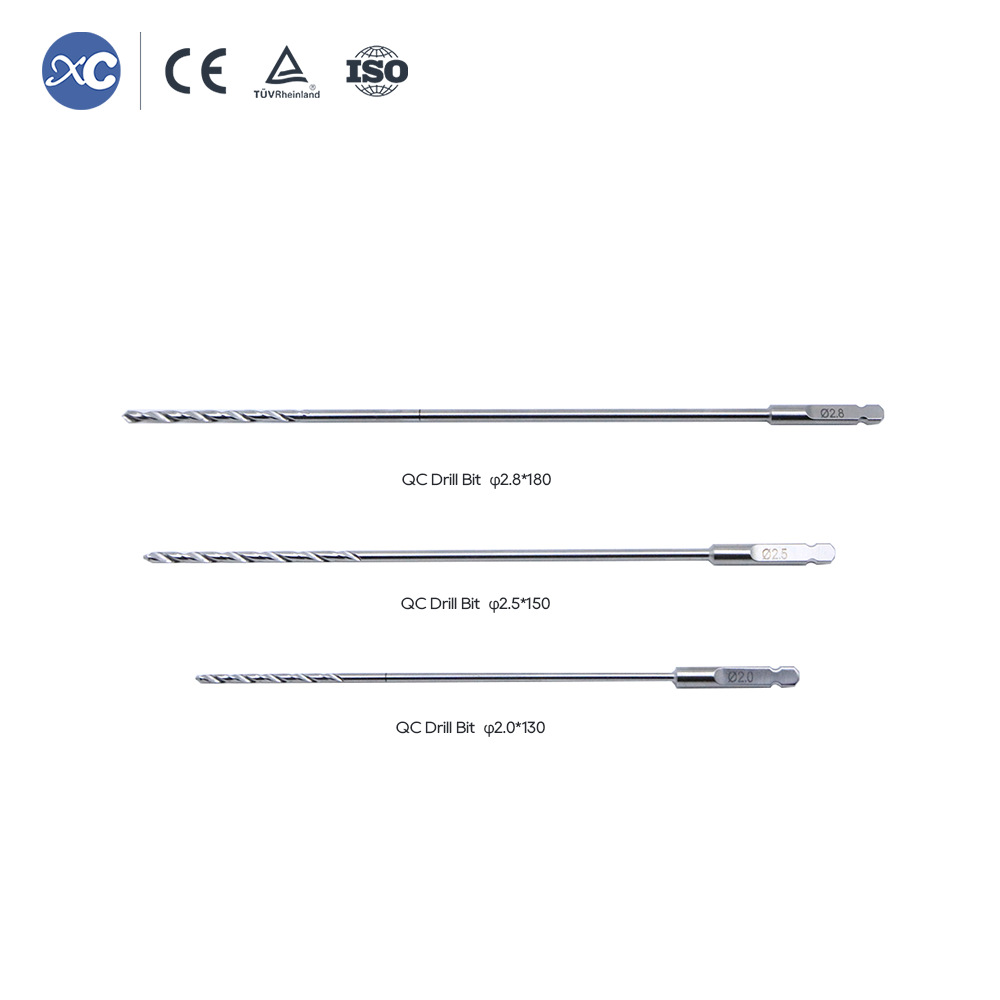

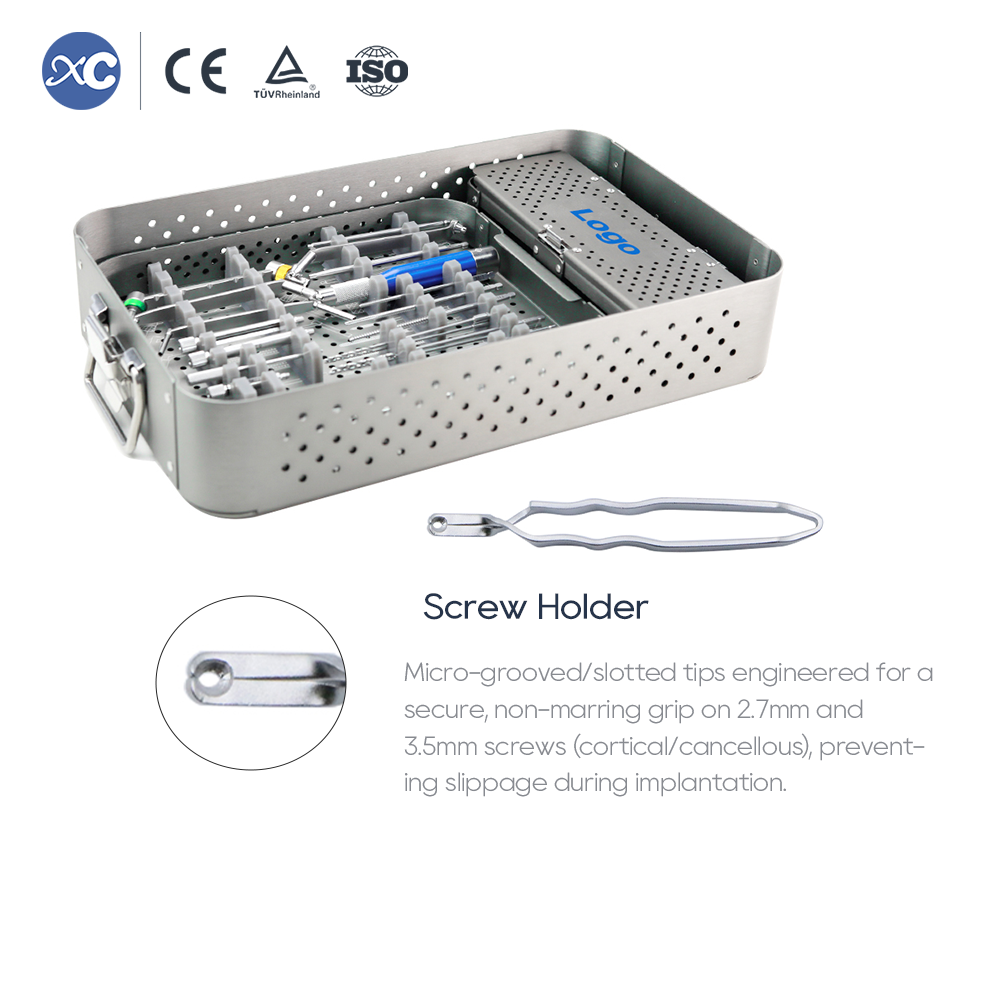

Second Layer (Instruments): Different sized instruments (screwdrivers, drills, guides, forceps) for different sized locking plates.
Screw Rack: Neatly organized 2.7mm and 3.5mm locking and cortical screws.

Streamlined Clinical Workflow

The integrated set design minimizes instrument switching and multiple tray usage during surgery.

This not only streamlines inventory management but also significantly improves the efficiency of sterilization and hospital logistics.

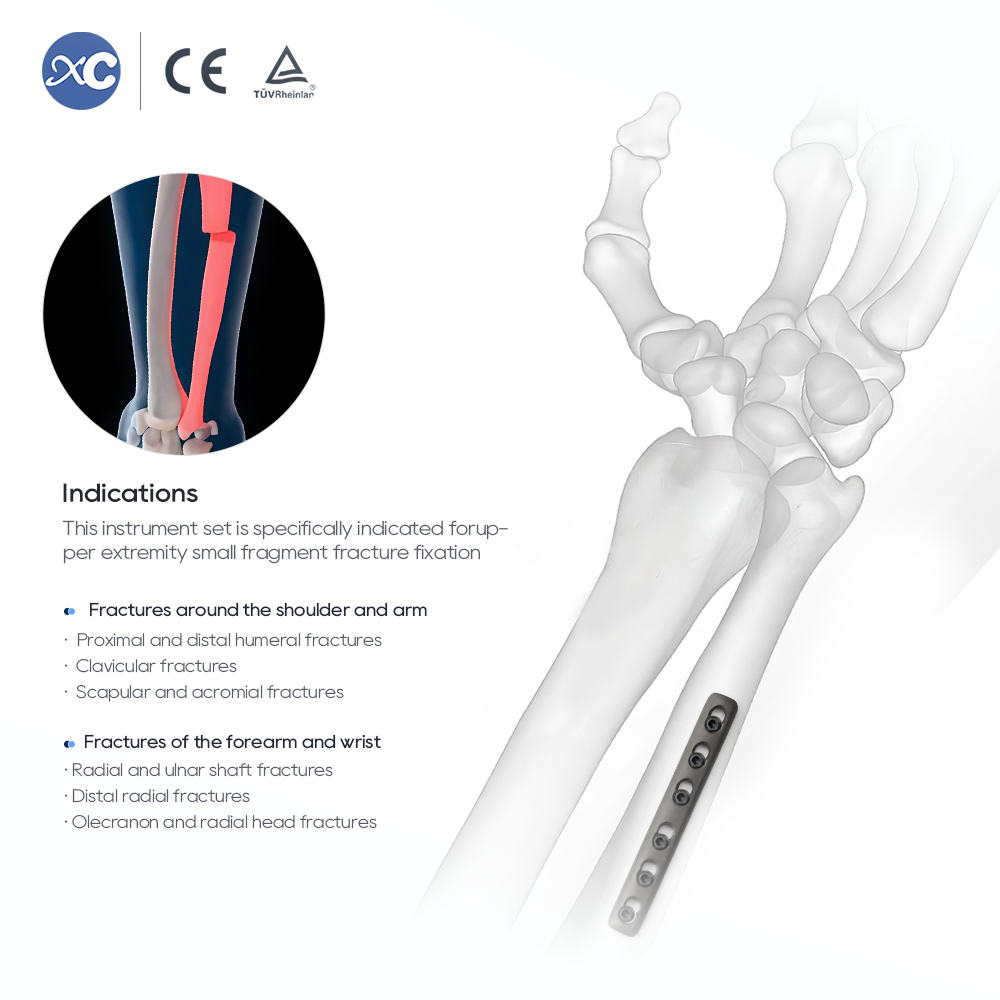

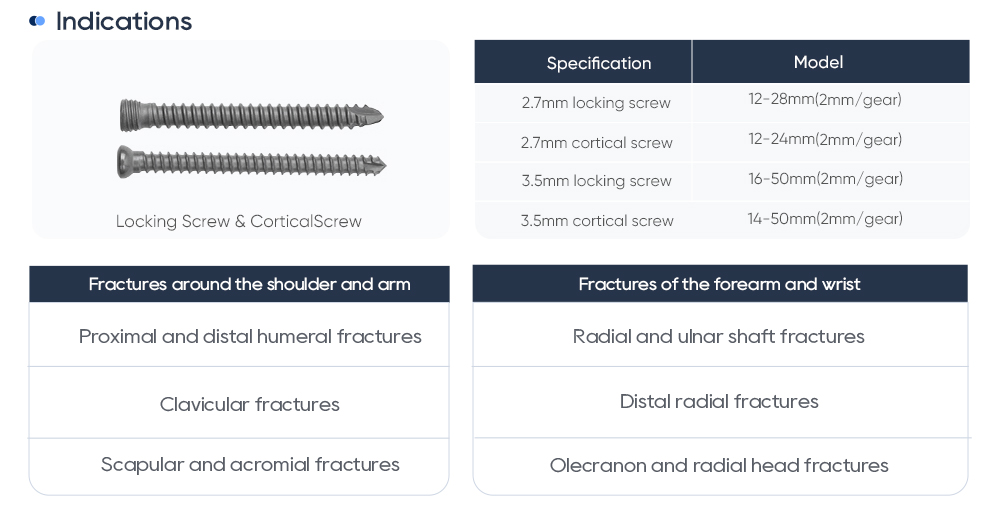

Clinical Indications: Upper Extremity Fractures

This instrument set is specifically indicated for upper extremity small fragment fracture fixation.

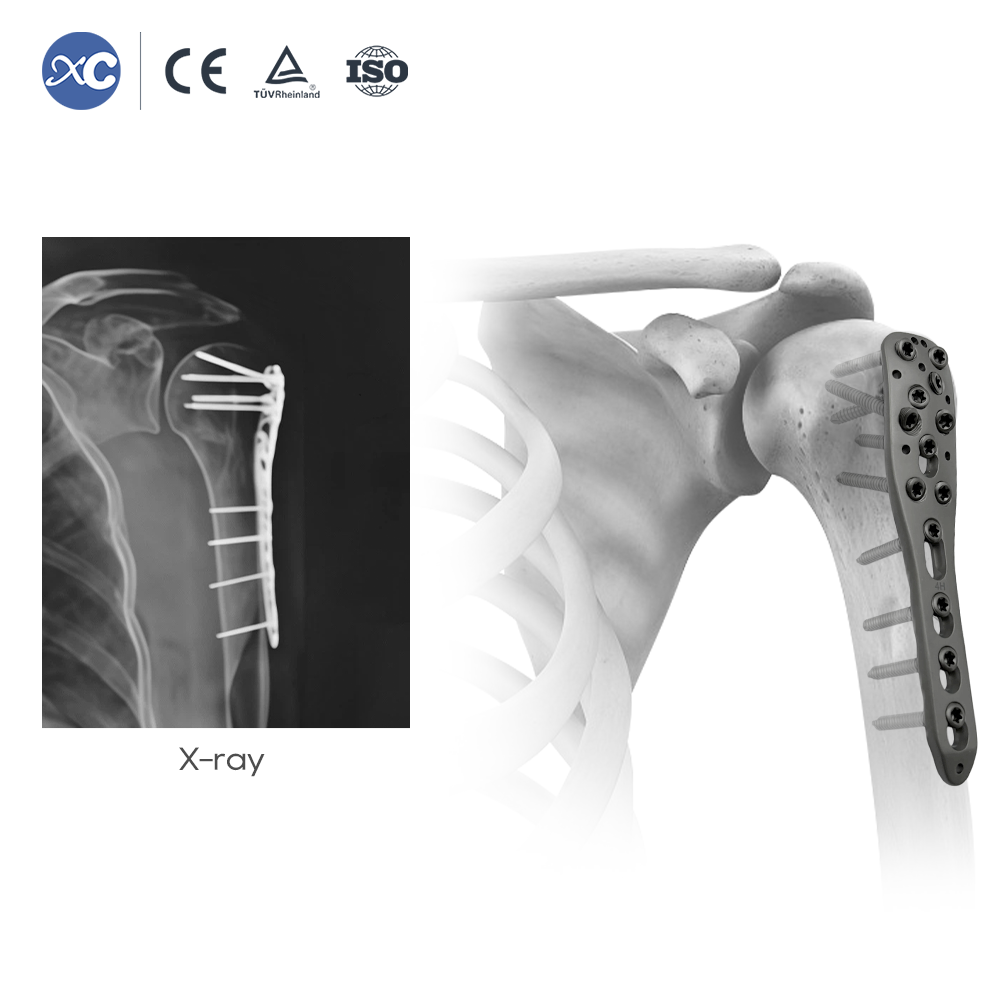

Fractures around the Shoulder & Arm

Proximal and distal humeral fractures
Clavicular fractures
Scapular and acromial fractures

Fractures of the Forearm & Wrist

Radial and ulnar shaft fractures
Distal radial fractures (Colles, Barton)
Olecranon and radial head fractures

Plate Component	Screw Specification	Model (Length Range)
Distal Radius Locking Plate (2-7 Holes)	2.7mm Locking Screw	12 - 28mm (2mm/gear)
Distal Radius Locking Plate (2-7 Holes)	2.7mm Cortical Screw	12 - 24mm (2mm/gear)
Small Fragment Systems	3.5mm Locking Screw	16 - 50mm (2mm/gear)
Small Fragment Systems	3.5mm Cortical Screw	14 - 50mm (2mm/gear)

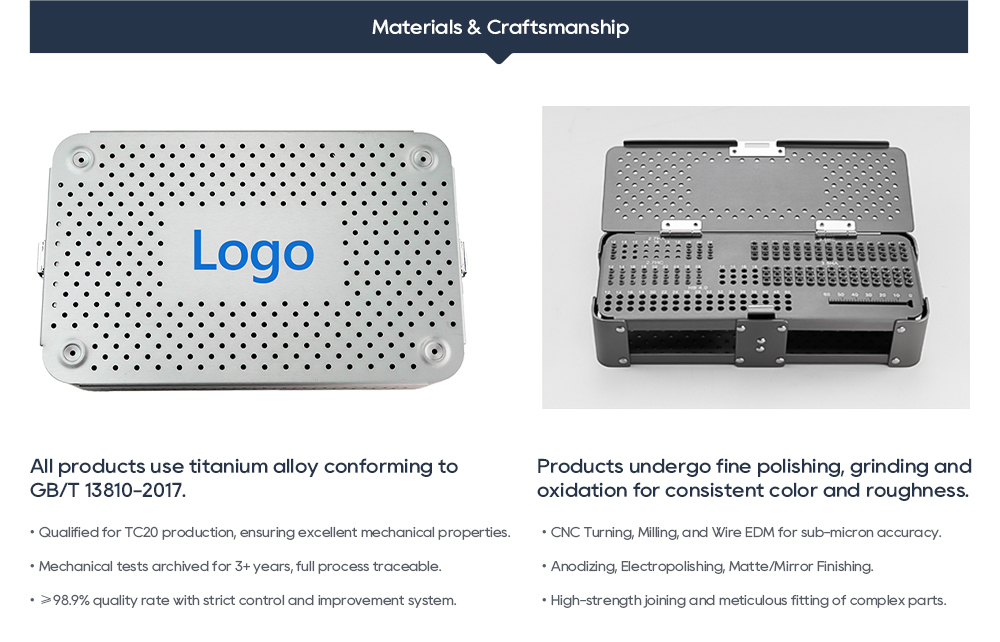

Materials & Craftsmanship

Premium Titanium Alloy

• All implants use titanium alloy conforming to GB/T 13810-2017.
• Qualified for TC20 production, ensuring excellent mechanical properties.
• Mechanical tests archived for 3+ years, full process traceable.
• ≥98.9% quality rate with a strict control and improvement system.

High-Precision Machining

• Products undergo CNC Turning, Milling, and Wire EDM for sub-micron accuracy.
• Fine polishing, grinding and oxidation for consistent color and roughness.
• Anodizing, Electropolishing, Matte/Mirror Finishing.
• High-strength joining and meticulous fitting of complex parts.
