XC Medico Trauma Solutions

Hand, Metacarpal & Phalangeal Fracture Solution

Mini locking plates, matched screws and micro fragment instruments for your hand fixation portfolio.

Explore Plate Systems Plan Your Configuration

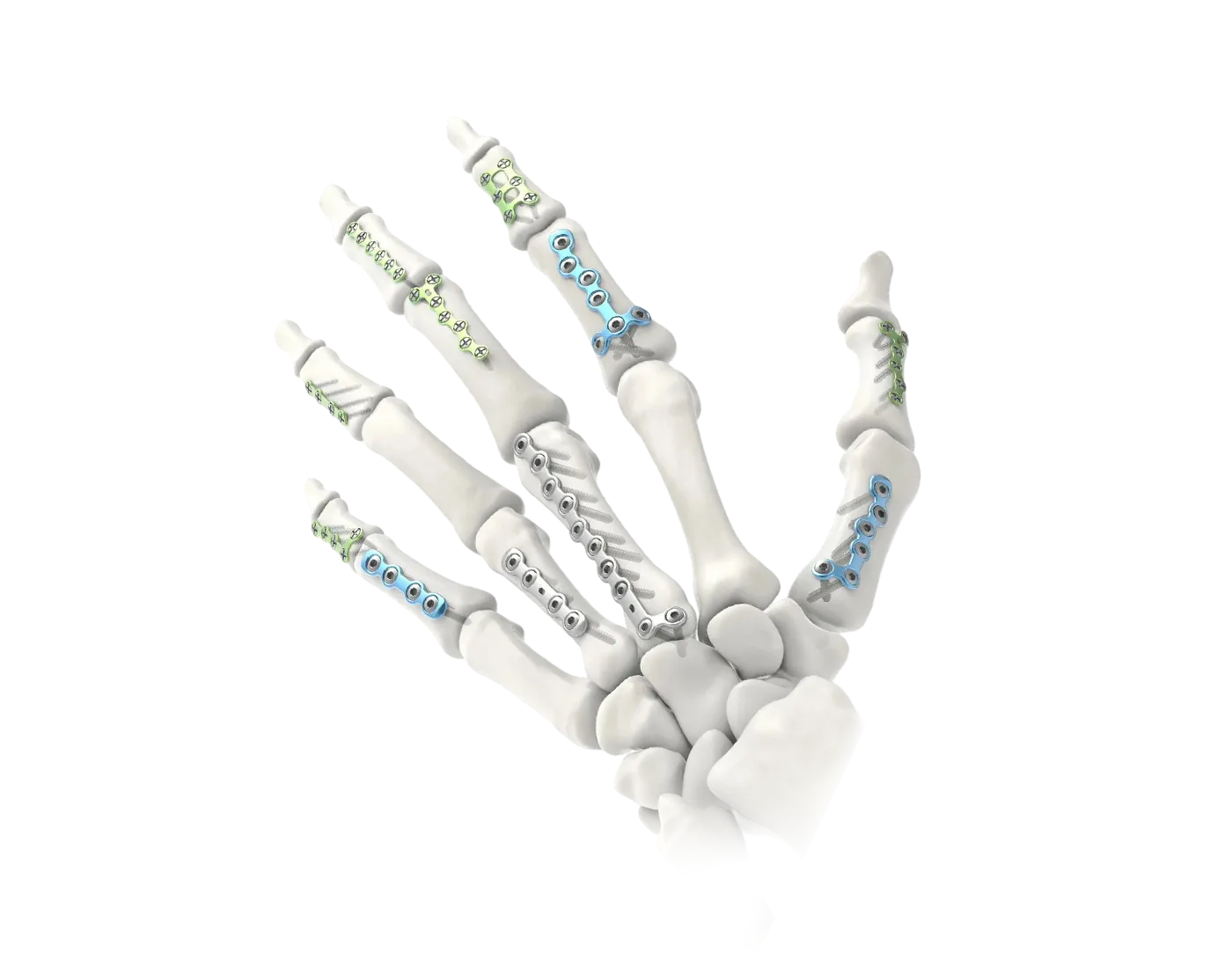

Hand skeleton and mini plate fixation portfolio
配图 01：手部正位骨骼模型搭配微型锁定板产品，重点突出掌骨与指骨区域；应用位置须经专业审核，不要把四个平台画成同时植入。 建议尺寸 1400 × 1100 px。

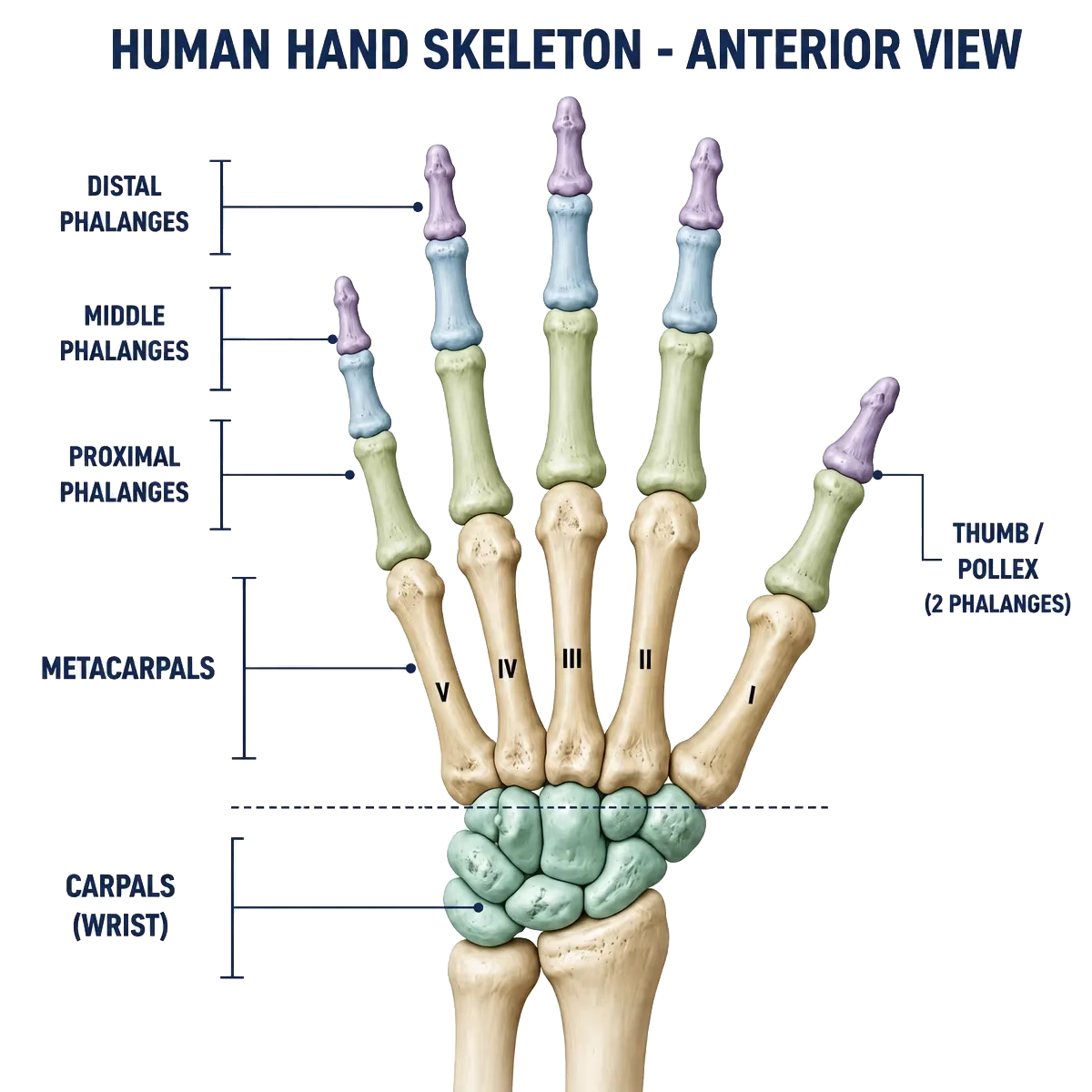

Metacarpal and phalangeal anatomy
配图 02：手部骨骼正位图，清晰标注掌骨、近节指骨、中节指骨、远节指骨和拇指；标注用英文，避免与腕部混淆。 建议尺寸 1200 × 1200 px。

Fixation for the Small Bones of the Hand

Build a hand fixation range around titanium mini plates, selected screw platforms and coordinated instruments.

Explore the broader metacarpal and phalangeal implant portfolio alongside the configurations below.

Metacarpals
Plate shape and length matched to the planned fixation.
Phalanges
Confirm the exact implant indication and anatomical fit.

Anatomy Comes First

Separate metacarpal and phalangeal planning views
配图 03：掌骨与指骨两个独立视角，展示骨折区域和钢板选型关注位置；不按骨骼区域直接指定平台尺寸，植入示意请专业审核。 建议尺寸 1400 × 960 px。

Fracture Location

Identify the involved bone and the base, shaft or head region before selecting a plate configuration.

Implant Fit

Review plate geometry, available fixation space and the surrounding soft tissues with the treating surgeon.

Clinical Scope

Final implant selection follows patient-specific assessment and the approved instructions for use.

Plate Shapes, Clearly Organized

Straight reconstruction T Y and L mini locking plate shapes
配图 04：微型板形态对照图，按直型、重建、T/Y型、L型四组排列；使用手册真实产品轮廓，并标注L型示例为2.7 mm平台。 建议尺寸 1500 × 1000 px。

Straight & Reconstruction

Linear configurations across the 1.5, 2.0, 2.4 and 2.7 mm platforms.

T-Shaped & Y-Shaped

T-shaped options across all four platforms; Y-shaped options in 1.5, 2.0 and 2.4 mm.

L-Shaped

Standard and oblique L-shaped plates in the 2.7 mm platform, with left/right options.

Mini Locking Plate Platforms

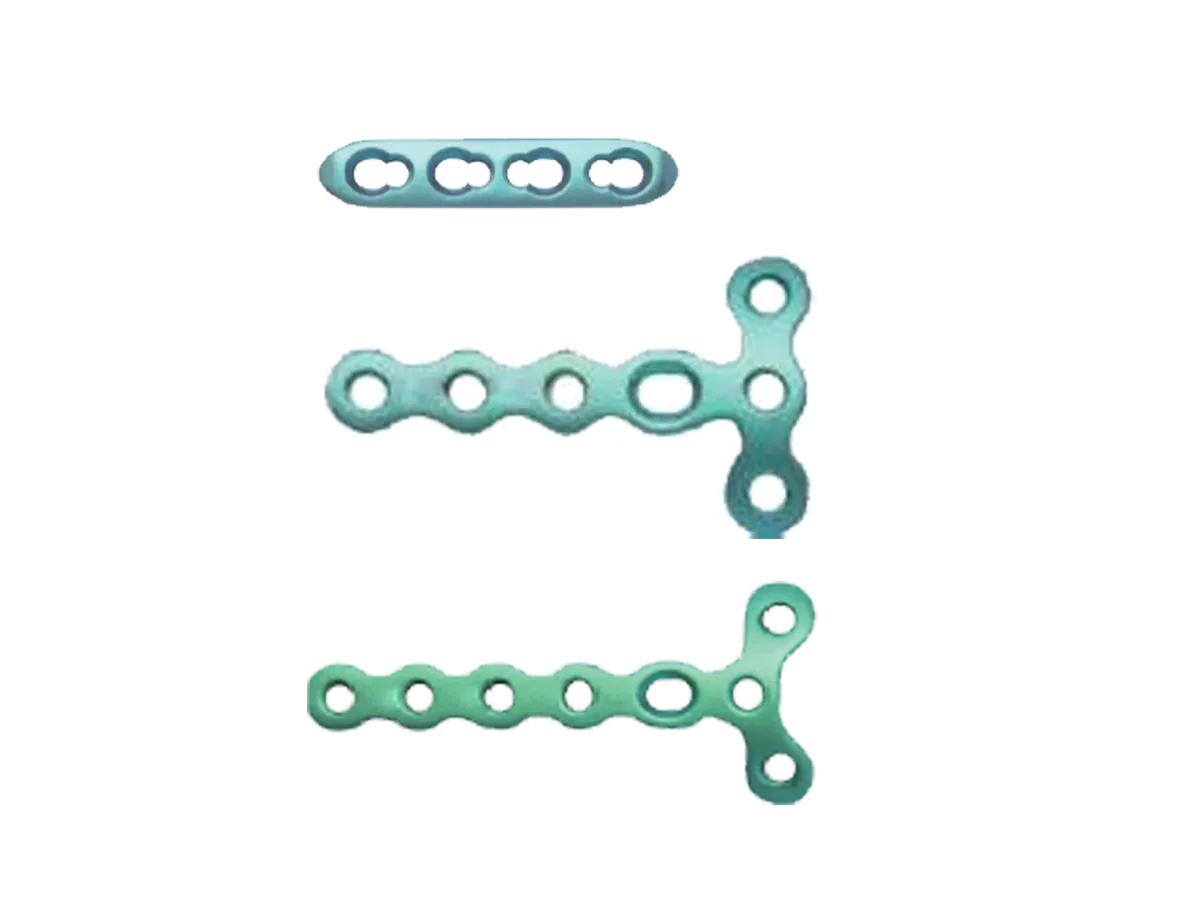

1.5 mm titanium mini locking plate configurations
配图 05：1.5 mm 平台的直型、重建、T型与Y型锁定板分组平铺；保留真实孔型，不加螺钉型号文字堆叠。 建议尺寸 1200 × 900 px。
1.5 mm

Mini Locking Plates

Straight, reconstruction, T-shaped and Y-shaped titanium plates.

Straight and reconstruction: 4, 5, 6 or 8 holes.
HA 1.5 / HC 1.5 by plate reference. Reconstruction plate: HC 1.5.

Explore 1.5 mm plates

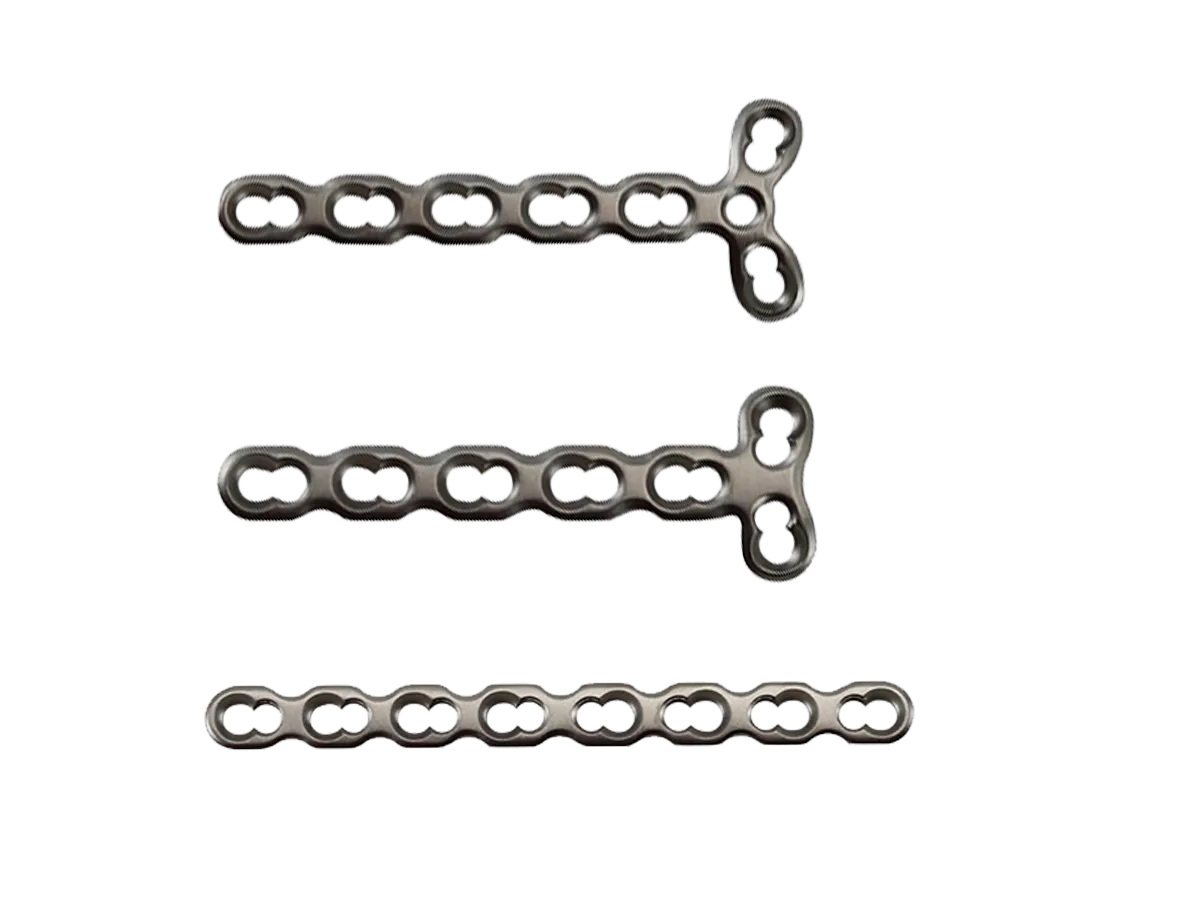

2.0 mm titanium mini locking plate configurations
配图 06：2.0 mm 直型、重建、T型与Y型锁定板组合，主推一块直型板，其他形态辅助展示。 建议尺寸 1200 × 900 px。
2.0 mm

Mini Locking Plates

Straight, reconstruction, T-shaped and Y-shaped titanium plates.

Straight: 4, 5, 6 or 8 holes. Reconstruction: also 10 holes.
HA 2.0 / HC 2.0 screw platform.

Explore 2.0 mm plates

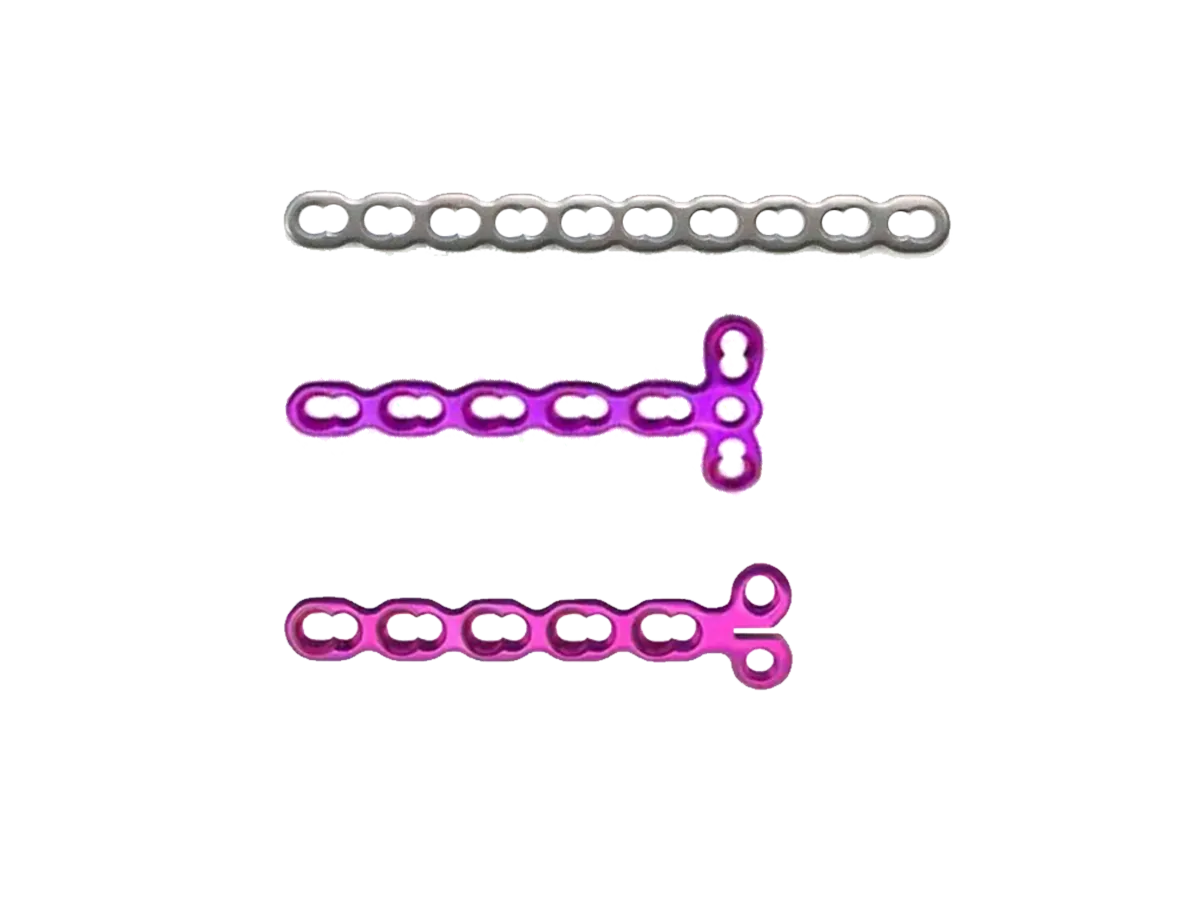

2.4 mm titanium mini locking plate configurations
配图 07：2.4 mm 微型锁定板形态组合，展示直型、重建与T/Y型，采用浅灰背景及统一比例。 建议尺寸 1200 × 900 px。
2.4 mm

Mini Locking Plates

Straight, reconstruction, T-shaped and Y-shaped titanium plates.

Straight: 4, 5, 6, 8 or 10 holes. Reconstruction: 4, 6, 8 or 10.
HA 2.4 / HC 2.4 screw platform.

Explore 2.4 mm plates

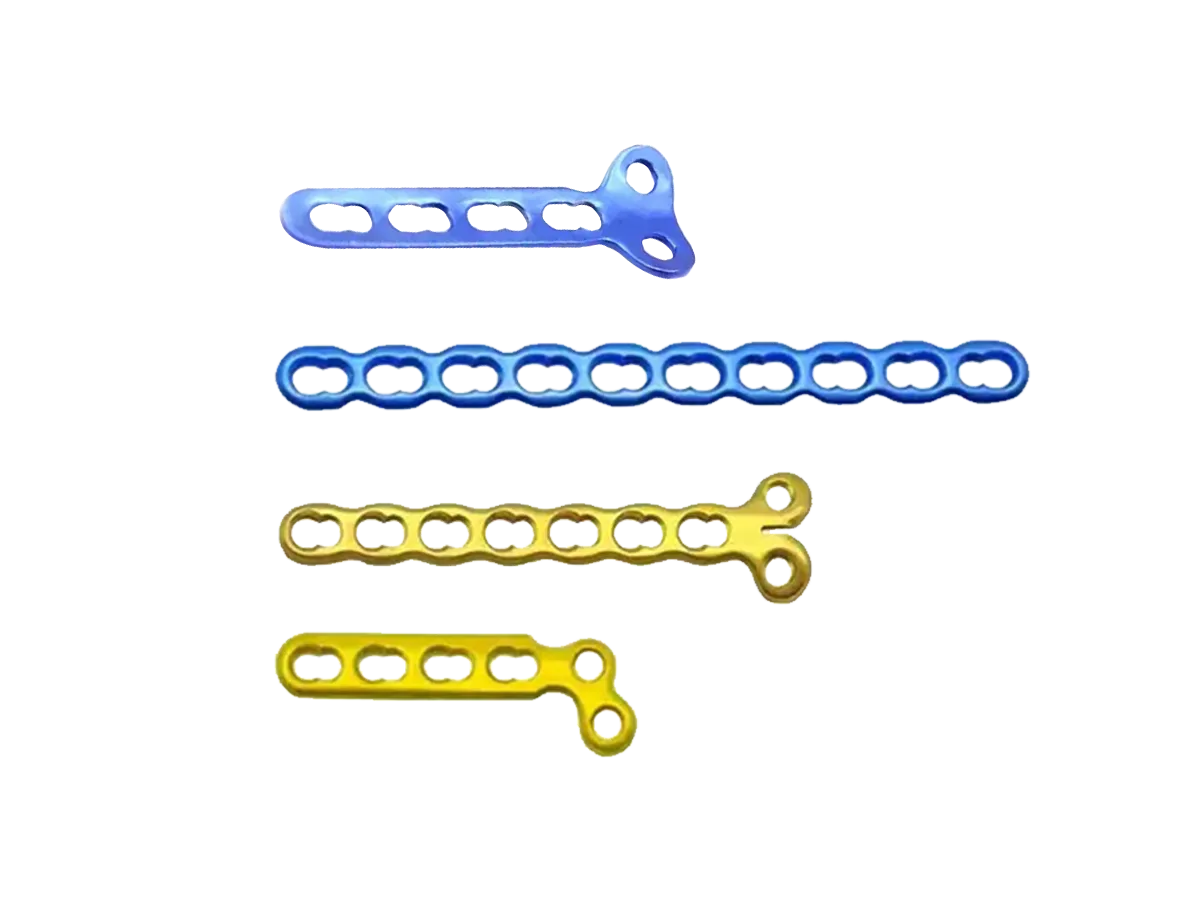

2.7 mm titanium mini locking plate configurations
配图 08：2.7 mm 直型、重建、T型及左右侧L型锁定板组合，突出与前三组的形态差别。 建议尺寸 1200 × 900 px。
2.7 mm

Mini Locking Plates

Straight, reconstruction, T-shaped, L-shaped and oblique L-shaped titanium plates.

Straight: 4, 6 or 8 holes. L-shaped options: left and right.
HA 2.7 / HC 2.7 screw platform.

Explore 2.7 mm plates

Hole ranges vary by plate shape. Confirm the exact plate reference and screw compatibility rather than transferring one family's specifications to another.

Complete the System

Hand fixation plate screw and instrument configuration
配图 09：手部固定系统总配置图，钢板、螺钉、器械分区展示；将2.7 mm单独区分，不暗示可使用1.5/2.0/2.4 mm混合器械盒。 建议尺寸 1500 × 1100 px。
Matched HA cortical and HC locking screw platforms
配图 10：HA皮质骨螺钉与HC锁定螺钉按1.5、2.0、2.4、2.7 mm分组；展示真实头部与螺纹细节，不混用比例或标成全兼容。 建议尺寸 1200 × 900 px。

Screws Matched to the Plate

Coordinate diameter, screw family and length for each selected plate. Matching diameter alone does not confirm compatibility.

For an explanation of fixation principles, read our locking and non-locking plate comparison.

1.5 2.0 2.4 mm micro fragment locking instrument set without implants
配图 11：1.5/2.0/2.4 mm微型锁定器械套装完整实拍，包含通用工具和分规格器械托盘；标注No Implants，不摆放钢板螺钉。 建议尺寸 1400 × 1000 px。

Micro Fragment Instrument Set

Combined 1.5/2.0/2.4 mm instrumentation for reduction, drilling, measurement and screw insertion. Implants supplied separately.

View instrument set

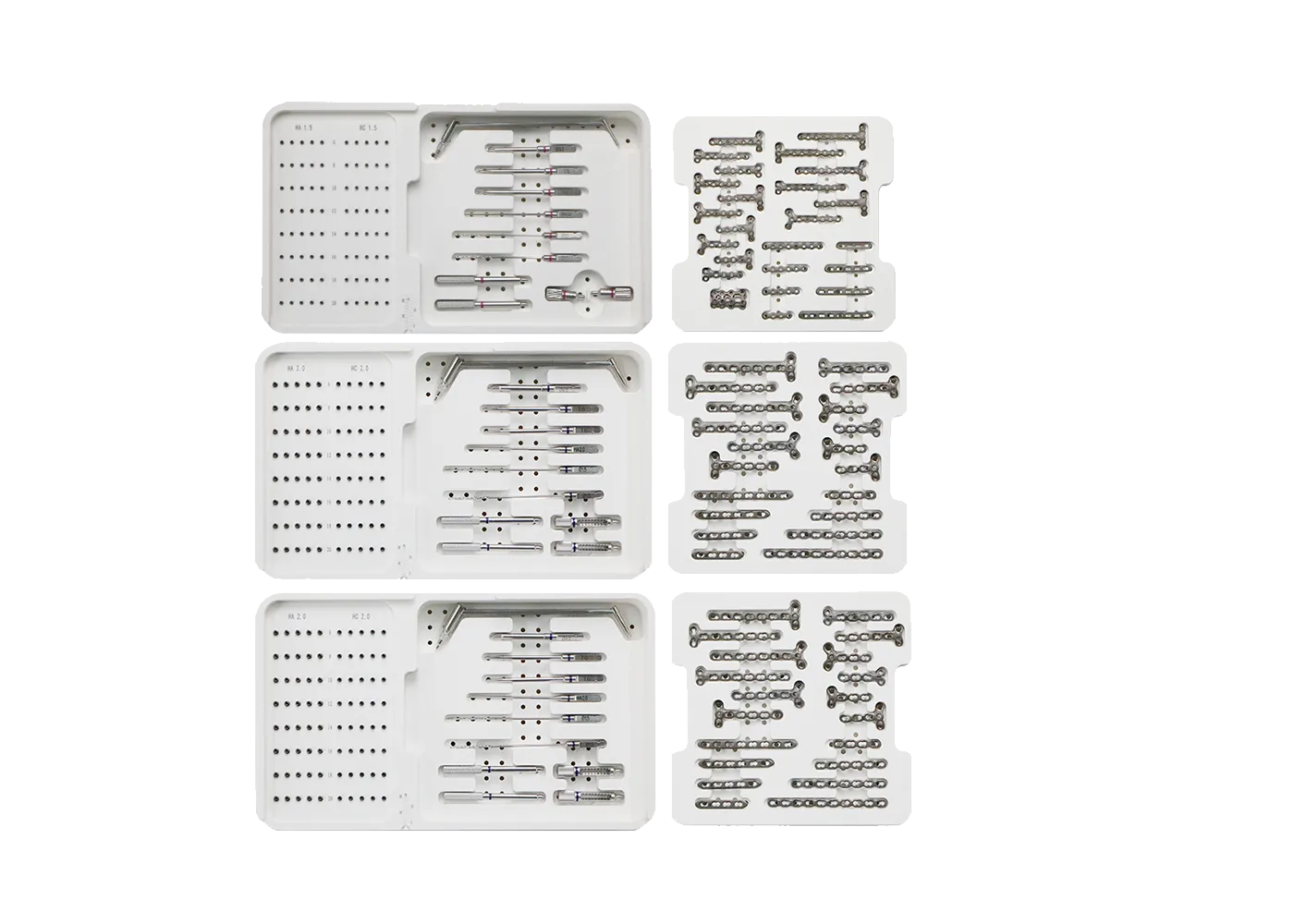

Separate 1.5 2.0 and 2.4 mm micro fragment implant and instrument sets
配图 12：1.5、2.0、2.4 mm三个分规格套装独立排列，展示各自钢板螺钉及工具；按实际套装清单拍摄，不与无植入物套装混淆。 建议尺寸 1400 × 1000 px。

Platform-Specific Sets

Separate 1.5, 2.0 and 2.4 mm sets combine selected plates, screws and tools. Review the tray contents before ordering.

Shared reduction and measuring tools are available through the Micro Fragment General Instrument Set.

Planning to Final Verification

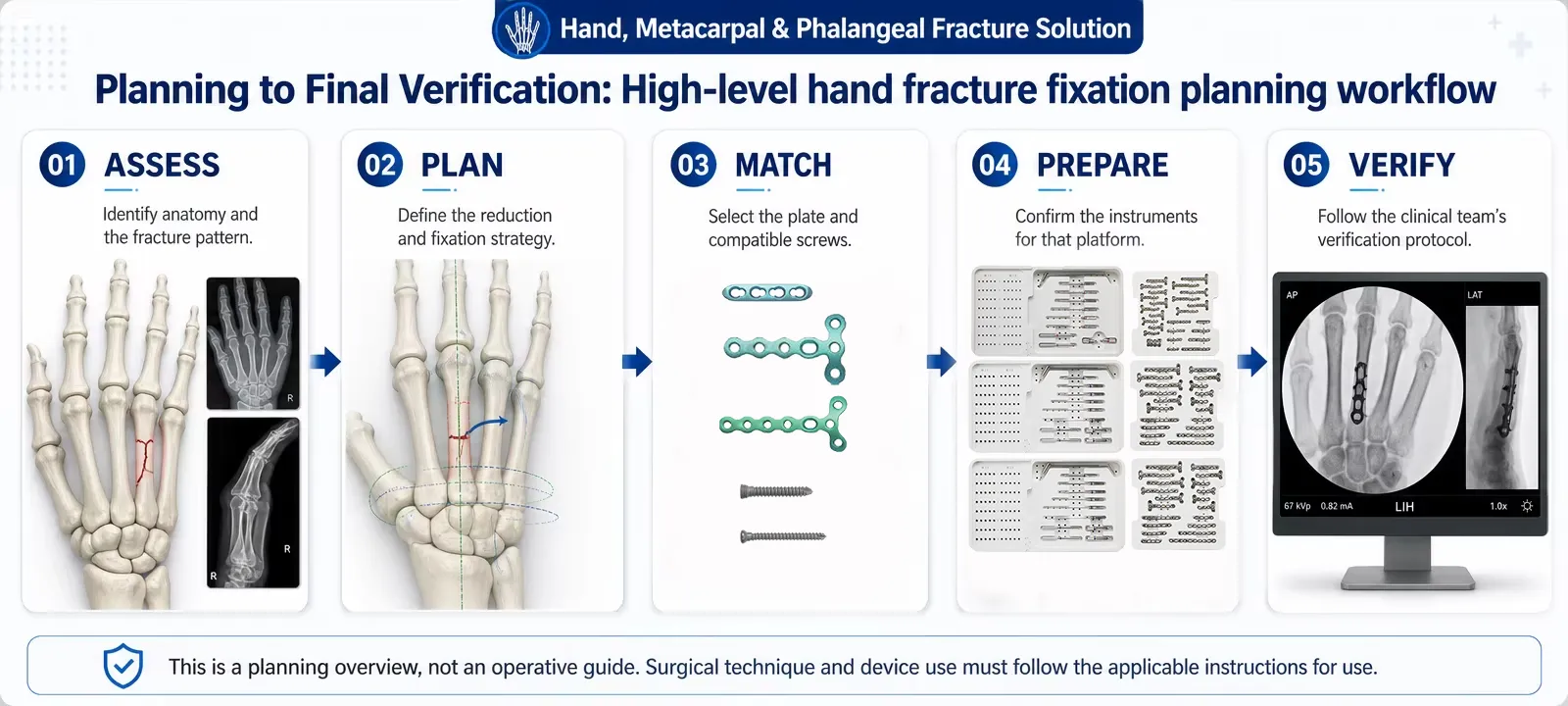

High-level hand fracture fixation planning workflow
配图 13：横向五步示意：影像评估、复位规划、匹配钢板螺钉、使用配套器械、最终影像确认；只作概览，不标注钻孔角度或手术操作参数。 建议尺寸 1600 × 720 px。
  1. AssessIdentify anatomy and the fracture pattern.
  2. PlanDefine the reduction and fixation strategy.
  3. MatchSelect the plate and compatible screws.
  4. PrepareConfirm the instruments for that platform.
  5. VerifyFollow the clinical team's verification protocol.

This is a planning overview, not an operative guide. Surgical technique and device use must follow the applicable instructions for use.

System Selection Guide

Plate Reference

Confirm shape, hole count and side where applicable. Avoid ordering by platform size alone.

Screw Family

Check HA or HC compatibility for the exact plate. The 1.5 mm reconstruction plate requires HC 1.5.

Instrument Coverage

Choose a loaded set or instruments only. Confirm 2.7 mm tooling separately.

Supply Scope

Specify quantities, packaging, destination market and required documentation.

Manufacturing Behind Your Hand Portfolio

Discuss implant production, inspection and instrument-set assembly as one coordinated supply project.

For private-label requirements, explore our orthopedic OEM and ODM services.

XC Medico implant manufacturing inspection and instrument assembly
配图 14：沿用XC Medico真实工厂照片，组合精密加工、产品测量质检与器械装配；不要使用AI虚构工厂、证书或客户。 建议尺寸 1400 × 1000 px。

Hand Fixation FAQ

Which platform should we include in a hand fixation set?

Start with the plate references requested by your clinical team, then match screw diameters, lengths and instruments. The four platforms are portfolio choices, not a universal size-to-bone selection rule.

Are all four platforms suitable for every phalangeal fracture?

No. Phalangeal use requires confirmation for the exact implant, anatomy and approved indication. A general hand-system description does not establish suitability for every plate or fracture.

Can locking and cortical screws be used interchangeably?

Do not assume so. Match the screw family to the specific plate and hole. For example, the 1.5 mm Reconstruction Locking Plate specifies HC 1.5 locking screws, unlike several HA 1.5 / HC 1.5 options.

Does the instrument set include plates and screws?

The combined 1.5/2.0/2.4 mm instrument set contains no implants. Separate platform-specific sets include implant selections. Confirm the itemized tray contents and quantities before ordering.

Can one instrument set cover the 2.7 mm platform as well?

The combined set shown here is for 1.5, 2.0 and 2.4 mm platforms. A 2.7 mm configuration requires separate confirmation of drills, guides, taps and drivers.

What do you need to prepare a quotation?

Send the selected plate families and sizes, screw lengths and quantities, instrument requirements and destination market. Include any private-label or documentation requests.

Related Resources

Build Your Hand Fixation Set

Share your plate selection, screw range and instrument requirements for a coordinated quotation.

Request System Matching
