XC Medico Trauma Solutions

Distal Radius Fracture Fixation Solution

Volar, dorsal and column-specific plates with matched screws and instruments for your wrist fixation portfolio.

Explore Plate Systems Request System Matching
Distal radius plate fixation portfolio
配图 01：腕关节与远端桡骨解剖模型，分别示意掌侧、背侧和柱固定钢板位置，采用分视角展示，避免暗示全部钢板同时植入。 建议尺寸 1400 × 1100 px。

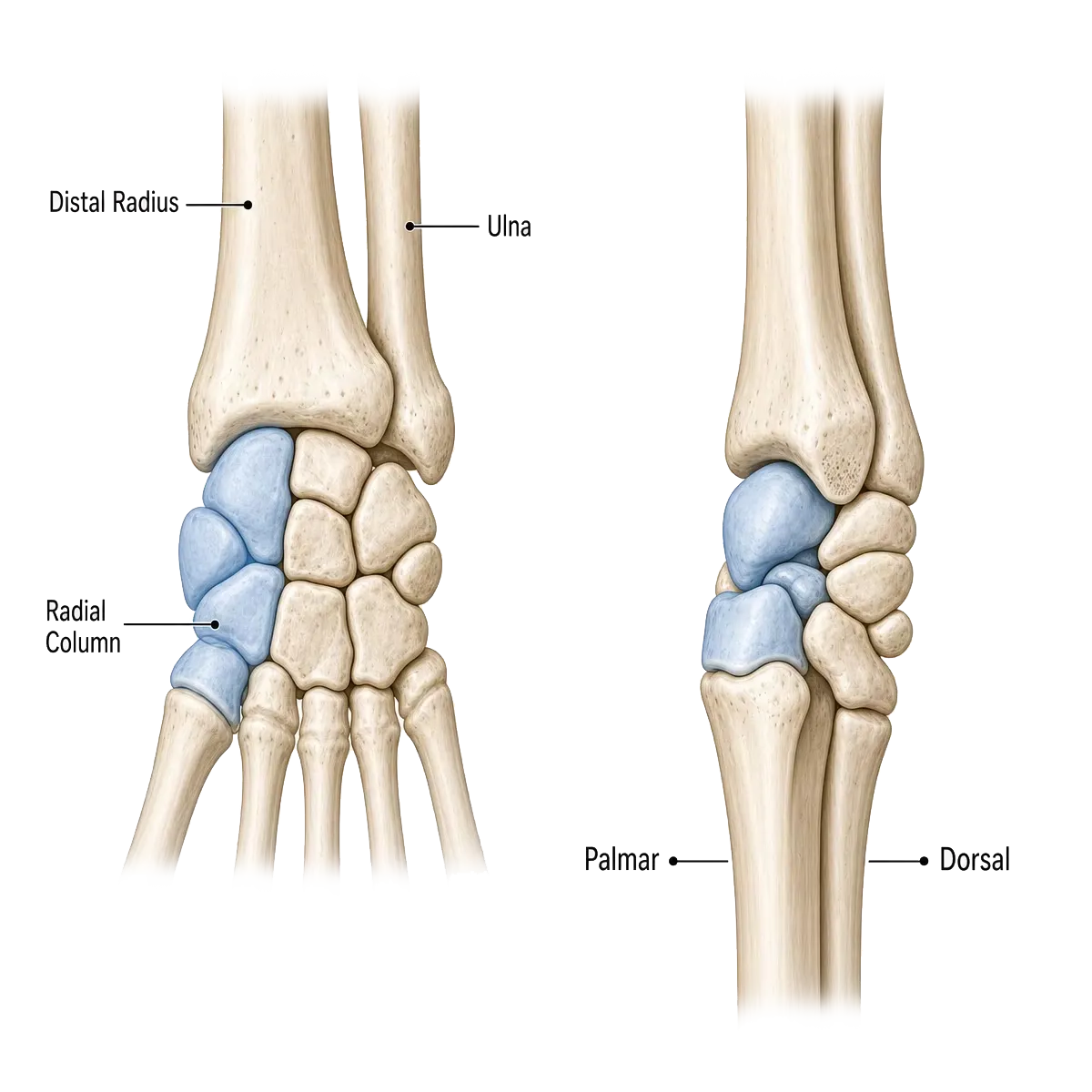

Distal radius anatomy and fixation regions
配图 02：腕关节正位、侧位解剖图，清晰标注远端桡骨、尺骨、掌侧、背侧和桡侧柱；标注使用英文。 建议尺寸 1200 × 1200 px。

Distal Radius Fixation

Build a wrist fixation offering around the required plate position, head design and screw platform. XC Medico brings the implant and instrument configuration together.

Volar
6H, 7H, DVR and multi-axial designs
Dorsal
Dorsal-side and long dorsal plates
Column-specific
Middle and radial column plates
Titanium
Locking and non-locking plate options

Planning a broader forearm range? Explore our radius and ulna implant portfolio.

Fixation Areas

Volar, dorsal and column-specific distal radius plate positions
配图 03：三视角远端桡骨应用图，分别展示掌侧、背侧及柱固定位置；钢板与螺钉方向由专业人员确认。 建议尺寸 1400 × 1000 px。

Volar Distal Radius

Plate families with different head layouts, shaft lengths and left or right configurations.

Dorsal Distal Radius

Dedicated dorsal-side and long dorsal designs for the requested fixation configuration.

Middle & Radial Columns

Separate plate families for column-specific configurations selected by the clinical team.

Fixation Options

Volar Locking Plates

Choose a 6H or 7H head, DVR or multi-axial design, then match the shaft configuration and 2.7 mm screw platform.

Volar distal radius locking plate families
配图 04：6孔头、7孔头、DVR和掌侧多轴锁定板四类实物组合图，各类名称简洁标注。 建议尺寸 1400 × 1000 px。
Dorsal and column-specific plate families
配图 05：背侧、长型背侧、中间柱及桡侧柱钢板并列展示，避免产品重叠。 建议尺寸 1200 × 900 px。

Dorsal & Column Plates

Match the dorsal-side, long dorsal or column-specific family to the requested construct.

Non-locking distal radius medial plate options
配图 06：非锁定远端桡骨内侧板及Metacarpus Medial Type两类产品，按手册区分形状并标注名称。 建议尺寸 1200 × 900 px。

Non-Locking Options

The Distal Radius Medial Plate and Metacarpus Medial Type offer 3-6-hole options with HA 3.5 and HB 4.0 screws.

Distal Radius Plate Systems

Volar Plates

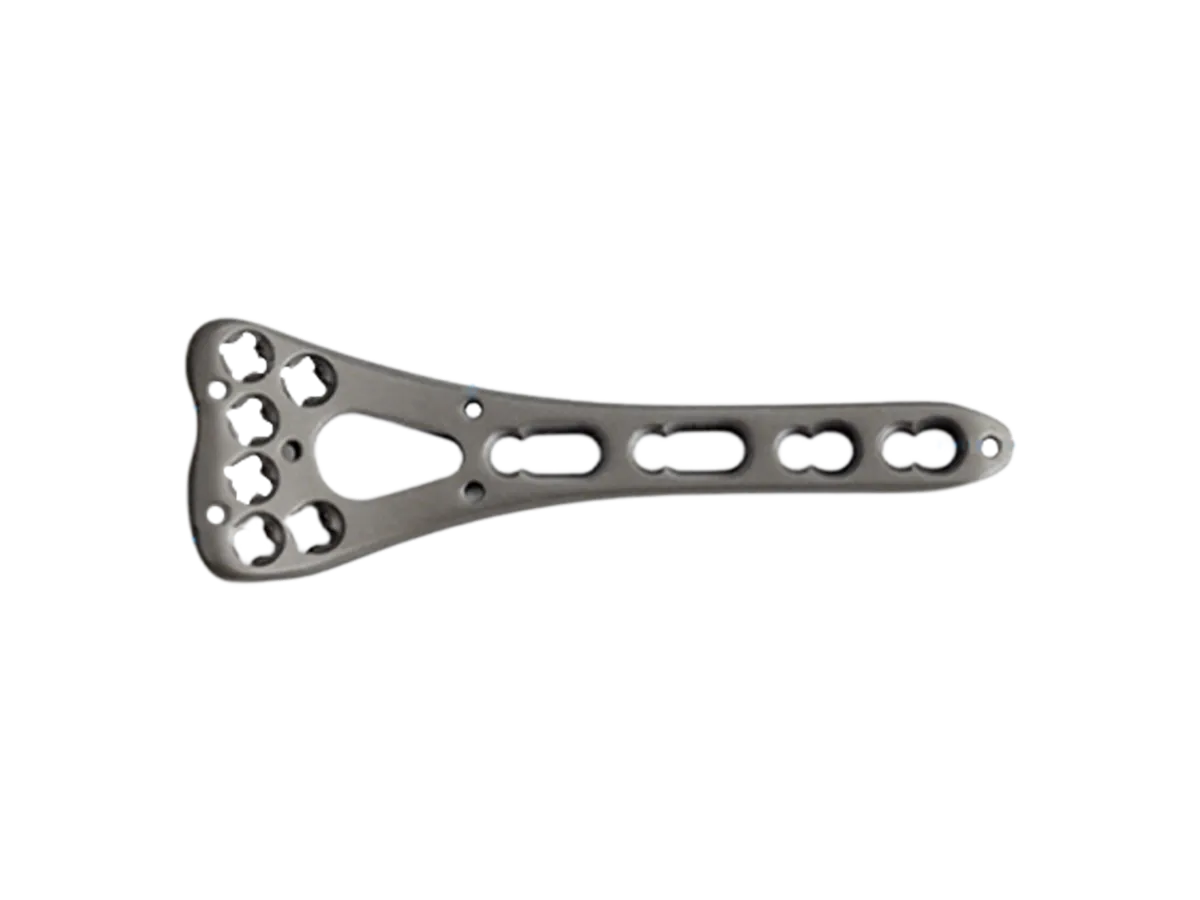

Distal Radius Locking Plate (6H on Head)
配图 07：6孔头远端桡骨锁定板，按2至7个柄部孔数排列左右侧规格，保留钢板真实形状与孔型。 建议尺寸 1200 × 900 px。

Distal Radius Locking Plate (6H on Head)

2-7 shaft holes. Left and right options.

Screws: HA 2.7 / HC 2.7

View plate details

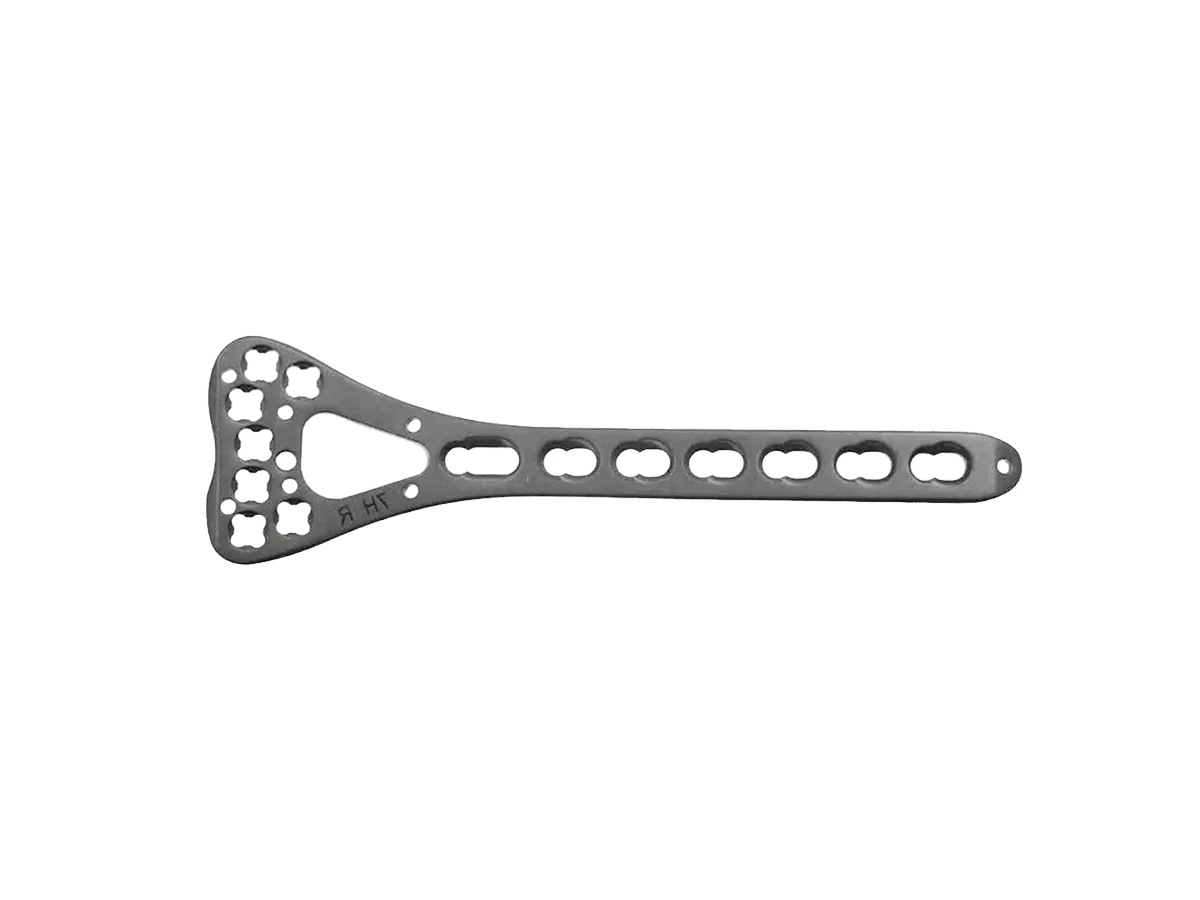

Distal Radius Locking Plate (7H on Head)
配图 08：7孔头远端桡骨锁定板，展示头部孔型与左右侧规格，勿与6孔头产品混用。 建议尺寸 1200 × 900 px。

Distal Radius Locking Plate (7H on Head)

2-7 shaft holes. Left and right options.

Screws: HA 2.7 / HC 2.7

View plate details

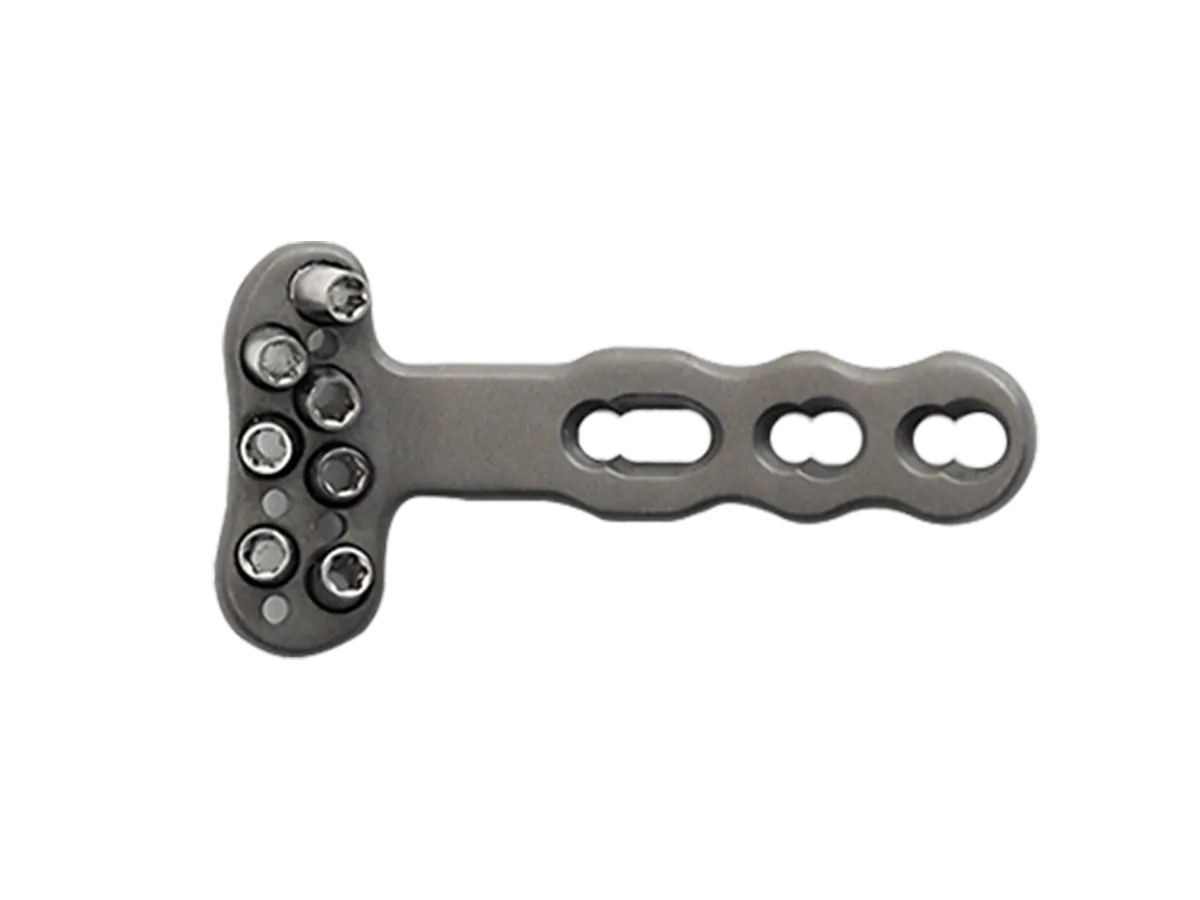

Distal Radius Locking Plate DVR
配图 09：DVR远端桡骨锁定板，展示3、4、5、7、9孔左右侧规格，浅灰背景平铺。 建议尺寸 1200 × 900 px。

Distal Radius Locking Plate DVR

3, 4, 5, 7 and 9-hole configurations.

Screws: HA 2.7 / HC 2.7

View plate details
Distal Radius Volar Multi-Axial Locking Plate
配图 10：带桡侧支撑结构的掌侧多轴锁定板，展示左右侧与细节，严格参照手册产品外形。 建议尺寸 1200 × 900 px。

Distal Radius Volar Multi-Axial Locking Plate

With radial tap. 2-7 and 9-hole options.

Screws: HA 2.7 / HC 2.7

View plate details

Dorsal & Column Plates

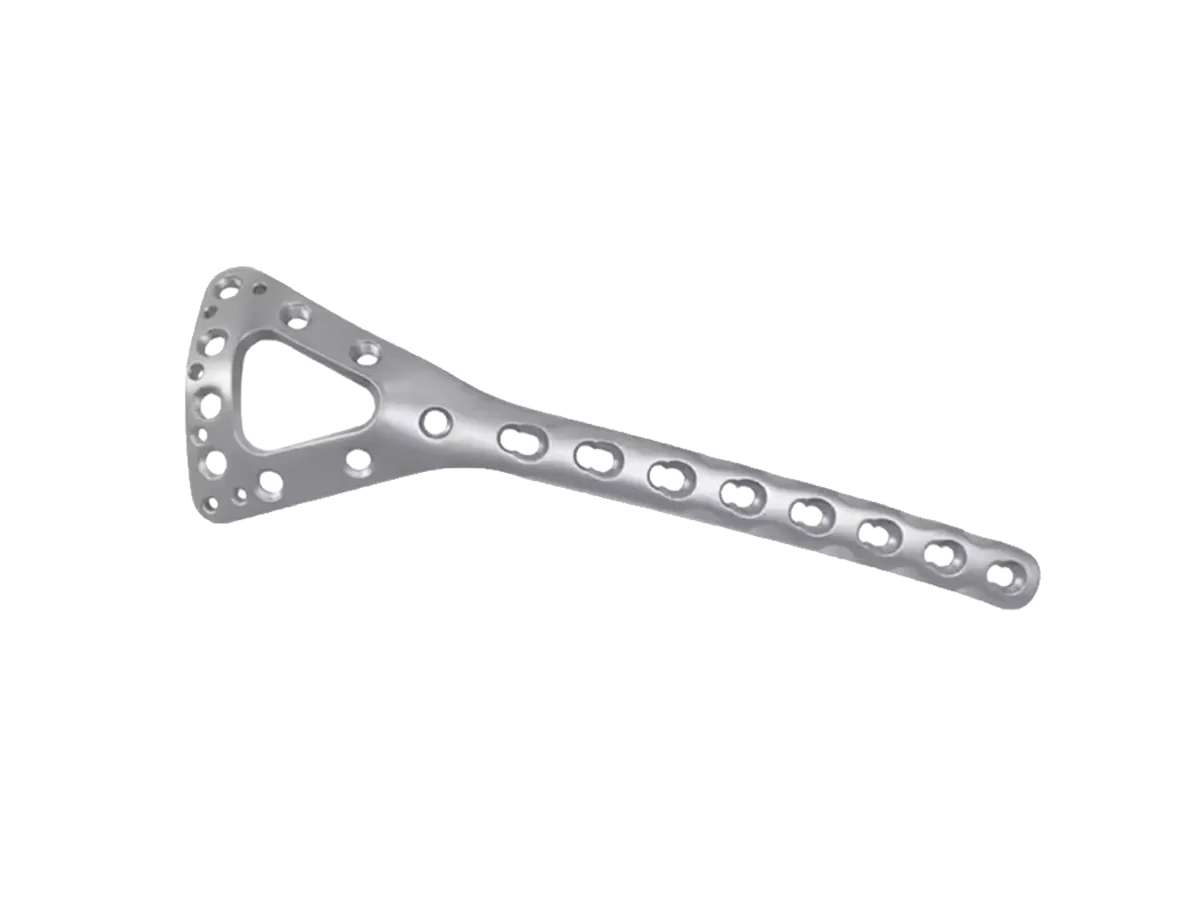

Distal Radius Dorsal Side Locking Plate
配图 11：Distal Radius Dorsal Side Locking Plate背侧锁定板，展示左右侧及3、4、5、7、9孔规格。 建议尺寸 1200 × 900 px。

Distal Radius Dorsal Side Locking Plate

3, 4, 5, 7 and 9-hole configurations.

Screws: HA 2.7 / HC 2.7

View plate details

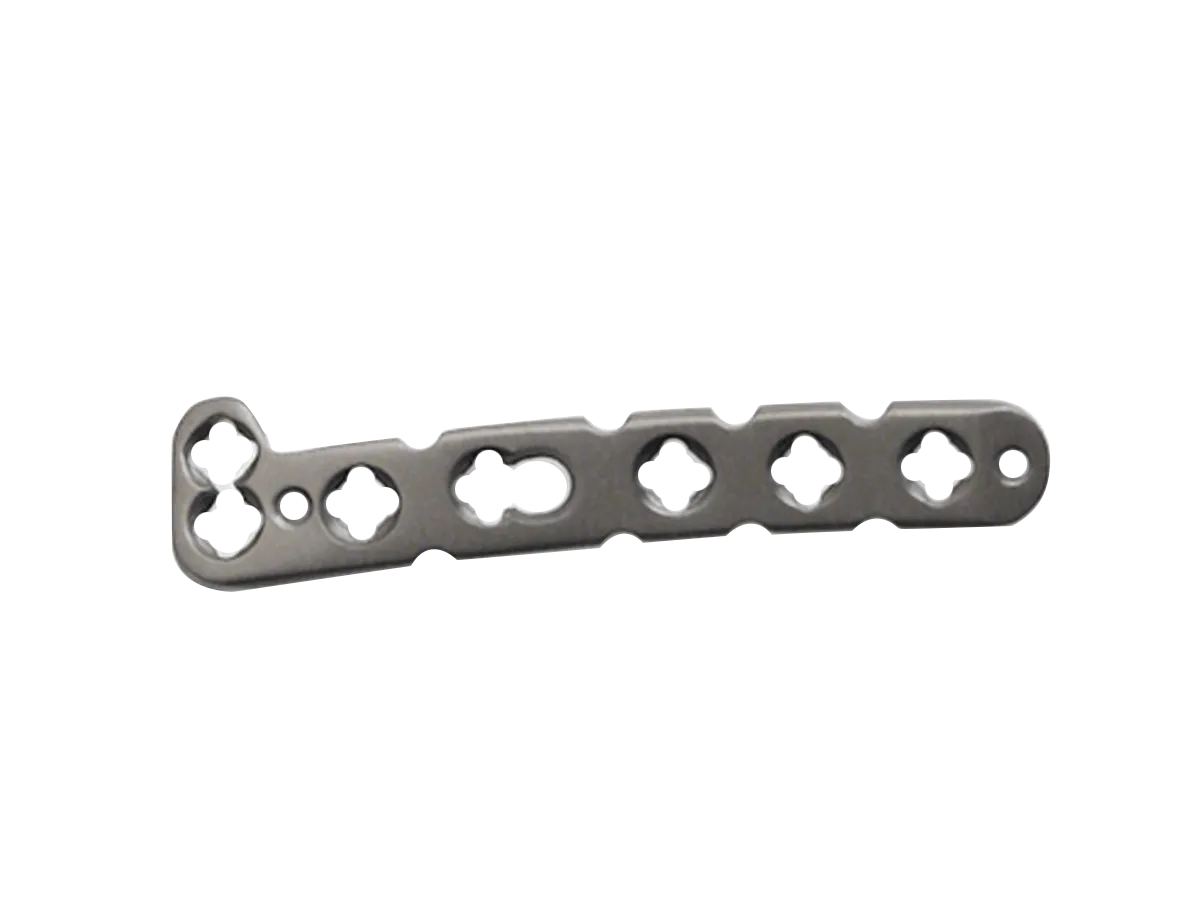

Distal Radius Middle Column Locking Plate
配图 12：远端桡骨中间柱锁定板，展示4、5、6孔左右侧规格，勿加入桡侧柱钢板。 建议尺寸 1200 × 900 px。

Distal Radius Middle Column Locking Plate

4, 5 and 6-hole designs. Left and right options.

Screws: HA 2.7 / HC 2.7

View plate details
Distal Radius Radial Column Locking Plate
配图 13：远端桡骨桡侧柱锁定板，单独展示5孔和6孔两种规格，不添加手册未列出的左右侧标识。 建议尺寸 1200 × 900 px。

Distal Radius Radial Column Locking Plate

Dedicated 5-hole and 6-hole designs.

Screws: HA 2.7 / HC 2.7

View plate details

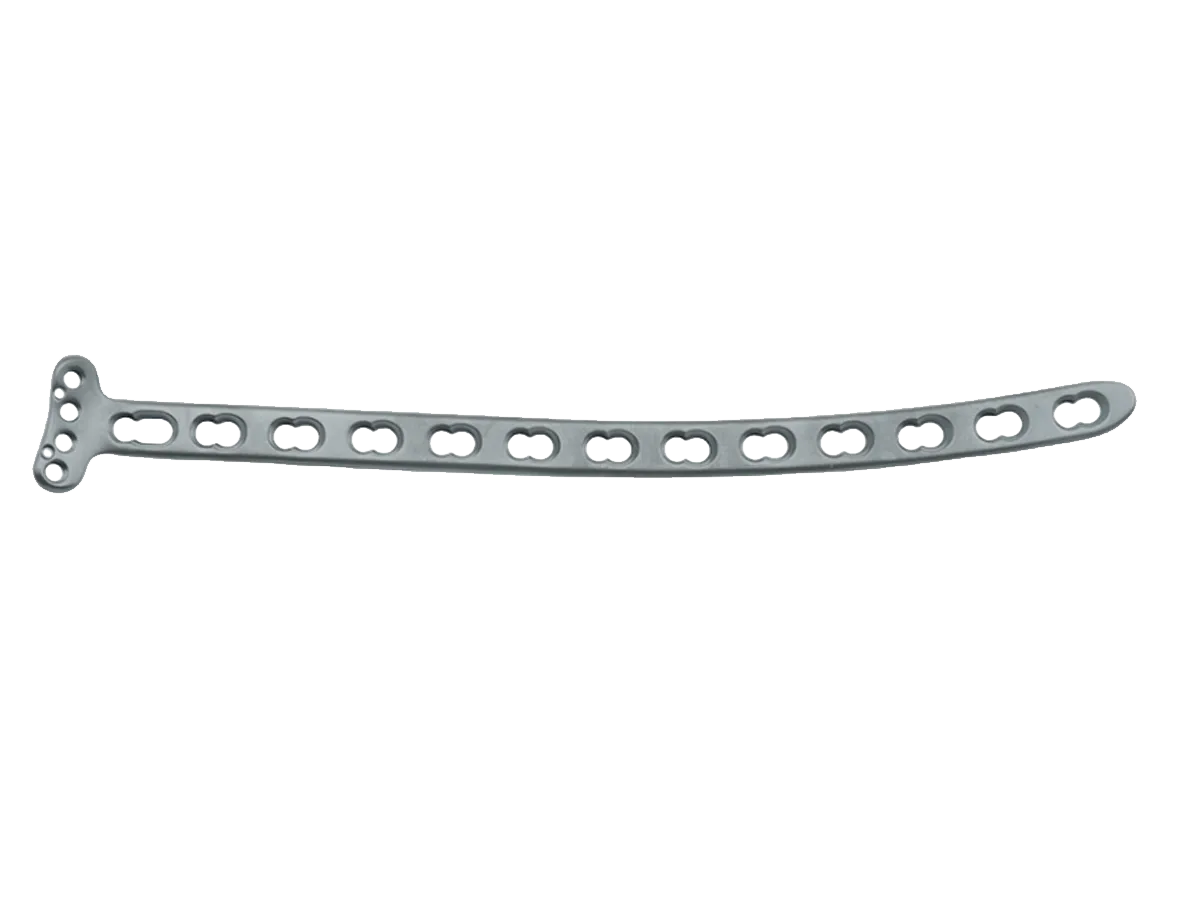

Dorsal Locking Plate for Distal Radius
配图 14：Dorsal Locking Plate for Distal Radius长型背侧锁定板，展示左右侧及6、8、10、12、13孔规格。 建议尺寸 1200 × 900 px。

Dorsal Locking Plate for Distal Radius

6, 8, 10, 12 and 13-hole options.

Screws: HA 3.5 / HC 2.7 or 3.5

View plate details

Screws & Instruments

Distal radius plate, screw and instrument configuration
配图 15：系统总配置图，展示代表性掌侧、背侧和柱固定钢板、匹配螺钉及专用器械盒，按系统分组。 建议尺寸 1500 × 1100 px。
HA 2.7 cortical screws and HC 2.7 locking screws
配图 16：HA 2.7皮质骨螺钉与HC 2.7锁定螺钉按不同长度组合展示，并放大螺钉头与螺纹细节。 建议尺寸 1200 × 900 px。

Match the Screw Platform

HA 2.7 cortical and HC 2.7 locking screws support the featured 2.7 mm plate families.

The long dorsal plate uses HA 3.5 and HC 2.7 or 3.5 options. Match each screw to its specified plate hole.

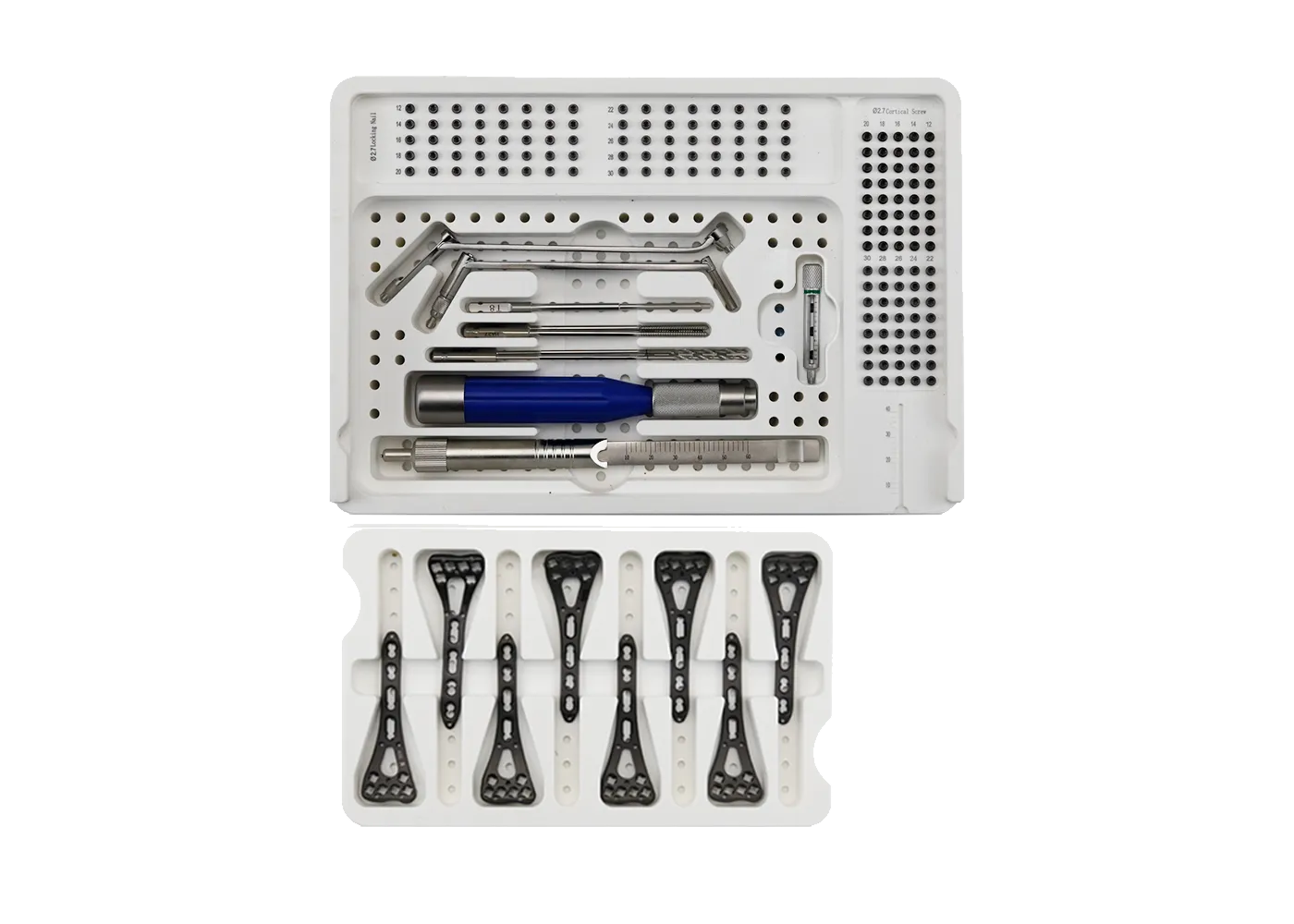

Distal Radius Instrument Set
配图 17：Distal Radius Instrument Set完整器械盒俯拍图，展示导向器、钻头、测深器与T8起子；参考手册RQRG01。 建议尺寸 1400 × 1000 px。

Distal Radius Instrument Set

A dedicated 2.7 mm platform for drilling, depth measurement, tapping and screw insertion.

View instrument set

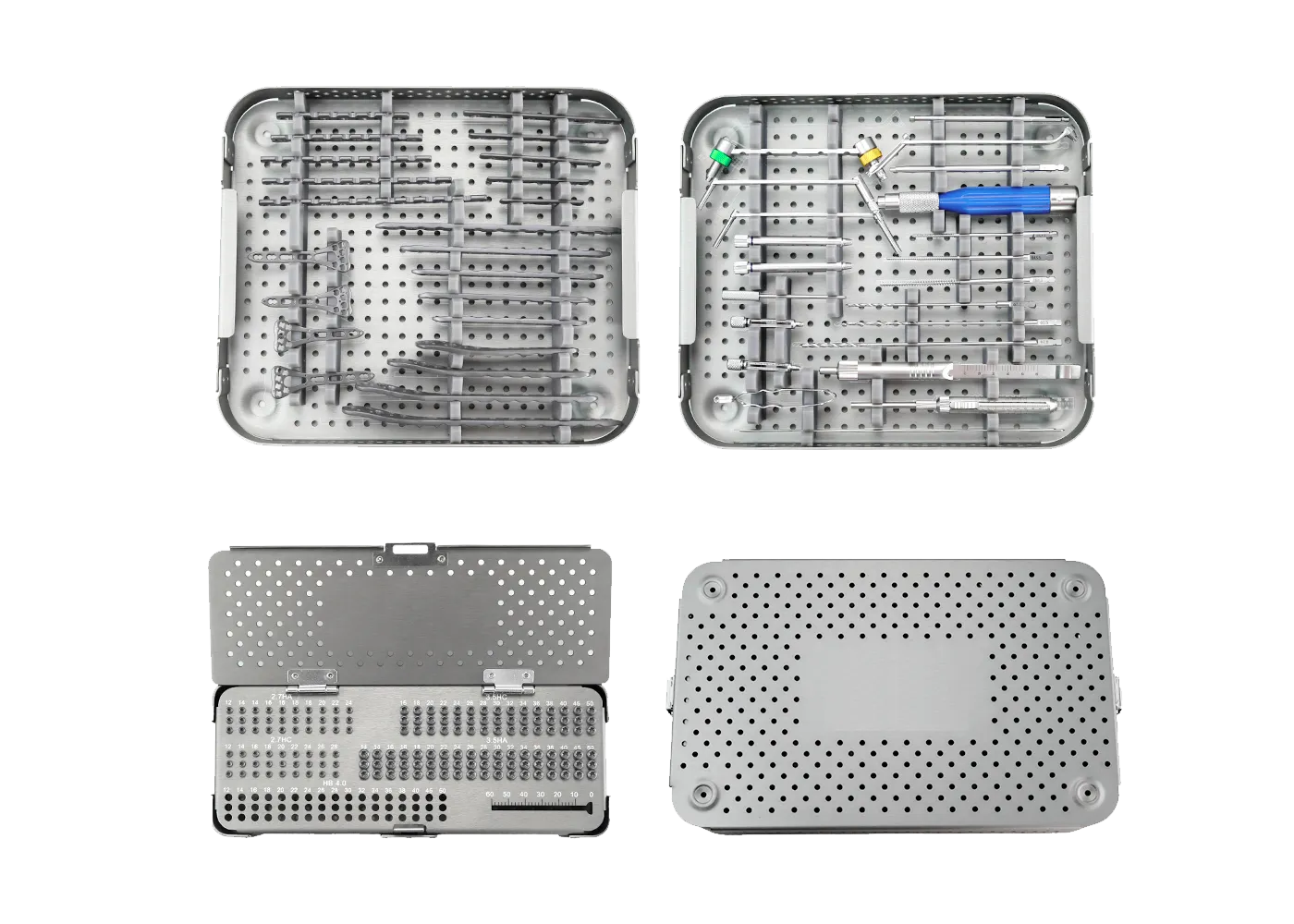

Small Fragment Instrument Set for non-locking plate systems
配图 18：非锁定Small Fragment Instrument Set完整器械盒与主要复位、钻孔、测深工具，参考手册RQSZFT01。 建议尺寸 1400 × 1000 px。

Small Fragment Instrument Set

Reduction and insertion tools for matched non-locking plate configurations. Confirm coverage for the selected screws.

View instrument set

System Planning Workflow

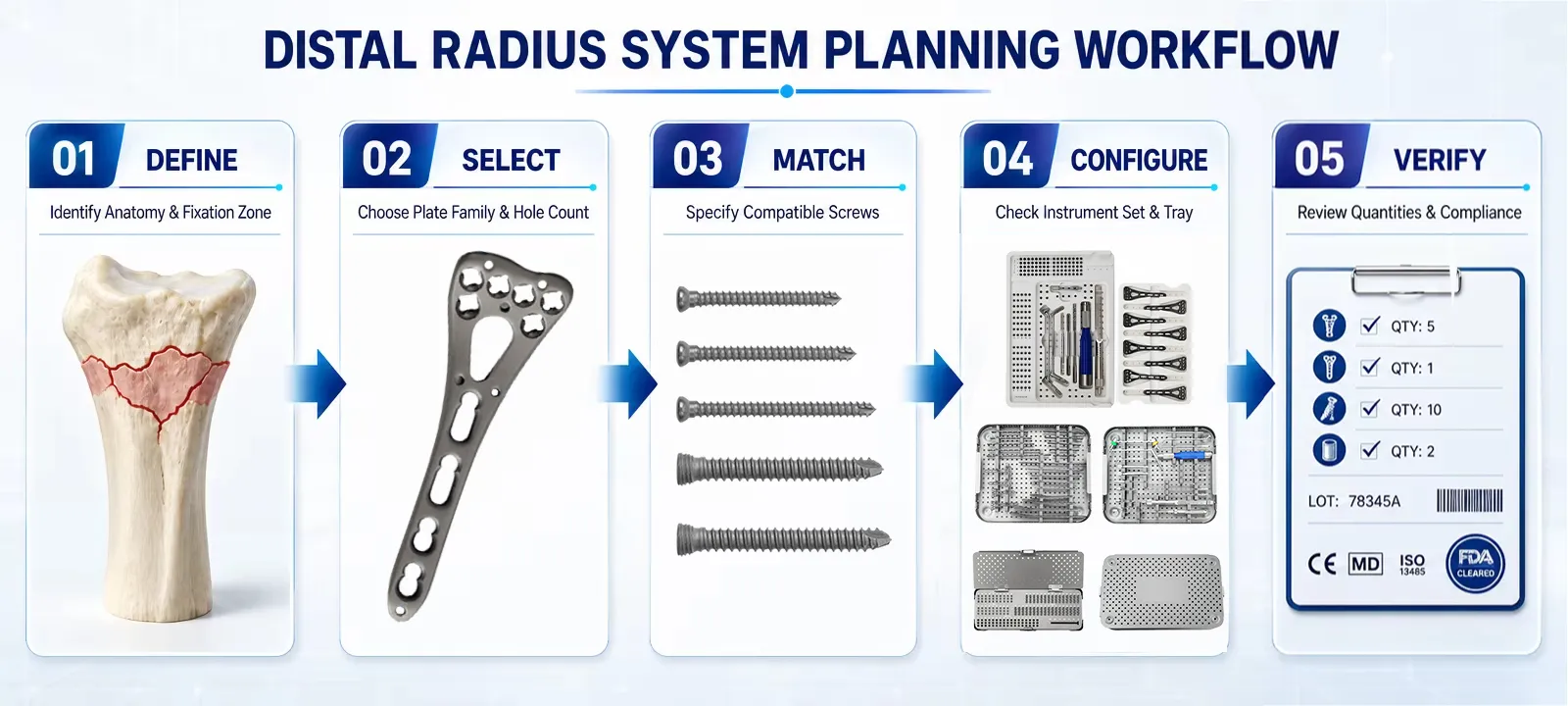

Distal radius system planning workflow
配图 19：横向五阶段配置流程图：确认部位、选钢板、匹配螺钉、配置器械、审核清单；使用实物与简洁英文标签。 建议尺寸 1600 × 720 px。
  1. DefineConfirm the required fixation region.
  2. SelectChoose the plate family, side and hole count.
  3. MatchSpecify compatible screws and lengths.
  4. ConfigureCheck instrument coverage and tray contents.
  5. ConfirmReview quantities and destination-market requirements.

A Coordinated Wrist Portfolio

Clear Component Matching

Start with the plate. Coordinate the screws and instruments around the selected configuration.

  1. PlateFamily & side
  2. ScrewsType & length
  3. InstrumentsGuides & drivers

A complete component list, ready for your review.

More Configuration Choices

Four plate options for your wrist fixation portfolio.

  • Volar locking
  • Dorsal locking
  • Column-specific
  • Non-locking

Practical Inventory Planning

Set quantities and size coverage around your purchasing needs.

Left / right Hole counts Screw lengths

Manufacturing Support

From Implant to Instrument Set

Coordinate implant production, inspection and instrument assembly through one project discussion.

For private-label supply and portfolio development, explore XC Medico's orthopedic OEM and ODM services.

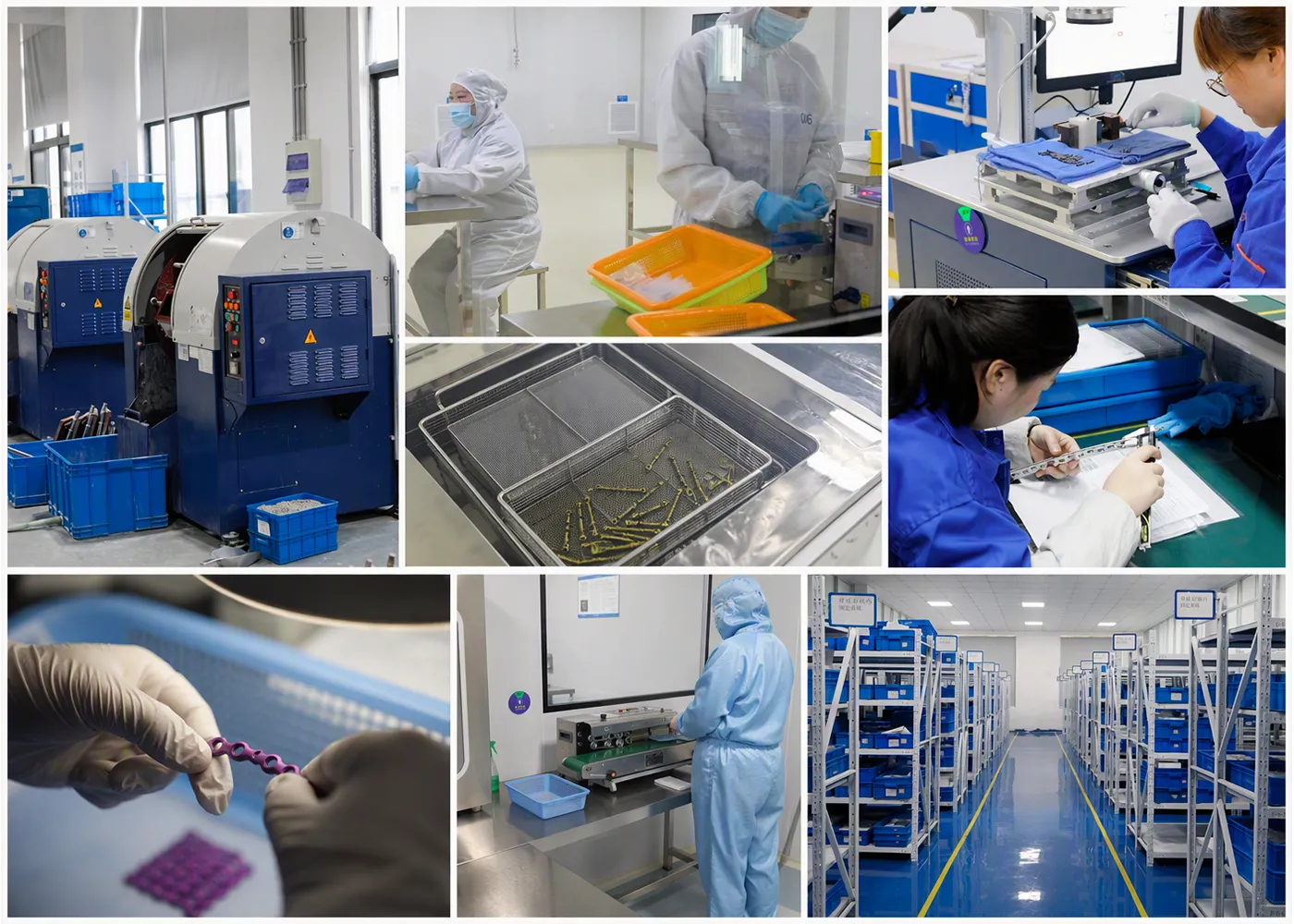

XC Medico implant manufacturing, inspection and instrument assembly
配图 20：沿用XC Medico真实工厂照片，组合钢板加工、质量检验和器械装配场景；不使用虚构车间或证书。 建议尺寸 1400 × 1000 px。

Related Resources

Frequently Asked Questions

How do I choose between volar, dorsal and column plates?

Start with the fixation region and plate family requested by the clinical team. Volar, dorsal and column-specific designs offer different configurations; they are not interchangeable. XC Medico can match the requested configuration to available implants and instruments.

Do the 6H and 7H names refer to the whole plate?

No. They describe the number of holes in the plate head. Both families offer separate 2-7-hole shaft configurations and left or right versions. Specify the head design, shaft hole count and side when requesting a quotation.

Can the same screws be used with every distal radius plate?

No. The featured 2.7 mm families use HA 2.7 cortical and HC 2.7 locking screws. The long dorsal family lists HA 3.5 and HC 2.7 or 3.5 options. Confirm the screw type and compatible plate hole for each reference.

Does one instrument set cover the whole portfolio?

The Distal Radius Instrument Set supports the dedicated 2.7 mm platform. Selected 3.5 mm locking or non-locking configurations need their own matched instruments. Specify the exact plates before finalizing the tray contents.

Are non-locking options available?

Yes. Distal Radius Medial Plate and Distal Radius Medial Plate (Metacarpus Medial Type) provide 3-6-hole titanium options with HA 3.5 and HB 4.0 screws. Other non-locking designs require a separate configuration review.

What should I send for a complete system quotation?

Send the plate families, side and hole counts, screw sizes and quantities, required instrument sets, destination market and estimated order quantity. Include any private-label, packaging or tender requirements.

Configure Your Distal Radius System

Share your plate, screw and instrument requirements for a coordinated product proposal.

Request System Matching
