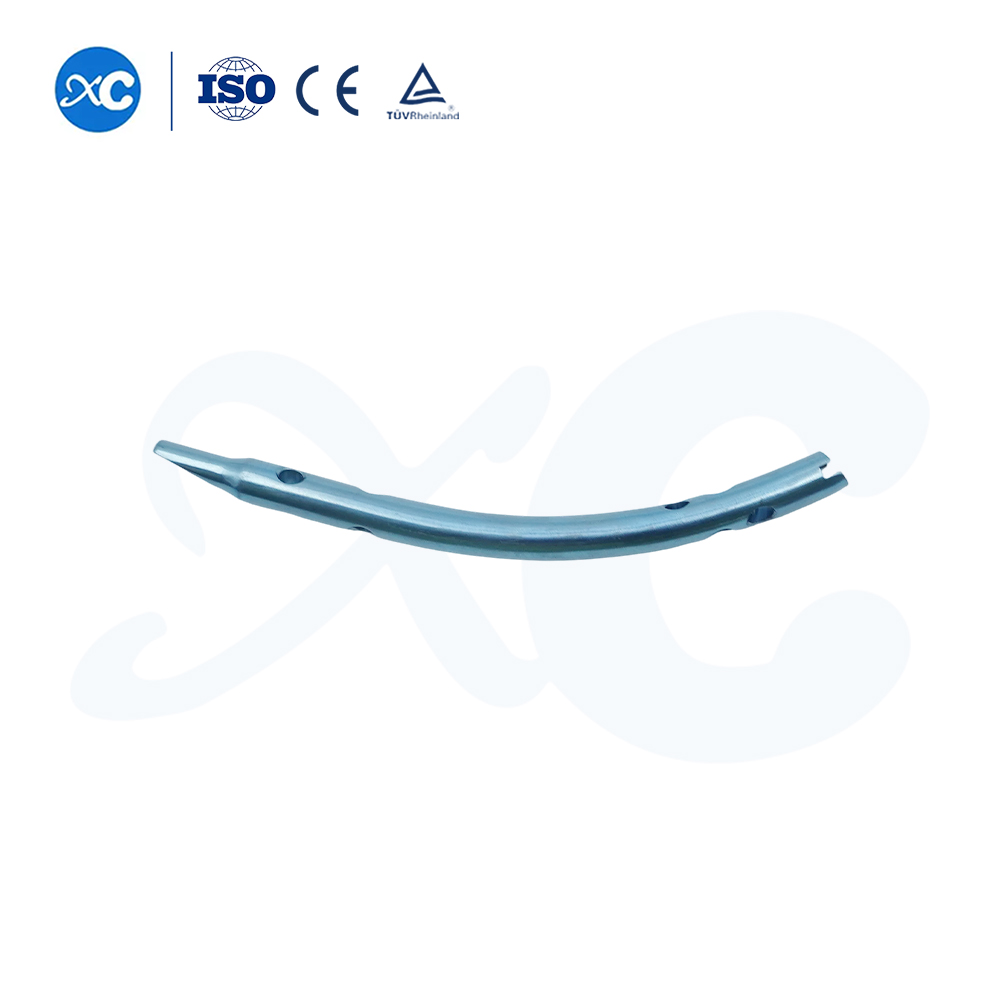

Distal Tibial Intramedullary Nail – Retrograde Fixation

Model:
Intramedullary Nail
Brand:
XC Medico
Lower Limb:
Tibia
MOQ:
1 Pcs（72 Hours Delivery）
Usage:
Orthopedic Implants
Material:
Titanium Alloy
Certificate:
CE/ISO:9001/ISO13485.Etc
Transportation:
FedEx. DHL.TNT.EMS.Etc

Availability:

Quantity:



Inquire

Product Description

The XC Medico Distal Tibial Nail is a premium orthopedic implant engineered for the effective stabilization and reconstruction of tibial fractures. Manufactured from high-grade TC4 Titanium Alloy, this system combines anatomical precision with biomechanical stability, making it a trusted choice for surgeons worldwide.

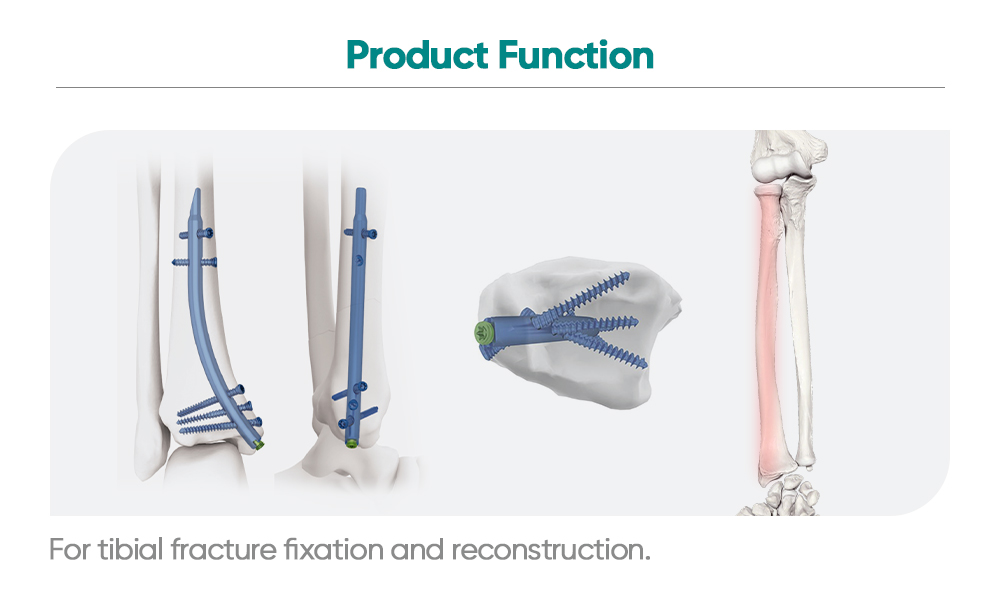

Product Function & Indications

Designed primarily for tibial fracture fixation and reconstruction, this intramedullary nail system offers a minimally invasive solution for complex trauma cases. It is specifically indicated for:

Distal tibial fractures
Segmental fractures
Non-unions and mal-unions of the tibia

Key Product Advantages

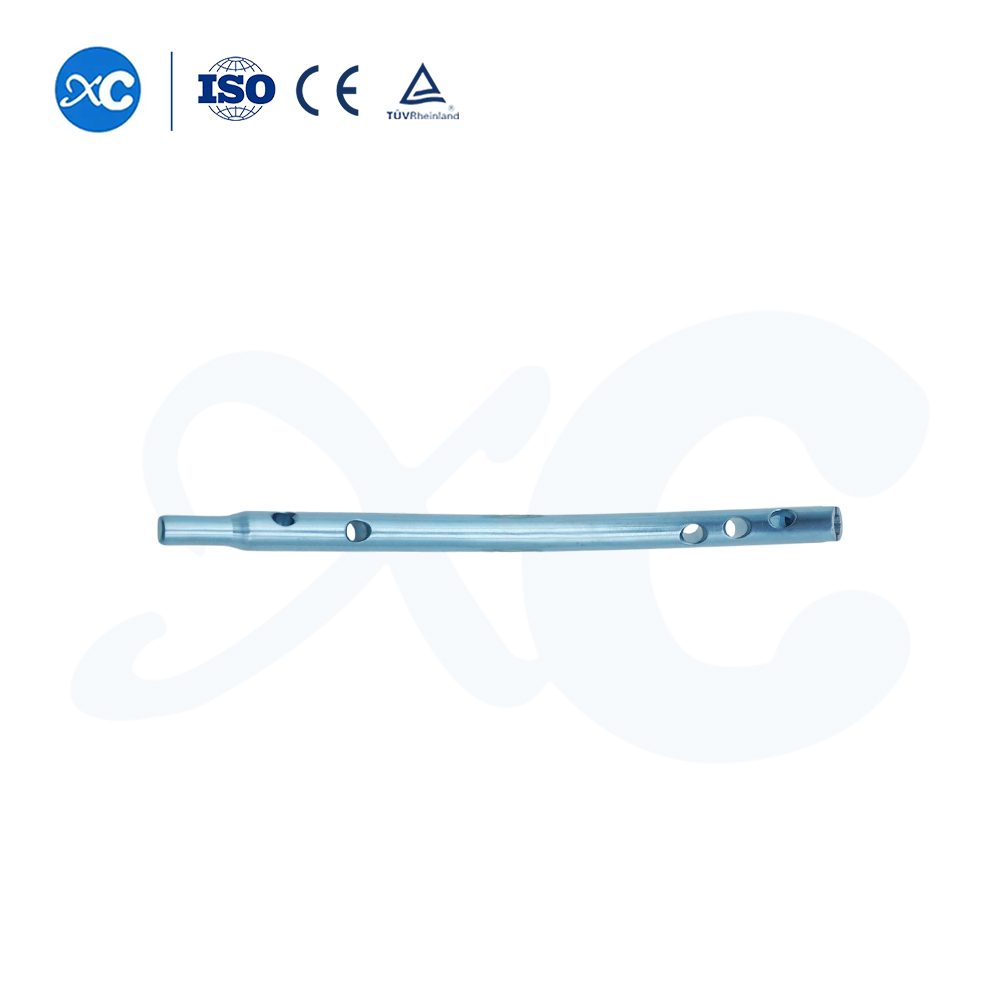

1. Flat Design for Easy Insertion

The distal end of the main nail features a streamlined, flat design. This ergonomic profile facilitates easier insertion into the medullary cavity, reducing insertion torque and minimizing potential damage to the surrounding bone structure.

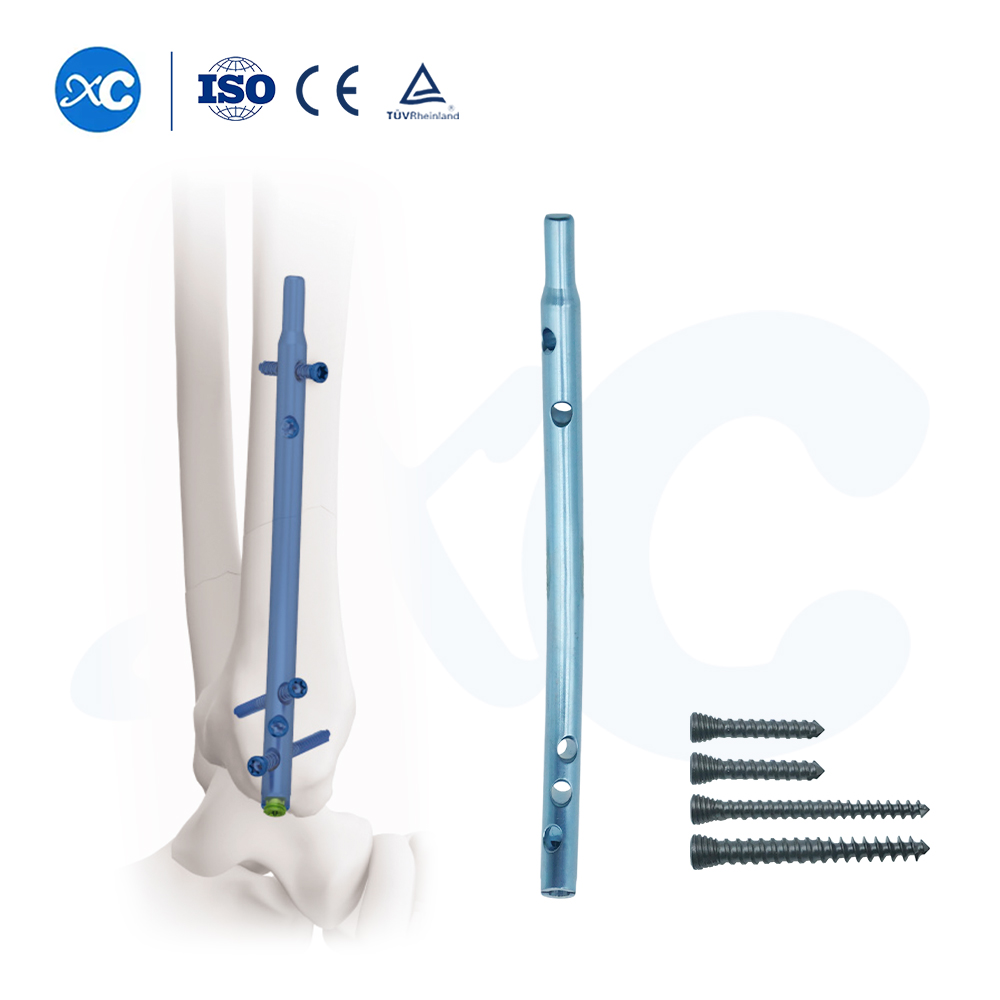

2. Angular Locking Screws (Proximal Stability)

The system incorporates two angular locking screws at the proximal end. These screws are critical for preventing rotation and displacement of the fracture segment, ensuring rigid fixation during the healing process.

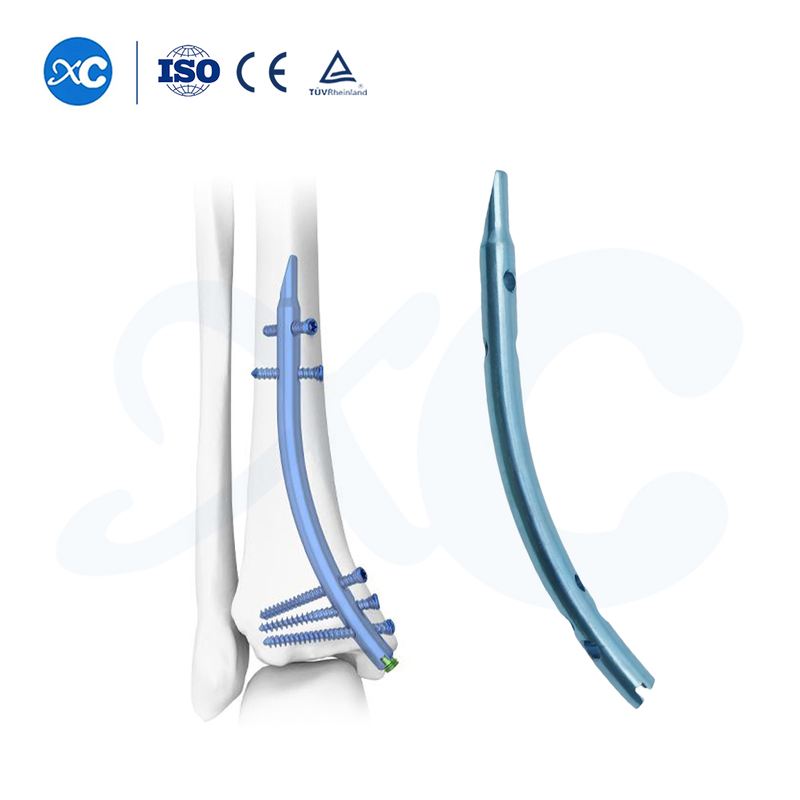

3. Anatomical Curvature

Engineered with a special anatomical curvature, the nail matches the natural geometry of the tibia. This ensures the main nail is optimally positioned within the medullary canal, reducing cortical stress.

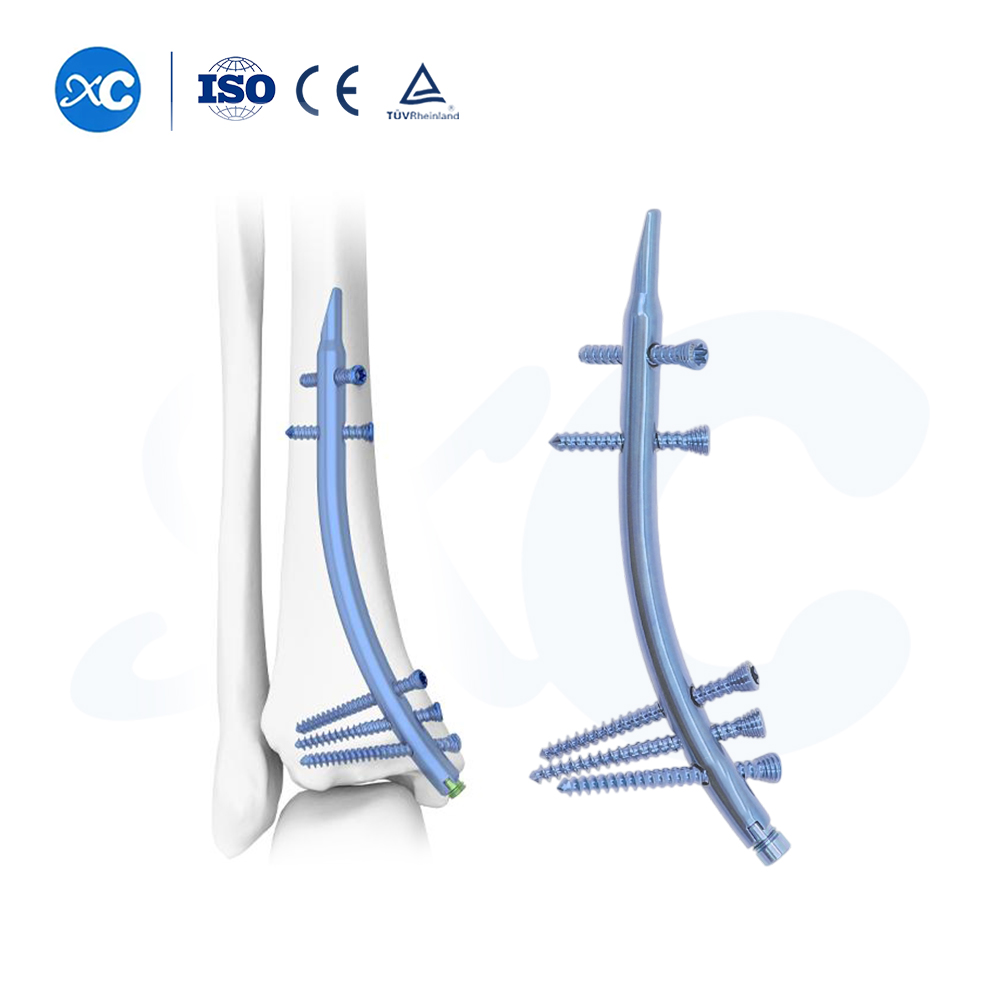

4. Intersecting Angle Locking Screws (Distal Fixation)

To address the challenges of distal fixation, the nail utilizes three intersecting angle locking screws at the distal end. This multi-planar configuration provides maximum support and purchase in the distal bone fragment.

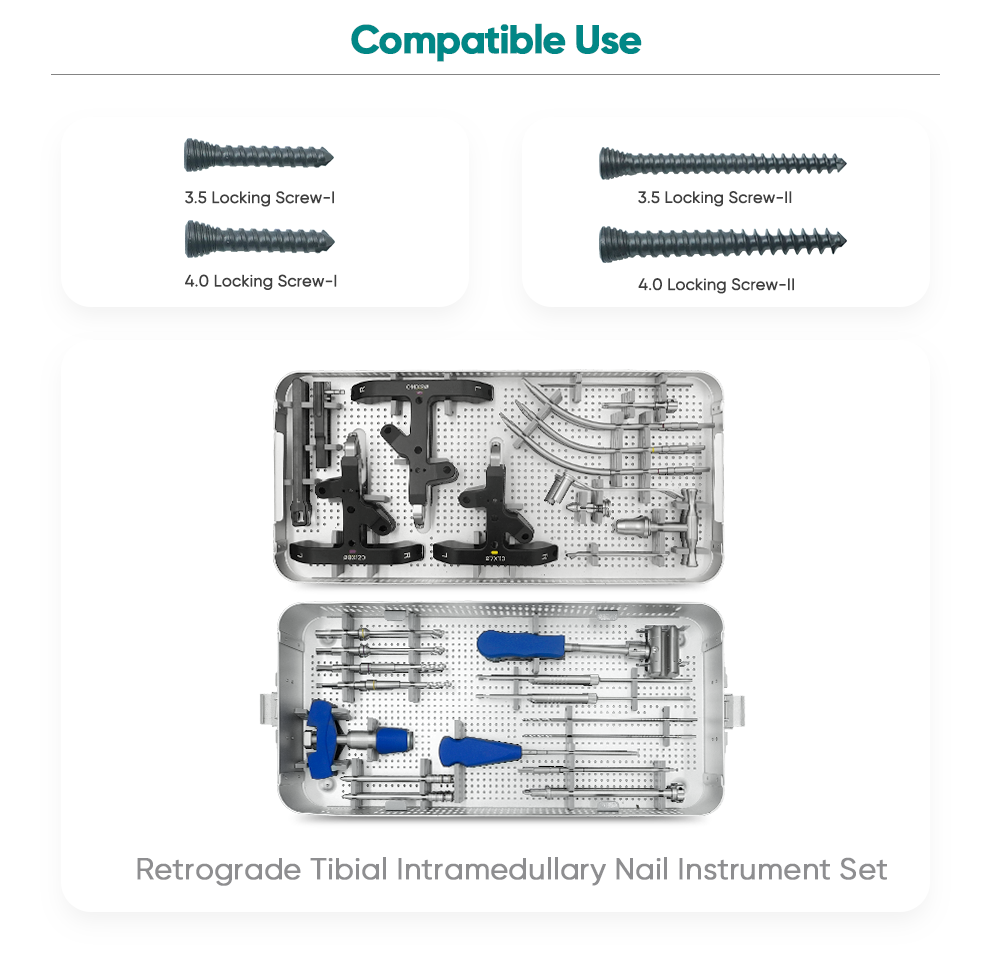

Compatible Components

The Distal Tibial Nail is designed to work seamlessly with our precision locking screws to ensure customizable fixation for various fracture patterns.

3.5mm Locking Screw (Type I / II): For distal multi-planar locking.
4.0mm Locking Screw (Type I / II): For proximal stability.

Retrograde Tibial Intramedullary Nail Instrument Set

Successful surgery relies on precision tools. XC Medico provides a comprehensive Retrograde Instrument Set tailored for this specific nail system. The set includes ergonomically designed guides, drills, and drivers organized in a sterilization-ready tray, ensuring 90% procedure coverage and surgical efficiency.

* This product is CE and ISO certified. For urgent needs, XC Medico maintains a stock availability of 9000+ units.

Product	REF Titanium Alloy	Specification
Distal Tibial Nail	RJGND7110L	7*110L
	RJGND7110R	7*110R
	RJGND8120L	8*120L
	RJGND8120R	8*120R
	RJGND8140L	8*140L
	RJGND8140R	8*140R
End Cap	RJGNDWM0	0
End Cap	RJGNDWM5	5
3.5 Locking Screw-I	RJGNLD3518	Φ3.5*18
	RJGNLD3520	Φ3.5*20
	RJGNLD3522	Φ3.5*22
	RJGNLD3524	Φ3.5*24
	RJGNLD3526	Φ3.5*26
	RJGNLD3528	Φ3.5*28
3.5 Locking Screw-II	RJGNLD3530	Φ3.5*30
	RJGNLD3532	Φ3.5*32
	RJGNLD3534	Φ3.5*34
	RJGNLD3536	Φ3.5*36
	RJGNLD3538	Φ3.5*38
	RJGNLD3540	Φ3.5*40
	RJGNLD3542	Φ3.5*42
	RJGNLD3544	Φ3.5*44
	RJGNLD3546	Φ3.5*46
	RJGNLD3548	Φ3.5*48
	RJGNLD3550	Φ3.5*50
4.0 Locking Screw-I	RJGNLD4024	Φ4.0*24
	RJGNLD4026	Φ4.0*26
	RJGNLD4028	Φ4.0*28
	RJGNLD4030	Φ4.0*30
	RJGNLD4032	Φ4.0*32
	RJGNLD4034	Φ4.0*34
4.0 Locking Screw-II	RJGNLD4036	Φ4.0*36
	RJGNLD4038	Φ4.0*38
	RJGNLD4040	Φ4.0*40
	RJGNLD4042	Φ4.0*42
	RJGNLD4044	Φ4.0*44
	RJGNLD4046	Φ4.0*46
	RJGNLD4048	Φ4.0*48
	RJGNLD4050	Φ4.0*50
	RJGNLD4052	Φ4.0*52
