MIS Spinal Portal Instrument Set

Model:
MIS Spinal Portal Instrument Set
Brand:
XC Medico
Spine:
Thoracolumbar Spine
MOQ:
1 Pcs（72 Hours Delivery）
Usage:
minimally invasive spine surgery instruments
Material:
Medical Stainless Steel
Certificate:
CE/ISO:9001/ISO13485.Etc
Transportation:
FedEx. DHL.TNT.EMS.Etc

Availability:

Quantity:



Inquire

Product Description

MIS Spinal Portal Instrument Set

The trusted choice of orthopedic surgeons around the world. A premium, comprehensive instrument system designed to establish a safe, clear, and stable surgical pathway for minimally invasive spine procedures.

Ethylene Oxide Sterilized CE & ISO 13485 Certified CNAS Lab Accreditation

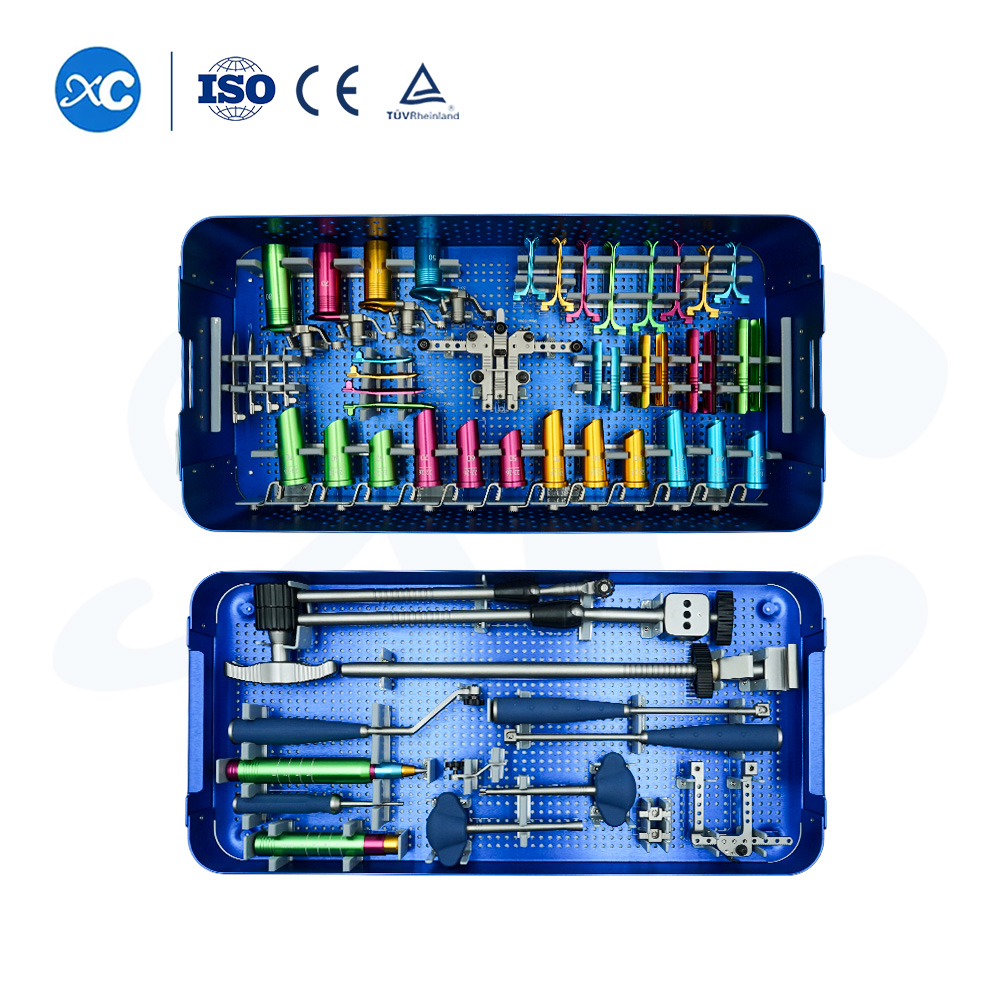

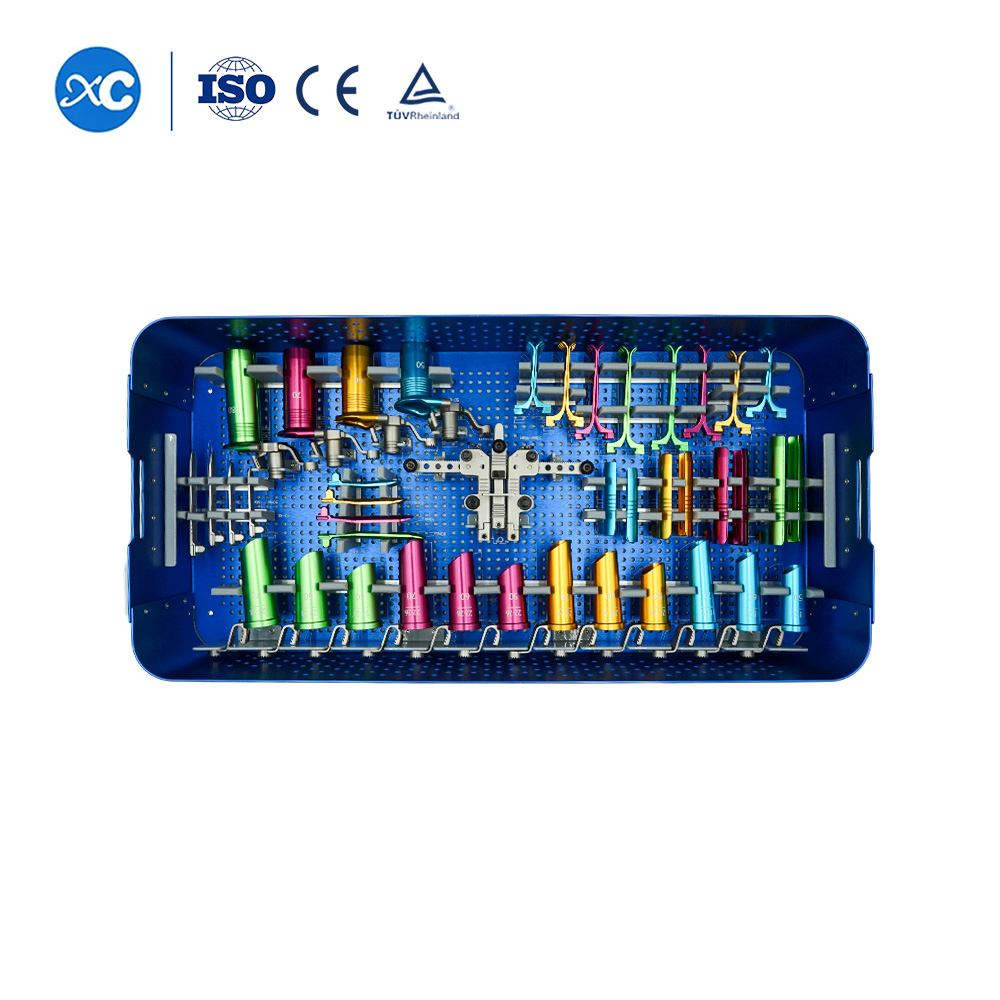

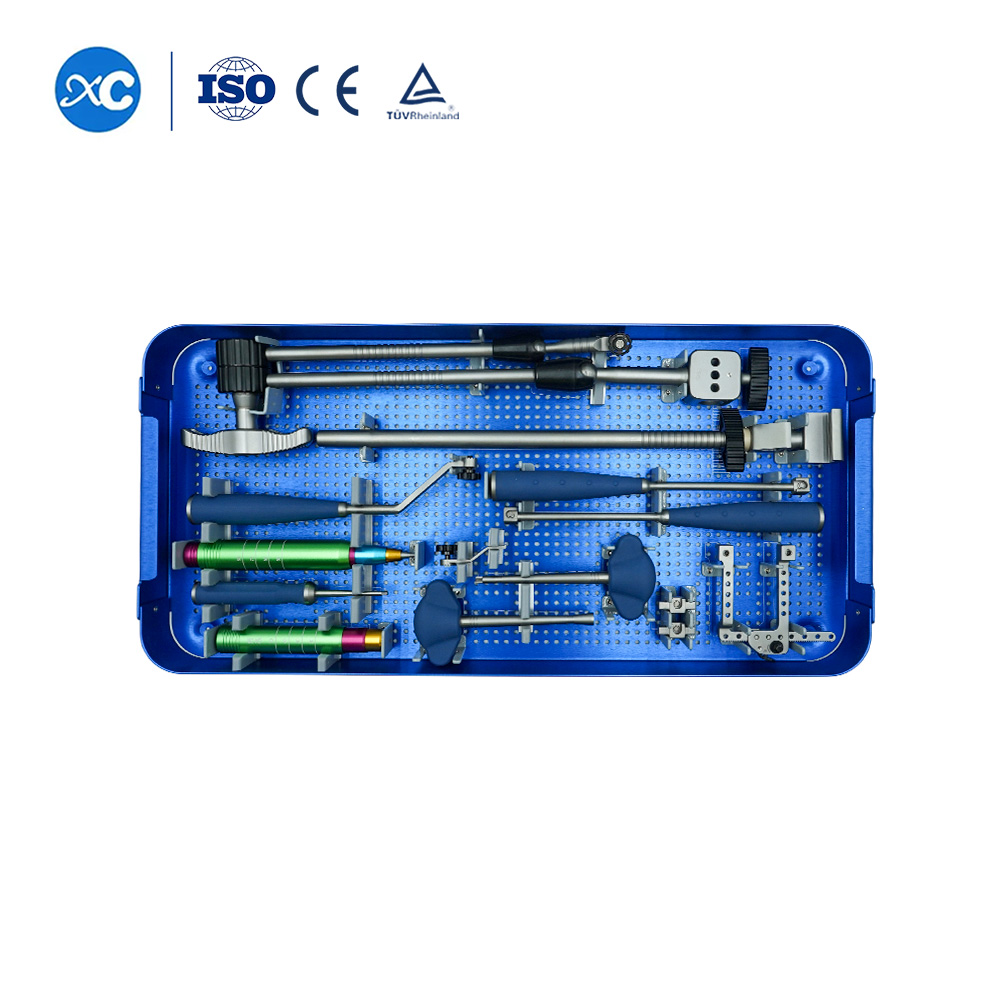

Sterilized MIS Spinal Portal Instrument Set in Blue Orthopedic Trays

Surgical Technique & Product Demonstration

Three Core Advantages for Surgeons & Patients

Precise Positioning

Enables surgeons to quickly and accurately establish the surgical channel, improving overall operation accuracy.

Minimally Invasive

️

Significantly reduces soft tissue damage, lowers postoperative pain, and minimizes the risk of complications.

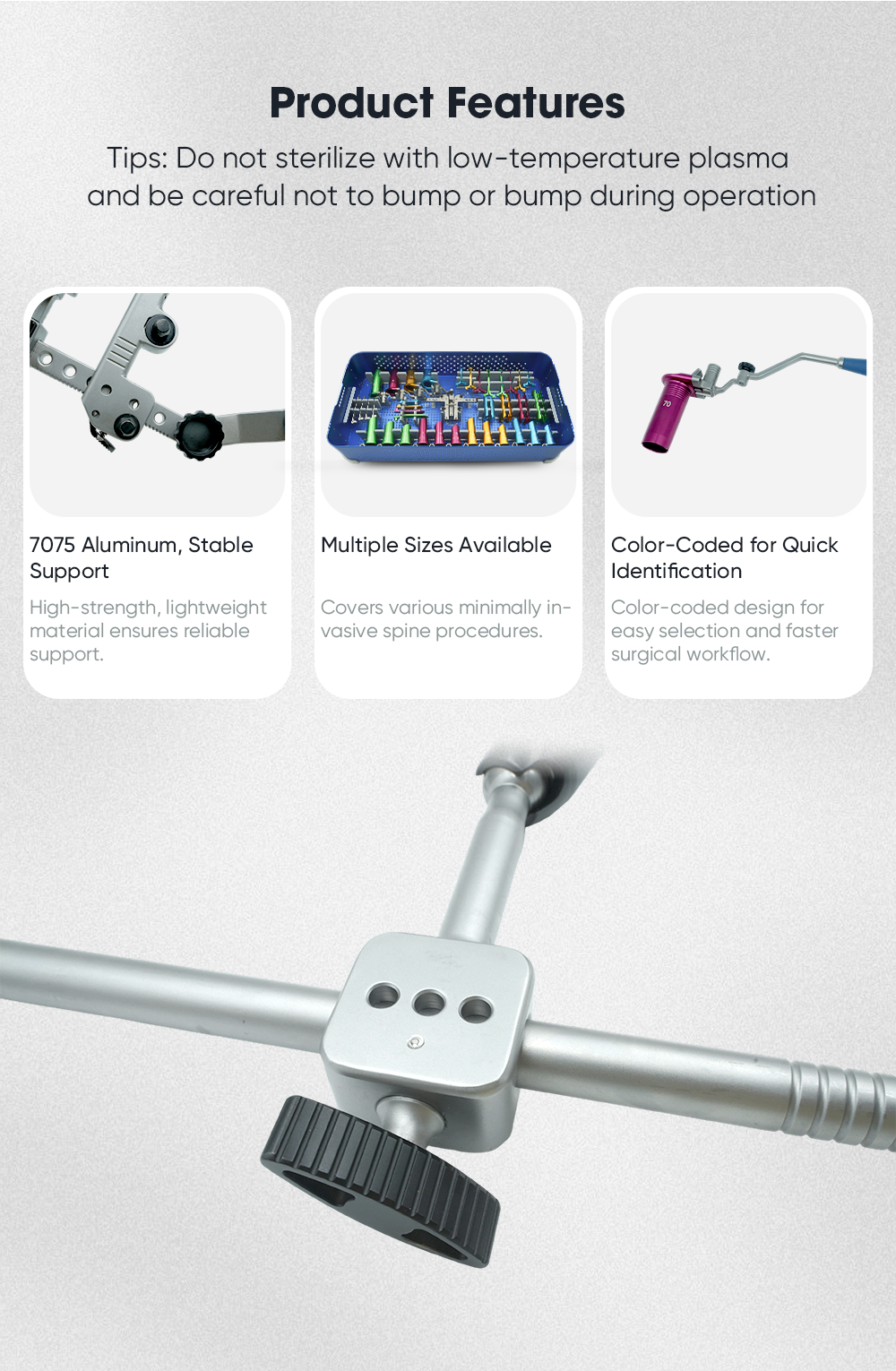

Multiple Sizes Available

A comprehensive toolkit that perfectly meets the needs of different spinal levels and varied patient anatomies.

Precision Components of the MIS Spinal Portal System

Detailed Components of MIS Spinal Portal System including Dilators and Retractors

▶ Minimally Invasive Dilator

Sizes: 50/60/70/80mm. Gradually dilates soft tissue to establish the MIS working portal, effectively protecting neural structures during spinal surgery.

▶ Expansion Sheath for Tapered Dilator

Matches: (20-24), (22-26), (24-28). Fits perfectly with tapered dilators to form a stable working channel, maintaining tissue dilation safely.

▶ Articulating Arm

Provides multi-angle positioning and stable retraction. Holds the portal firmly in place for clear MIS spinal visualization.

▶ Multiplanar Retractor

Enables multi-angle tissue retraction to maintain a clear surgical field. Insert via MIS portal, adjust, and lock for stable retraction.

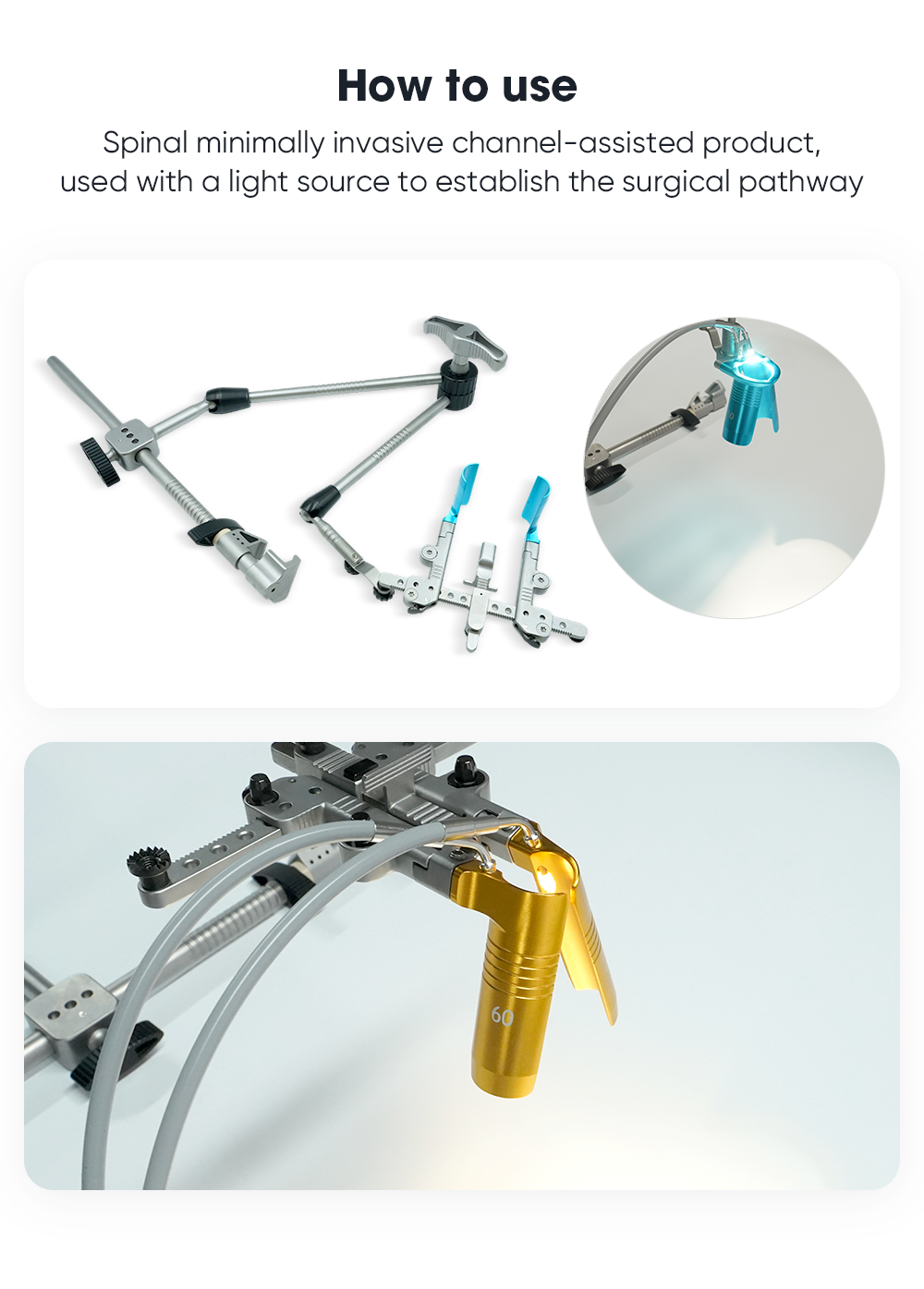

▶ Light Source Integration

Spinal minimally invasive channel-assisted product, designed to be used with a cold light source to illuminate the surgical pathway.

Surgical Usage:

Open and retract the incision to expose the target area for precise surgery.

Clinical Indications: Lumbar Degeneration & Trauma

Specifically indicated for minimally invasive spinal discectomy, decompression, TLIF, biopsy, and related posterior MIS procedures.

Degenerative and Disc Disorders

• Lumbar disc herniation (LDH)
• Lumbar spinal stenosis (LSS)
• Low-grade lumbar spondylolisthesis

Traumatic and Structural Disorders

• Thoracolumbar fracture
• Intraspinal space-occupying lesions
• Posterior rim fracture — nerve compression

Medical Grade Titanium Alloy & Advanced Craftsmanship

High-Precision CNC Machined Titanium Alloy Instruments for Spine Surgery

Titanium Alloy (GB/T 13810-2017)

• All products use titanium alloy conforming to high medical standards.
• Qualified for TC20 production, ensuring excellent mechanical properties.
• Mechanical tests archived for 3+ years, making the full process traceable.
• Maintained at a ≥98.9% quality rate with a strict control system.

High-Precision Machining

• Products undergo CNC Turning, Milling, and Wire EDM for sub-micron accuracy.
• Fine polishing, grinding, and oxidation for consistent color and roughness.
• Anodizing, Electropolishing, and Matte/Mirror Finishing applied for optimal durability in the OR.

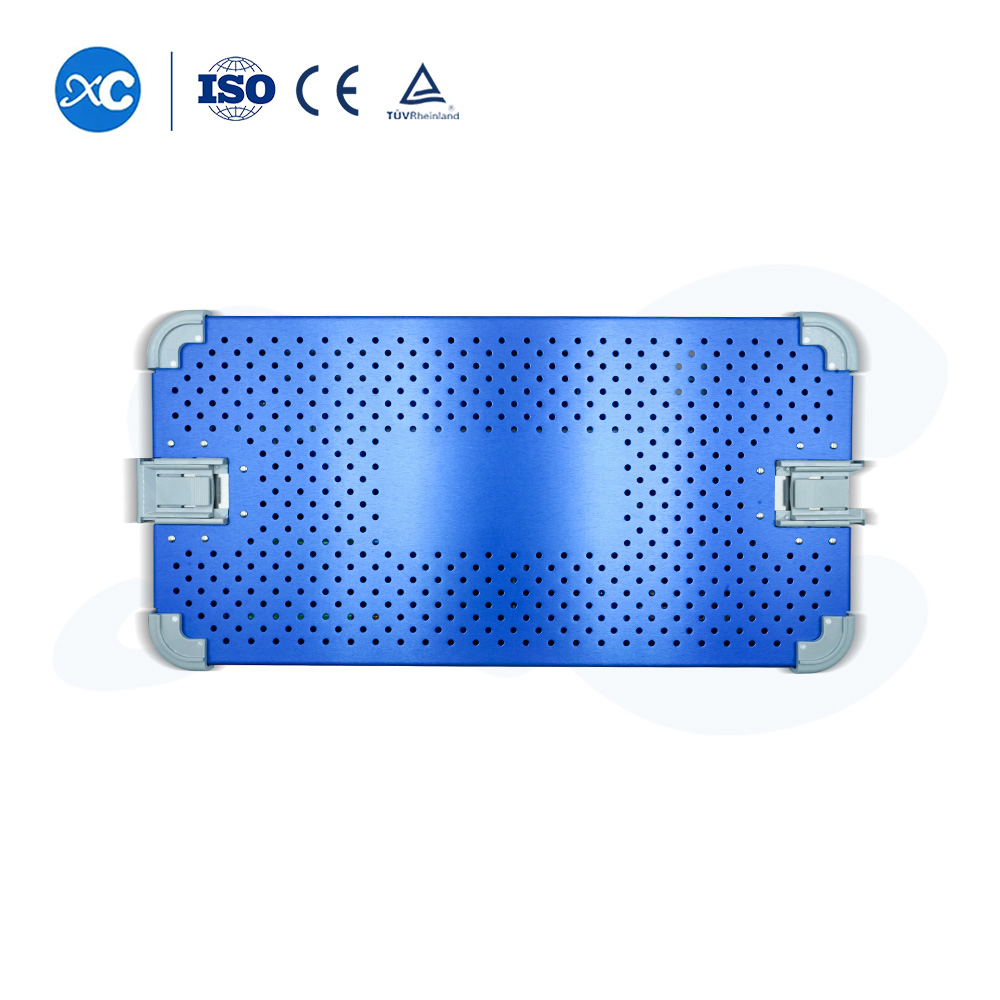

Comprehensive Orthopedic Surgical Trays

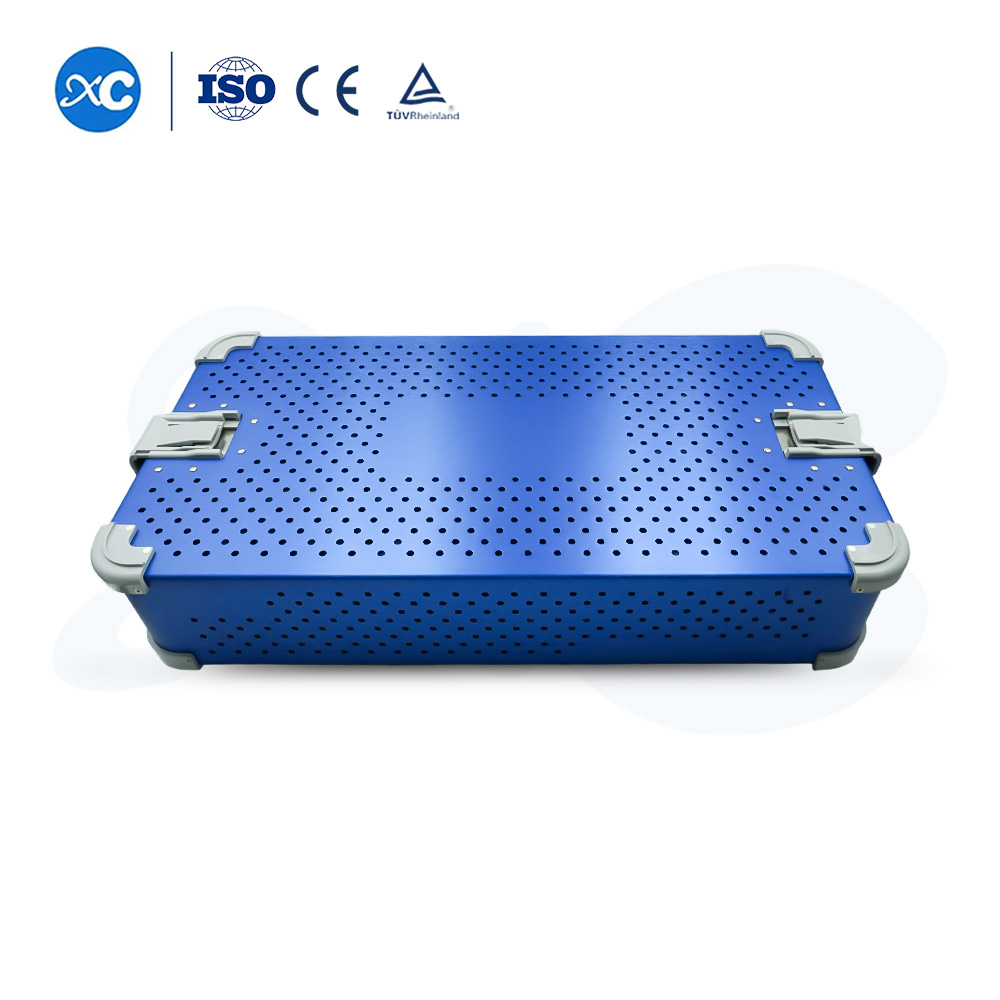

The MIS Spinal Portal Instrument Set is organized in durable, multi-layer aluminum sterilization trays for logical workflow and easy inventory management.

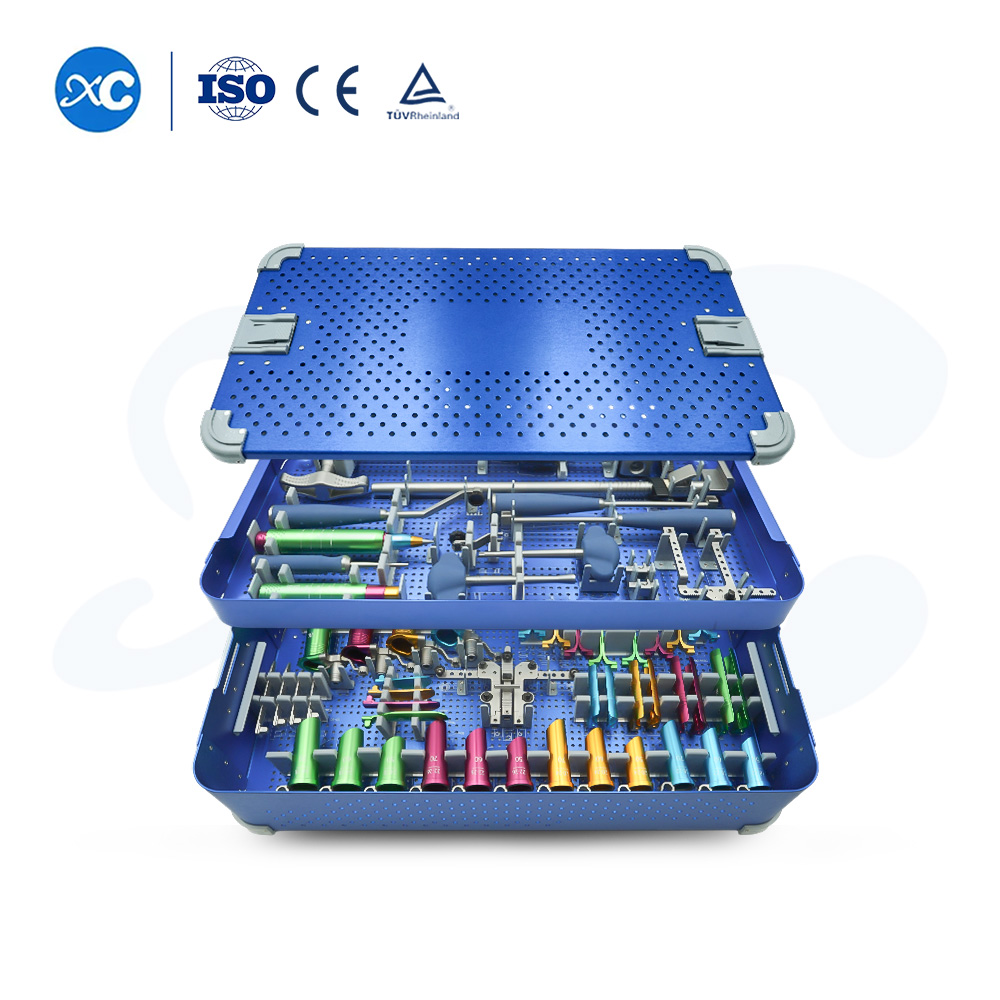

Three-Layer Modular Trays for Minimally Invasive Spine Instruments

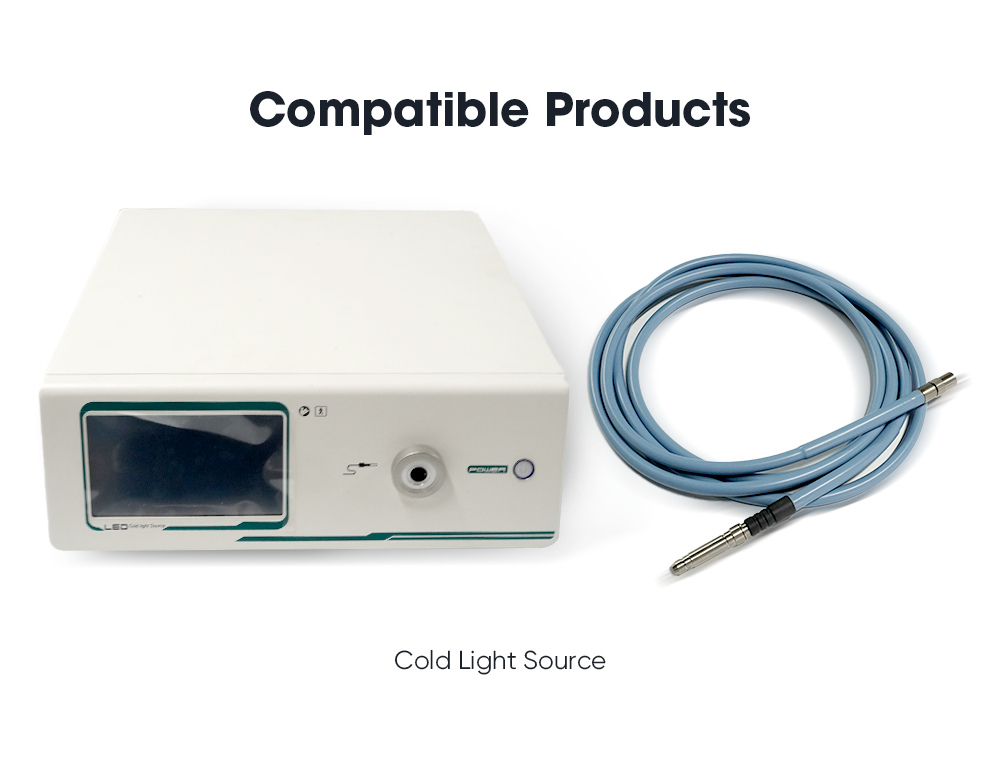

Related Equipment: Cold Light Source Illumination

Essential companion equipment to provide brilliant, heat-free illumination deep within the minimally invasive surgical portal.

Cold Light Source for Minimally Invasive Spinal Surgery Illumination

Name	NO.	REF	Description	QTY
MIS Spinal Portal Instrument Set（RQJWTD01）	1	RQJWTDWXB	Articulating Arm	1
	2	RQJWTDGDJ	Fixator	1
	3	RQJWTDLJQ	Connector	1
	4	RQJWTD3WQKQ	Multiplanar Retractor	1
	5	RQJWTD3WQKQBS	Multiplanar Retractor Wrench	1
	6	RQJWTD50BGL	Left Sheath 50mm	1
	7	RQJWTD60BGL	Left Sheath 60mm	1
	8	RQJWTD70BGL	Left Sheath 70mm	1
	9	RQJWTD80BGL	Left Sheath 80mm	1
	10	RQJWTD50BGR	Right Sheath 50mm	1
	11	RQJWTD60BGR	Right Sheath 60mm	1
	12	RQJWTD70BGR	Right Sheath 70mm	1
	13	RQJWTD80BGR	Right Sheath 80mm	1
	14	RQJWTD50NZLG	Medial Retractor Narrow 50mm	1
	15	RQJWTD60NZLG	Medial Retractor Narrow 60mm	1
	16	RQJWTD70NZLG	Medial Retractor Narrow 70mm	1
	17	RQJWTD80NZLG	Medial Retractor Narrow 80mm	1
	18	RQJWTD50NKLG	Medial Retractor Wide 50mm	1
	19	RQJWTD60NKLG	Medial Retractor Wide 60mm	1
	20	RQJWTD70NKLG	Medial Retractor Wide 70mm	1
	21	RQJWTD80NKLG	Medial Retractor Wide 80mm	1
	22	RQJWTDLGQZ	Retractor Blade Screwdriver	1
	23	RQJWTDHLDJKZG	Multilevel Sheath	1
	24	RQJWTDZXQKQ	Longitudinal Retractor	2
	25	RQJWTD50ZXZLG	Longitudinal Retractor Blade Narrow 50mm	2
	26	RQJWTD60ZXZLG	Longitudinal Retractor Blade Narrow 60mm	2
	27	RQJWTD70ZXZLG	Longitudinal Retractor Blade Narrow 70mm	2
	28	RQJWTD80ZXZLG	Longitudinal Retractor Blade Narrow 80mm	2
	29	RQJWTD50ZXKLG	Longitudinal Retractor Blade Wide 50mm	2
	30	RQJWTD60ZXKLG	Longitudinal Retractor Blade Wide 60mm	2
	31	RQJWTD70ZXKLG	Longitudinal Retractor Blade Wide 70mm	2
	32	RQJWTD80ZXKLG	Longitudinal Retractor Blade Wide 80mm	1
	33	RQJWTDLGZHQ	Retractor Adaptor	1
	34	RQJWTDWCKZD50	Minimally Invasive Dilator 50mm	1
	35	RQJWTDWCKZD60	Minimally Invasive Dilator 60mm	1
	36	RQJWTDWCKZD70	Minimally Invasive Dilator 70mm	1
	37	RQJWTDWCKZD80	Minimally Invasive Dilator 80mm	1
	38	RQJWTDWCKZDBS	Minimally Invasive Dilator Screwdriver	1
	39	RQJWTDTJSB	Retractor Adjustment Handle	2
	40	RQJWTDLGSB	Retractor Handle	1
	41	RQJWTD5ZXTD22	Tapered Dilator 50 (18-22mm)	1
	42	RQJWTD6ZXTD22	Tapered Dilator 60 (18-22mm)	1
	43	RQJWTD7ZXTD22	Tapered Dilator 70 (18-22mm)	1
	44	RQJWTD5ZXTD24	Tapered Dilator 50 (20-24mm)	1
	45	RQJWTD6ZXTD24	Tapered Dilator 60 (20-24mm)	1
	46	RQJWTD7ZXTD24	Tapered Dilator 70 (20-24mm)	1
	47	RQJWTD5ZXTD26	Tapered Dilator 50 (22-26mm)	1
	48	RQJWTD6ZXTD26	Tapered Dilator 60 (22-26mm)	1
	49	RQJWTD7ZXTD26	Tapered Dilator 70 (22-26mm)	1
	50	RQJWTD5ZXTD28	Tapered Dilator 50 (24-28mm)	1
	51	RQJWTD6ZXTD28	Tapered Dilator 60 (24-28mm)	1
	52	RQJWTD7ZXTD28	Tapered Dilator 70 (24-28mm)	1
	53	RQJWTDZXKZG	Expansion Sheath for Tapered Dilator （20-24）、（22-26）、（24-28）	1
	54	RQJWTDMJHL	Instrument Box	1
