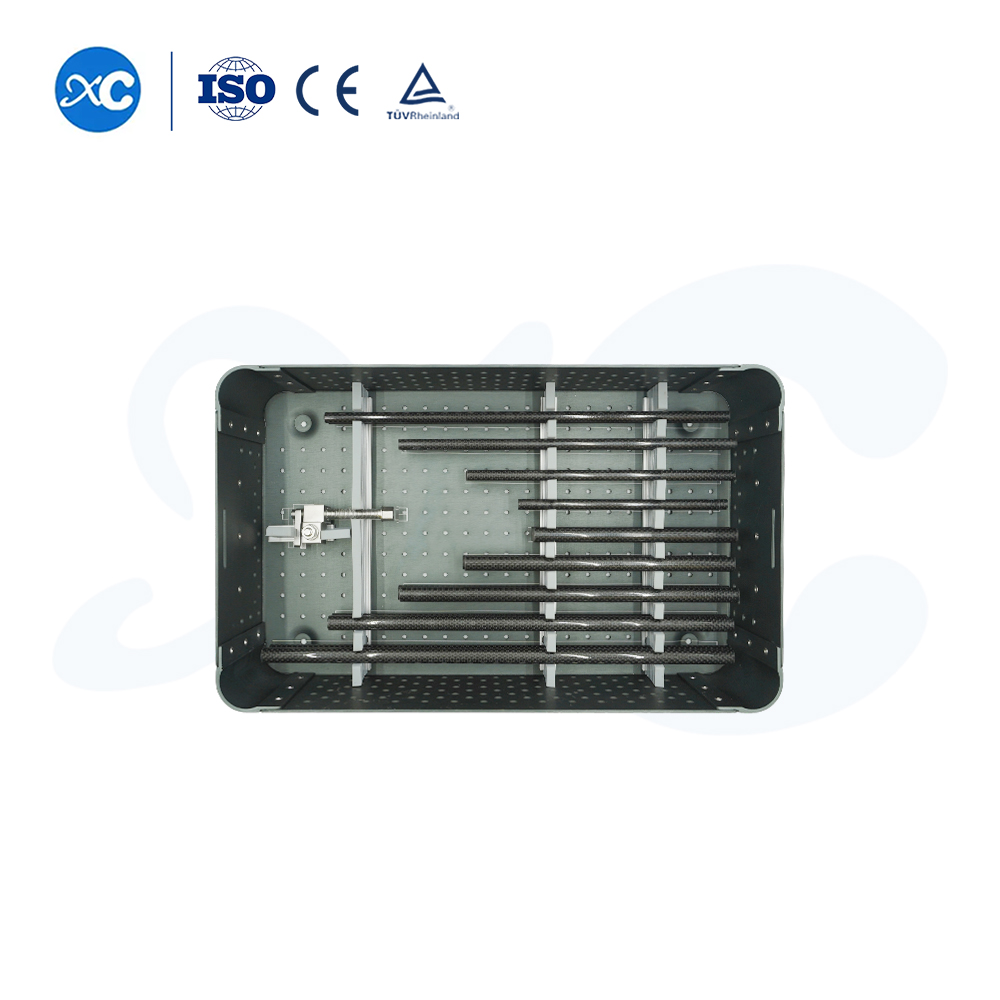

Combinational External Fixator JG1 ZKK Instrument Boxes I

Name: Combinational External Fixator JG1 ZKK Instrument Boxes I
Brand: XC Medico
Rating: 5.0 (6 reviews)

Model:
Combined External Fixator JG1 ZKK
Brand:
XC Medico
MOQ:
1 Pcs（72 Hours Delivery）
Certificate:
CE/ISO:9001/ISO13485.Etc
Material:
316 stainless steel
Usage:
Orthopedic surgery
OEM/ODM Service:
Laser marking, custom anodizing colors & packaging.
Clinical Support:
Free surgical videos, user manuals & technical guidance.
Return Policy:
30-day hassle-free returns (for unused items in original packaging).
Warranty:
18 Months (Instruments) | 24 Months (Power Tools) | 36 Months (Implants).
Advantages:
Custom-Made 15 Days Delivery（Excluding Shipping Time）
Transportation:
FedEx. DHL.TNT.EMS.Etc

Availability:

Quantity:



Inquire

Product Description

Product Overview

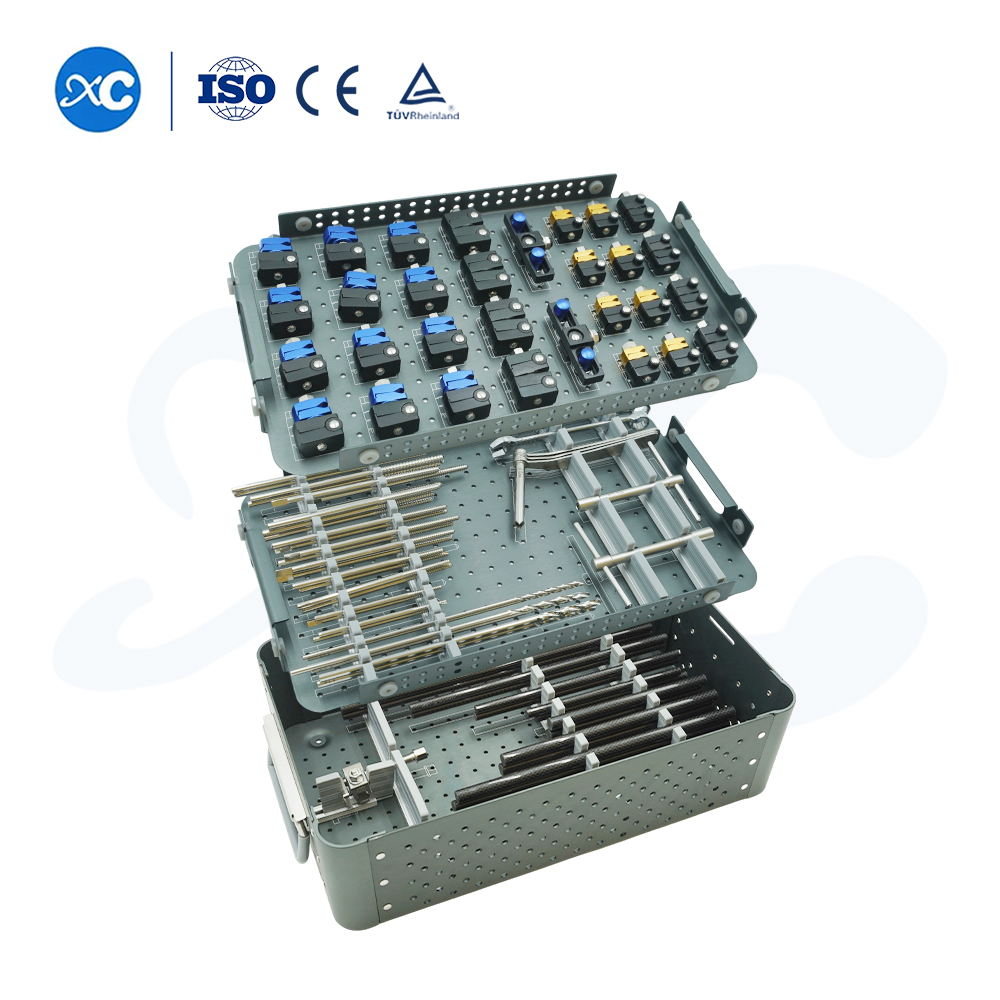

Combinational External Fixator JG1 ZKK Instrument Boxes I

The XC Medico Combinational External Fixator JG1 ZKK Instrument Boxes I provide the principal instruments and fixation components required for selected combinational external fixation procedures.

The system includes rod-to-rod couplings, pin-to-rod couplings, connecting rods, standard screws, drill bits, guides, screwdrivers and supporting instruments. It can be supplied as part of XC Medico’s external fixation system for orthopedic distributors, hospitals and trauma centers.

Product Type

External Fixator Set

System

JG1 ZKK-I

Application

Trauma Fixation

Service

OEM / ODM

Product Description

Modular External Fixation Instruments for JG1 ZKK Systems

The instrument boxes are configured around the JG1 ZKK combinational external fixator system. Different couplings, connecting rods and standard screws allow the fixation construct to be adapted to selected fracture patterns and anatomical requirements.

Complete Basic Configuration

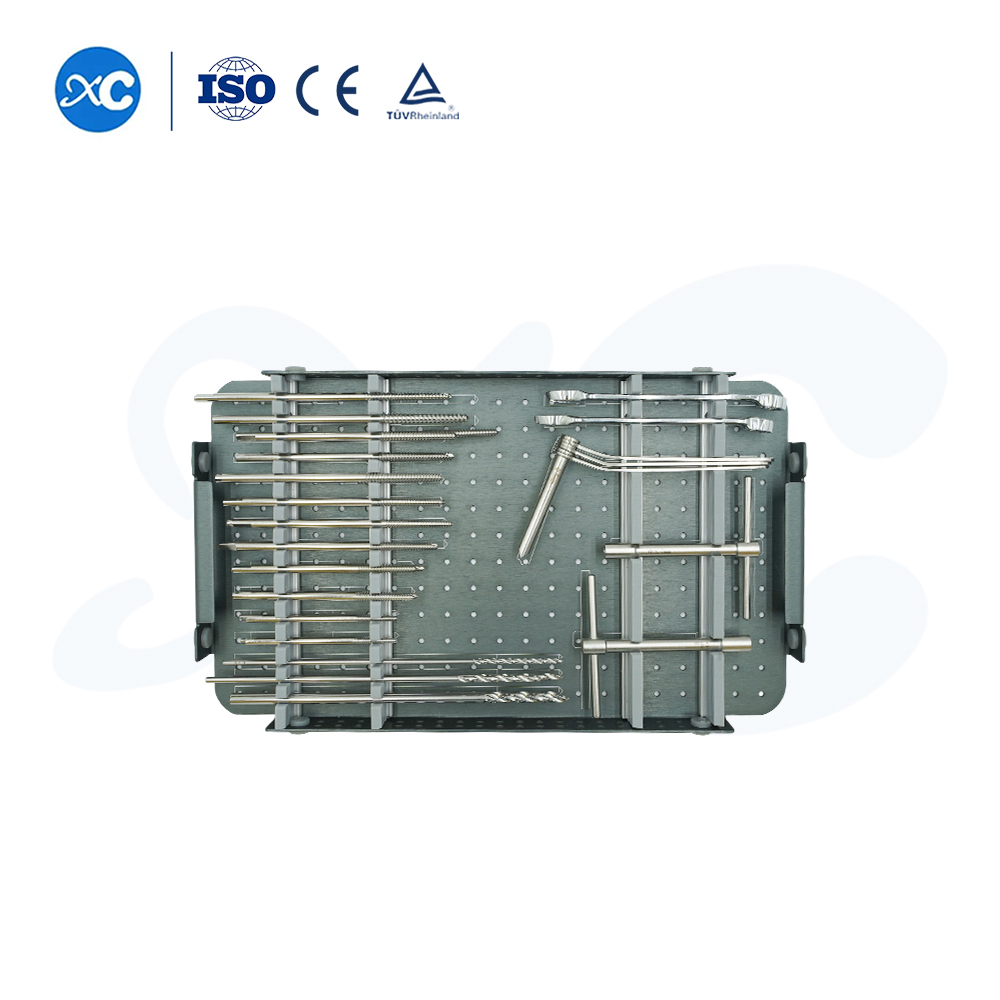

Includes principal fixation components, drills, guides, drivers and supporting instruments.

Multiple Rod Specifications

Compatible with selected 8 mm and 11 mm connecting rods in multiple lengths.

Flexible Coupling Options

Rod-to-rod and pin-to-rod couplings support different fixation configurations.

Customizable Instrument Box

Instrument quantities, box layout and product marking can be adjusted for OEM projects.

Key Advantages

Combinational External Fixator System Advantages

Simple Modular Assembly

Standardized couplings and rods help simplify external fixation frame assembly and adjustment.

Multiple Fixation Configurations

Different coupling and rod combinations support customized fixation frame construction.

Minimally Invasive Fixation

External fixation can be applied through selected percutaneous pin-placement techniques.

Accessible Frame Adjustment

The external construct allows selected postoperative inspection and adjustment according to clinical requirements.

System Components

JG1 ZKK External Fixator Instrument Components

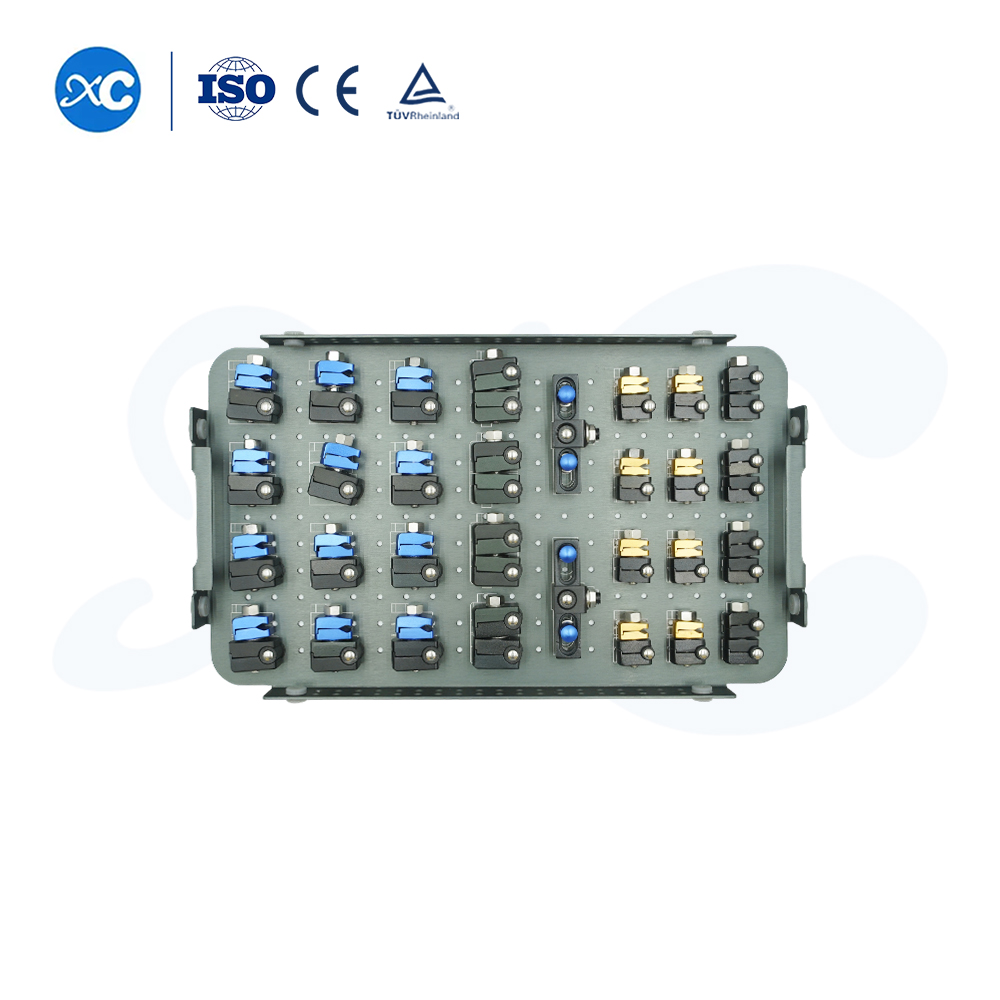

Rod-to-Rod Couplings Components for connecting fixation rods within the external frame.

Pin-to-Rod Couplings Couplings for connecting fixation pins with compatible rods.

Standard Screws Multiple HA and HB screw specifications for selected fixation requirements.

Connecting Rods 8 mm and 11 mm rods supplied in multiple lengths.

Drill Bits and Guides Drill and guide specifications matched to compatible screw diameters.

Supporting Instruments Screwdrivers, open spanners, pressurizer and T clamps.

Surgical Applications

External Fixation for Trauma and Orthopedic Reconstruction

Complex Fracture Fixation

Supports selected fracture patterns requiring modular external stabilization.

Trauma Management

Can be configured for selected emergency and staged trauma fixation workflows.

Limb Reconstruction

Modular rod and coupling configurations may support selected reconstructive procedures.

Deformity Correction Support

Selected frame constructions can be used in applicable orthopedic correction procedures.

Instrument List

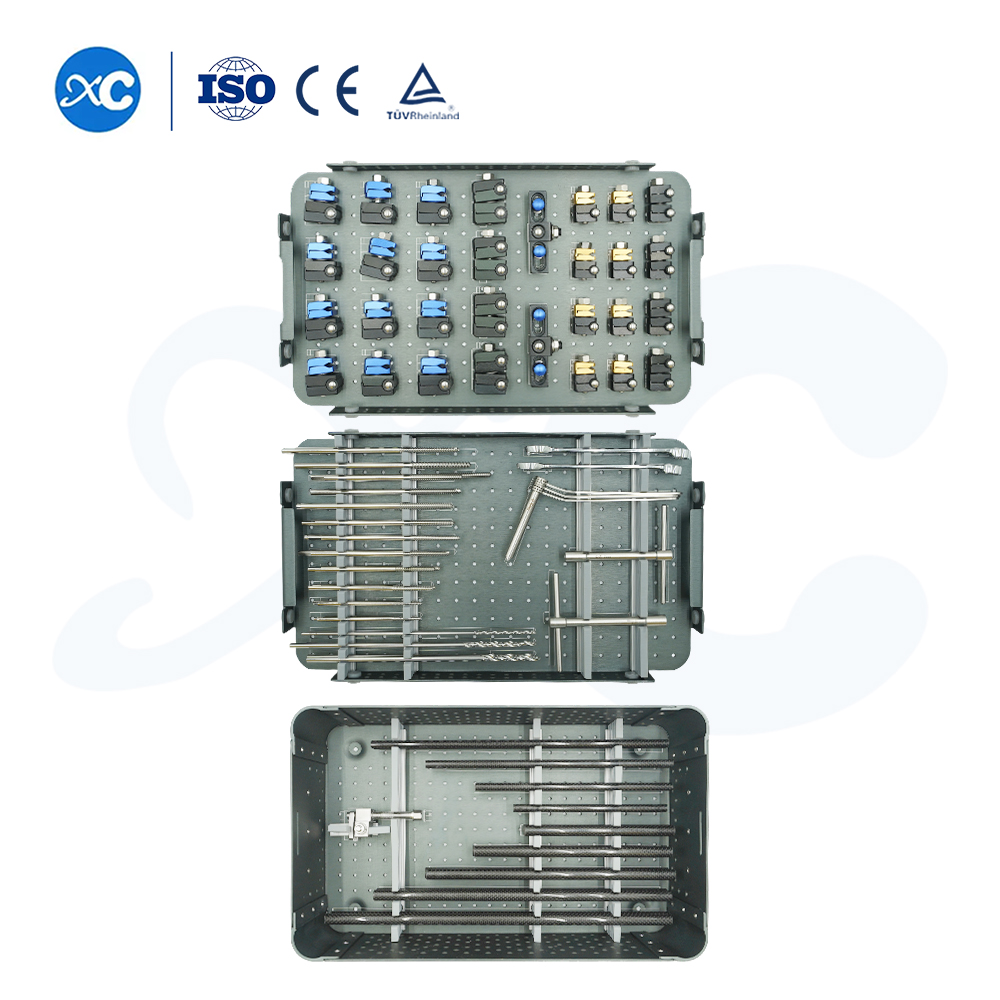

Combined External Fixator JG1 ZKK-I Configuration

The following table shows the standard configuration supplied with the JG1 ZKK-I instrument box.

Name	Size	Qty.
Ringent rod-to-rod coupling	φ8/8	4
Ringent pin-to-rod coupling	φ8/4–5	8
Ringent rod-to-rod coupling	φ11/11	4
Ringent pin-to-rod coupling	φ11/5–6	12
T clamp	φ11/5	2
Standard screw	HA4×90	4
Standard screw	HA5×110	4
Standard screw	HA5×130	6
Standard screw	HA6×130	6
Standard screw	HB5×150	2
Standard screw	HB6×150	2
Drill bit	2.8×200	2
Drill bit	3.8×200	2
Drill bit	4.8×200	2
Screwdriver	φ4	1
Screwdriver	φ5	1
Guide	φ4	1
Guide	φ5	1
Guide	φ6	1
Open spanner	#10	2
Pressurizer	Standard	1
Connecting rod	φ8×150	2
Connecting rod	φ8×200	2
Connecting rod	φ8×250	2
Connecting rod	φ8×300	2
Connecting rod	φ11×150	2
Connecting rod	φ11×200	2
Connecting rod	φ11×250	2
Connecting rod	φ11×300	2
Connecting rod	φ11×350	2
Instrument box	B-I	1

Related External Fixation Products

Build a Complete External Fixation Product Portfolio

The JG1 ZKK-I instrument box can be supplied together with additional external fixation components and trauma systems according to the distributor’s product range.

External Fixators System Explore XC Medico’s modular external fixation systems, connecting rods, clamps, pins and compatible instrument configurations.

Distributor Support

External Fixator Instrument Set OEM Manufacturer

XC Medico supports orthopedic distributors with component matching, instrument-box configuration, product marking, packaging design and OEM or ODM services.

Component Matching

Box Configuration

Fast Quotation

Logo Marking

Catalog Support

OEM / ODM

Frequently Asked Questions

Combinational External Fixator JG1 ZKK FAQ

What is included in the JG1 ZKK-I instrument box?

The standard configuration includes couplings, standard screws, drill bits, guides, screwdrivers, connecting rods, a pressurizer, open spanners and an instrument box.
