Product Overview
Combinational External Fixator JG2P ZJY Instrument Boxes III
The XC Medico Combinational External Fixator JG2P ZJY Instrument Boxes III provide the principal components and surgical instruments required for selected modular external fixation procedures.
The JG2P ZJY-III configuration includes pin-to-rod couplings, rod-to-rod couplings, connecting rods, bone screws, drill bits, guides, screwdrivers and supporting tools. It can be supplied as part of XC Medico’s external fixator system for orthopedic distributors, hospitals and trauma centers.
Product Type
External Fixator Set
System Model
JG2P ZJY-III
Application
Trauma Fixation
Product Description
Modular JG2P ZJY External Fixation Instrument System
The instrument box is designed around the JG2P ZJY combinational external fixator. Multiple coupling diameters, rod lengths and bone screw specifications allow the system to be configured for different fixation frames and selected anatomical requirements.
Complete Surgical Configuration
Includes couplings, rods, bone screws, drill bits, guides, drivers and supporting instruments.
Multiple Rod Diameters
Supports selected 8 mm and 11 mm connecting rods in multiple lengths.
Flexible Coupling Options
Pin-to-rod and rod-to-rod couplings support different external fixation configurations.
Custom Instrument Box
Component quantities, box layout and product marking can be adjusted for distributor projects.
Key Advantages
JG2P ZJY Combinational External Fixator Advantages
Simple Modular Assembly
Standardized rods and couplings support efficient assembly of selected external fixation frames.
Adaptable Fixation Structure
Different coupling and rod combinations support customized frame construction.
Percutaneous Pin Fixation
The system can be used with selected minimally invasive pin-placement techniques.
Accessible Frame Adjustment
The external construct allows selected inspection and frame adjustment according to clinical requirements.
System Components
JG2P ZJY External Fixator Instrument Components

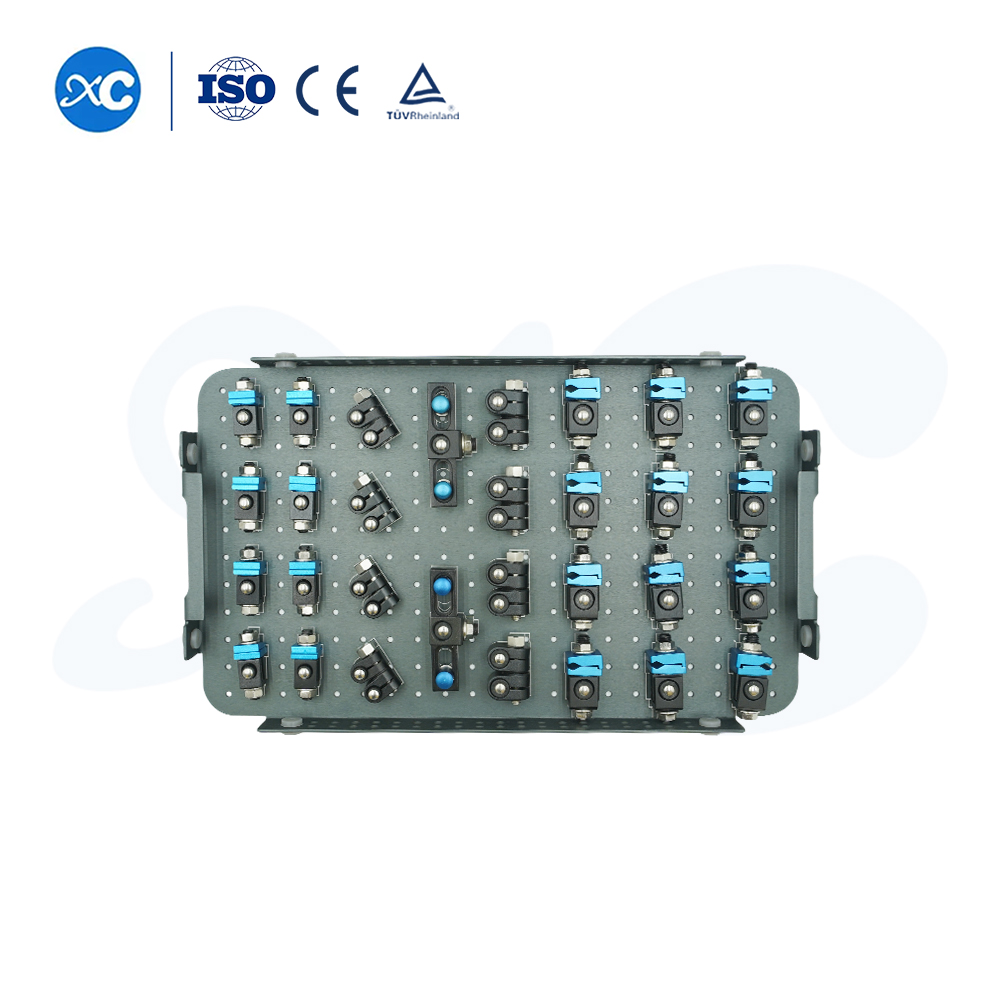

Pin-to-Rod Couplings Couplings for connecting fixation pins to compatible rods.
Rod-to-Rod Couplings Components for joining rods within the modular fixation frame.
Bone Screws Multiple HA and HB specifications for selected fixation requirements.

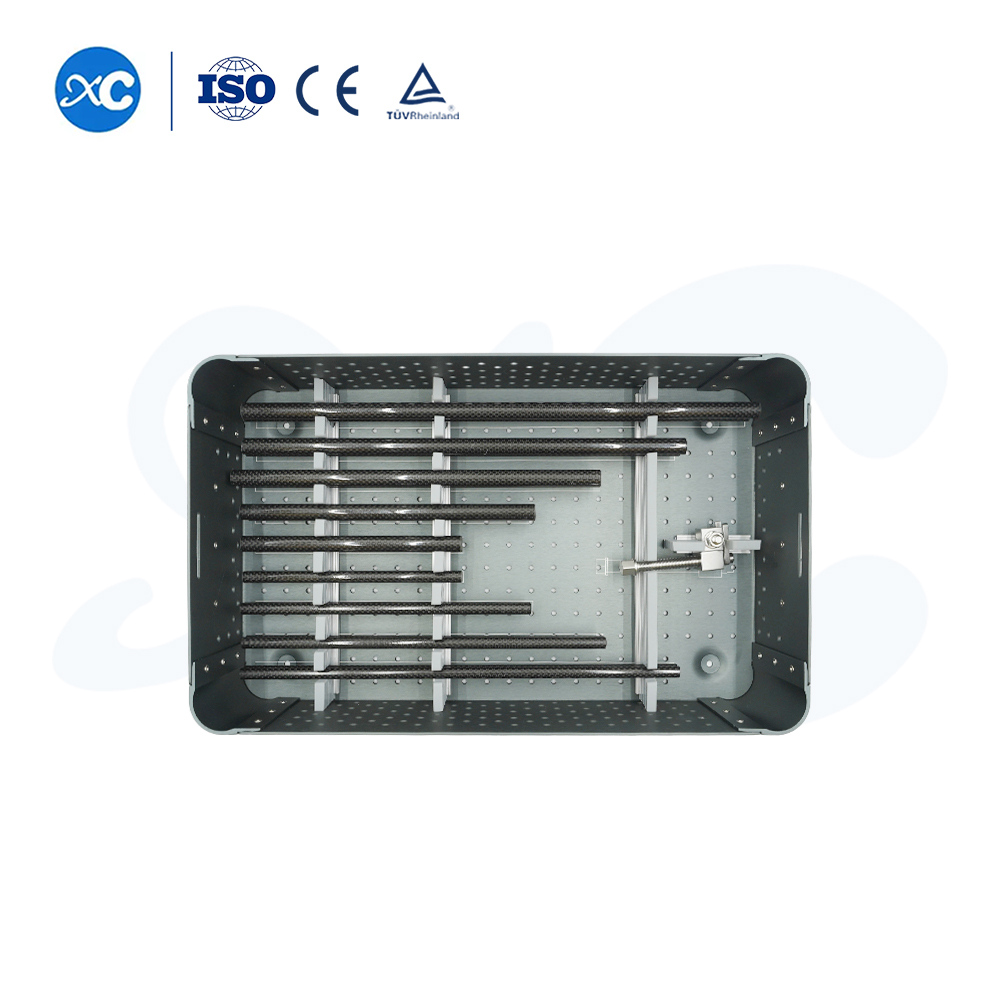

Connecting Rods 8 mm and 11 mm rods supplied in multiple lengths.

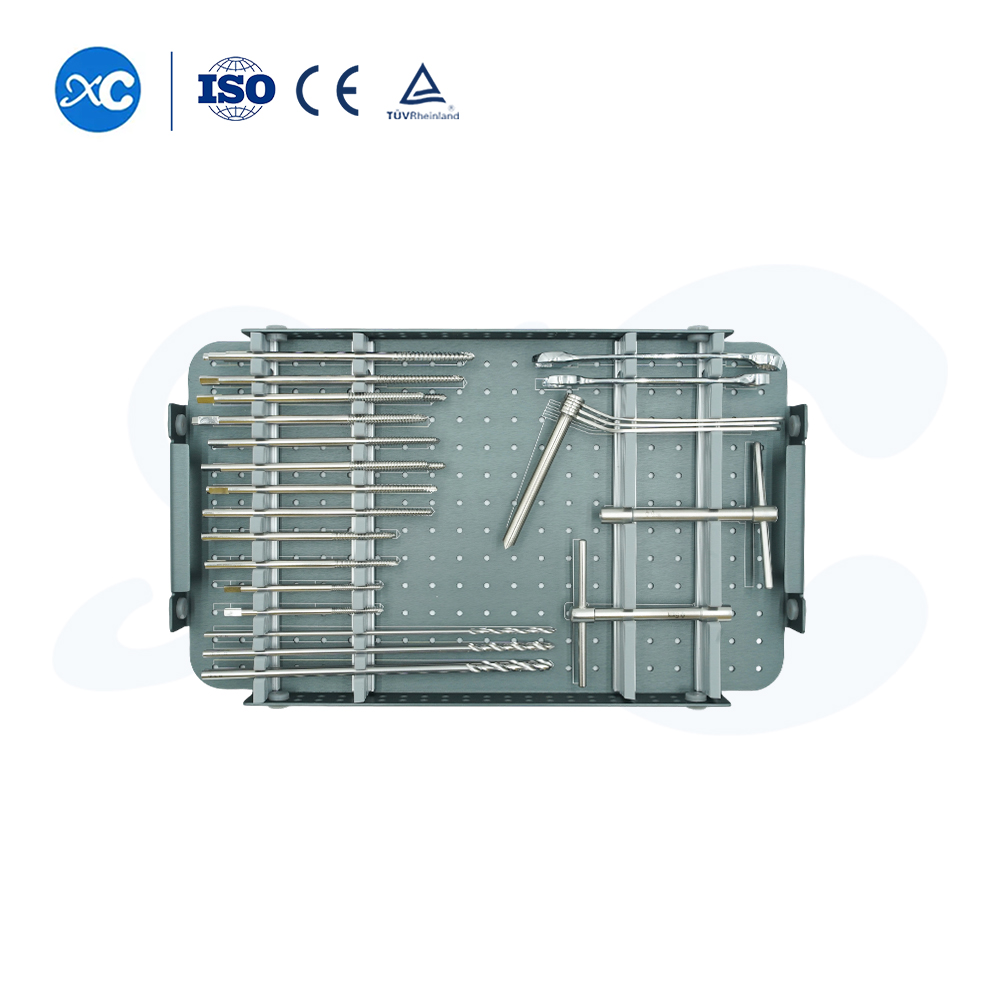

Drill Bits and Guides Matched preparation instruments for compatible screw diameters.
Supporting Instruments Screwdrivers, pressurizer, open spanners and T clamps.
Surgical Applications
Modular External Fixation for Trauma and Reconstruction
Complex Fracture Fixation
Supports selected fracture patterns requiring modular external stabilization.
Staged Trauma Management
Can be configured for selected temporary or staged fixation workflows.
Limb Reconstruction
Modular frame configurations may support selected reconstructive orthopedic procedures.
Deformity Correction Support
Selected frame constructions may support applicable limb correction procedures.
Instrument Configuration

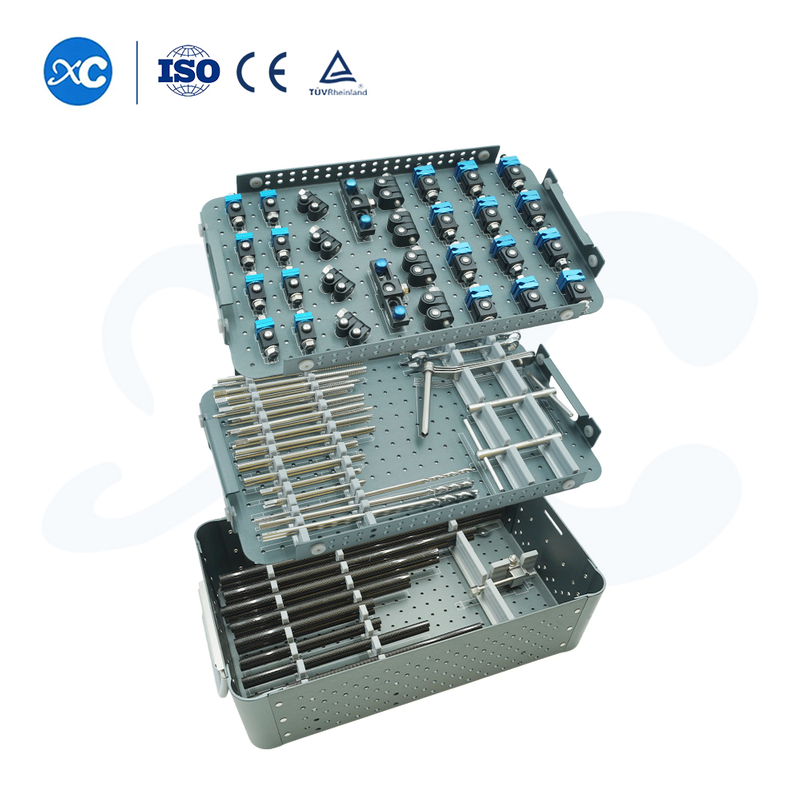

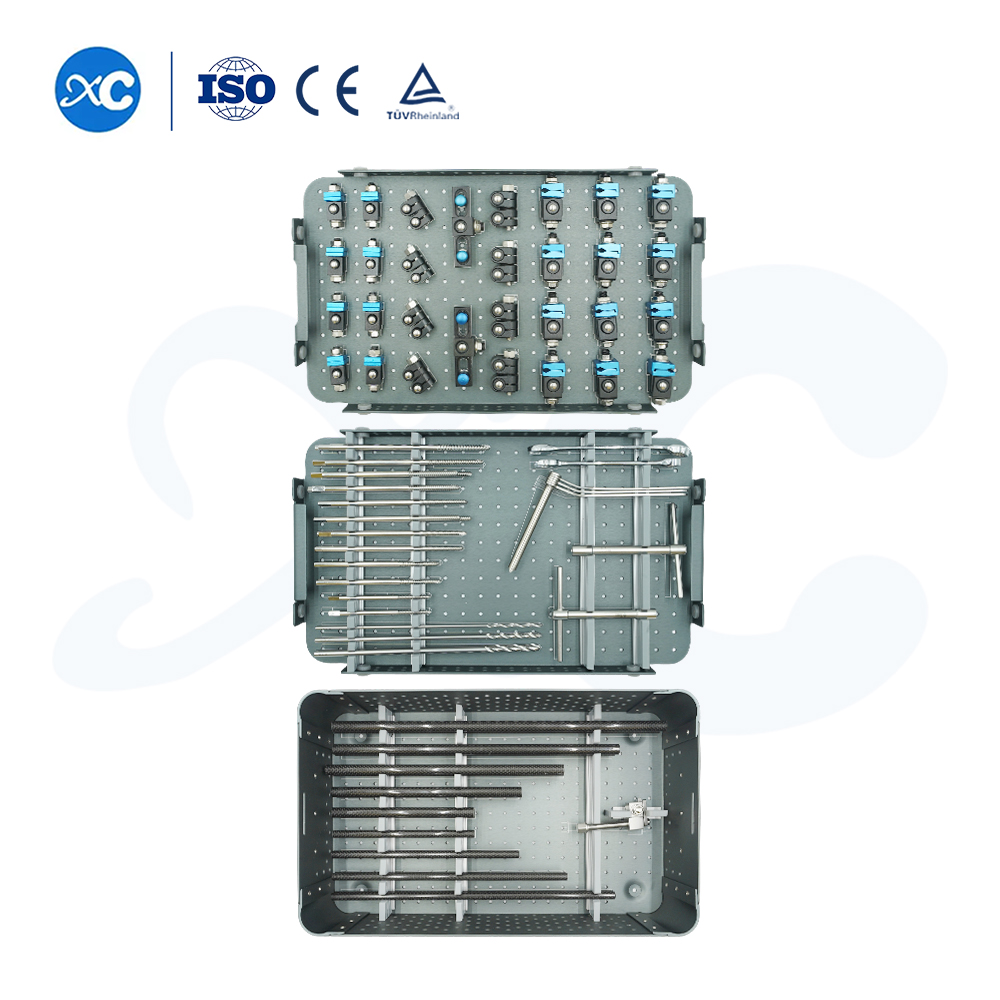

Combined External Fixator JG2P ZJY-III Instrument List
The following table shows the standard component configuration supplied with the JG2P ZJY-III instrument box.
| Name | Size | Qty. |
| Pin-to-rod coupling | φ8/3.5–4 | 8 |
| Rod-to-rod coupling | φ8/8 | 4 |
| Rod-to-rod coupling | φ11/11 | 4 |
| Pin-to-rod coupling | φ11/5–6 | 12 |
| T clamp | φ11/5 | 2 |
| Bone screw | HA4×90 | 4 |
| Bone screw | HA4×110 | 4 |
| Bone screw | HA5×130 | 6 |
| Bone screw | HA6×130 | 6 |
| Bone screw | HB5×150 | 2 |
| Bone screw | HB6×150 | 2 |
| Drill bit | 2.8×200 | 2 |
| Drill bit | 3.8×200 | 2 |
| Drill bit | 4.8×200 | 2 |
| Screwdriver | φ4 | 1 |
| Screwdriver | φ5 | 1 |
| Guide | φ4 | 1 |
| Guide | φ5 | 1 |
| Guide | φ6 | 1 |
| Pressurizer | Standard | 1 |
| Open spanner | #10 | 2 |
| Connecting rod | φ8×150 | 2 |
| Connecting rod | φ8×200 | 2 |
| Connecting rod | φ8×250 | 2 |
| Connecting rod | φ8×300 | 2 |
| Connecting rod | φ11×150 | 2 |
| Connecting rod | φ11×200 | 2 |
| Connecting rod | φ11×250 | 2 |
| Connecting rod | φ11×300 | 2 |
| Connecting rod | φ11×350 | 2 |
| Instrument box | B-III | 1 |
Distributor Support
JG2P ZJY External Fixator OEM Manufacturer
XC Medico supports orthopedic distributors with component matching, instrument-box configuration, product marking, packaging design and OEM or ODM services.
Component Matching
Box Configuration
Fast Quotation
Logo Marking
Catalog Support
OEM / ODM
Frequently Asked Questions
Combinational External Fixator JG2P ZJY FAQ
What is included in the JG2P ZJY-III instrument box?
The standard configuration includes couplings, bone screws, drill bits, guides, screwdrivers, connecting rods, a pressurizer, open spanners and an instrument box.
Which connecting rod sizes are included?
The displayed configuration includes 8 mm rods from 150 to 300 mm and 11 mm rods from 150 to 350 mm.
Can the component configuration be customized?
Yes. Component quantities, rod specifications, box layout and product marking can be adjusted according to project requirements.
Are OEM and private-label services available?
OEM and ODM support is available for instrument configuration, product marking, packaging and catalog preparation.
Request the JG2P ZJY-III Instrument List and Quotation
Send the required fixation configuration, rod sizes, bone screw specifications and estimated quantity for product matching and quotation.
