External Fixator for Leg - Femur and Tibia Fixators

Femur and Tibia External Fixation System

A broad external fixation platform for selected femoral, tibial and periarticular fixation requirements. Available configurations include dynamic axial frames, straight and T-type systems, hip and knee fixators, limb reconstruction systems and modular rod-and-clamp constructs.

Modular External Fixation for Lower Limb Trauma

The system includes unilateral and modular external fixation configurations intended to support selected femoral, tibial, hip, knee and ankle fixation requirements. Frame selection depends on the anatomical region, planned construct and approved surgical technique.

Dynamic axial fixators are supplied in multiple frame sizes, while limb reconstruction, Taylor and modular rod-and-clamp systems offer additional options for selected reconstruction or staged trauma workflows.

Buyers comparing other frame configurations can review the complete XC Medico external fixator system.

Dynamic Axial Frames

Straight and T-type dynamic axial frames provide size options from XL to XS for selected lower-limb constructs.

Joint-Specific Options

Hip, knee and ankle configurations are available for selected periarticular fixation requirements.

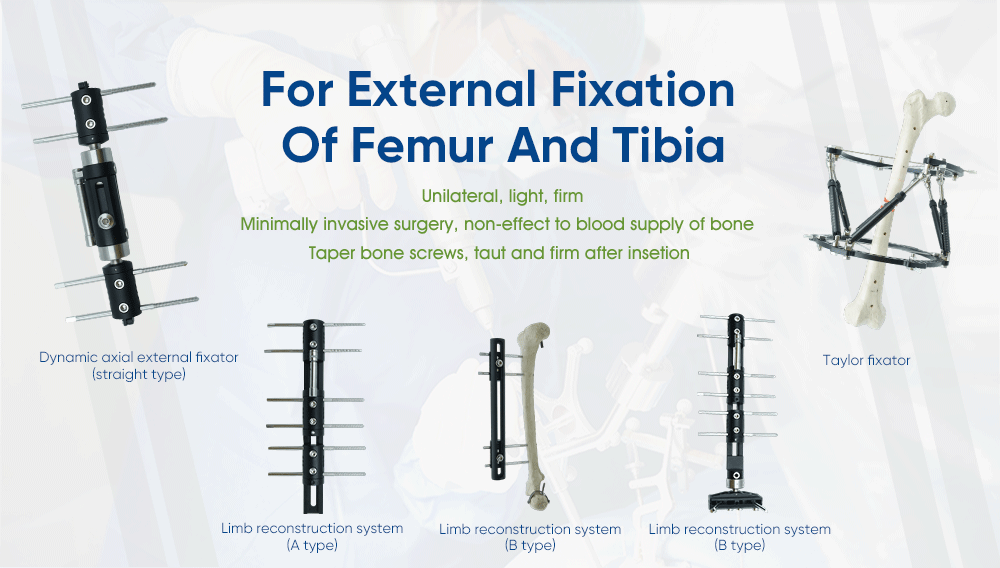

Limb Reconstruction Systems

A, B and C-type limb reconstruction systems provide additional frame choices for selected reconstruction workflows.

Modular Rod-and-Clamp Frames

φ11 mm rods, couplings, clamps and matching bone screws can be assembled into T, straight and Z-frame configurations.

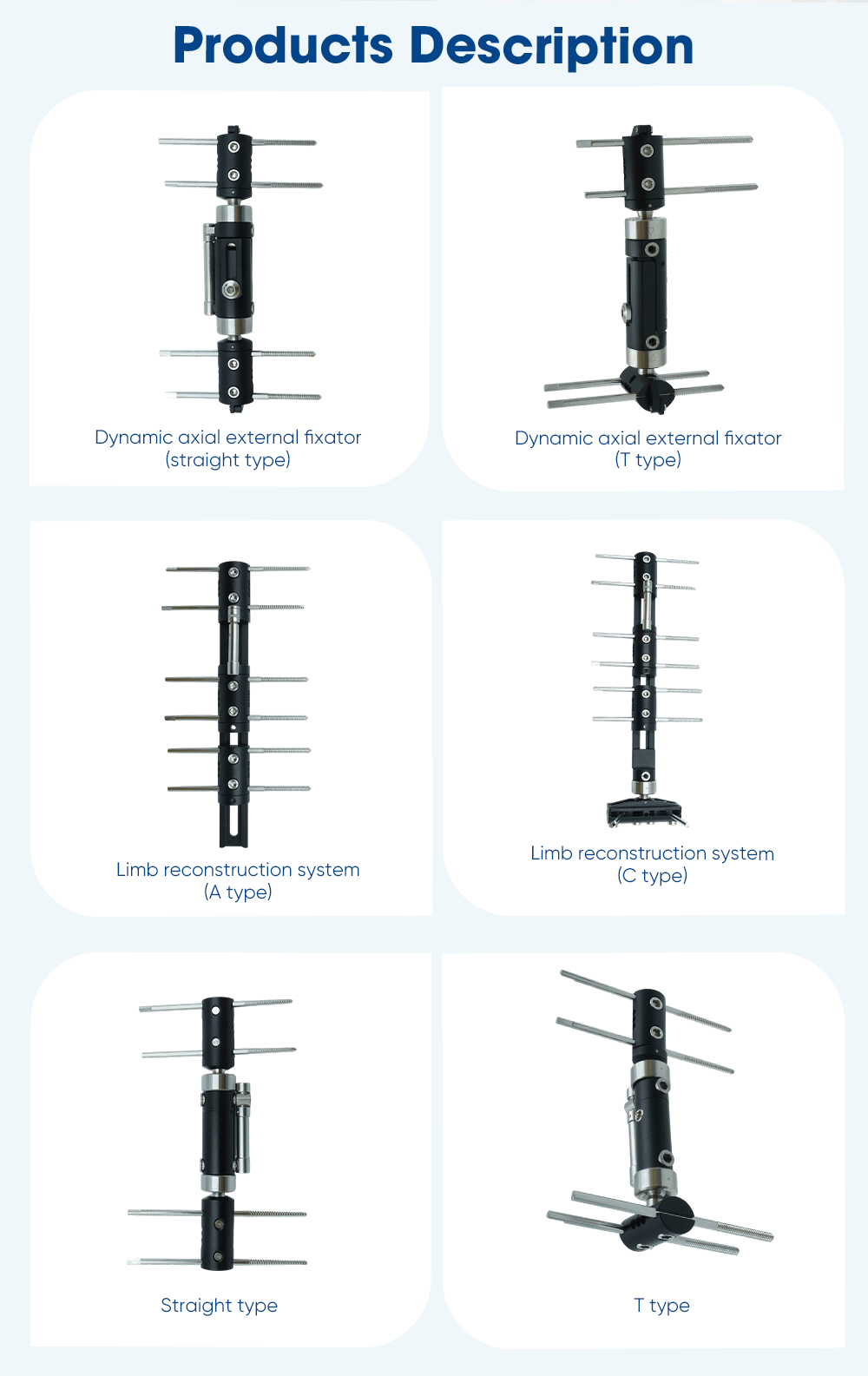

Dynamic Axial Straight Type

Available in XL, L, M, S and XS frame sizes.

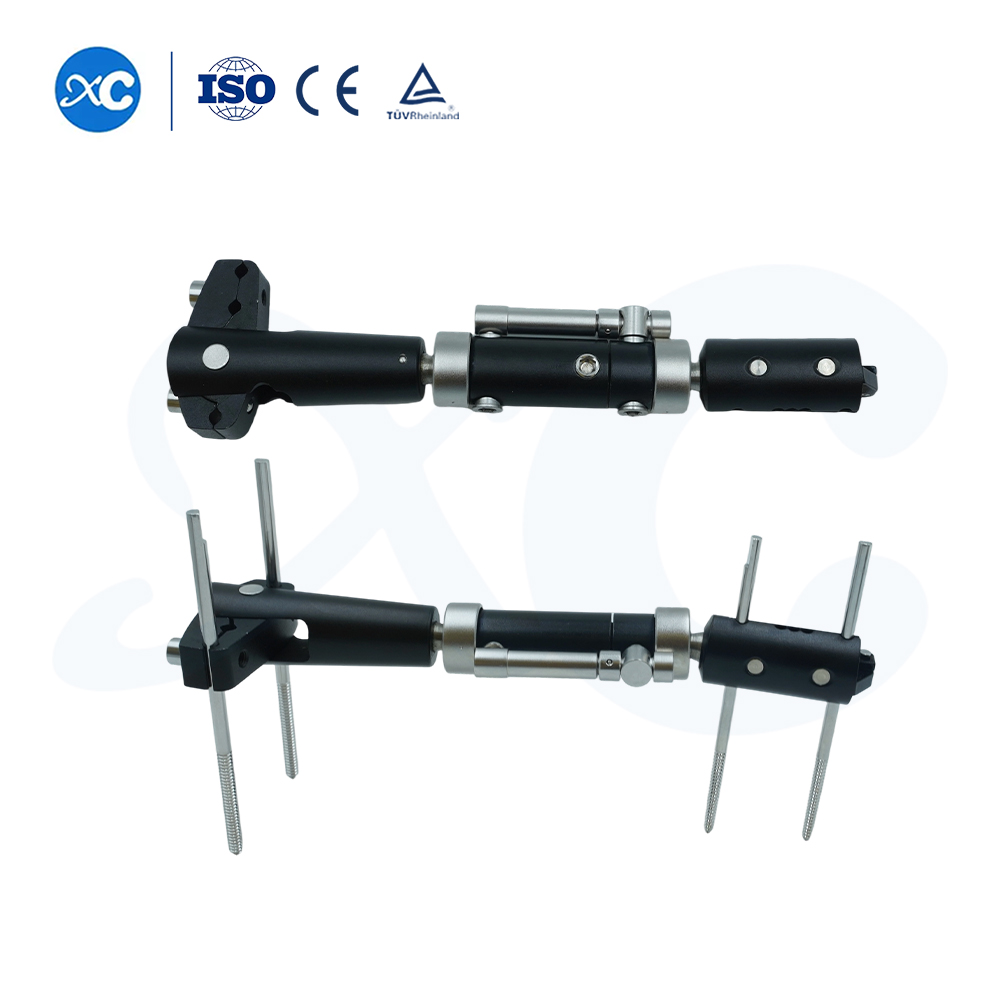

Dynamic Axial T Type

Available in XL, L, M, S and XS configurations.

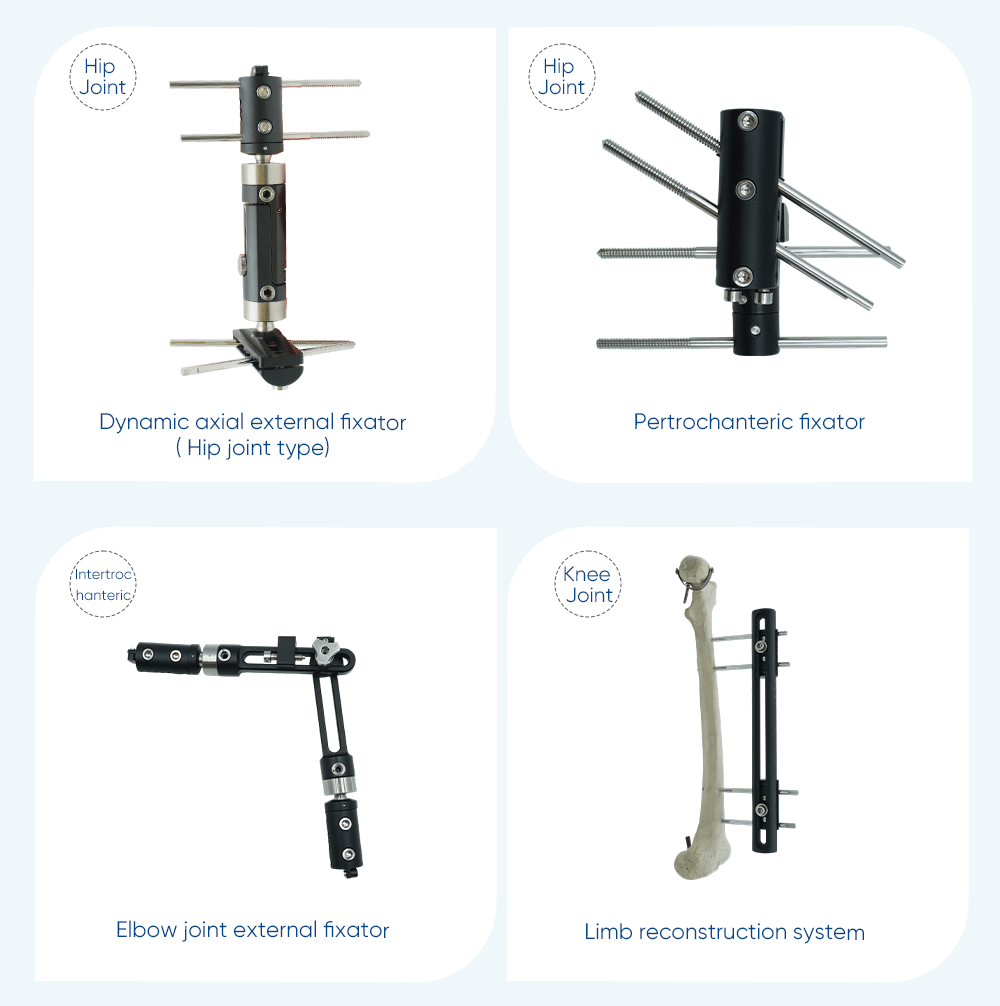

Hip and Pertrochanteric Fixators

Includes dynamic axial hip-joint types and a standard pertrochanteric fixator.

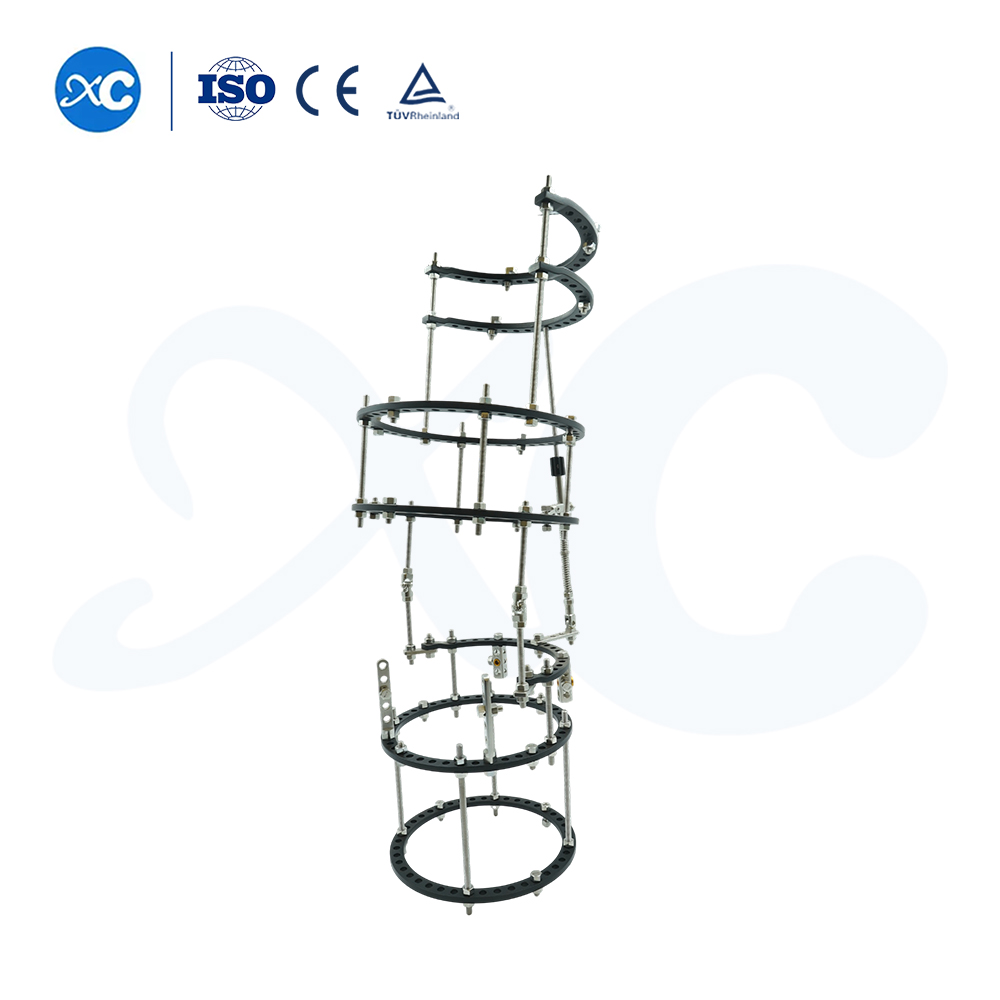

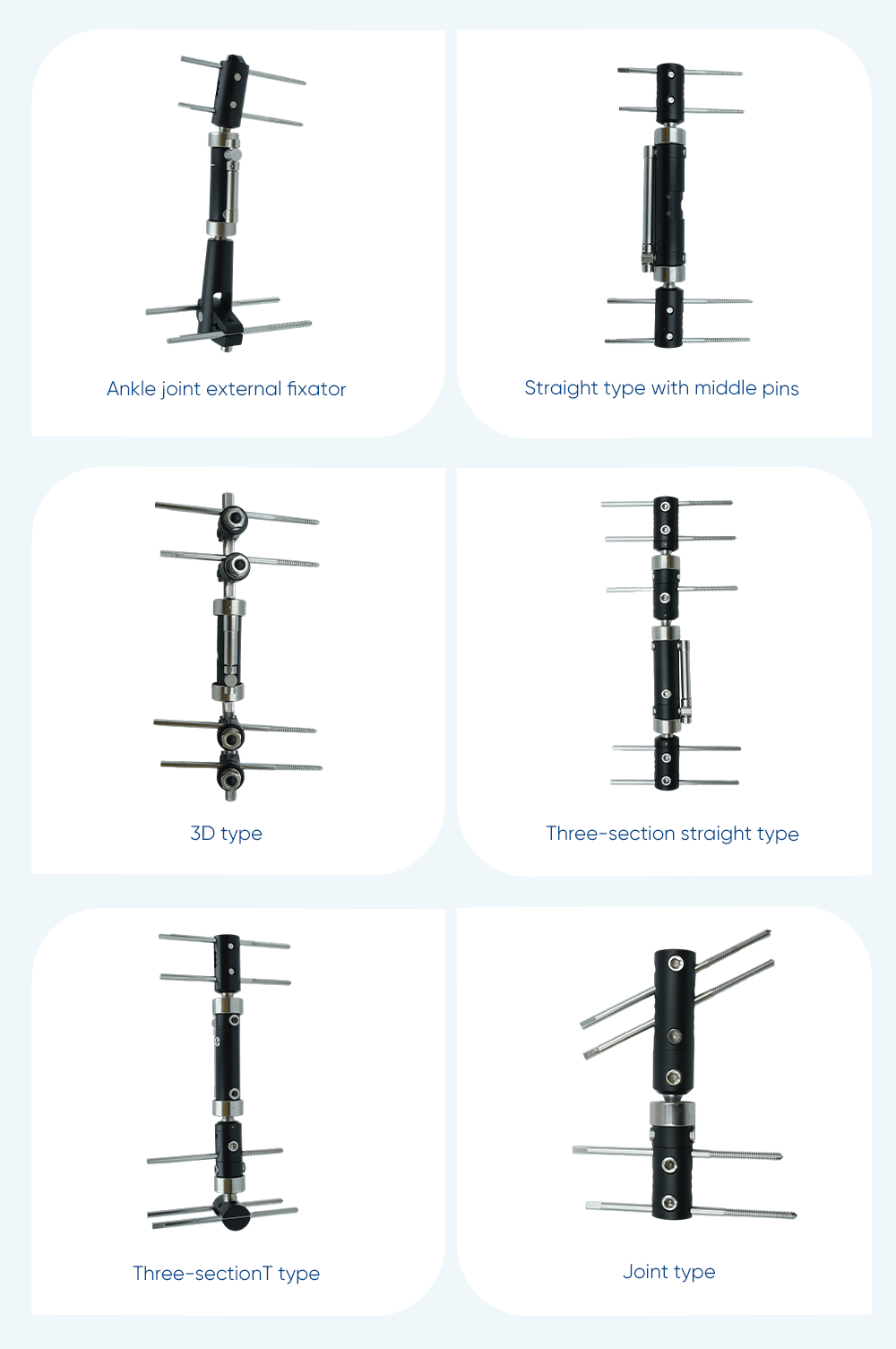

Knee and Ankle Fixators

Includes standard knee-joint and L/M ankle-joint configurations.

Limb Reconstruction System

Standard A, B and C-type frame options.

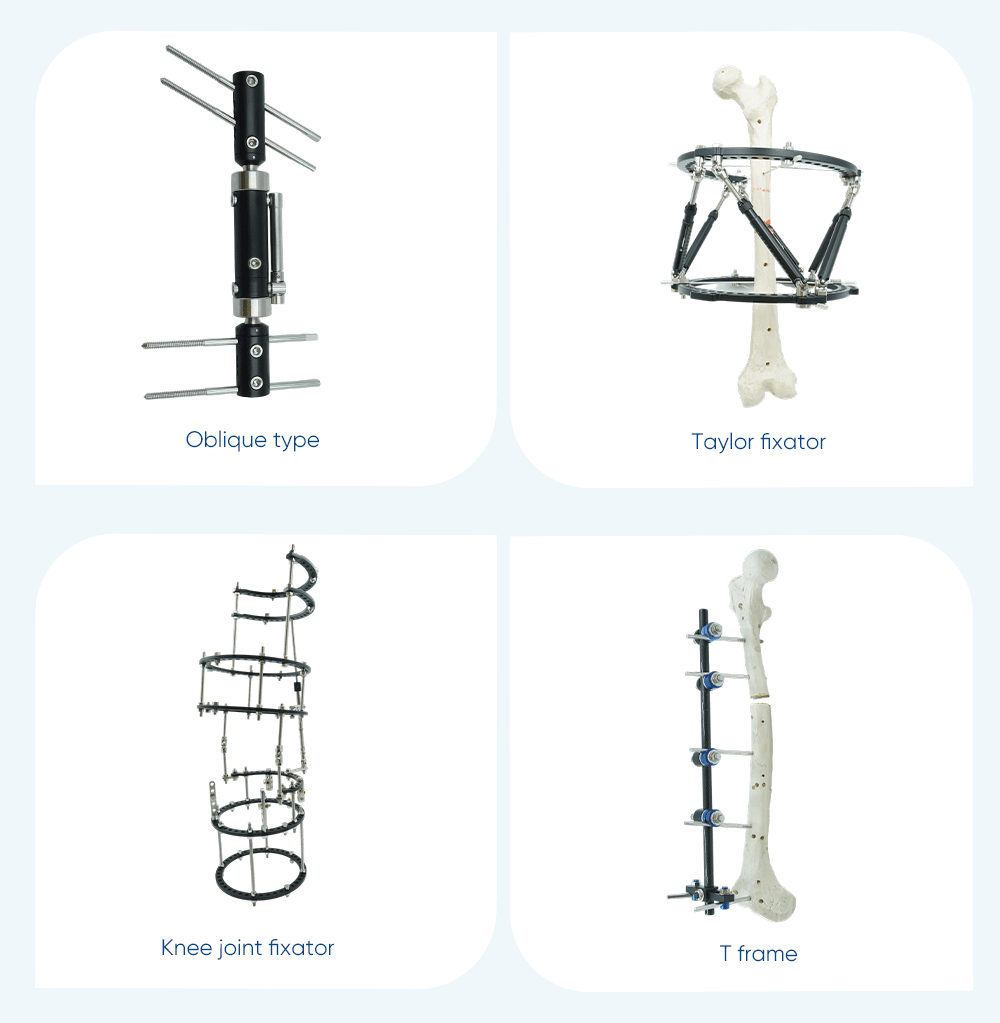

Taylor and Modular Systems

Taylor, 3D, straight, T, Z, oblique and multi-section frame options.

T Frame

Pin-to-rod coupling φ11/5–6 × 4

T clamp φ11/5 × 1

Connecting rod φ11 × 300 mm × 1

HA5 × 130 × 4; HB5 × 150 × 2

Straight Frame

Rod-to-rod coupling φ11/11 × 1

Pin-to-rod coupling φ11/5–6 × 4

Connecting rod φ11 × 200 mm × 2

HA5 × 130 bone screw × 4

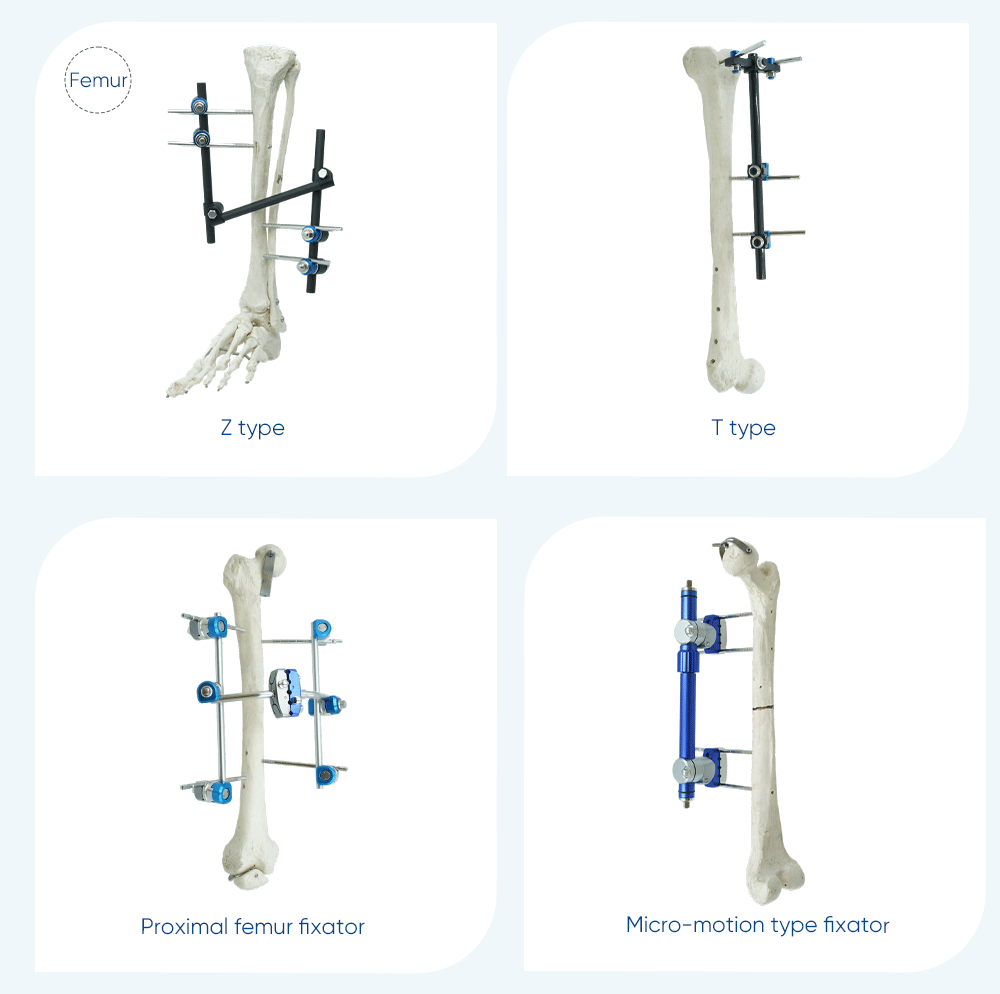

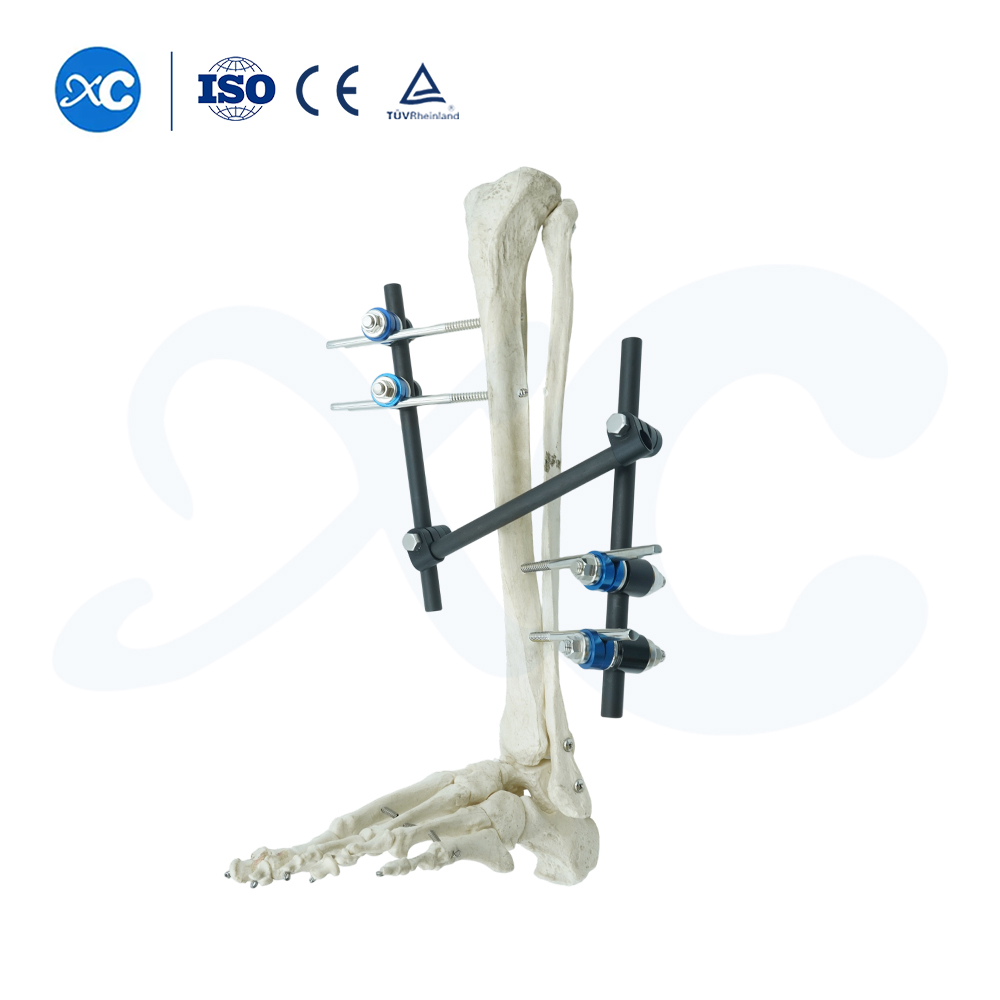

Z Type

Rod-to-rod coupling φ11/11 × 2

Pin-to-rod coupling φ11/5–6 × 4

φ11 × 200 mm × 2; φ11 × 150 mm × 1

HB5 × 150 bone screw × 4

T Type

Pin-to-rod coupling φ11/5–6 × 4

T clamp φ11/5 × 1

Connecting rod φ11 × 300 mm × 1

HA5 × 130 × 2; HB5 × 150 × 2

Enhanced Z Frame

Rod-to-rod coupling φ11/11 × 2

Pin-to-rod coupling φ11/5–6 × 4

φ11 × 200 mm × 2; φ11 × 150 mm × 1

HA5 × 130 bone screw × 4

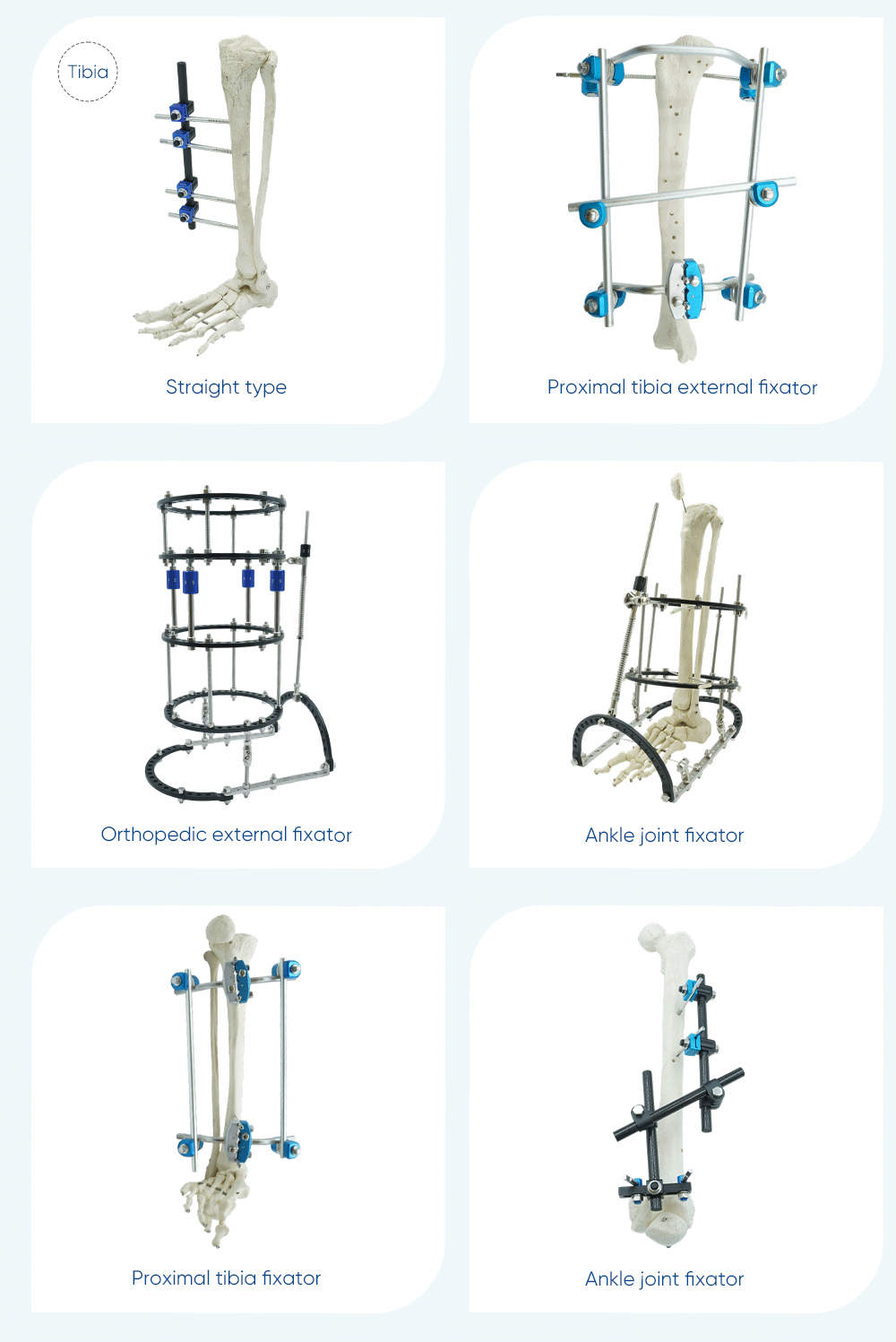

Straight Type

Pin-to-rod coupling φ11/5–6 × 4

Connecting rod φ11 × 250 mm × 1

HA5 × 130 bone screw × 4

Frame Selection

The required frame family and size can be matched against the purchasing list.

Component Configuration

Rods, clamps, couplings and bone screws can be configured with the selected frame.

Catalog Support

Product catalogs, configuration sheets and available technical files can be prepared for evaluation.

OEM / ODM Evaluation

OEM and private-label requirements may be reviewed according to specification, quantity and target market.

Which lower-limb frame sizes are available?

Dynamic axial straight and T-type frames are listed in XL, L, M, S and XS sizes. Other frame families use separate standard or limited size ranges.

Are hip, knee and ankle fixators available?

Yes. The listed range includes hip-joint, pertrochanteric, knee-joint and ankle-joint configurations.

Which components are used in the modular frames?

The listed modular sets use φ11 mm connecting rods, rod-to-rod couplings, pin-to-rod couplings, T clamps and HA5 or HB5 bone screws.

Can individual frame components be configured?

Component and packing configurations may be reviewed according to the selected frame, purchasing list and target-market requirements.
