ORTHOPEDIC TRAUMA INSTRUMENT SYSTEM
Hindfoot Fusion Ankle Nail Instrument Set
A complete orthopedic surgical instrument system developed for hindfoot fusion nail implantation and tibiotalocalcaneal arthrodesis procedures. The set integrates canal preparation, nail insertion, precision targeting, drilling and locking screw placement instruments within organized sterilization trays.
Precision Targeting Modular Instrument Design 5.0 mm / 6.0 mm Screws OEM / ODM Support
Product Overview

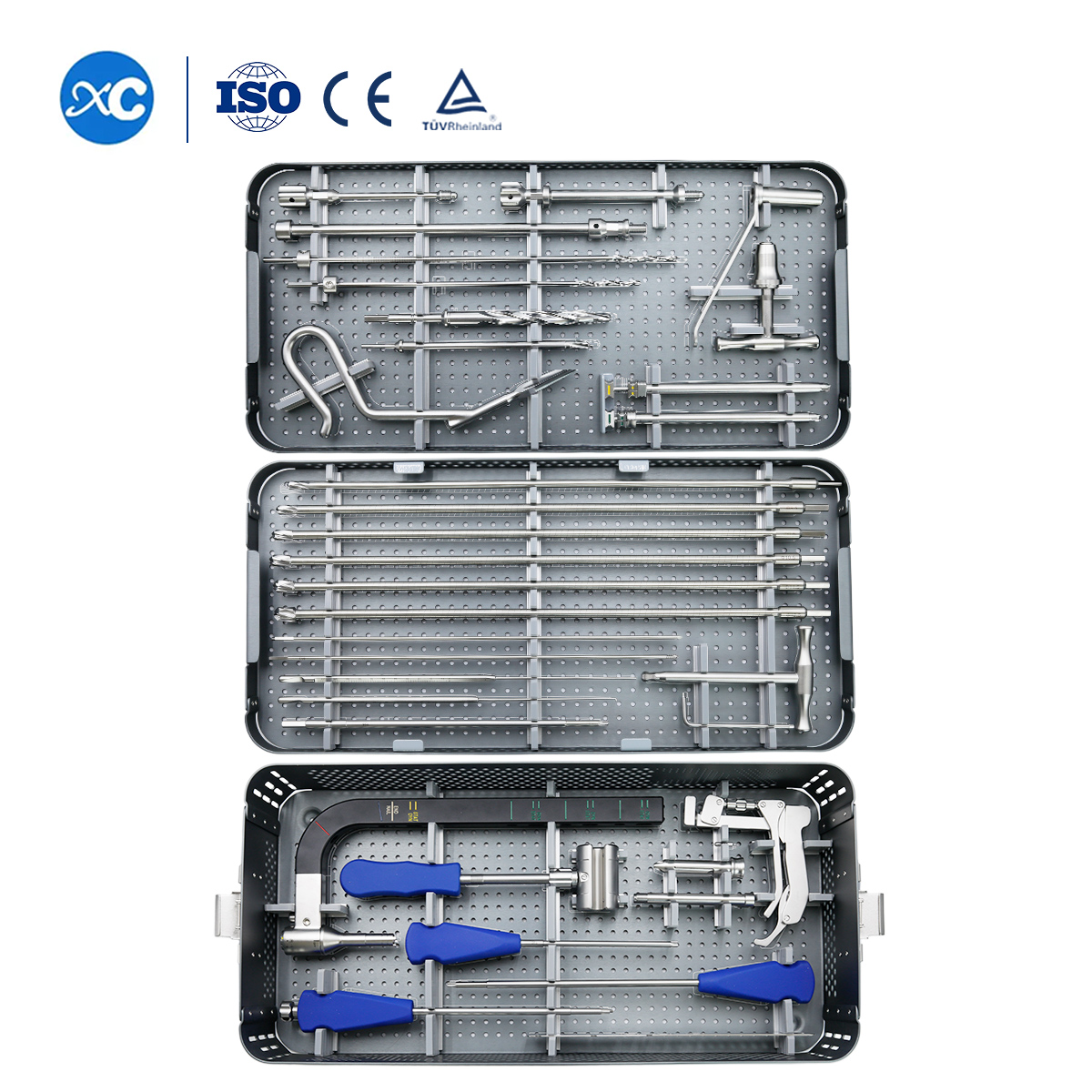

Complete Hindfoot Fusion Nail Surgical Instrument System
The hindfoot fusion ankle nail instrument set is designed to support the main procedural stages of retrograde intramedullary nail fixation. It is intended for use together with the corresponding hindfoot fusion nail implant system and its compatible locking screws.
The system includes dedicated instruments for guide-wire positioning, medullary canal preparation, nail connection, nail insertion, proximal and distal targeting, drilling, depth measurement and locking screw insertion. The instruments are arranged in modular trays to simplify preparation, inventory control, transportation and sterilization management.
Product Type
Surgical Instrument Set
Surgical Application
Hindfoot Fusion
Compatible Screws
5.0 mm / 6.0 mm
Custom Service
OEM / ODM Available
Product Advantages
Ergonomic Hindfoot Nail Instruments and Precision Positioning
The instruments are matched to the compatible implant geometry to support controlled handling, repeatable positioning and efficient instrument management.
01
Ergonomic Surgical Instrument Design
The instruments are configured according to the implant system and principal surgical steps, supporting stable handling and a more organized operative workflow.
02
Precision Hindfoot Nail Targeting
The targeting guide is manufactured to match the corresponding nail system, helping guide drill sleeves and locking screw instruments along the intended trajectory.
03
Comfortable Silicone Handle Control
Selected drivers and operating instruments use contoured silicone handles to provide a secure grip and comfortable control during repetitive procedural steps.
04
Durable Reusable Instrument Materials
Precision-machined stainless steel components provide the mechanical strength required for repeated orthopedic instrument processing and clinical use.
Surgical Workflow
TTC Arthrodesis Instrumentation for Each Procedural Stage
1
Guide-Wire Positioning
Guide-wire instruments assist with establishing the planned entry point and initial trajectory.
2
Canal Preparation
Reamers and supporting instruments are used to prepare the medullary canal according to the selected nail specification.
3
Nail Connection and Insertion
The insertion handle connects with the compatible nail to support controlled retrograde implantation.
4
Precision Targeting
The targeting arm guides sleeves and drills toward the corresponding locking positions.
5
Depth Measurement
Depth gauges support selection of the appropriate locking screw length after drilling.
6
Locking Screw Insertion
Dedicated screwdrivers support the insertion of compatible 5.0 mm and 6.0 mm locking screws.
Targeting System
Precision Locking Screw Positioning Guide
The external targeting guide is designed according to the matching nail geometry. The assembly provides reference positions for compatible drill sleeves, drill bits and locking screw instruments.
Targeting Guide Features
Implant-matched targeting structure
Clearly marked orientation references
Compatible drill sleeve guidance
Stable connection with the insertion assembly
Compatible Use

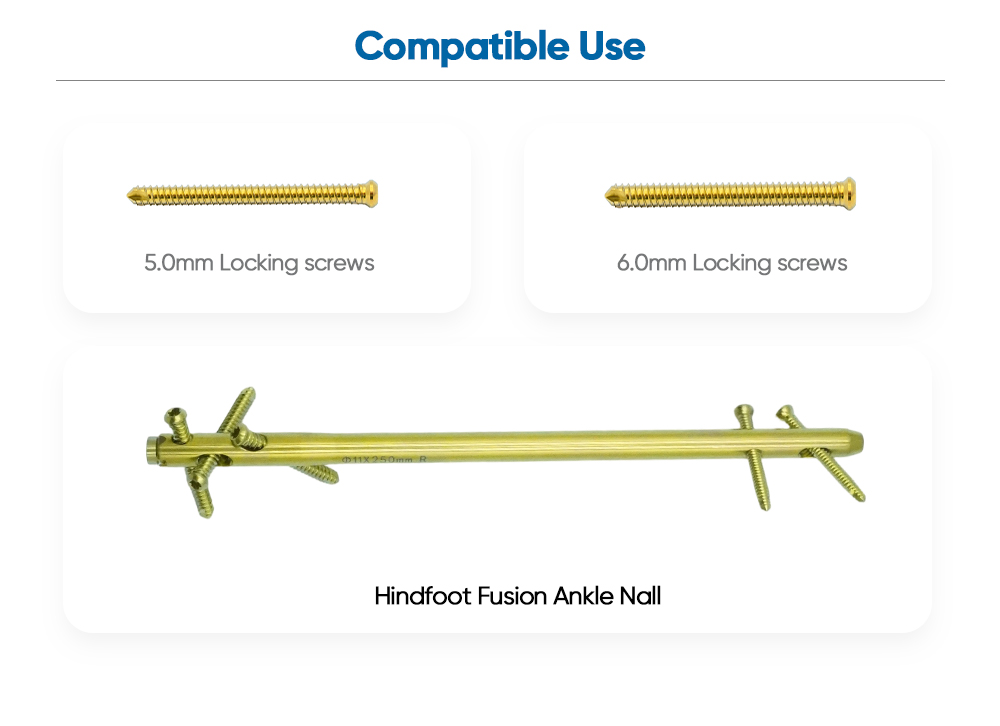

Hindfoot Fusion Nail and Locking Screw Compatibility
The final instrument configuration should be selected according to the corresponding nail model, locking configuration and surgical technique.
TTC Nail
Hindfoot Fusion System
Set Configuration
Hindfoot Fusion Nail Instrument Set Components

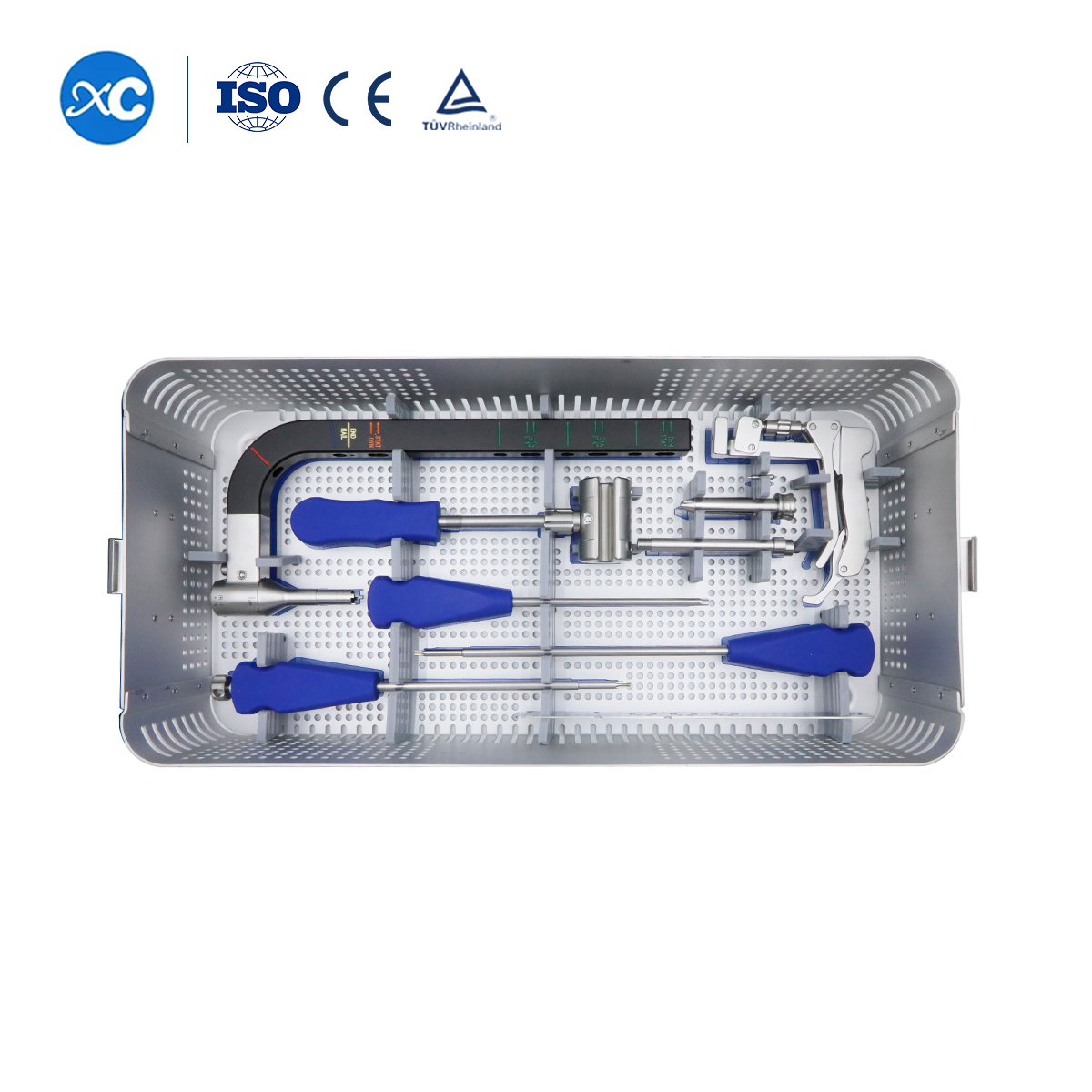

Nail Insertion Instruments
Insertion handle, connecting components and impact instruments.
Targeting Guide Instruments
Targeting arm, positioning sleeves and connection accessories.

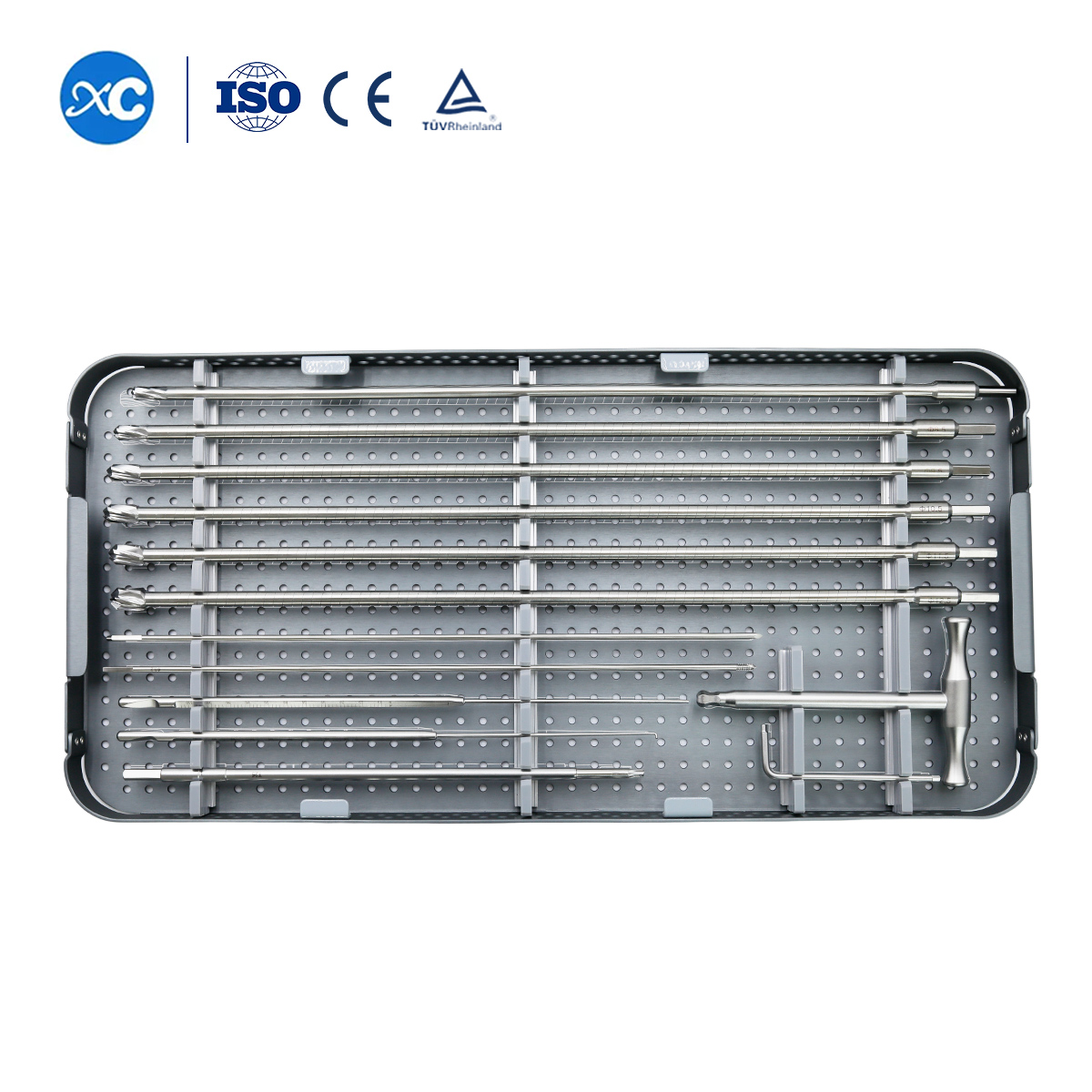

Canal Preparation Instruments
Guide wires, reamers and medullary canal preparation tools.

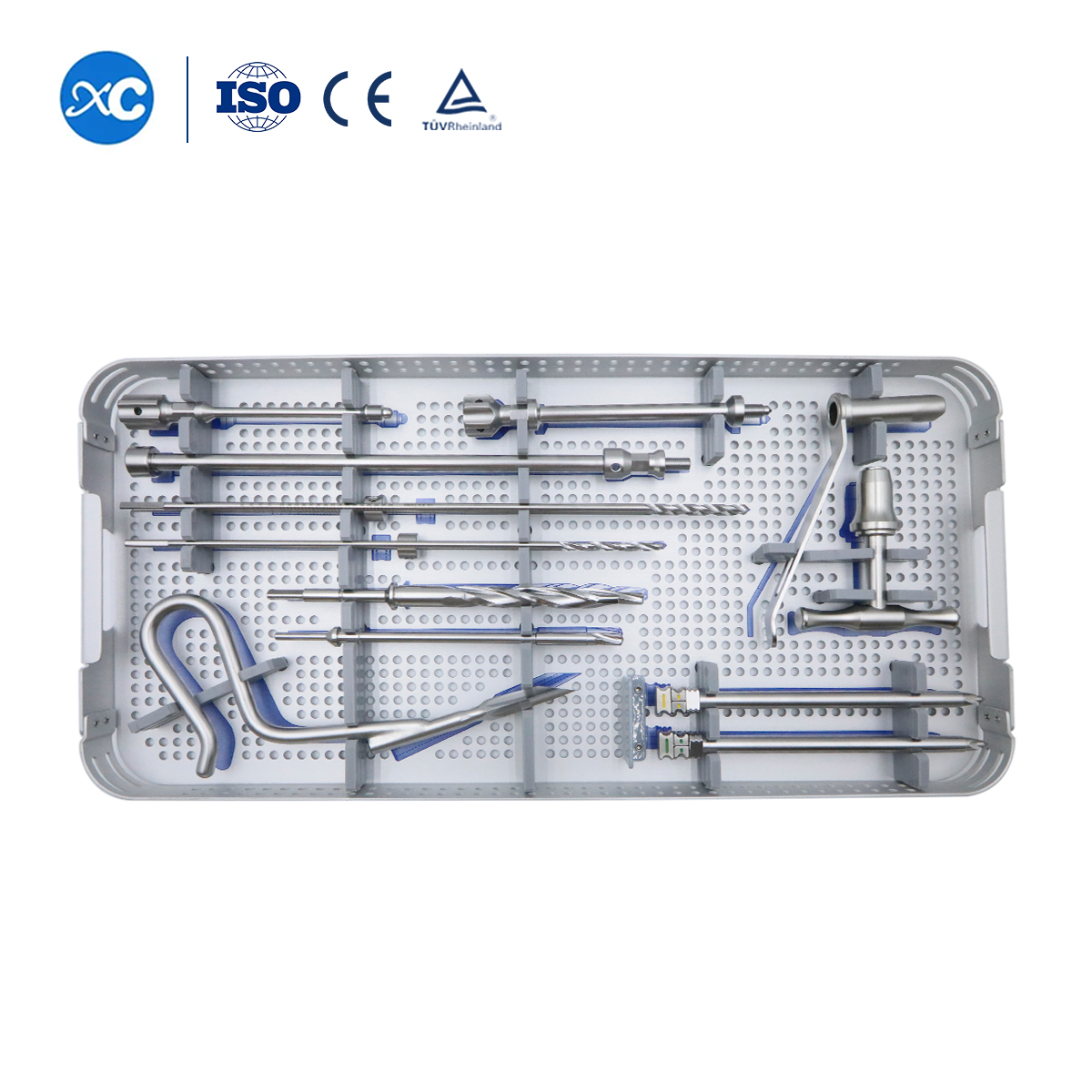

Drilling Instruments
Drill sleeves, drill bits and supporting positioning instruments.
Measurement Instruments
Depth gauges and measurement instruments for screw selection.
Screw Insertion Instruments
Screwdrivers and compatible locking screw insertion instruments.
Extraction Instruments
Instrument components used for nail connection and selected extraction requirements.

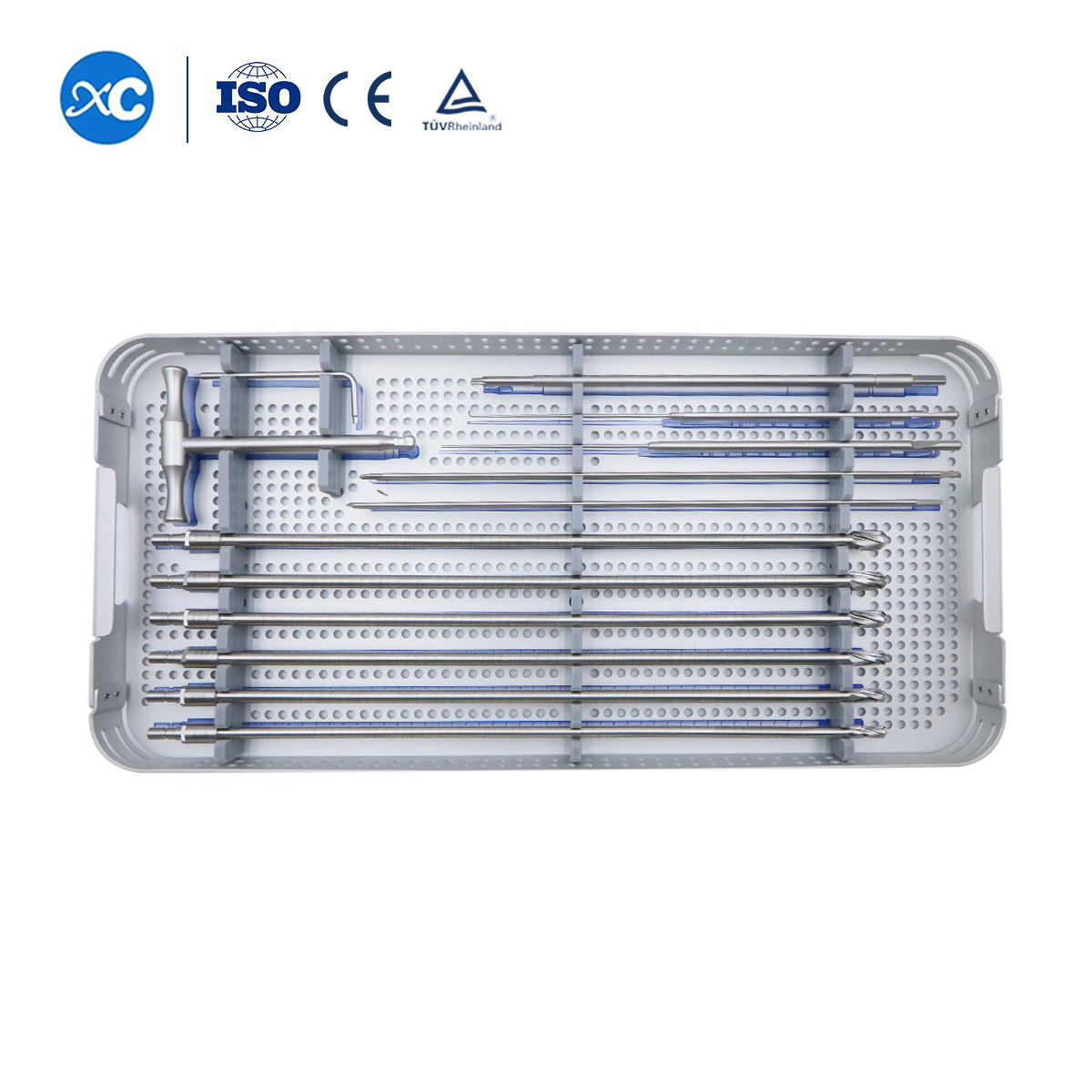

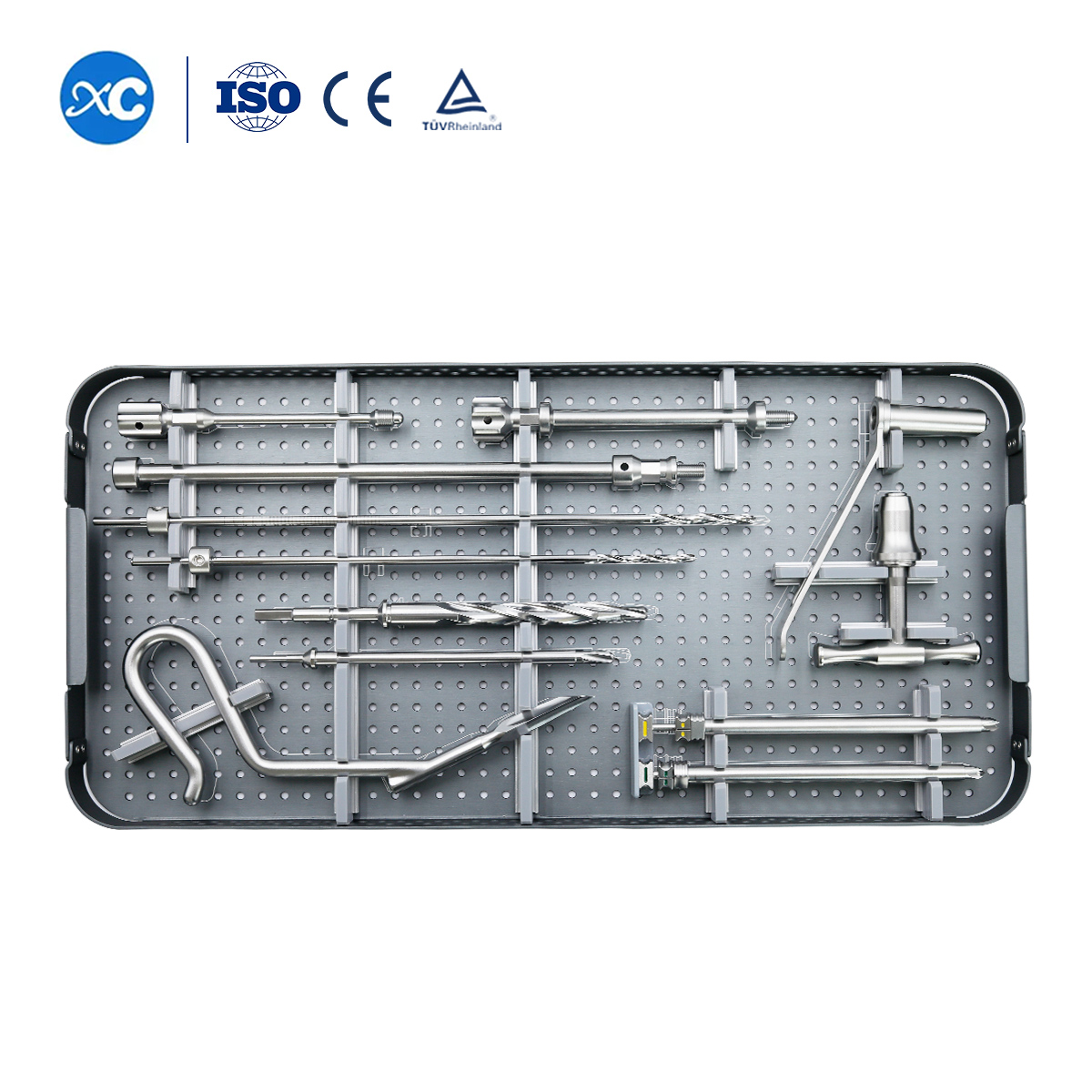

Sterilization Trays
Perforated metal trays for instrument organization and processing.
Instrument configuration may vary according to the selected implant model, specification and customer requirements.
Materials and Manufacturing
Reusable Stainless Steel Orthopedic Surgical Instruments
The instrument set is manufactured using selected surgical-grade metals and engineering materials according to the functional requirements of each component. Critical connections and targeting interfaces are precision-machined and inspected for compatibility with the corresponding implant system.
Stainless Steel Used for drills, reamers, sleeves, drivers and structural components.
Silicone Handles Supports comfortable grip and instrument control.
Precision Machining Applied to compatible instrument and implant interfaces.
Modular Trays Designed for storage, transportation and sterilization management.
Intended Application
Hindfoot Fusion and Tibiotalocalcaneal Arthrodesis Procedures
TTC Arthrodesis
Instrument support for tibiotalocalcaneal fusion using the compatible retrograde nail system.
Hindfoot Fusion
Instruments for selected hindfoot fusion nail implantation workflows.
Ankle Fusion
Compatible instrumentation for applicable ankle arthrodesis procedures.
Implant System Matching
Final configuration selected according to implant specifications and surgical technique.
Product Video
Hindfoot Fusion Ankle Nail Instrument Set Demonstration
Product overview, tray configuration or instrument operation video can be displayed in this section.
B2B Service
OEM Hindfoot Nail Instrument Set Manufacturer
XC Medico supports orthopedic distributors, implant suppliers and medical device companies with product matching, quotation, instrument configuration and customized branding services.
Implant Matching
Instrument Configuration
Fast Quotation
Catalog Support
OEM / ODM Service
Private Label Packaging
Frequently Asked Questions
Hindfoot Fusion Nail Instrument Set FAQ
What implant system is this instrument set compatible with?
The set is designed for the corresponding hindfoot fusion ankle nail system. Exact compatibility depends on nail geometry, locking positions, screw dimensions and instrument interfaces.
Which locking screw sizes are supported?
The displayed system is compatible with 5.0 mm and 6.0 mm locking screw options, subject to the final implant configuration.
Can the tray configuration be customized?
Yes. Instrument quantities, tray layout, implant matching and selected components can be adjusted according to distributor or project requirements.
Is OEM or private-label service available?
OEM and ODM services are available, including instrument configuration, product marking, packaging design and catalog support.
Request a Hindfoot Fusion Nail Instrument Set Quotation
Provide the required nail specification, locking screw size, target market and estimated quantity for instrument matching and quotation.
