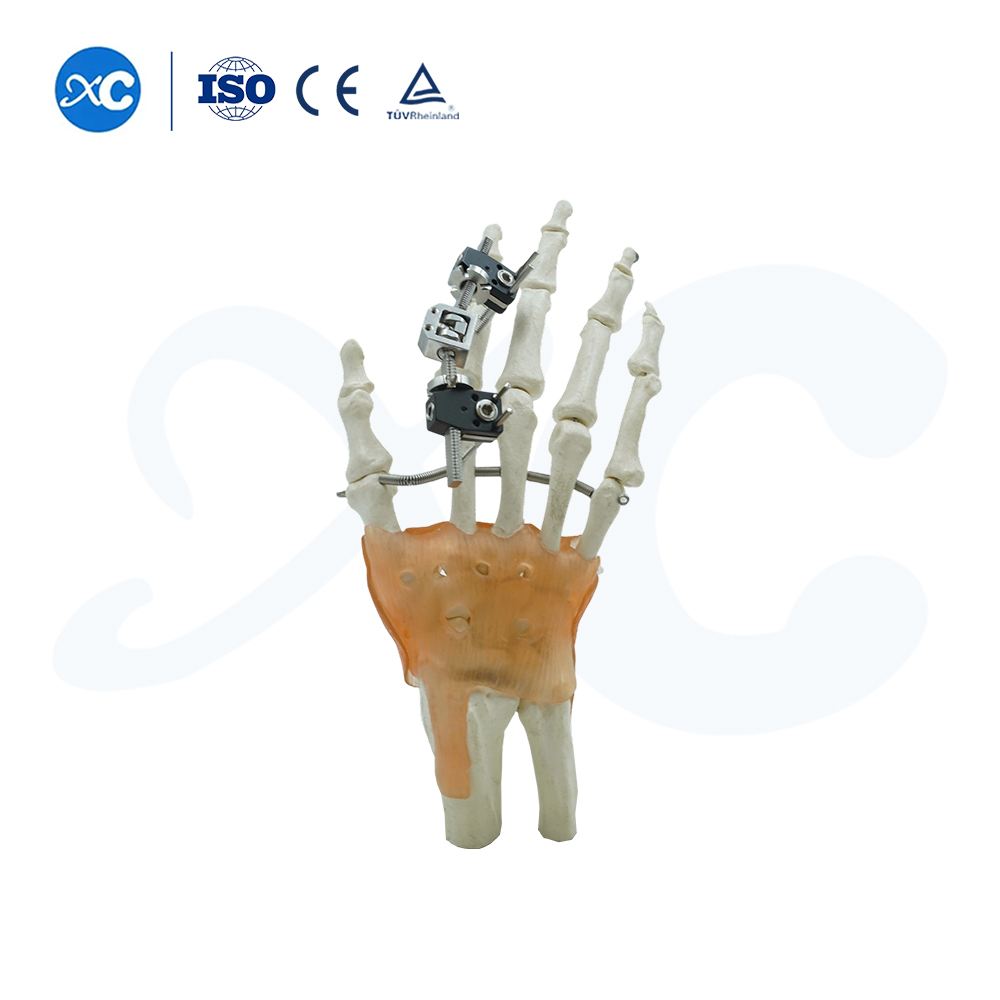

External Fixation for Metacarpals And Phalanges

Name: External Fixation for Metacarpals And Phalanges
Brand: XC Medico
Rating: 5.0 (11 reviews)

Model:
External Fixation Of Metacarpals And Phalanges
Brand:
XC Medico
Upper Limb:
Metacarpals & Phalanges
MOQ:
1 Pcs（72 Hours Delivery）
Certificate:
CE/ISO:9001/ISO13485.Etc
Material:
316 stainless steel
Usage:
Orthopedic surgery
OEM/ODM Service:
Laser marking, custom anodizing colors & packaging.
Clinical Support:
Free surgical videos, user manuals & technical guidance.
Return Policy:
30-day hassle-free returns (for unused items in original packaging).
Warranty:
18 Months (Instruments) | 24 Months (Power Tools) | 36 Months (Implants).
Advantages:
Custom-Made 15 Days Delivery（Excluding Shipping Time）
Transportation:
FedEx. DHL.TNT.EMS.Etc

Availability:

Quantity:



Inquire

Product Description

MINI EXTERNAL FIXATION

External Fixation System for Metacarpals and Phalanges

A compact external fixation system intended to support selected metacarpal and phalangeal fracture fixation procedures. Multiple frame configurations are available for different alignment, joint-motion, compression and extension requirements.

5 Frame Configurations φ2 mm Bone Screws Metacarpal / Phalangeal Use

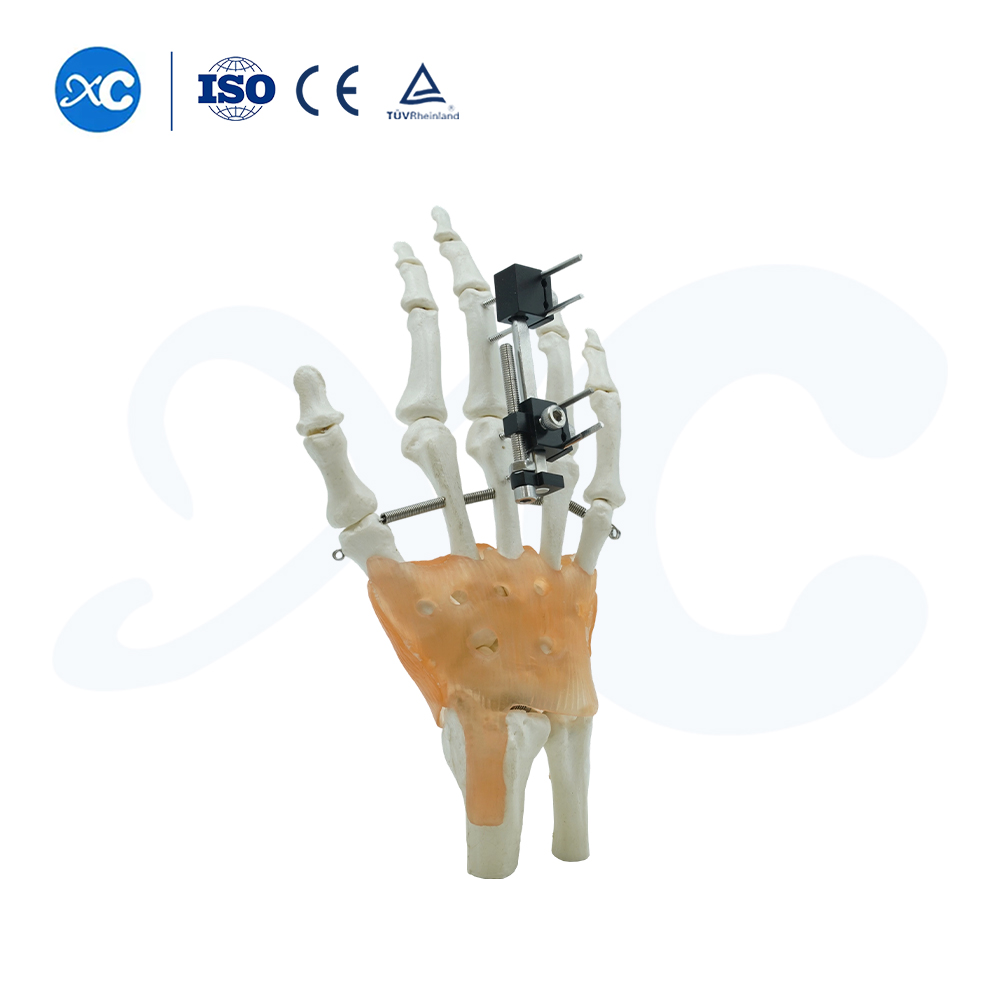

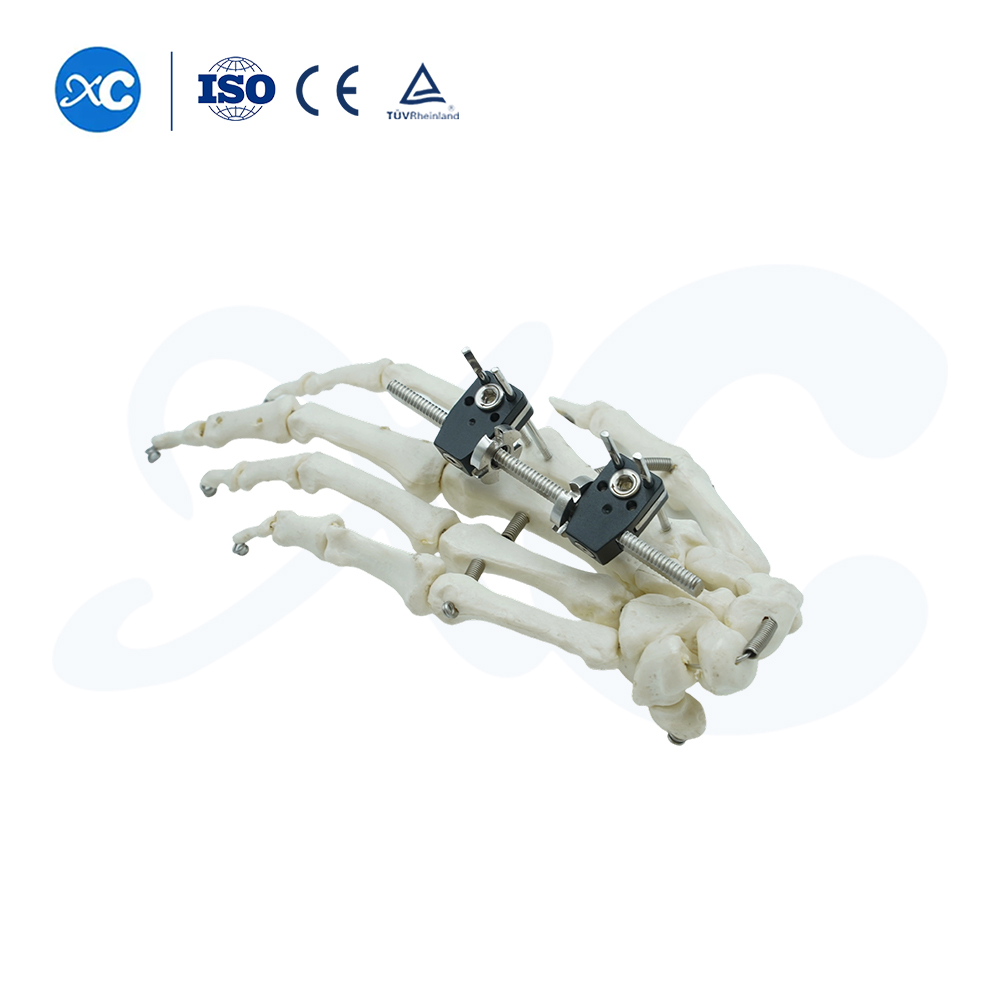

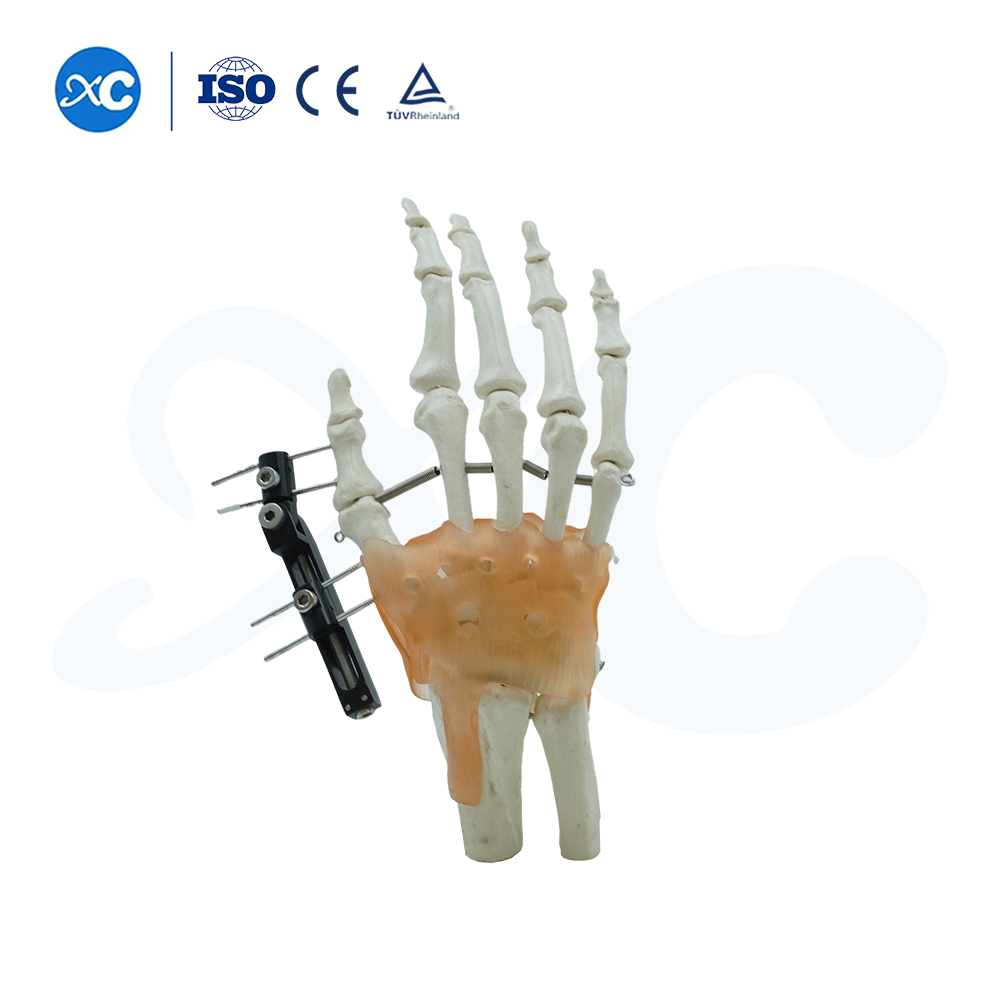

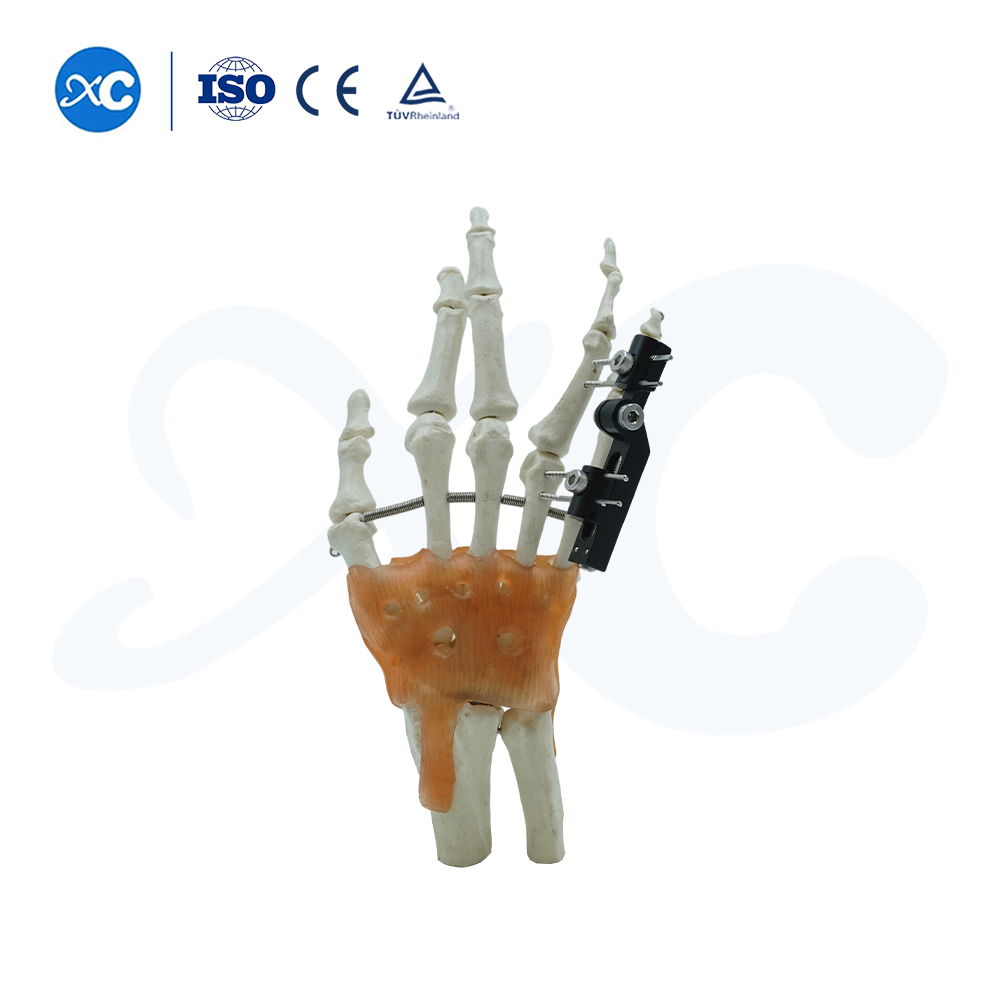

Mini external fixation system for metacarpals and phalanges

Mini External Fixator for Hand and Finger Fractures

The XC Medico mini external fixation system is designed for selected fractures and reconstruction requirements involving the metacarpals and phalanges. Its unilateral frame design provides an external method of maintaining alignment while preserving access to the surrounding soft tissue.

Depending on the required construct, buyers may select joint-motion, straight, vertical-axis, horizontal-axis or compression-extension configurations.

For larger external fixation requirements, review the complete orthopedic external fixator system available from XC Medico.

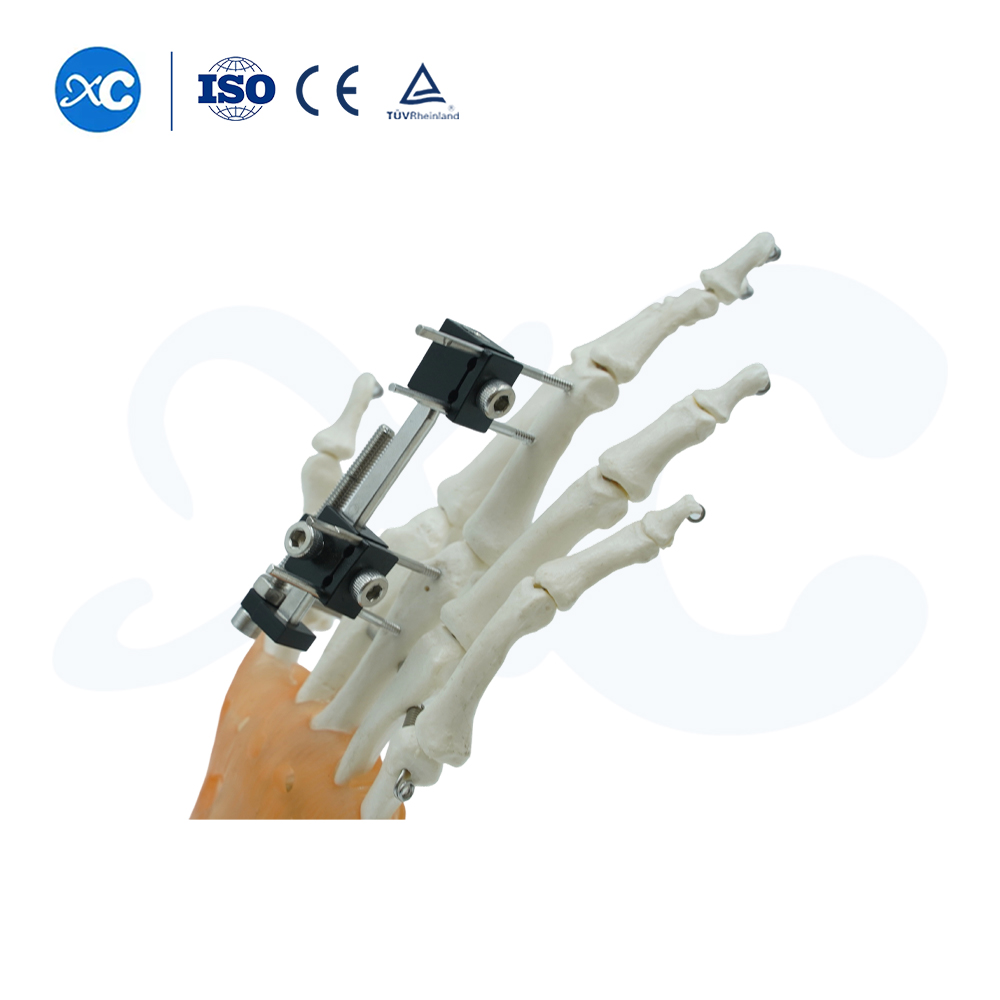

$Mini external fixator components for hand fracture fixation$

ANATOMICAL REGION

Hand and Fingers

FRAME OPTIONS

5 Configurations

BONE SCREWS

φ2 × 50 / 70 mm

MATCHING TOOLS

3 mm / 2 mm

Frame Design

Mini External Fixator Design Features

A compact external fixation platform with different frame geometries for selected hand and finger applications.

01

Compact Unilateral Frame

The compact unilateral structure is designed for small-bone fixation while limiting unnecessary frame bulk around the hand.

02

Multiple Construct Options

Joint-motion, straight, track-axis and compression-extension designs provide options for different fixation strategies.

03

Tapered Bone Screw Fixation

Matching φ2 mm bone screws are used to connect the selected frame to the planned bone segments according to the approved technique.

04

Accessible Adjustment

External frame components remain accessible for adjustment or removal by qualified medical professionals when clinically appropriate.

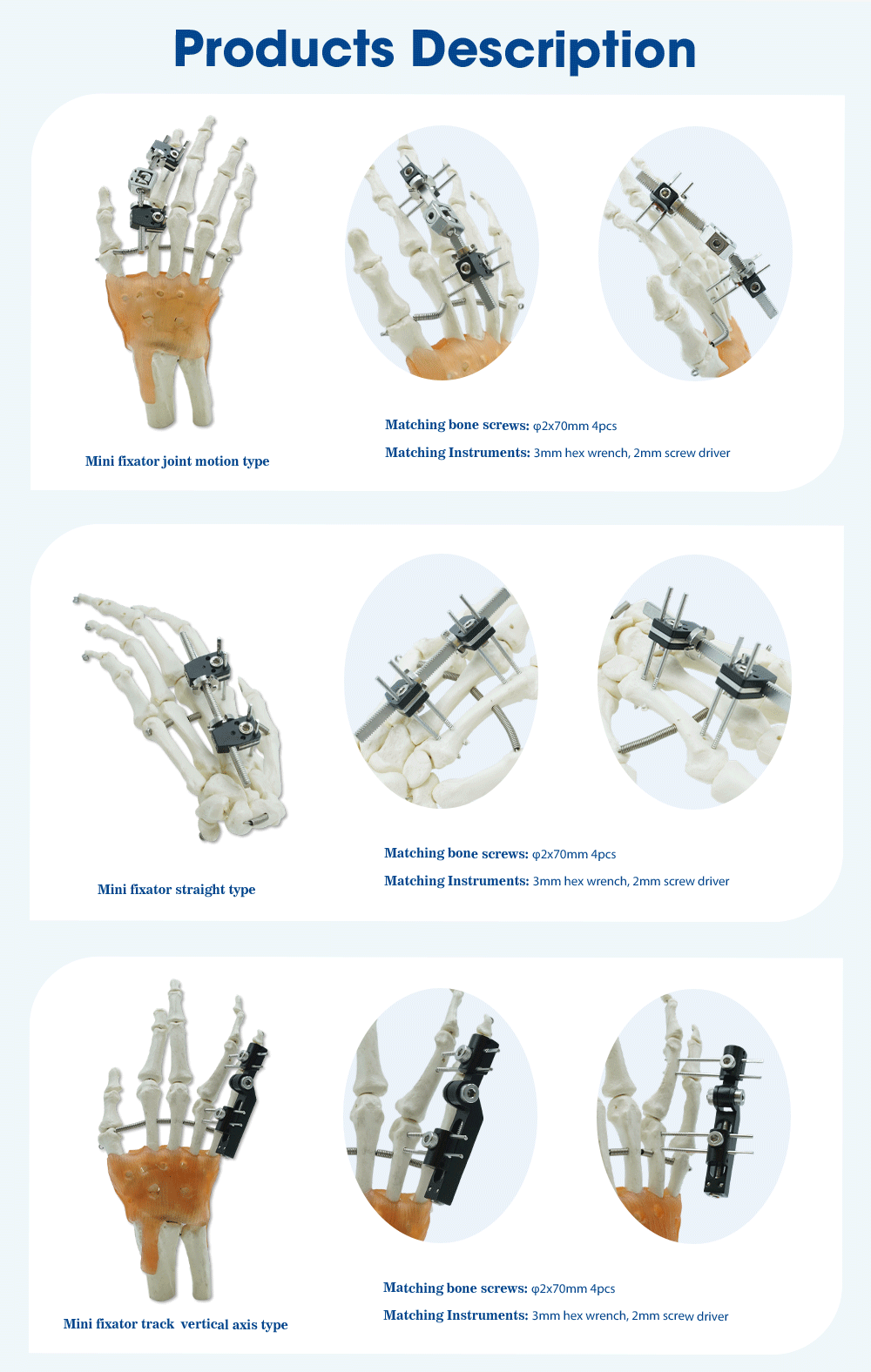

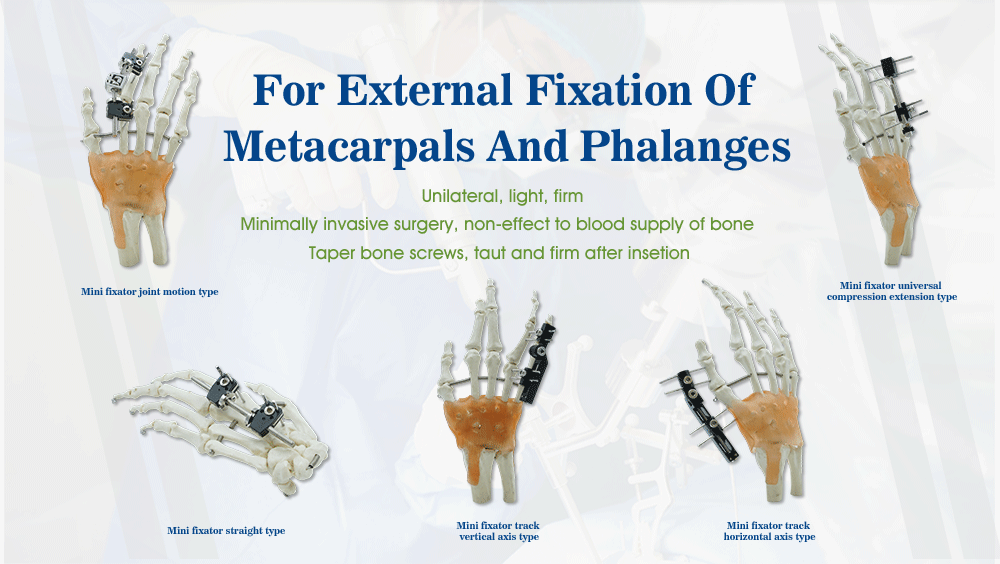

$Mini external fixation configurations for metacarpal and phalangeal fractures$

Available Configurations

Mini External Fixator Types

Five frame configurations are listed for different hand and finger fixation requirements.

01

Joint Motion Type

A hinged configuration intended for selected constructs requiring controlled joint-related positioning.

02

Straight Type

A linear frame configuration for selected metacarpal or phalangeal fixation constructs.

03

Track Vertical Axis Type

A track-based frame with a vertical-axis arrangement for the planned fixation orientation.

04

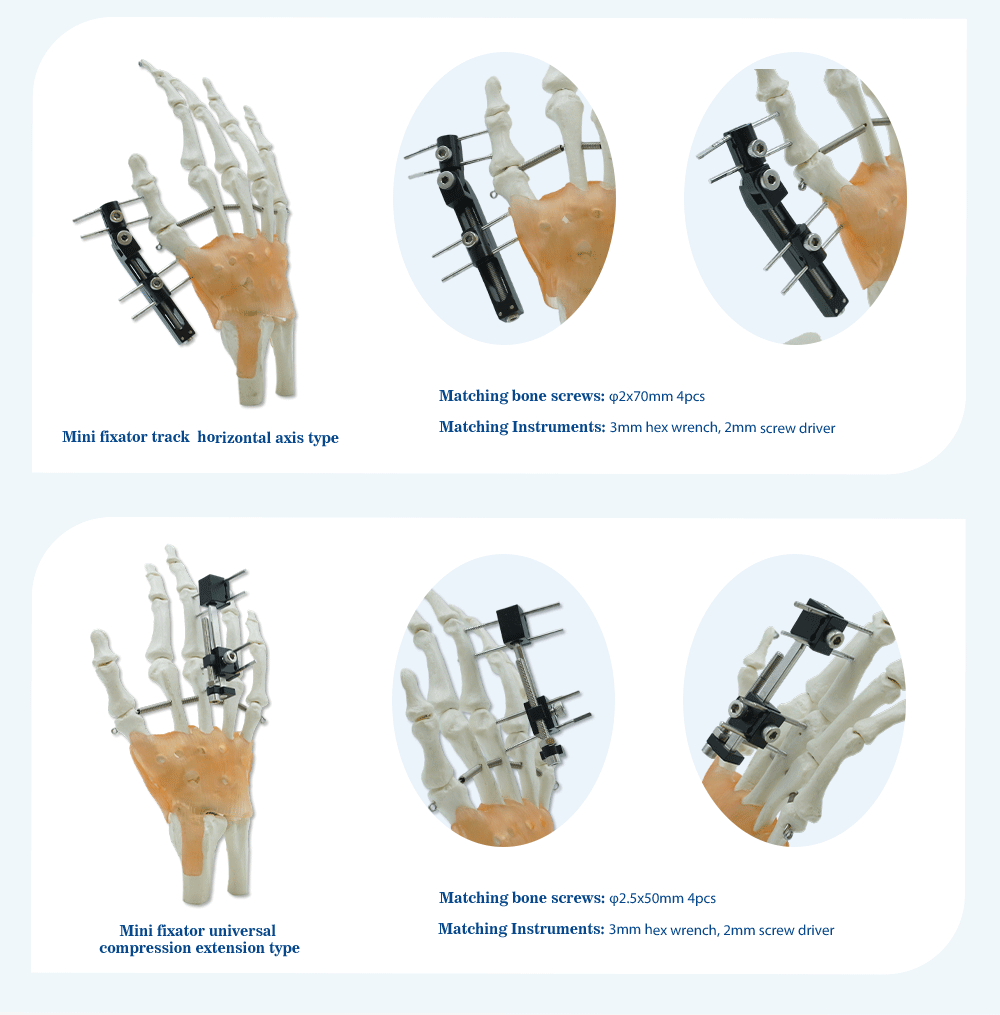

Track Horizontal Axis Type

A track-based configuration with a horizontal-axis arrangement for selected frame positioning.

05

Universal Compression Extension Type

A universal frame designed to provide compression or extension adjustment according to the selected construct.

Mini external fixator joint motion straight and track configurations

Product Specifications

Mini External Fixator Configuration Chart

Confirm the required frame type, screw length and instrument configuration before ordering.

Fixator Type	Bone Screws	Matching Instruments
Joint Motion Type	φ2 × 70 mm × 4 pcs	3 mm hex wrench, 2 mm screwdriver
Straight Type	φ2 × 70 mm × 4 pcs	3 mm hex wrench, 2 mm screwdriver
Track Vertical Axis Type	φ2 × 70 mm × 4 pcs	3 mm hex wrench, 2 mm screwdriver
Track Horizontal Axis Type	φ2 × 70 mm × 4 pcs	3 mm hex wrench, 2 mm screwdriver
Universal Compression Extension Type	φ2 × 50 mm × 4 pcs	3 mm hex wrench, 2 mm screwdriver

Final frame selection, bone-screw placement and postoperative management should be determined by qualified medical professionals according to the approved technique and patient-specific requirements.
