Upper Limb External Fixators

Name: Upper Limb External Fixators
Brand: XC Medico
Rating: 5.0 (30 reviews)

High-quality upper limb external fixators including distal radius fixator, proximal humerus fixator, forearm and elbow fixators for stable fracture treatment.

Model:
External Fixation
Brand:
XC Medico
Upper Limb:
Scapula, Humerus, Radius & Ulna, Metacarpals & Phalanges, Shoulder Joint
MOQ:
1 Pcs（72 Hours Delivery）
Certificate:
CE/ISO:9001/ISO13485.Etc
Material:
316 stainless steel
Usage:
Orthopedic surgery
OEM/ODM Service:
Laser marking, custom anodizing colors & packaging.
Clinical Support:
Free surgical videos, user manuals & technical guidance.
Return Policy:
30-day hassle-free returns (for unused items in original packaging).
Warranty:
18 Months (Instruments) | 24 Months (Power Tools) | 36 Months (Implants).
Advantages:
Custom-Made 15 Days Delivery（Excluding Shipping Time）
Transportation:
FedEx. DHL.TNT.EMS.Etc

Availability:

Quantity:



Inquire

Product Description

EXTERNAL FIXATION • UPPER LIMB

Upper Limb External Fixators

A modular external fixation portfolio for selected fractures of the humerus, forearm, elbow and wrist, with dynamic axial, condylar, Z-frame and proximal humerus configurations.

$Upper limb external fixators for arm forearm elbow and wrist fractures$

PRODUCT OVERVIEW

External Fixation Solutions for Humerus, Forearm, Elbow and Wrist

The XC Medico Upper Limb External Fixator System is designed for selected fracture fixation procedures involving the arm, forearm, elbow and wrist. The portfolio combines unilateral, modular and dynamic-frame configurations to support product matching for different anatomical regions and fixation plans.

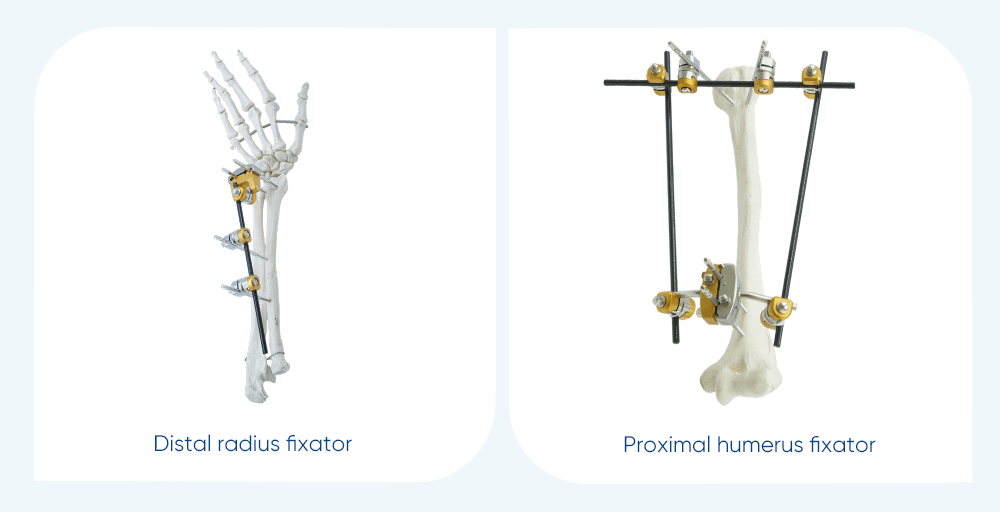

Available options include distal radius, proximal humerus, dynamic axial straight-type, forearm, elbow-joint, condylar and Z-frame fixators. Final frame, screw, rod and coupling selection should follow imaging, anatomy and the approved surgical technique.

Upper limb external fixation system product overview

7

Main Fixator Types

XL–XS

Dynamic Axial Sizes

φ5 / φ8

Rod Platforms

Modular

Frame Configuration

SYSTEM FEATURES

Upper Limb External Fixation Features

Unilateral Frame Design

Selected systems use unilateral frame layouts intended to support access, imaging and postoperative frame management.

Modular Components

Couplings, rods, clamps and bone screws can be combined according to the selected upper-limb fixation plan.

Multiple Anatomical Options

Configurations are available for the humerus, forearm, elbow and wrist, including dynamic and frame-based designs.

Tapered Bone Screws

The listed frames include tapered bone-screw options for controlled insertion and frame fixation.

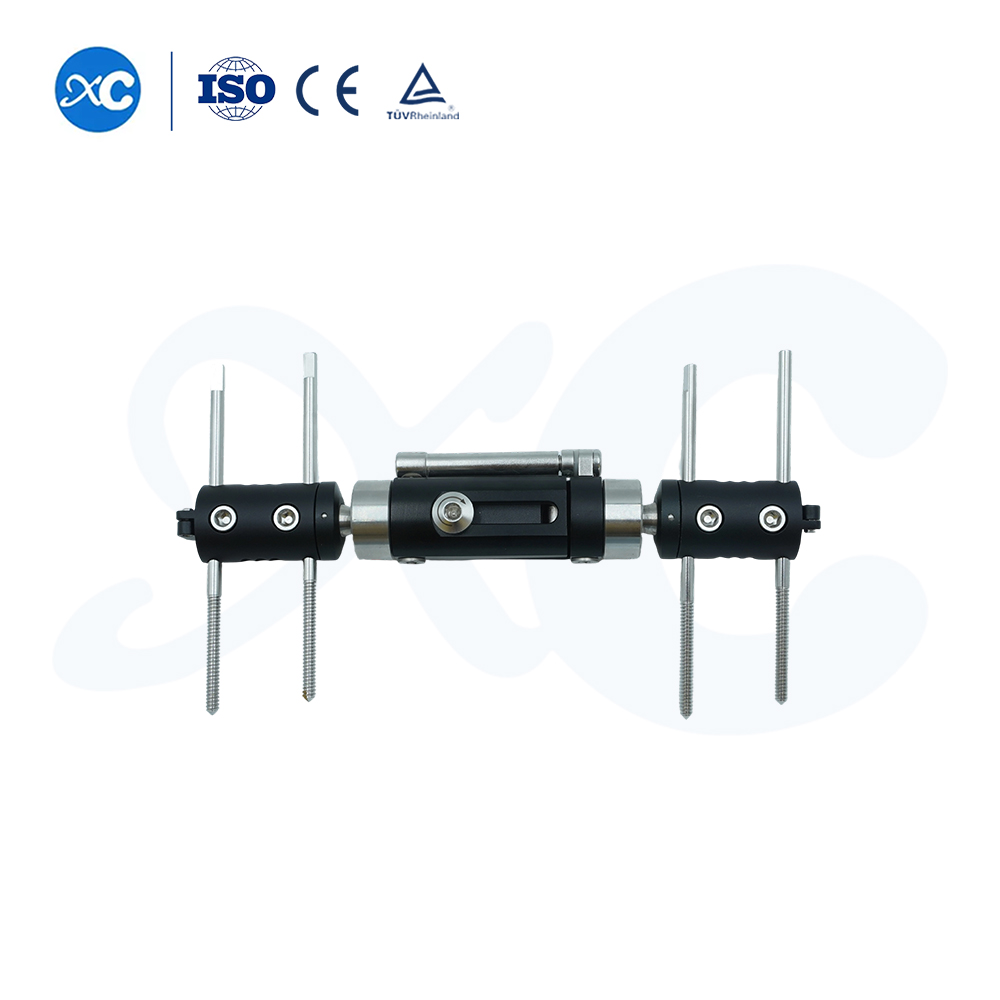

Dynamic axial external fixator straight type

PRODUCT CONFIGURATIONS

Upper Limb External Fixator Options

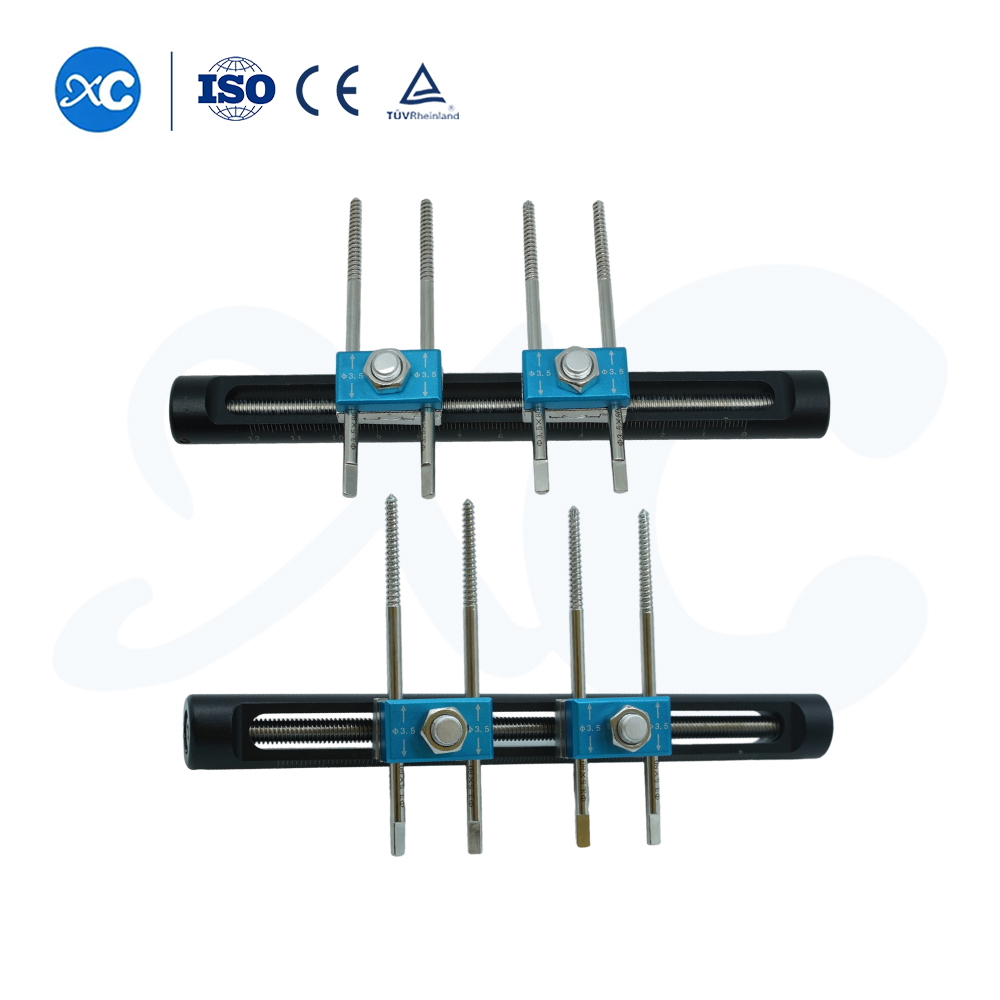

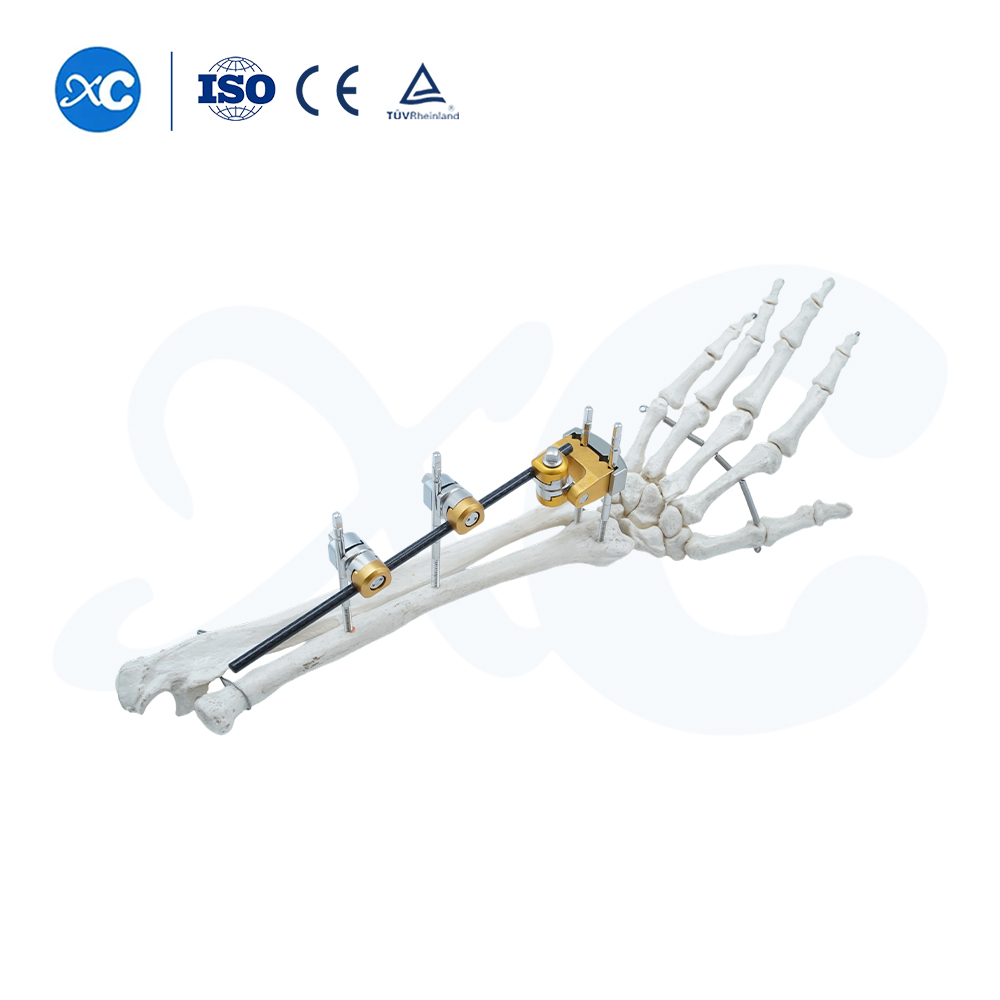

Forearm External Fixator

A standard configuration for selected radius and ulna fracture fixation plans.

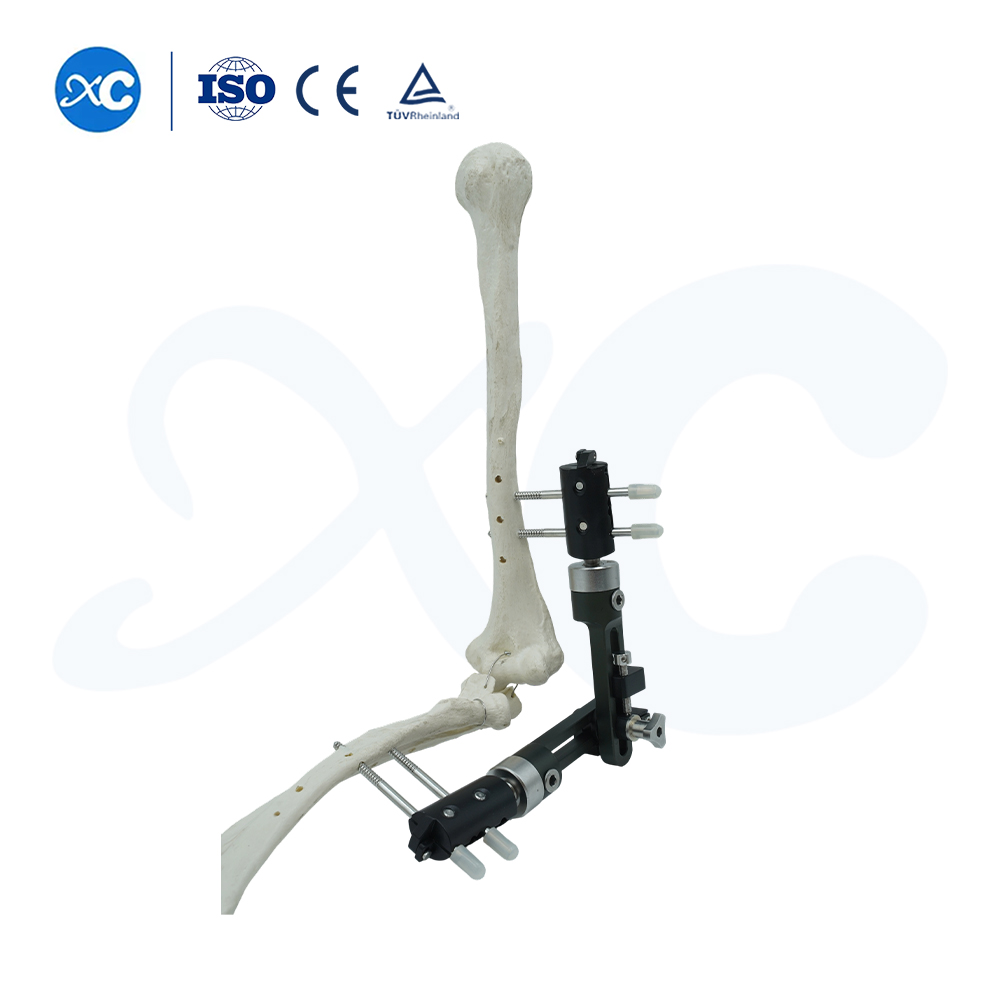

Elbow Joint External Fixator

A standard external fixation option for selected elbow-joint stabilization workflows.

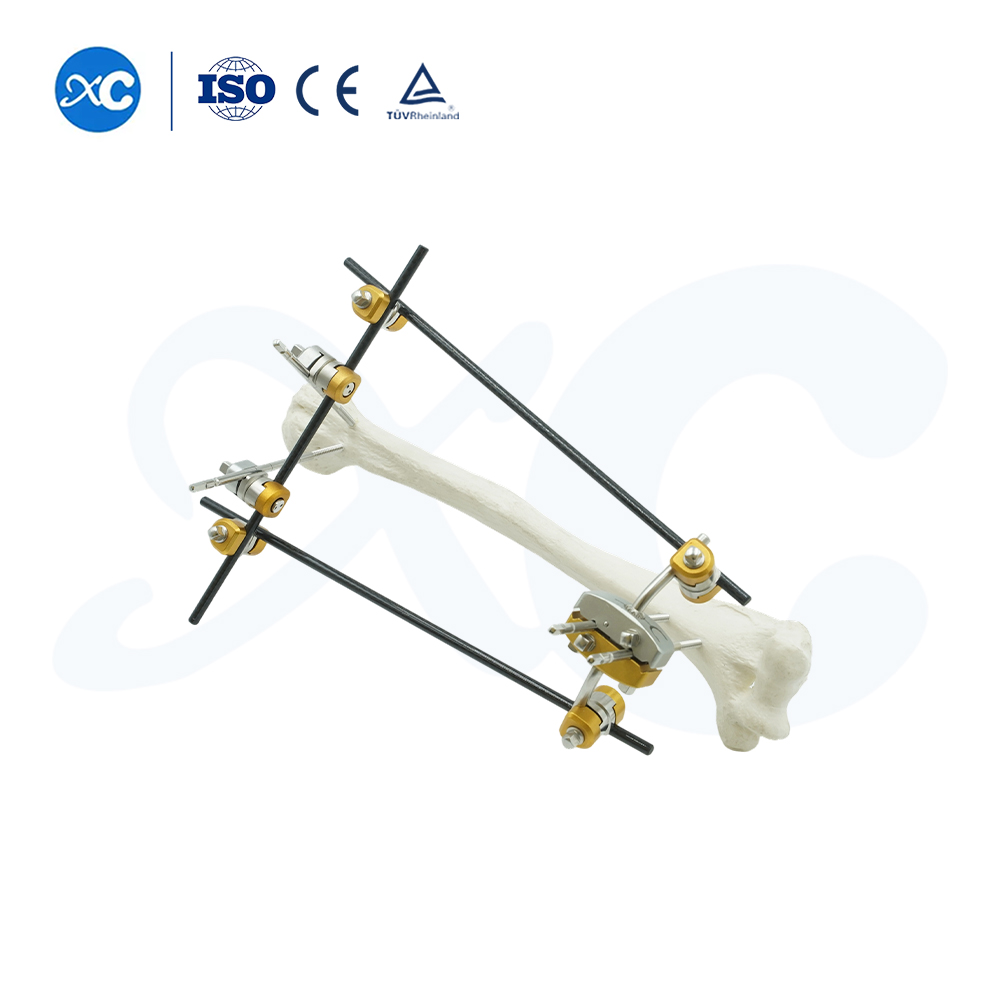

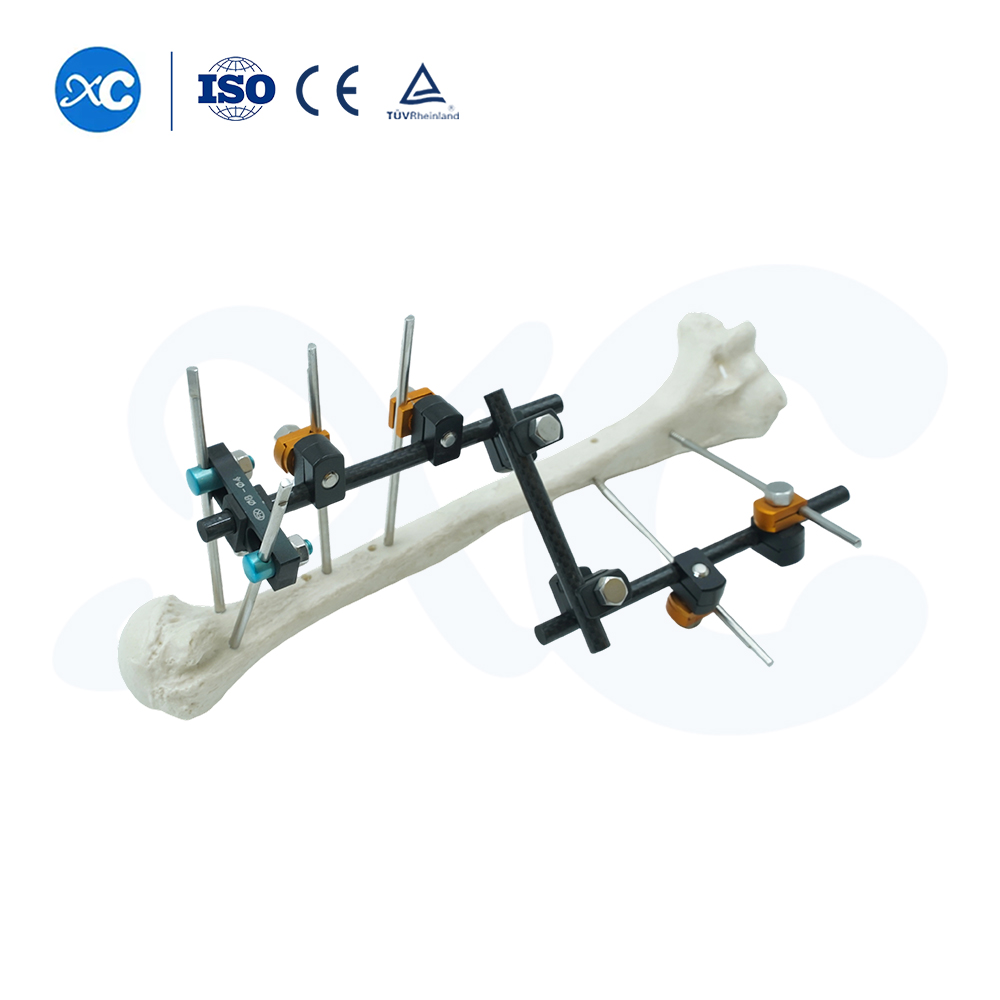

Z Frame (T Type) GX202004

A T-type modular frame using φ8 rods, clamps and HA4×120 bone screws.

Proximal humerus external fixator components

Proximal Humerus Fixator GX201008

A φ5 rod-based frame with couplings, pin clamp, angled posts and φ4×120 bone screws.

FULL SPECIFICATIONS

Upper Limb External Fixator Sizes and Components

Fixator Size Matrix

Name	Size	Unit
Dynamic Axial External Fixator (Straight Type)	XL	Set
Dynamic Axial External Fixator (Straight Type)	L	Set
Dynamic Axial External Fixator (Straight Type)	M	Set
Dynamic Axial External Fixator (Straight Type)	S	Set
Dynamic Axial External Fixator (Straight Type)	XS	Set
Forearm External Fixator	Standard	Set
Elbow Joint External Fixator	Standard	Set

Frame Component Details

System	Component	Size	Qty.
Condylar Fixator GX202002	Ringent rod-to-rod coupling	φ8/8	3
Condylar Fixator GX202002	Ringent pin-to-rod coupling	φ8/4-5	6
Condylar Fixator GX202002	Semi-circular curved rod	φ8	1
Condylar Fixator GX202002	Trapezoidal curved rod	φ8	1
Condylar Fixator GX202002	Connecting rod	φ8×250	1
Condylar Fixator GX202002	Bone screw	HA4×120	6
Z Frame (T Type) GX202004	Ringent rod-to-rod coupling	φ8/8	2
Z Frame (T Type) GX202004	Ringent pin-to-rod coupling	φ8/4-5	4
Z Frame (T Type) GX202004	T clamp	φ8/4	1
Z Frame (T Type) GX202004	Connecting rod	φ8×100	1
Z Frame (T Type) GX202004	Connecting rod	φ8×150	2
Z Frame (T Type) GX202004	Bone screw	HA4×120	6
Proximal Humerus Fixator GX201008	Rod-to-rod coupling	φ5/5	4
Proximal Humerus Fixator GX201008	Pin-to-rod coupling	φ5/3-4	2
Proximal Humerus Fixator GX201008	4-hole pin clamp	φ5/3-4	1
Proximal Humerus Fixator GX201008	Connecting rod	φ5×250	2
Proximal Humerus Fixator GX201008	Connecting rod	φ5×200	1
Proximal Humerus Fixator GX201008	Post	φ5/30°	2
Proximal Humerus Fixator GX201008	Bone screw	φ4×120	4

Upper limb external fixator product range and specifications

Information Required for Product Matching

Anatomical Region	Humerus, forearm, elbow, wrist or distal radius.
Fixator Type	Dynamic axial, condylar, Z-frame, forearm, elbow or proximal humerus.
Size / Model	Required size, frame code, rod platform and bone-screw configuration.

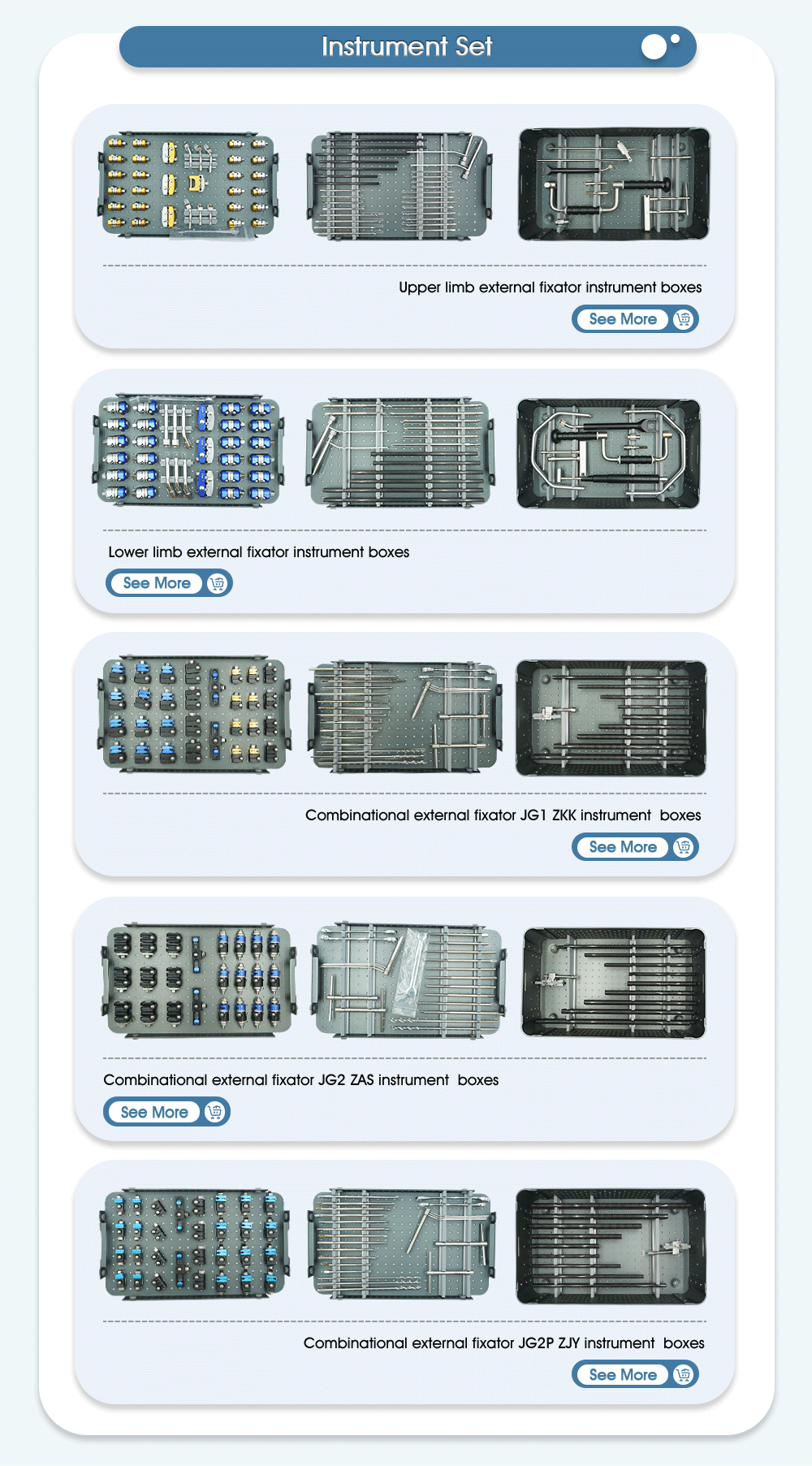

Instrument Requirement	Confirm whether the matching external-fixator instrument box is required.
Project Details	Quantity, packaging, labeling, registration and target-market requirements.
