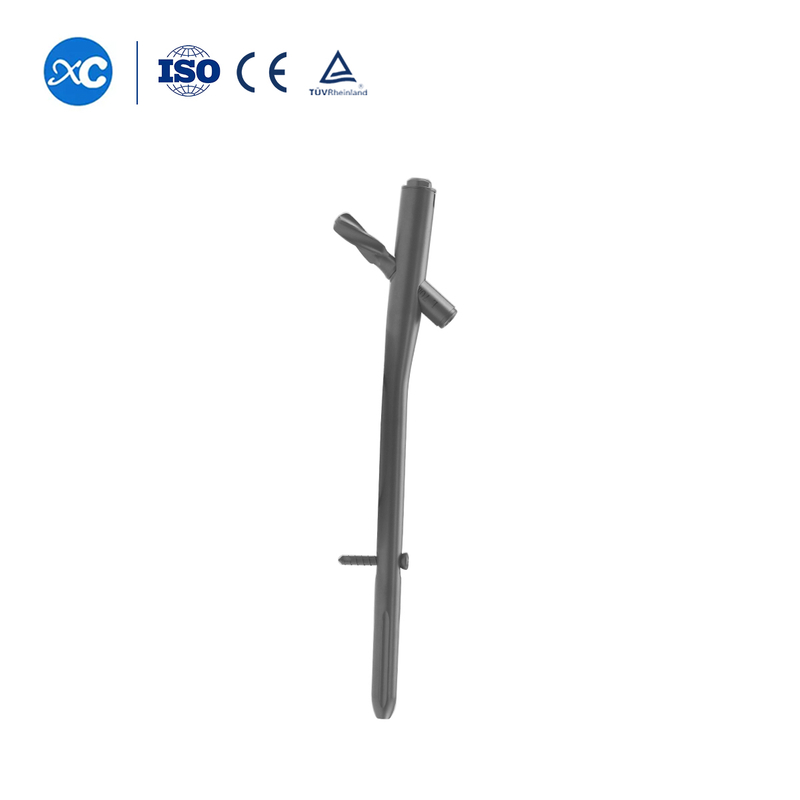

Long PFNA intramedullary nail left and right

PFNA helical blade and distal locking screw

Share to:

PFNA Intramedullary Nail System

Name: PFNA Intramedullary Nail System
Brand: XC Medico
Rating: 5.0 (32 reviews)

Model:
RPFNA
Brand:
XC Medico
Lower Limb:
Femur
MOQ:
1 Pcs（72 Hours Delivery）
Certificate:
CE/ISO:9001/ISO13485.Etc
Material:
Titanium Alloy Or Stainless Steel
Usage:
Proximal Femoral Fracture Surgery
OEM/ODM Service:
Laser marking, custom anodizing colors & packaging.
Clinical Support:
Free surgical videos, user manuals & technical guidance.
Return Policy:
30-day hassle-free returns (for unused items in original packaging).
Warranty:
18 Months (Instruments) | 24 Months (Power Tools) | 36 Months (Implants).
Advantages:
Custom-Made 15 Days Delivery（Excluding Shipping Time）
Transportation:
FedEx. DHL.TNT.EMS.Etc

Availability:

Quantity:



Inquire

Proximal Femoral Fixation

PFNA Intramedullary Nail System

A complete proximal femoral nail antirotation system designed for the fixation of intertrochanteric, pertrochanteric and selected subtrochanteric femur fractures. The system combines short and long PFNA nails, a helical blade, distal locking screws and dedicated surgical instruments in one coordinated solution.

Short & Long Nail Options Helical Blade Fixation Implants + Instruments OEM / Private Label

Request PFNA System Quote Download Product Information

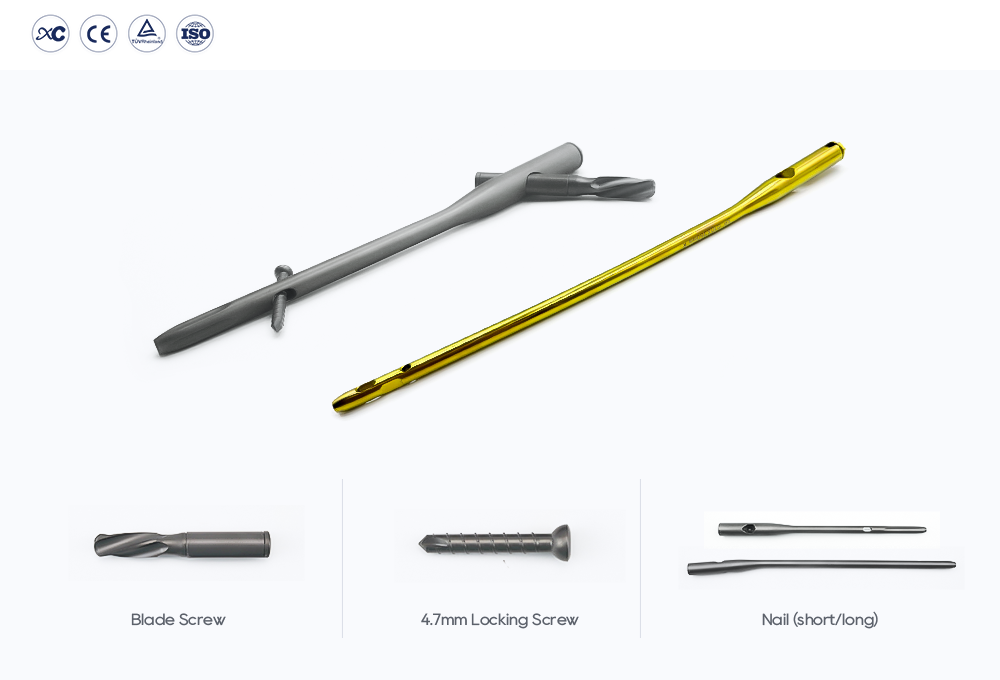

PFNA intramedullary nail system with helical blade and distal locking screw

Complete Implant Solution

PFNA Intramedullary Nail System Components

The PFNA system can be supplied as individual implants or as a coordinated implant and instrument configuration for distributor, hospital and private-label projects.

PFNA Main Nail

Short and long nail configurations for different proximal femoral fracture patterns.

Helical Blade

Designed for rotational control and cancellous bone compaction during insertion.

Locking Components

Distal locking screws and compatible end-cap options complete the fixation construct.

Instrument Set

Aiming, insertion, drilling, measuring and extraction instruments in organized trays.

Surgical Workflow

PFNA Intramedullary Nailing Technique

View the workflow from greater trochanter entry and canal preparation to nail insertion, helical blade placement and distal locking.

Entry Point Guide Wire Nail Insertion Helical Blade Distal Locking

Implant Design

PFNA Nail Design and Fixation Features

The implant geometry is designed to support proximal femoral fixation while maintaining compatibility with a streamlined intramedullary surgical workflow.

Helical Blade Fixation

The blade is designed to compact cancellous bone during insertion and help control rotation of the proximal fragment.

6° Lateral Angle

The proximal geometry supports insertion through the greater trochanter region and is intended to reduce interference with the lateral cortex.

Distal Fluted Geometry

The distal design is intended to facilitate nail insertion and provide a gradual transition at the distal section of the implant.

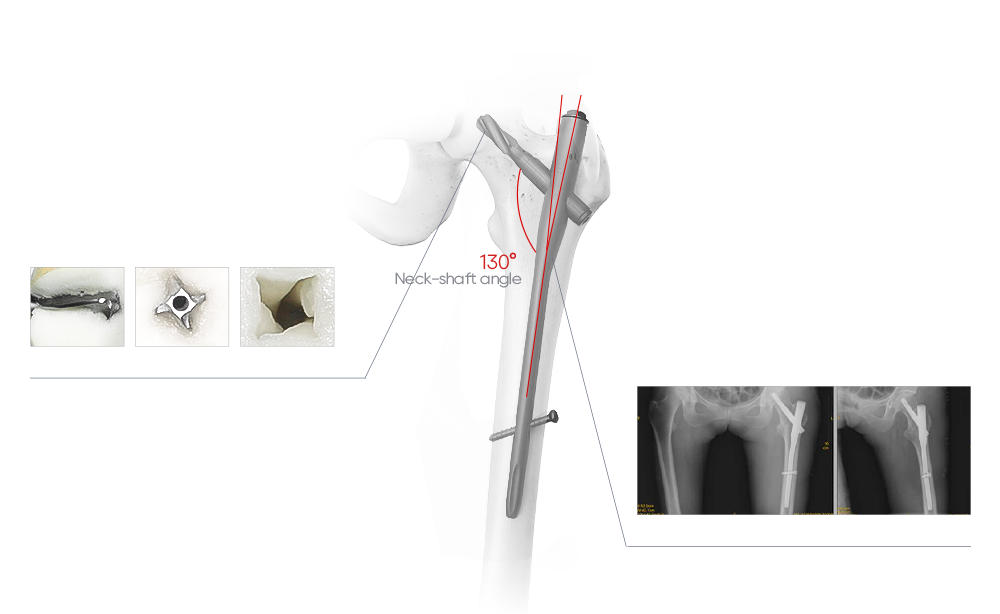

PFNA nail biomechanics with helical blade, neck shaft angle and lateral angle

Nail Configurations

Short and Long PFNA Nail Options

Nail selection should be based on fracture pattern, femoral anatomy and the surgeon’s operative plan.

180–240 mm

Short PFNA Nail

Pertrochanteric fractures
Intertrochanteric fractures
Selected high subtrochanteric fractures

320–440 mm

Long PFNA Nail

Low or extended subtrochanteric fractures
Ipsilateral trochanteric fracture patterns
Selected combined or pathological proximal femoral fractures

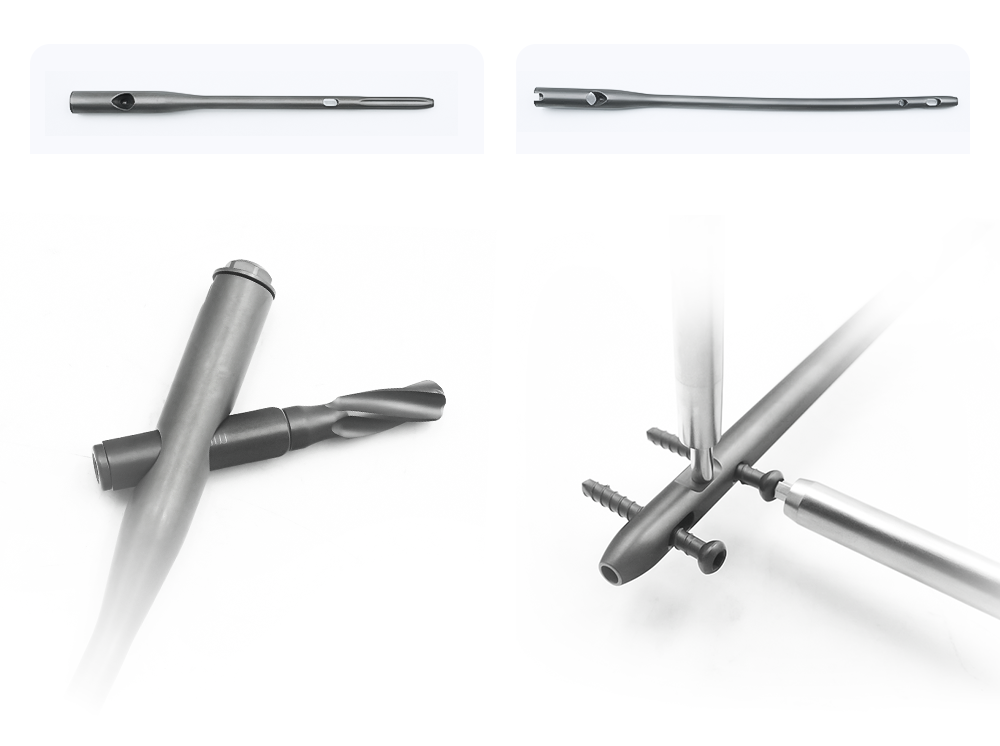

Short and long PFNA intramedullary nail indications and titanium manufacturing

Complete Size Range

PFNA Intramedullary Nail System Sizes

The PFNA intramedullary nail system includes short and long main nails, helical blade screws and 4.7 mm distal locking screws. Use the model numbers below when requesting a quotation or confirming instrument and implant compatibility.

Short PFNA Nails Ø9–12 mm
180–240 mm

Long PFNA Nails Ø9–11 mm
320–440 mm, Left / Right

PFNA Blade Screw Ø10.4 mm
70–120 mm

Distal Locking Screw Ø4.7 mm
26–84 mm

Short PFNA Main Nail

Diameter options: Ø9, Ø10, Ø11 and Ø12 mm

Diameter	Model	Specification
Ø9 mm	RPFNA09180	Ø9 × 180 mm
	RPFNA09200	Ø9 × 200 mm
	RPFNA09220	Ø9 × 220 mm
	RPFNA09240	Ø9 × 240 mm
Ø10 mm	RPFNA10180	Ø10 × 180 mm
	RPFNA10200	Ø10 × 200 mm
	RPFNA10220	Ø10 × 220 mm
	RPFNA10240	Ø10 × 240 mm
Ø11 mm	RPFNA11180	Ø11 × 180 mm
	RPFNA11200	Ø11 × 200 mm
	RPFNA11220	Ø11 × 220 mm
	RPFNA11240	Ø11 × 240 mm
Ø12 mm	RPFNA12180	Ø12 × 180 mm
	RPFNA12200	Ø12 × 200 mm
	RPFNA12220	Ø12 × 220 mm
	RPFNA12240	Ø12 × 240 mm

Long PFNA Main Nail

Diameter options: Ø9, Ø10 and Ø11 mm · Right and left configurations

Diameter	Side	Length	Model
Ø9 mm	Right	320 mm	RPFNA09320R
		340 mm	RPFNA09340R
		360 mm	RPFNA09360R
		380 mm	RPFNA09380R
		400 mm	RPFNA09400R
		420 mm	RPFNA09420R
		440 mm	RPFNA09440R
	Left	320 mm	RPFNA09320L
		340 mm	RPFNA09340L
		360 mm	RPFNA09360L
		380 mm	RPFNA09380L
		400 mm	RPFNA09400L
		420 mm	RPFNA09420L
		440 mm	RPFNA09440L
Ø10 mm	Right	320 mm	RPFNA10320R
		340 mm	RPFNA10340R
		360 mm	RPFNA10360R
		380 mm	RPFNA10380R
		400 mm	RPFNA10400R
		420 mm	RPFNA10420R
		440 mm	RPFNA10440R
	Left	320 mm	RPFNA10320L
		340 mm	RPFNA10340L
		360 mm	RPFNA10360L
		380 mm	RPFNA10380L
		400 mm	RPFNA10400L
		420 mm	RPFNA10420L
		440 mm	RPFNA10440L
Ø11 mm	Right	320 mm	RPFNA11320R
		340 mm	RPFNA11340R
		360 mm	RPFNA11360R
		380 mm	RPFNA11380R
		400 mm	RPFNA11400R
		420 mm	RPFNA11420R
		440 mm	RPFNA11440R
	Left	320 mm	RPFNA11320L
		340 mm	RPFNA11340L
		360 mm	RPFNA11360L
		380 mm	RPFNA11380L
		400 mm	RPFNA11400L
		420 mm	RPFNA11420L
		440 mm	RPFNA11440L

PFNA Helical Blade Screw

Diameter: Ø10.4 mm

Model	Specification	Length
RSDPD10D470	Ø10.4 × 70 mm	70 mm
RSDPD10D475	Ø10.4 × 75 mm	75 mm
RSDPD10D480	Ø10.4 × 80 mm	80 mm
RSDPD10D485	Ø10.4 × 85 mm	85 mm
RSDPD10D490	Ø10.4 × 90 mm	90 mm
RSDPD10D495	Ø10.4 × 95 mm	95 mm
RSDPD10D4100	Ø10.4 × 100 mm	100 mm
RSDPD10D4105	Ø10.4 × 105 mm	105 mm
RSDPD10D4110	Ø10.4 × 110 mm	110 mm
RSDPD10D4115	Ø10.4 × 115 mm	115 mm
RSDPD10D4120	Ø10.4 × 120 mm	120 mm

4.7 mm PFNA Distal Locking Screw

Diameter: Ø4.7 mm · Length range: 26–84 mm

Model	Specification
RSPFNALD4726	Ø4.7 × 26 mm
RSPFNALD4728	Ø4.7 × 28 mm
RSPFNALD4730	Ø4.7 × 30 mm
RSPFNALD4732	Ø4.7 × 32 mm
RSPFNALD4734	Ø4.7 × 34 mm
RSPFNALD4736	Ø4.7 × 36 mm
RSPFNALD4738	Ø4.7 × 38 mm
RSPFNALD4740	Ø4.7 × 40 mm
RSPFNALD4742	Ø4.7 × 42 mm
RSPFNALD4744	Ø4.7 × 44 mm
RSPFNALD4746	Ø4.7 × 46 mm
RSPFNALD4748	Ø4.7 × 48 mm
RSPFNALD4750	Ø4.7 × 50 mm
RSPFNALD4752	Ø4.7 × 52 mm
RSPFNALD4754	Ø4.7 × 54 mm
RSPFNALD4756	Ø4.7 × 56 mm
RSPFNALD4758	Ø4.7 × 58 mm
RSPFNALD4760	Ø4.7 × 60 mm
RSPFNALD4764	Ø4.7 × 64 mm
RSPFNALD4768	Ø4.7 × 68 mm
RSPFNALD4772	Ø4.7 × 72 mm
RSPFNALD4776	Ø4.7 × 76 mm
RSPFNALD4780	Ø4.7 × 80 mm
RSPFNALD4784	Ø4.7 × 84 mm

Product availability and final system configuration should be confirmed using the latest XC Medico product catalog. Send the required model numbers and quantities when requesting a quotation.

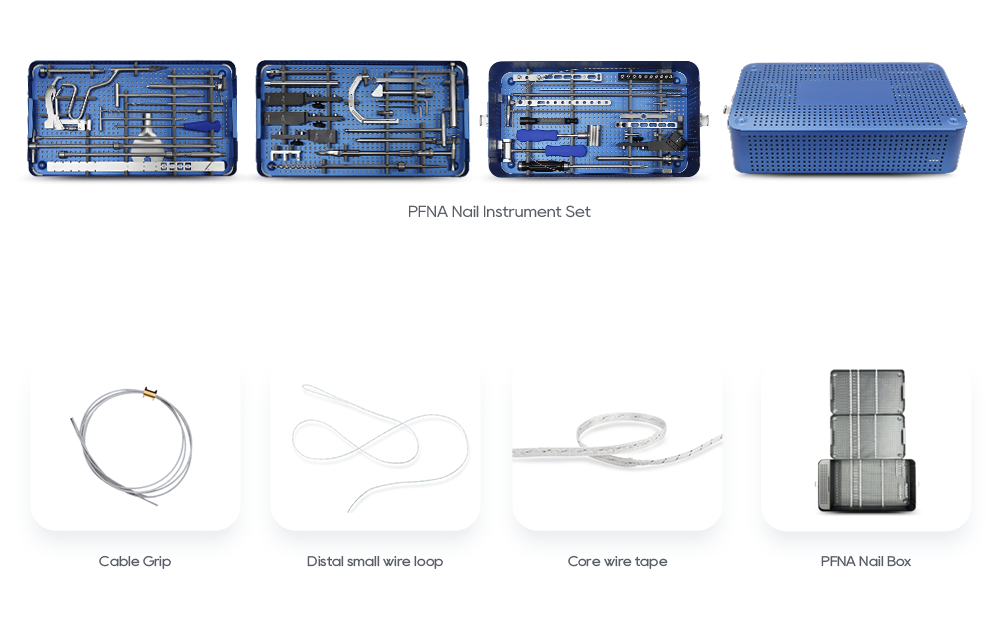

PFNA intramedullary nail instrument set in sterilization trays

Implants + Instruments

Dedicated PFNA Nail Instrument Set

The dedicated instrument set supports nail insertion, proximal targeting, helical blade preparation, distal locking and implant removal in an organized tray system.

Insertion Handle Aiming Arm Guide Instruments Protection Sleeves Blade Inserter Extraction Tools

View the PFNA Nail Instrument Set →

Distributor-Oriented Supply

PFNA System Supply and Project Support

XC Medico supports distributors and orthopedic project buyers with coordinated implant, instrument, documentation and private-label supply.

Complete System Quotation

Request implants, blades, screws, instruments and trays in one quotation.

Catalog and Product Matching

Match required sizes, configurations and instrument compatibility before ordering.

OEM / Private Label

Discuss product labeling, packaging and branding requirements for distributor projects.

Registration Support

Coordinate available product documents according to the destination market.

Replacement Components

Confirm compatible replacement implants and selected instrument components by model.

Responsive Quotation

Send your size list or competitor reference for product matching and pricing.

Frequently Asked Questions

PFNA Intramedullary Nail System FAQ

What is included in the PFNA intramedullary nail system?

The system can include short or long PFNA nails, matching helical blades, distal locking screws, end caps and a dedicated PFNA surgical instrument set. The final configuration depends on the requested model and size list.

Are short and long PFNA nails available?

Yes. The current product information includes short PFNA nails from 180 to 240 mm and long PFNA nails from 320 to 440 mm.

Is a complete PFNA instrument set available?

Yes. A dedicated instrument system is available for nail insertion, proximal targeting, drilling, depth measurement, helical blade placement, distal locking and extraction.

Can the PFNA system be supplied under a private label?

Private-label packaging and project customization can be discussed according to order quantity, labeling requirements, destination market and available documentation.

Can distributors request implants and instruments in one quotation?

Yes. Send the required nail models, sizes, blade and screw ranges, instrument configuration and expected quantity for a coordinated PFNA system quotation.

Are surgical technique materials available?

A surgical workflow video is available on this page. Product manuals and additional technical files can be provided according to the requested system configuration.

Complete PFNA Solution

Request a PFNA Implant and Instrument Quotation

Send your target sizes, expected quantity, packaging requirements or competitor reference. Our team will help match the PFNA implants, locking components and instrument configuration.
